SKU: SCTR-103-EG
(1)
Made in USA

Trolley Beam Joint Support - Electro-Galvanized

Regular price $1799
Ships Nov 17 when you order now

Description

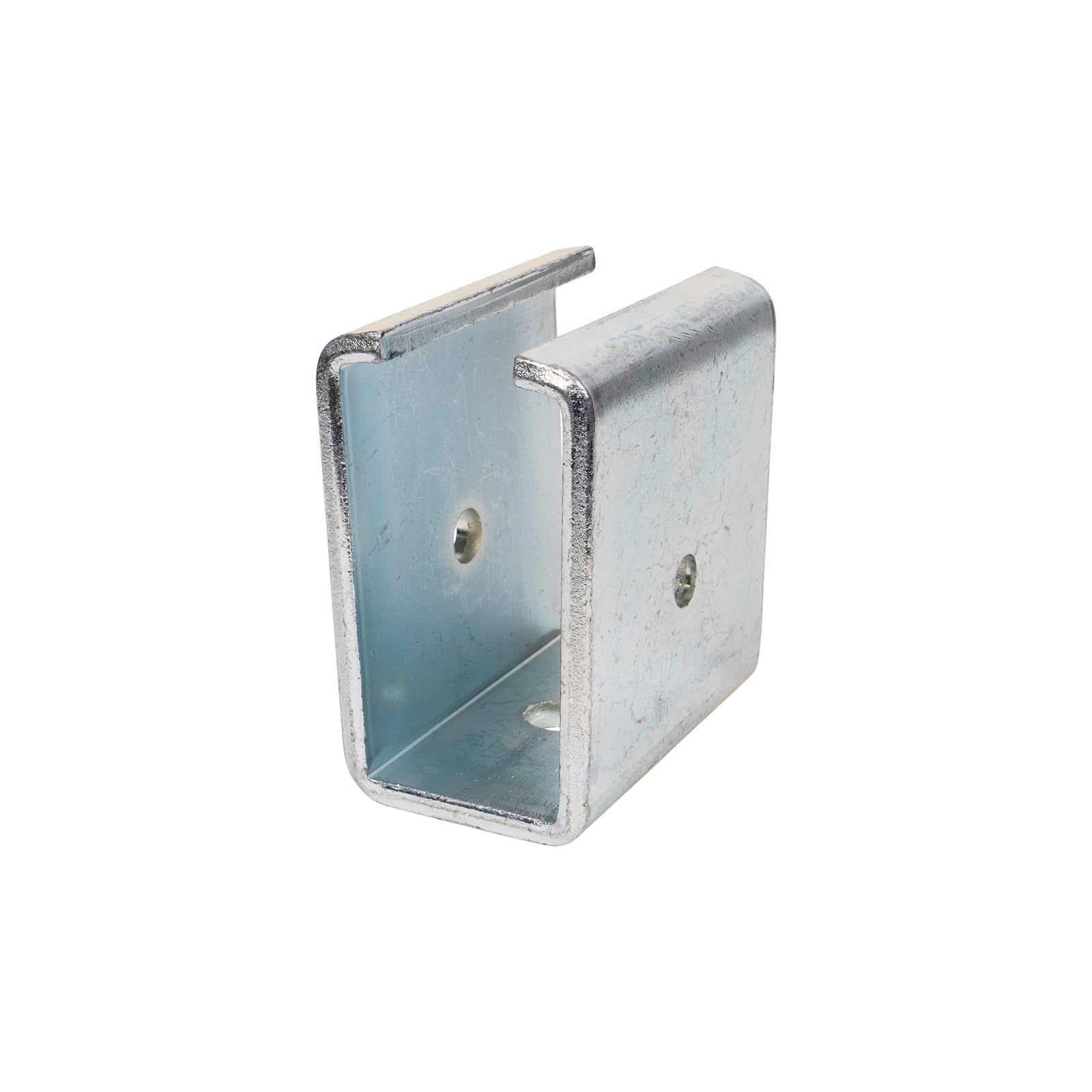

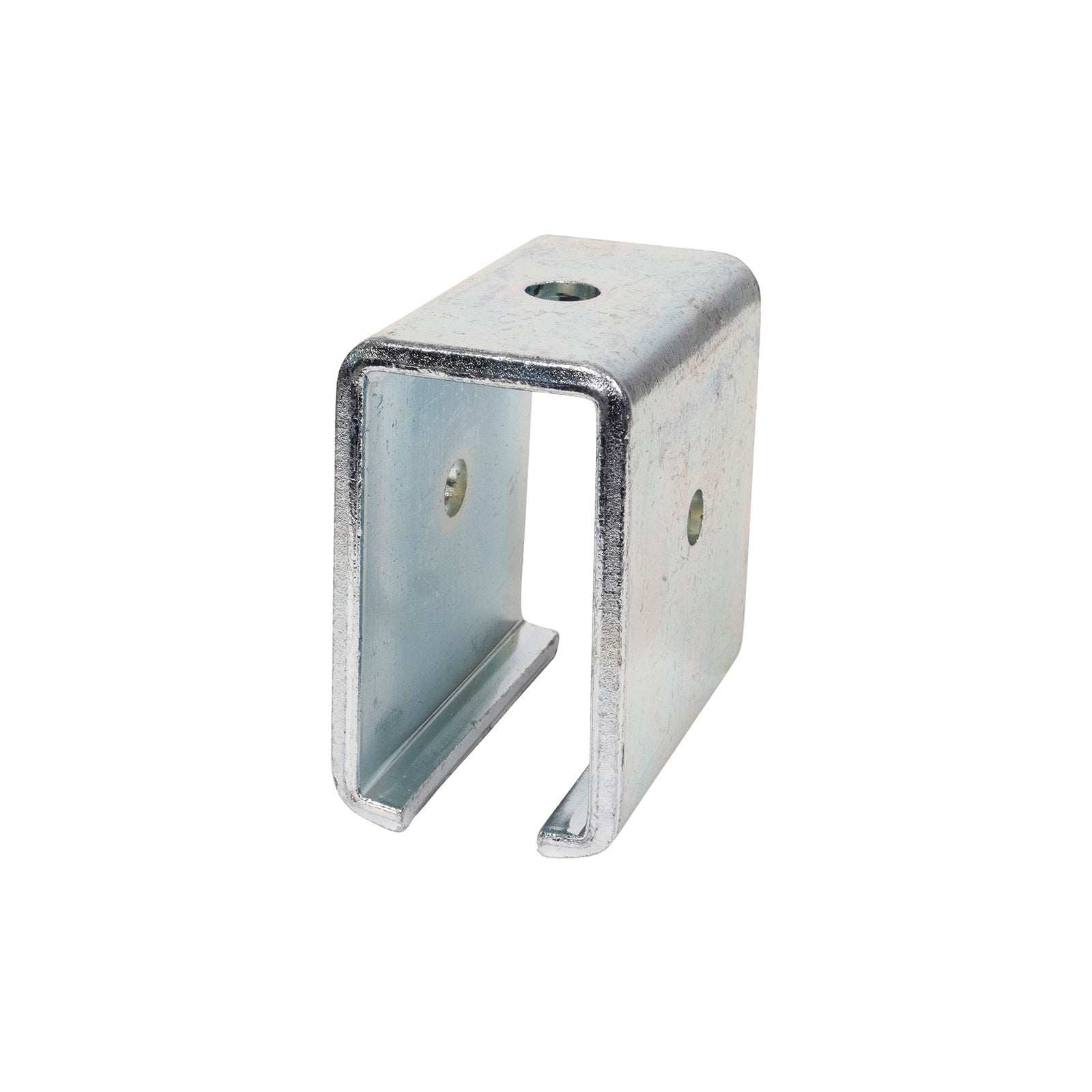

Trolley Beam Joint Support - Electro-Galvanized

The Trolley Beam Joint Support - Electro-Galvanized is designed to reinforce strut channel systems where channel sections meet within trolley beam assemblies. It helps maintain alignment while supporting smooth lateral movement along the trolley path. A reliable component for interior installations that require controlled motion and consistent structural support.

Electro-Galvanized Trolley Beam Joint Support for 1-5/8" Strut Channel

This joint support connects directly with channel trolleys to stabilize strut channel at connection points. Sized for 1-5/8" wide channel, it delivers dependable performance in dry, low-humidity environments when paired with like-metal hardware.

Key Features

  • Joint Reinforcement: Supports strut channel connections within trolley beam systems.
  • Trolley-Compatible Design: Integrates directly with channel trolleys for controlled movement.
  • Structural-Grade Steel: Manufactured to ASTM A575 or ASTM A1011 Grade 33 specifications.
  • Standard Channel Fit: Designed for use with 1-5/8" wide strut channel.

Common Applications

  • Trolley-supported strut channel systems
  • Material handling and sliding support assemblies
  • Adjustable mechanical support frameworks
  • HVAC and utility installations
  • Commercial interior construction

Installation Tips

  • Confirm compatibility with both the trolley and channel before installation.
  • Use like-metal hardware to ensure consistent performance.
  • Check alignment at the joint to allow smooth lateral channel movement.

Related Items:

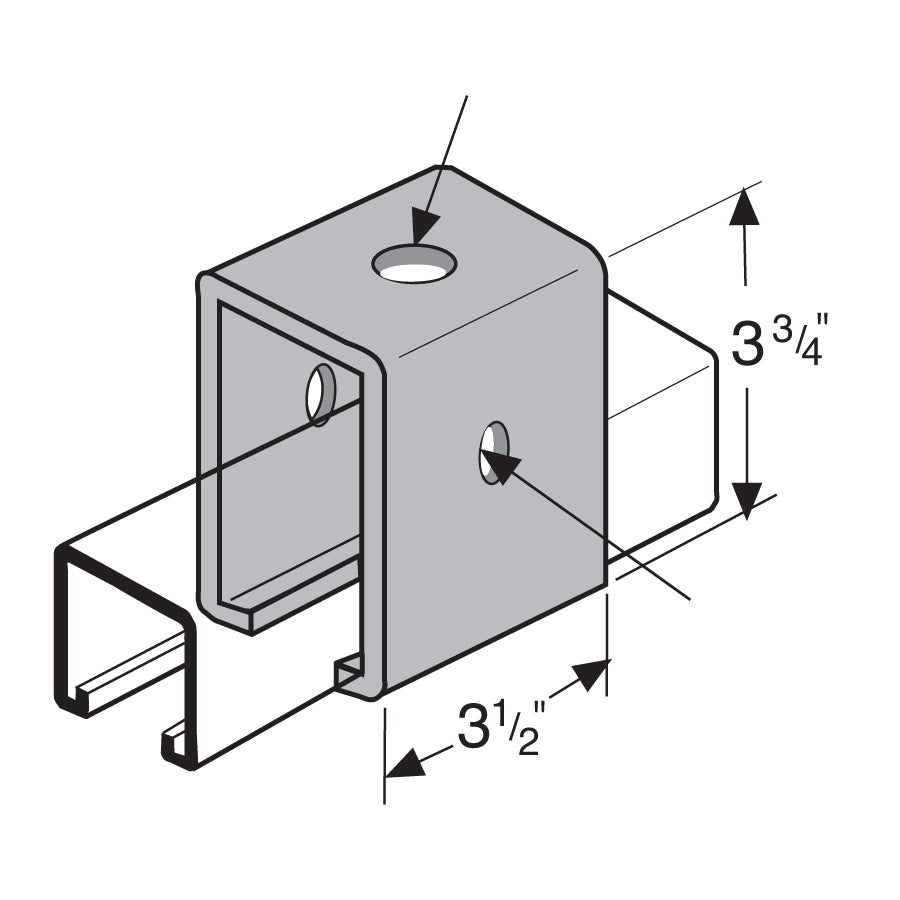

Specifications

Width: 1-5/8"
Thickness: 1/4"
Material: Carbon Steel
Finish: Electro-Galvanized
Standards: Finish = ASTM B-633 (Type III SC1 (0.2 mil thickness)) & Material = ASTM A575 or ASTM A1011 Grade 33
Manufacturer Name: Flex-Strut

Reviews
(1)

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Andrew Waters
Happy I found you

While working on a project to hang a trolley and hoist in the garage I discovered that I couldn’t mount the uni-struts with bolts and have free travel of the trolley. Also, I needed a way to support the struts. I was so relieved, after much searching, to find this channel support. It is exactly what I needed to get the job done. It’s nice and heavy duty.
