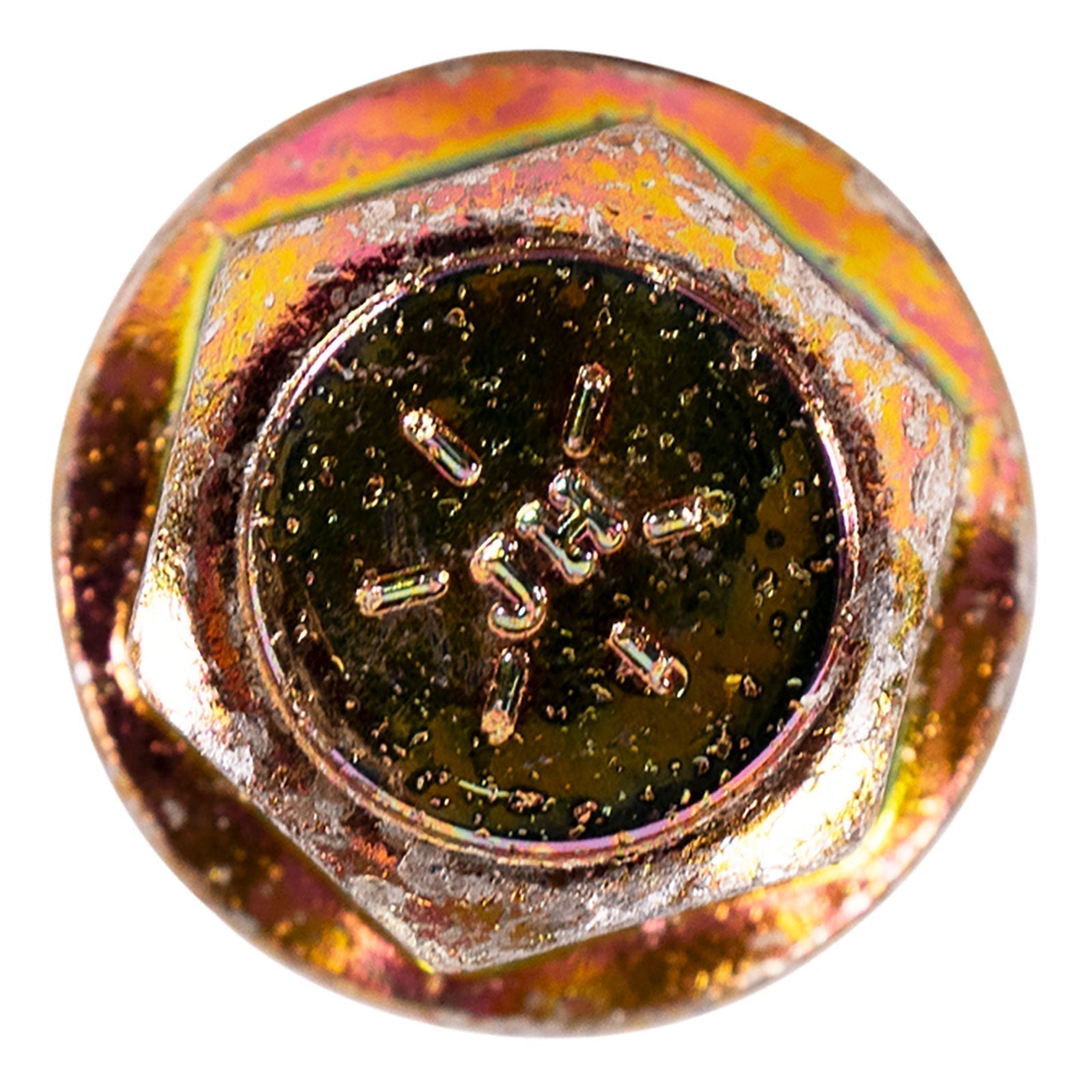

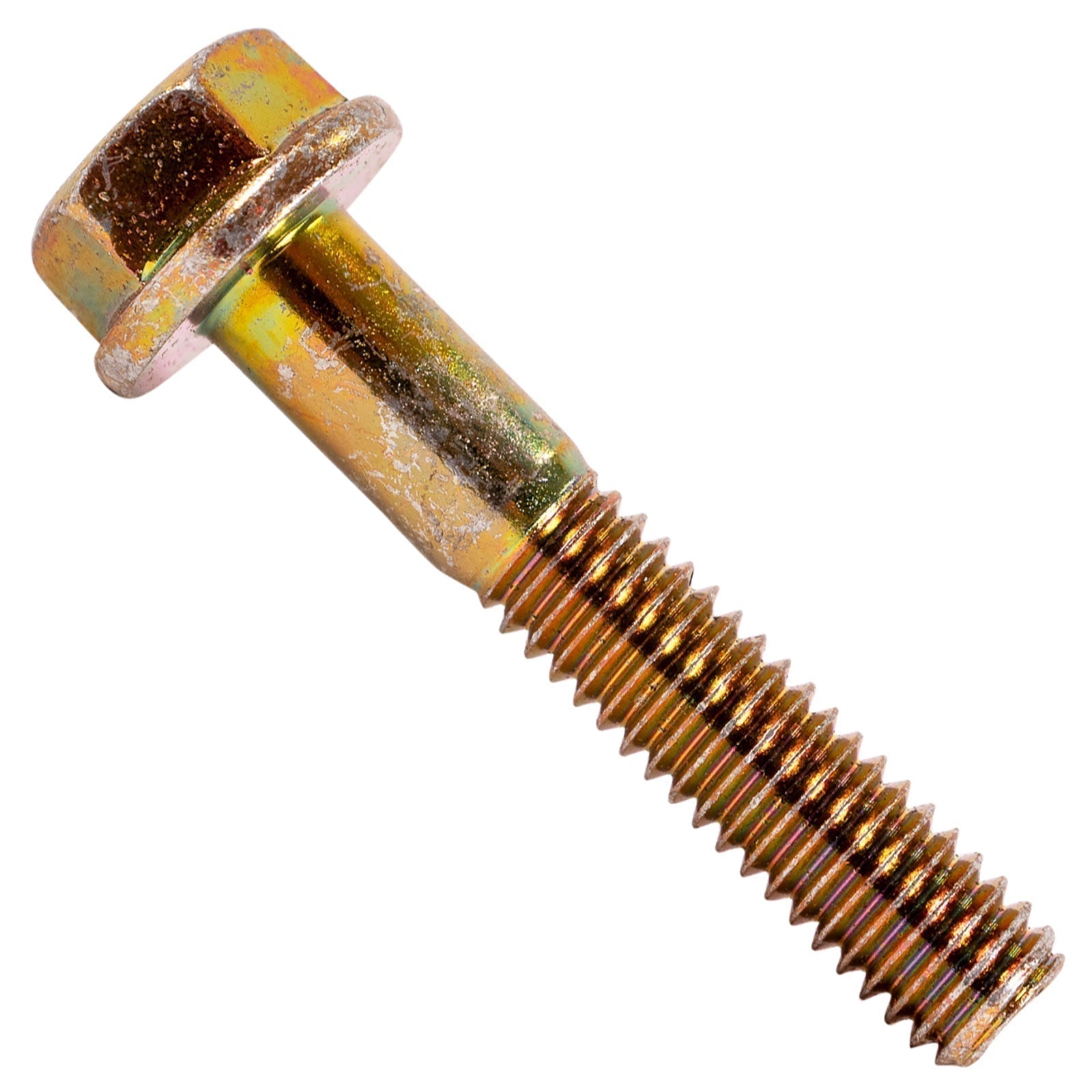

Conquest 5/16" x 1-3/4" Grade 8 Non-Serrated Flange Bolt - Zinc Yellow Cr+6
Diameters
Lengths
Description
Description
5/16" x 1-3/4" Conquest Grade 8 Non-Serrated Flange Bolt With Yellow Zinc Finish
When pairing a nut with a hex bolt, the material and finish must match. If these do not match, the nut will not fit the bolt.
The 5/16" Conquest Grade 8 Non-Serrated Flange Bolt is built for high-performance fastening in applications where strength, reliability, and surface protection matter. Crafted from high-strength Grade 8 steel and finished with a corrosion-resistant zinc yellow coating, this flange bolt is ready to perform in automotive, machinery, and structural settings.
Secure Fit. Surface-Safe. Built to Last.
The integrated flange eliminates the need for a separate washer by evenly distributing clamping force. The non-serrated head prevents marring on sensitive or finished surfaces, ideal for slotted or precision components.
Key Features
- Grade 8 Steel: Provides exceptional tensile strength for demanding applications.
- Zinc Yellow Coating: Offers corrosion resistance with a clean, professional appearance.
- Flange Head Design: Spreads load evenly, reducing damage to joined surfaces.
- Non-Serrated Underside: Suitable for use where surfaces must remain unmarred.
- Thread Spec: Coarse thread, 18 threads per inch (TPI).
Common Applications
- Structural steel framing and fabrication in construction or industrial settings
- Heavy equipment assembly including loaders, lifts, and mechanical arms
- Automotive chassis, suspension systems, and drivetrain components
- Agricultural and industrial machinery installations
- High-load bolting where vibration resistance and surface protection are critical
Installation Tips
- Torque bolts to SAE J429 specifications to ensure proper preload and bolt performance
- Use with Grade 8 nuts and hardened washers to maintain full tensile strength and load distribution
- Avoid overtightening to protect mating surfaces, especially in slotted holes or precision applications
- Inspect flange seating for flush contact to prevent loosening under vibration
- Verify the bolt length provides full thread engagement without bottoming out
California Residents: WARNING
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
Specifications
Specifications
X9- ASTM Equivalent: A354 Grade BD
