SKU: 7540CE-RED
3" x 40' Ratchet Strap with Chain Extensions | Red
3" x 40' Ratchet Strap with Chain Extensions | Red!
SKU: 7540CE-RED
3" x 40' Ratchet Strap with Chain Extensions | Red
$87.99
Get 10+
$85.36/ea
Get 25+
$83.60/ea
Get 50+
$80.96/ea
Colors:
Lengths:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Strap Solutions
Build Your Tie DownPayment Options
Specifications
Assembly break strength: 16,200 lbs.
Color: Red
Length: 40'
Working load limit: 5,400 lbs.
End fitting: Chain Extension
Fixed End Length: 2.5'
Product weight: 17.93 lbs.
Ratchet handle: Standard
Shipping and returns: This item cannot be returned due to being made to order.
Standards: AWRF Accredited: learn more.
Width: 3"
Description

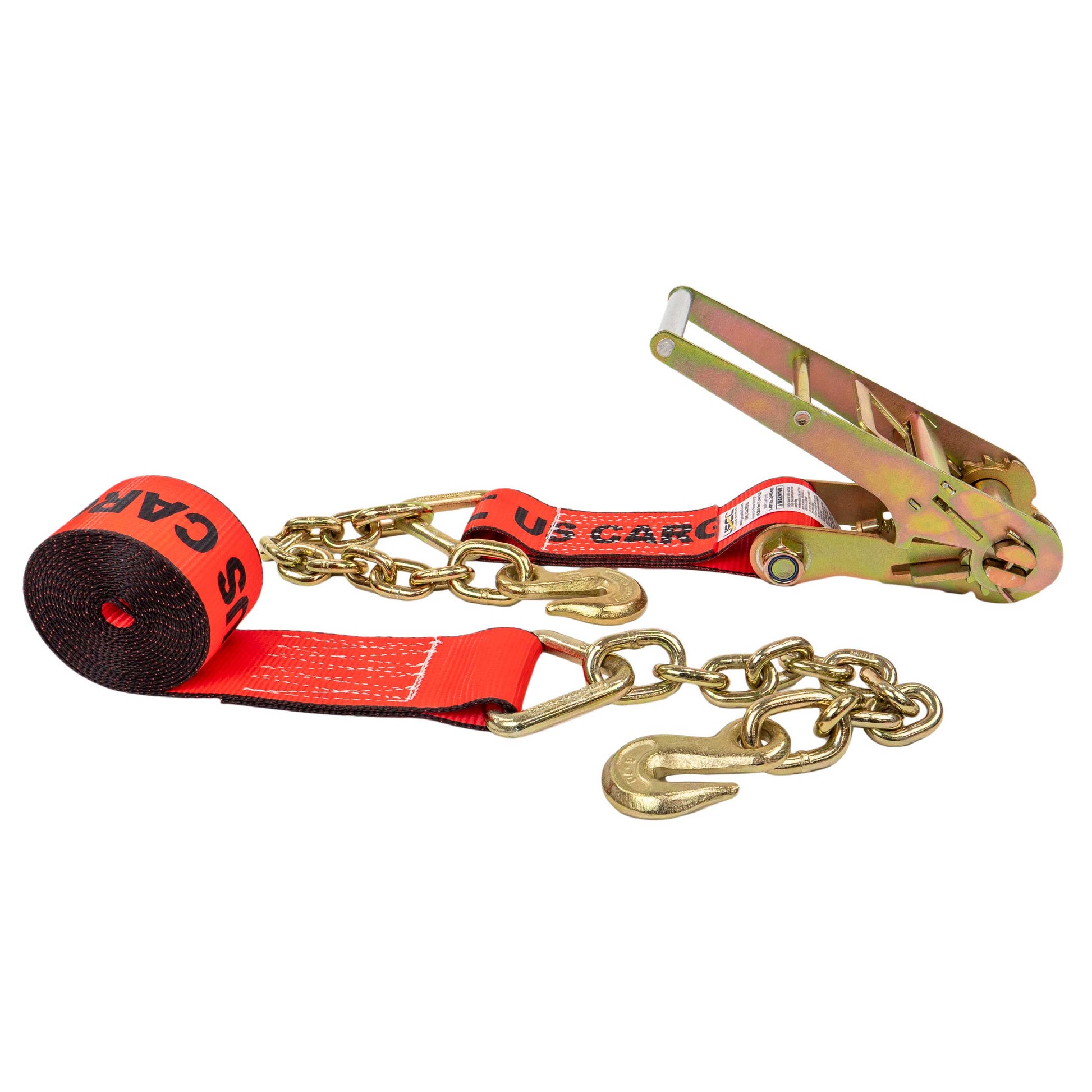

3" x 40' Red Tie Down Strap with Chain Extension
Ratchet straps are a staple in the transportation industry - the polyester straps are rugged yet soft to protect your cargo, and the ratcheting mechanism makes it simple to achieve a tight, secure hold. The 3" low-stretch polyester webbing offers the same working load limit as our standard 4" ratchet straps but with less bulk so they are easier to handle and, unlike cam straps, ratchets don't rely solely on operator strength, so you can add the perfect amount of tension to the strap.
Three Inch Ratchet Strap Features
The yarn used to make our webbing is slightly thicker than that offered by most competitors, with more picks per inch used to create each strap. It's also heat-sealed on the end. Together, these features provide better resistance to abrasion, tearing, and cutting, so your ratchet straps will last longer.

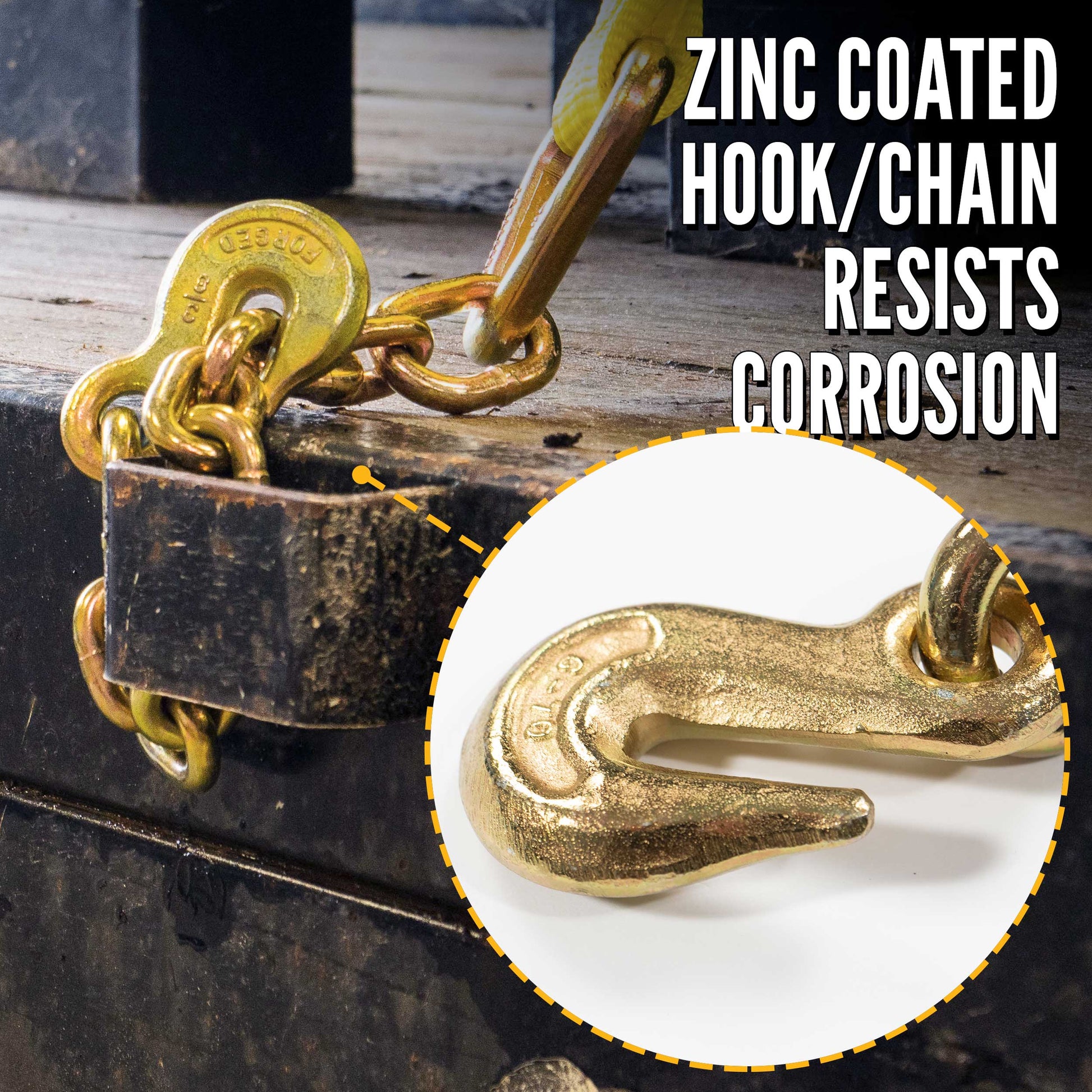

The ratchet and chain extensions all have a protective zinc coating for corrosion-resistance.
3" Chain End Tie Down Strap Industry Compliance

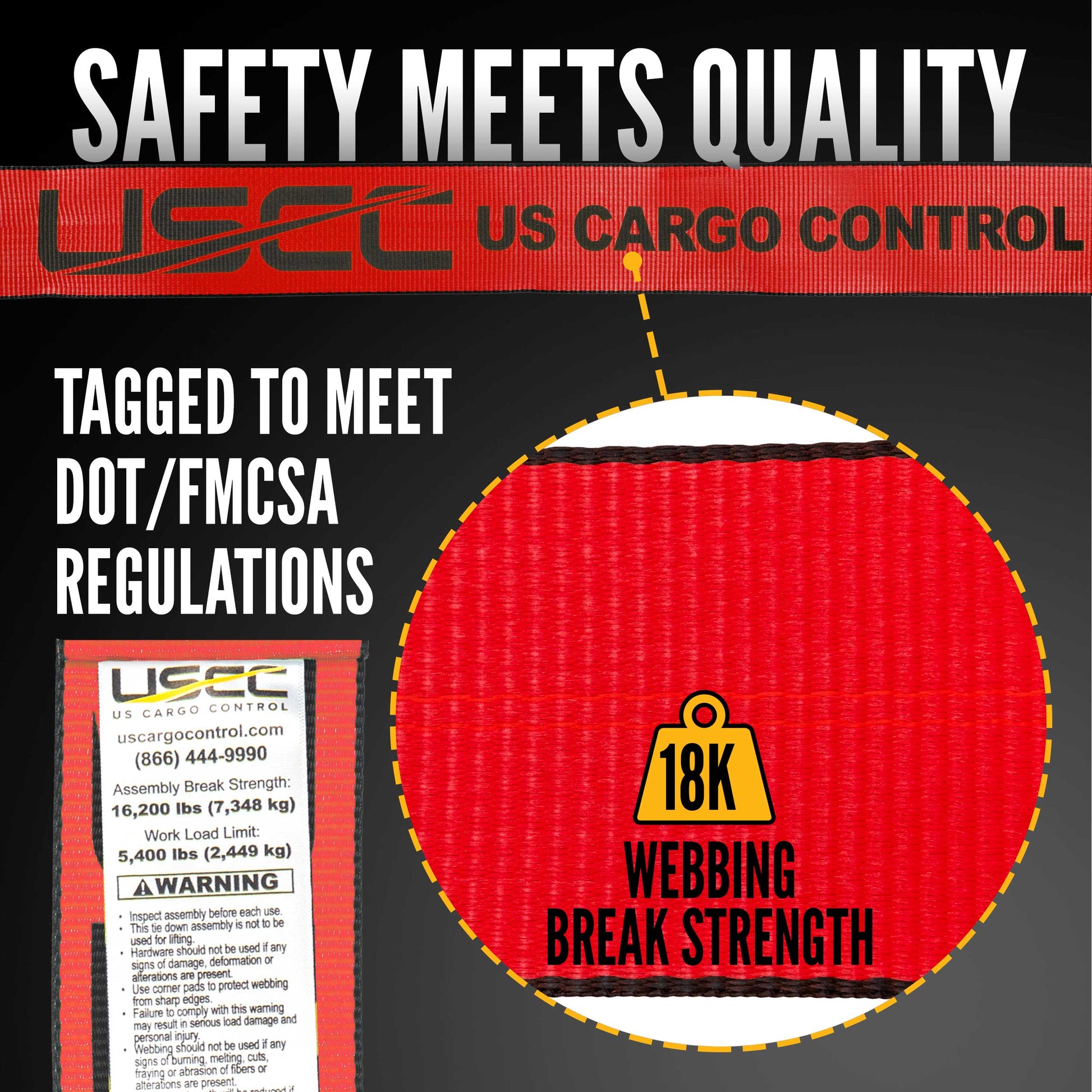

All of our ratchet straps are tagged and stenciled with break strength and working load limit to meet FMCSA and DOT regulations, CVSA and WSTDA guidelines, and North American Cargo Securement standards.
Learn more about proper load handling and securement in the WSTDA safety bulletins.

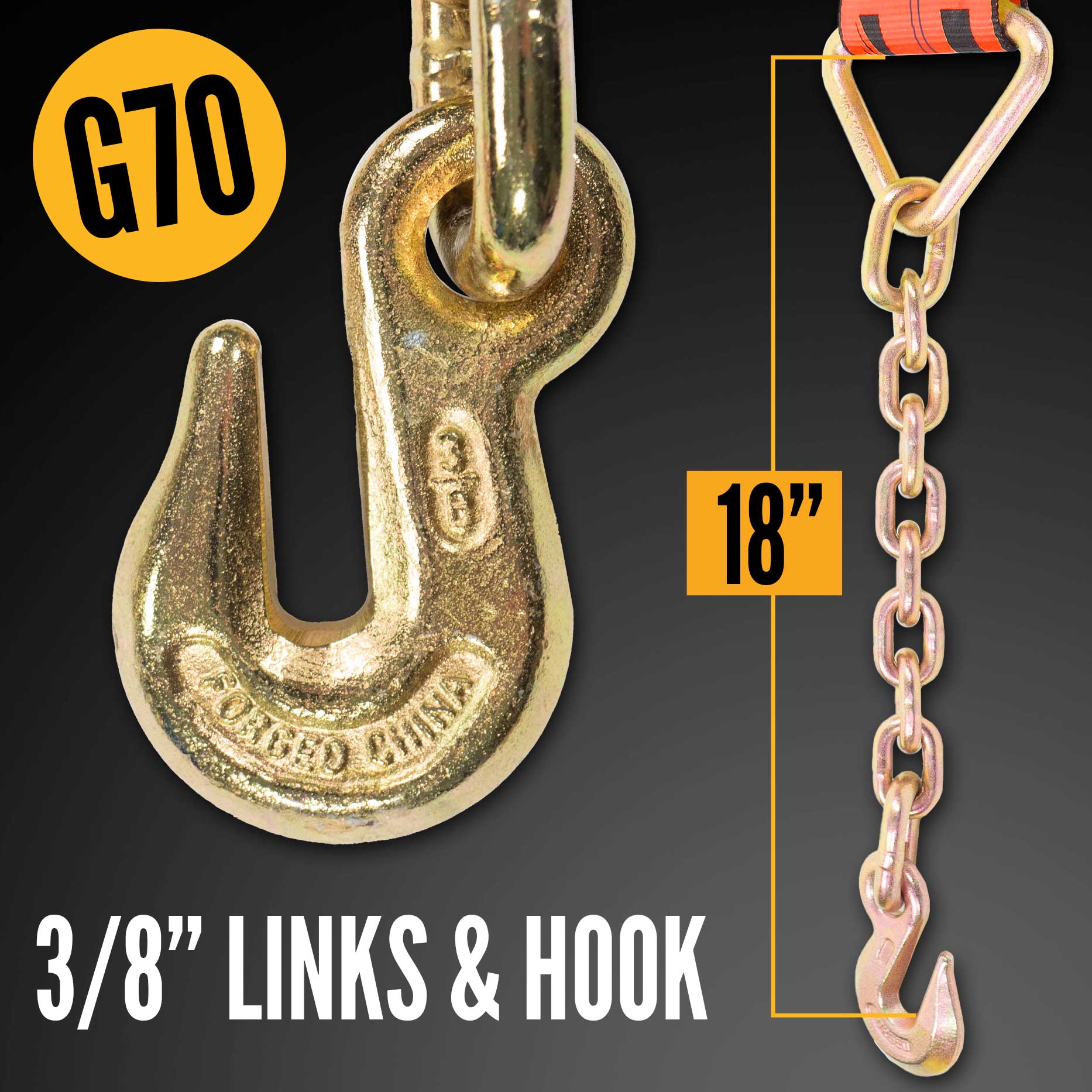

Why Choose 3/8" Chain Extension End Hardware?

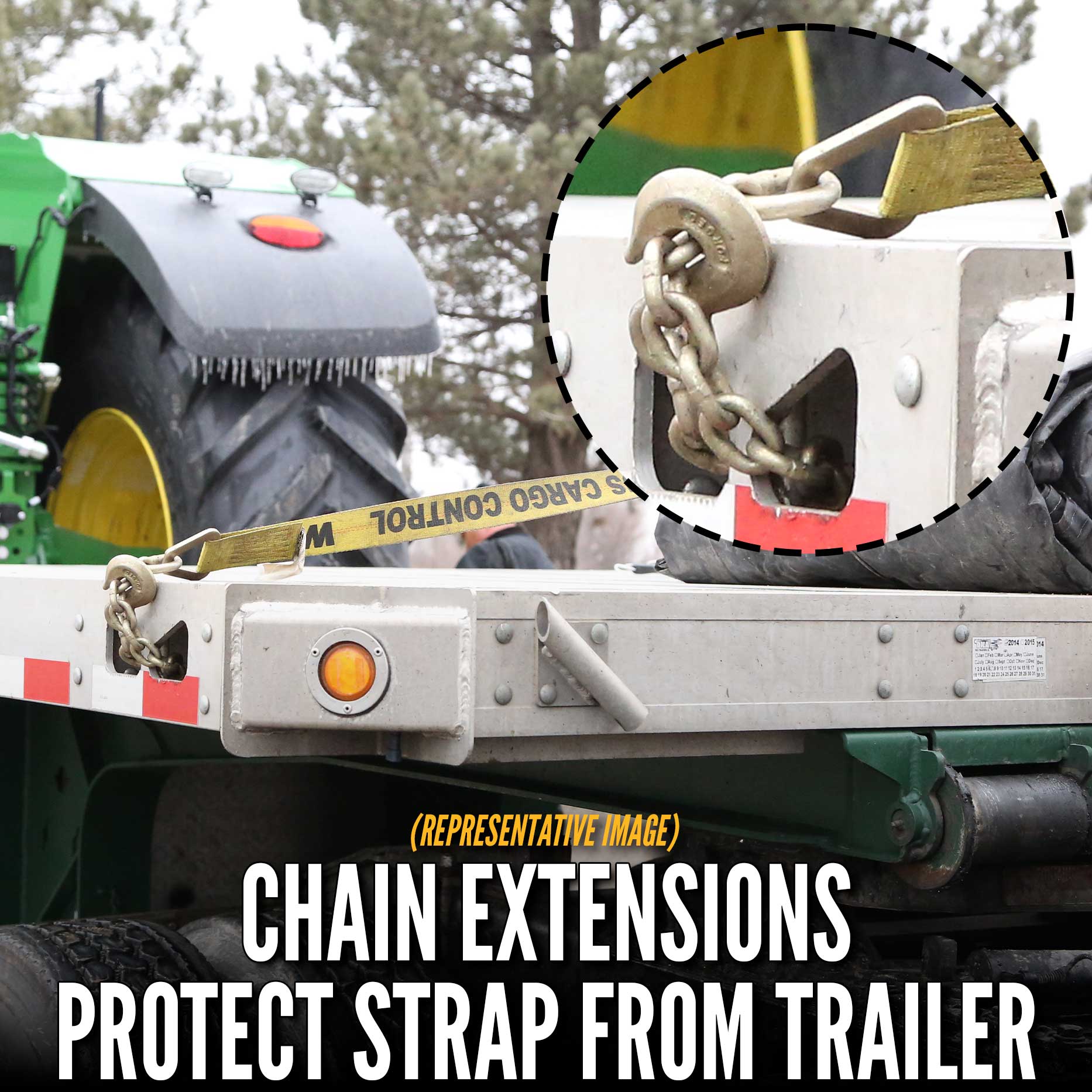

Chain extensions allow you to combine the strength of grade 70 transport chain with the softness of polyester webbing. You can use the rub rails or stake pockets on your truck or trailer to tie down your cargo without risking damage to the webbing part of the strap. The extensions are 18" long with a 3" D-ring and clevis grab hook for quick and secure connections.
Custom Ratchet Straps Available
Looking for a combination of length, color, or hardware you don't see on the website? Want straps stenciled with your company name or logo? We also offer custom tie down straps!
Ratchet Use Guidelines
According to the WSTDA (section 4.6.8): "When using web tie downs with a winch or ratchet, a minimum of 2 and a maximum of 4 wraps of webbing shall be wound on the winch or ratchet mandrel. Excessive wraps of webbing on the mandrel may reduce the working load limit (WLL) of the web tie down and may interfere with proper operation."
What is Design Factor?
Another term defined by the WSTDA, design factor is the "ratio of the breaking strength to the working load limit" and should be 3:1 for these tie down straps. This builds in a level of redundancy to account for unknown factors, keeping you, your crew, and those around you safe.
Complete Your Tie-Down System
US Cargo Control is your one-stop shop for all cargo securement products, including strap protection, transport chain and binders, corner protectors, and more.
California Residents: WARNING
How to Thread a Ratchet Strap | How to Release a Ratchet Strap
-
Durable Black Edging
Our black-edged webbing is designed to give our durable 3" and 4" straps a sharp, clean, and sleek look. Upgrade to a strap that’s as tough as it is refined.
-
Tested for the Highest Quality
All our tie-down straps are rigorously tested to meet or exceed industry standards, ensuring the highest quality and long-lasting performance. Our industrial-grade webbing features heat-sealed ends and is manufactured with thicker yarn and more picks per inch than competitors. Additionally, our hardware is made from thicker metal, guaranteeing a more durable, heavy-duty strap that lasts.
-
Customize Your Straps
Learn MoreOur onsite manufacturing facility allows us to handle whatever your cargo control needs entail - quickly. Customize your straps by: webbing, custom stenciling, hardware, and custom tags. Bring us your vision and we'll turn it into reality.
-
