Conquest 3/8" x 3" A307 Carriage Bolt - Hot Dip Galvanized
Diameters
Lengths
Description
Description

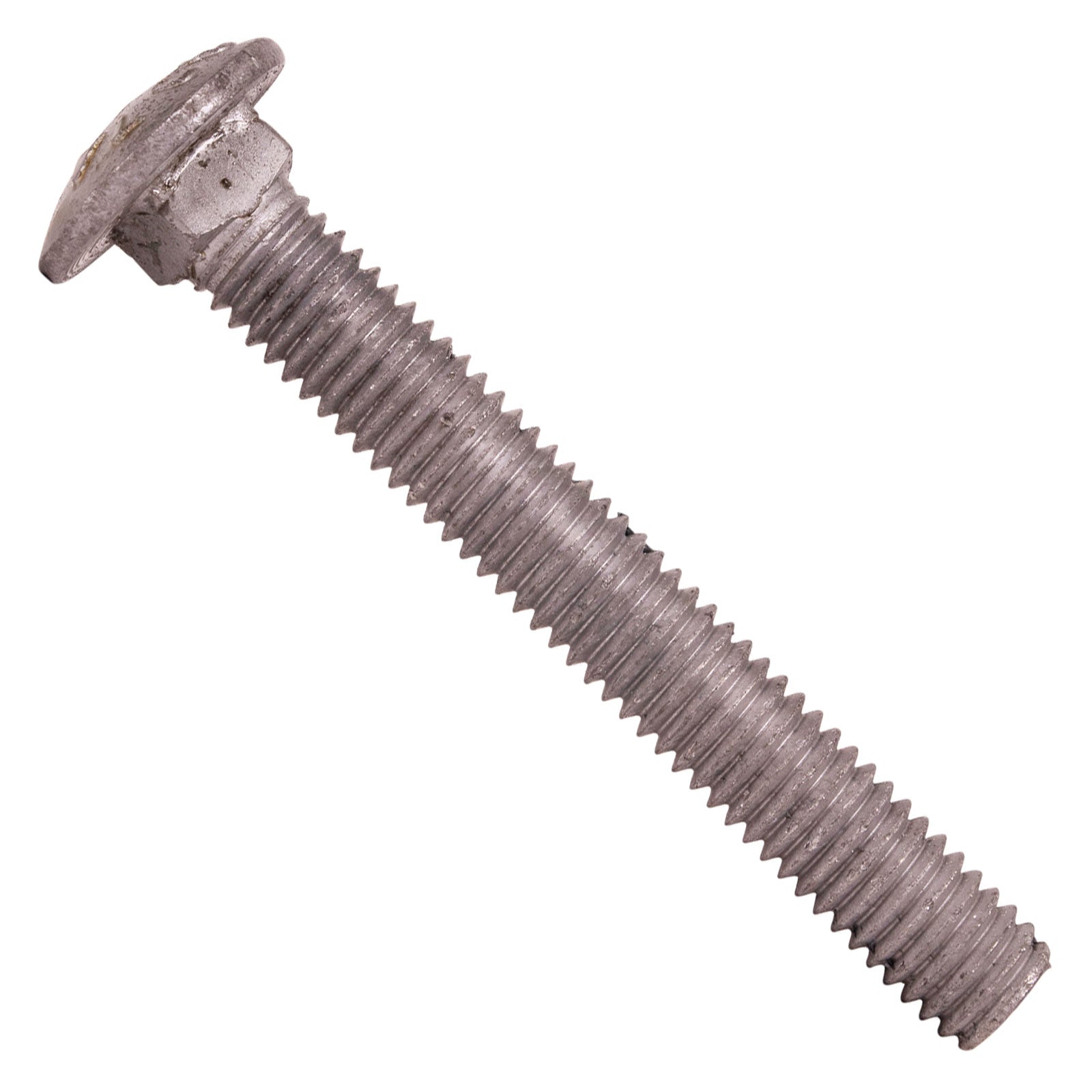

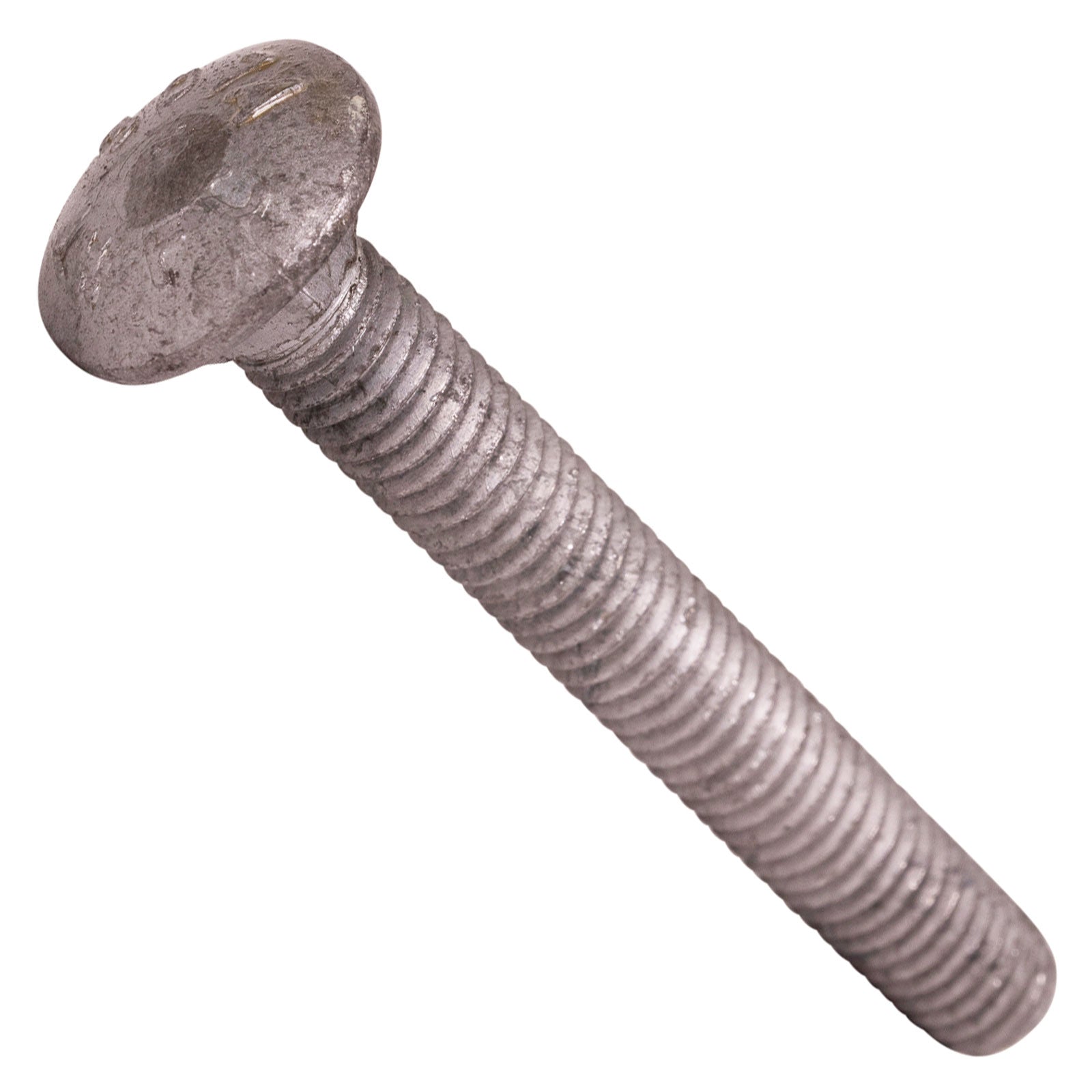

Conquest 3/8" x 3" A307 Carriage Bolt with Galvanized Finish
When pairing a nut with a hex bolt, the material and finish must match. If these do not match, the nut will not fit the bolt.
The Conquest 3/8" A307 Carriage Bolt is crafted for general-purpose outdoor use, combining strength, durability, and corrosion resistance. Its hot dip galvanized finish offers superior protection in wet or treated lumber environments, making it ideal for structural wood connections in decks, fences, and timber framing.
This bolt features a domed round head for a clean appearance and a square neck that grips into wood or metal to prevent spinning during installation. Manufactured from low-carbon steel and compliant with ASTM A307 standards, it offers reliable tensile strength for residential, agricultural, or light commercial construction.
Key Features
- Diameter: 3/8"
- Thread Type: Coarse
- Threads Per Inch (TPI): 16
- Material: Low Carbon Steel
- Finish: Hot Dip Galvanized
- Head Type: Round head with square neck to prevent rotation
Applications
- Deck building
- Fencing and timber frames
- Pergolas and pavilions
- Outdoor structures and framing
- Marine and coastal construction
Installation Instructions
- Drill a clearance hole through all materials being fastened.
- Insert the bolt, ensuring the square neck seats properly in the wood or metal substrate.
- Secure using a compatible hot dip galvanized nut and washer (sold separately).
- Apply torque to specification for a safe and secure hold.
California Residents: WARNING
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
