Specifications

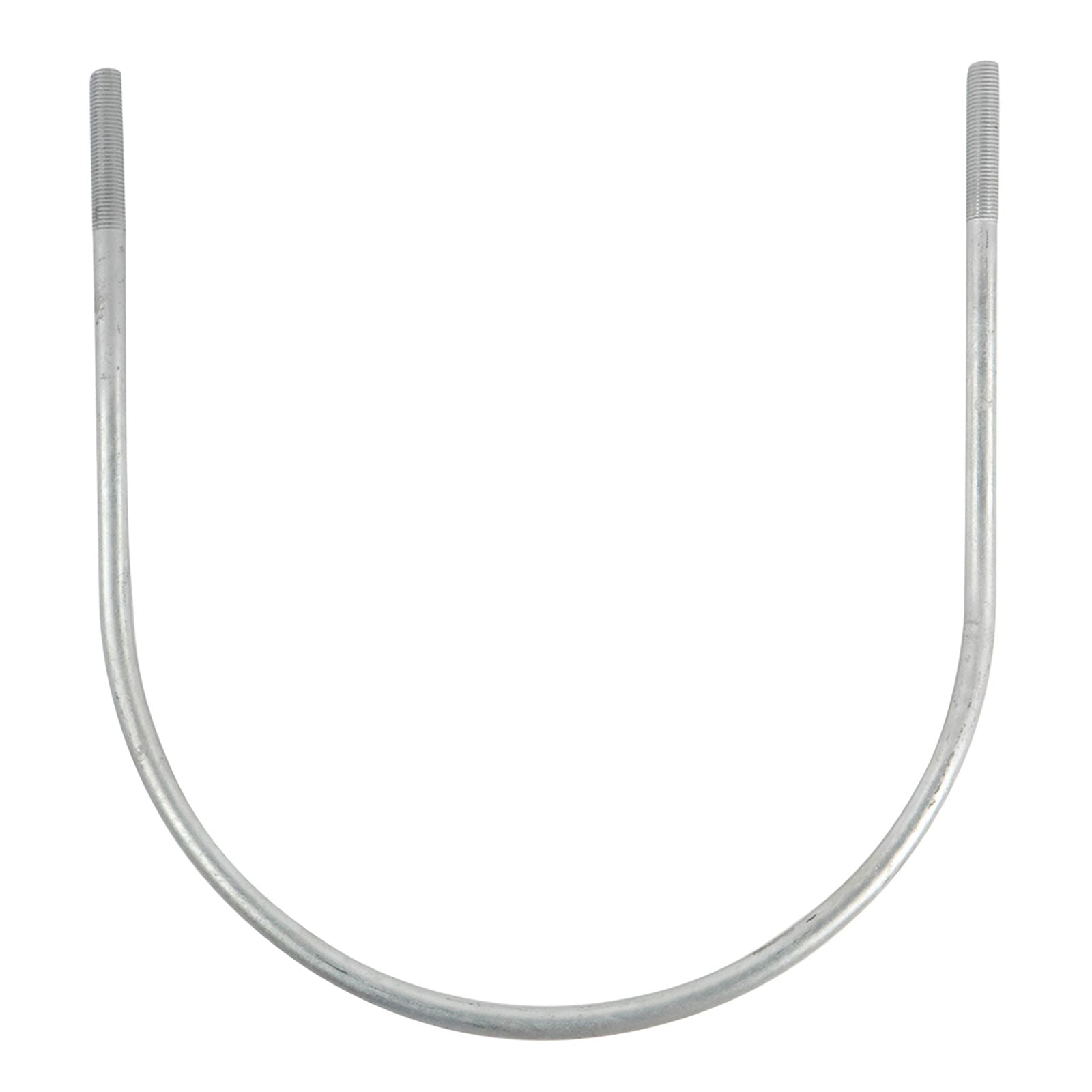

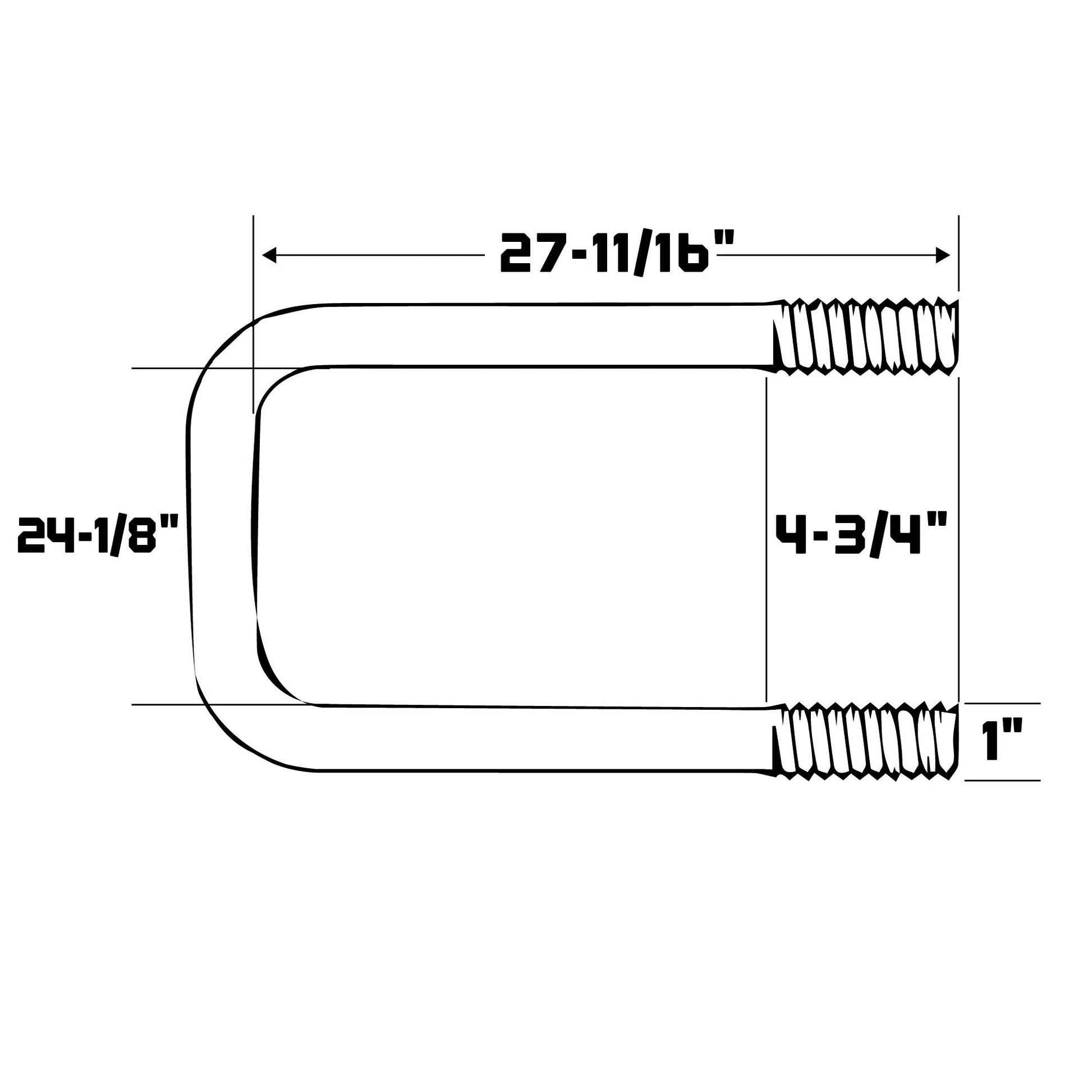

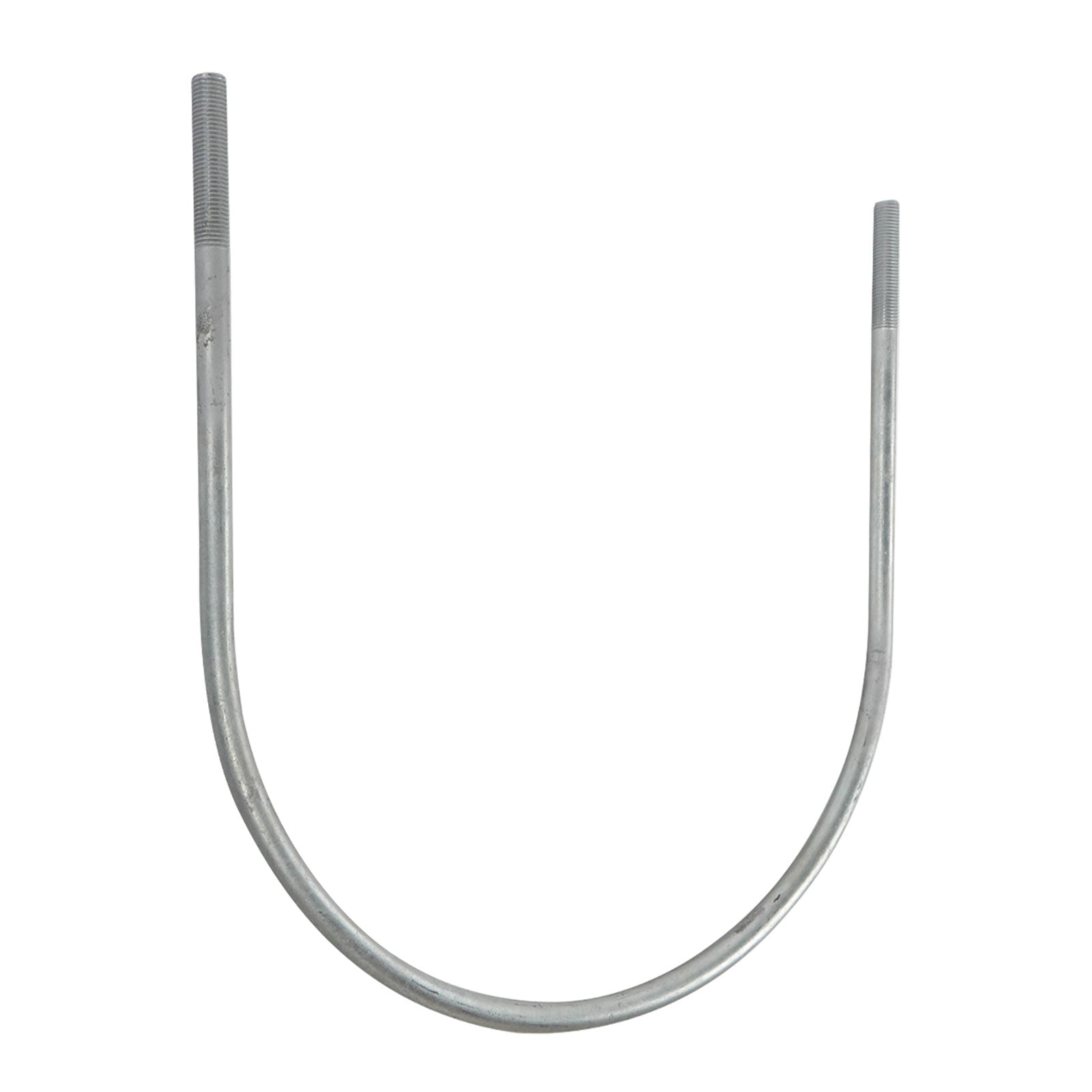

Conquest 24-1/8" x 27-11/16" x 1" Round Pipe U Bolt - Hot Dip Galvanized
This oversized Conquest U Bolt is built to secure large-diameter pipe and tubing in structural or heavy industrial applications. Its hot dip galvanized finish protects the steel body from corrosion, while the wide round bend offers stable surface contact for long-span pipes.
Large Galvanized U Bolt for 24" OD Pipe
Designed for use with extra-large conduit, exhaust, or industrial piping, this U bolt delivers high holding power where it’s needed most. It resists shifting and vibration in utility and outdoor installations.
Key Features
- 24-1/8" Width: Fits large-diameter round pipes or structural tubing.
- Hot Dip Galvanized: Provides rust resistance in moisture-prone environments.
- 1" Diameter: Heavy-duty threaded legs for high load capacity.
- Round Bend: Wraps cleanly around pipe for secure anchoring.
Common Applications
- Large pipe mounting
- Utility framing and conduit routing
- Heavy structural bracing
- Outdoor or marine support systems
- Bridge or industrial supports
Installation Tips
- Use appropriately sized pilot holes or plates for mounting.
- Tighten both sides evenly to avoid twisting the pipe.
- Optional plate use is recommended for extra support under load.
