SKU: SPAS58-VB
5/8" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 3.25 Ton
5/8" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 3.25 Ton!
$18.52
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 3.25 tons (Metric) / 7,165 lbs.
Brand part number: GPGHBB16
Finish: Galvanized
Inside height: 2.53"
Inside width: 1.69"
Manufacturer name: Van Beest
Material: Grade 6 High-Tensile Steel
Mouth width: 1.06"
Pin size: 3/4"
Product weight: 1.38 lbs.
Safety factor: 6:1
Shackle size: 5/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of EN13889, ASME B30.26, ASTM A148M, and Federal Specification RR-C-271.
Type: Screw Pin Anchor
Description

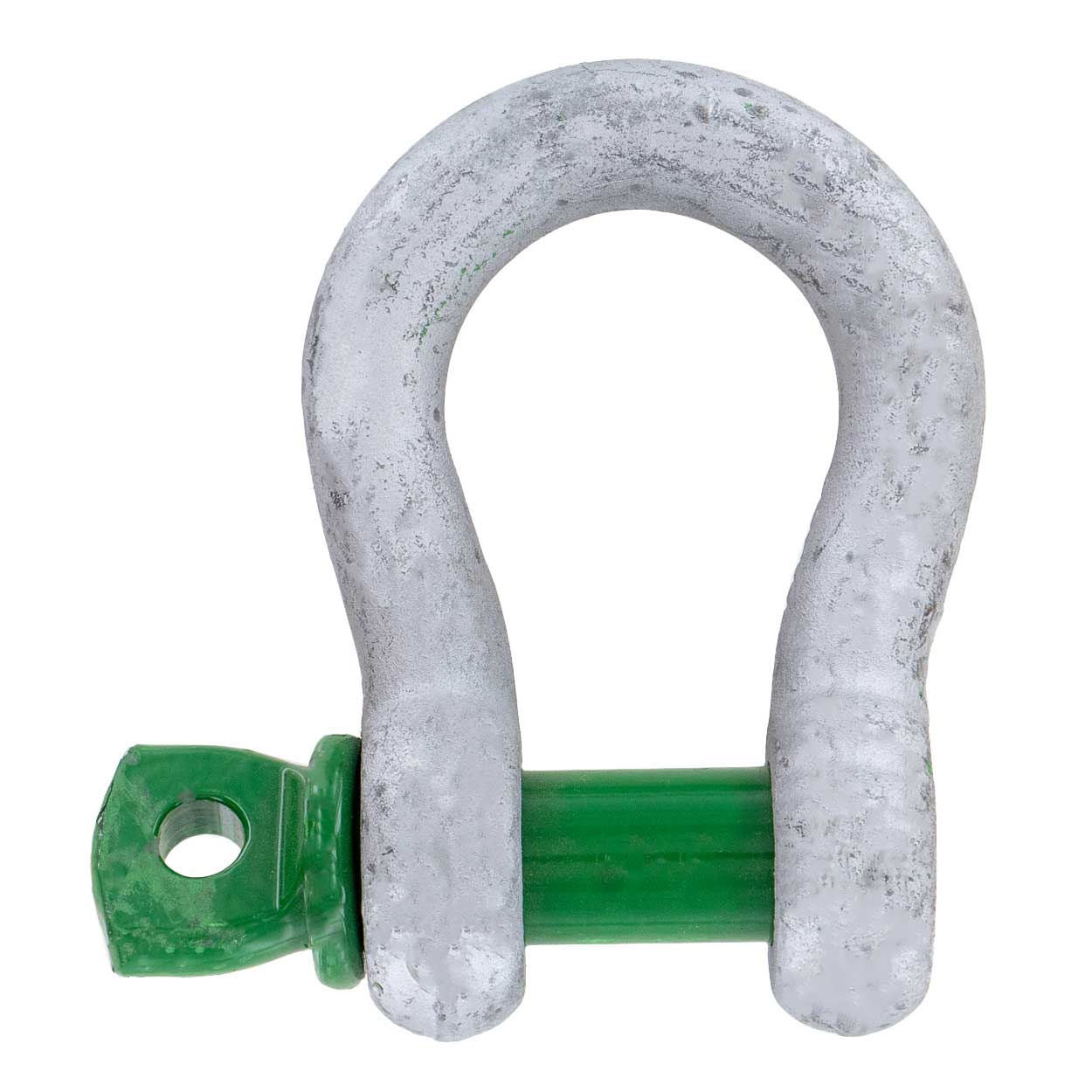

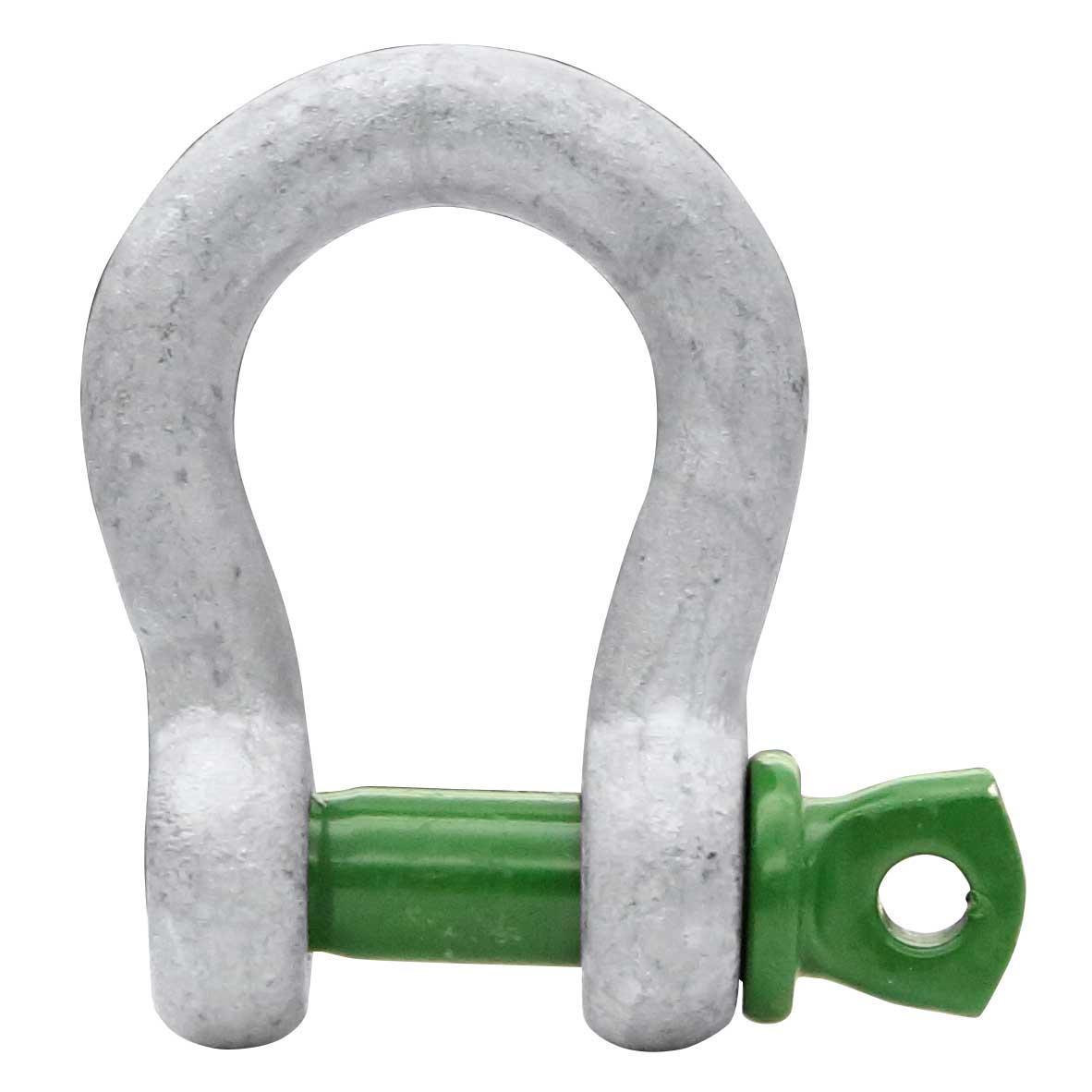

Van Beest 3.25 Ton Screw Pin Anchor Shackles
Van Beest Green Pin® Anchor Shackles are extremely high quality, European-made shackles. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile Grade 6 steel that is quenched and tempered from corrosion.
Why Choose Screw Pin Anchor Shackles?

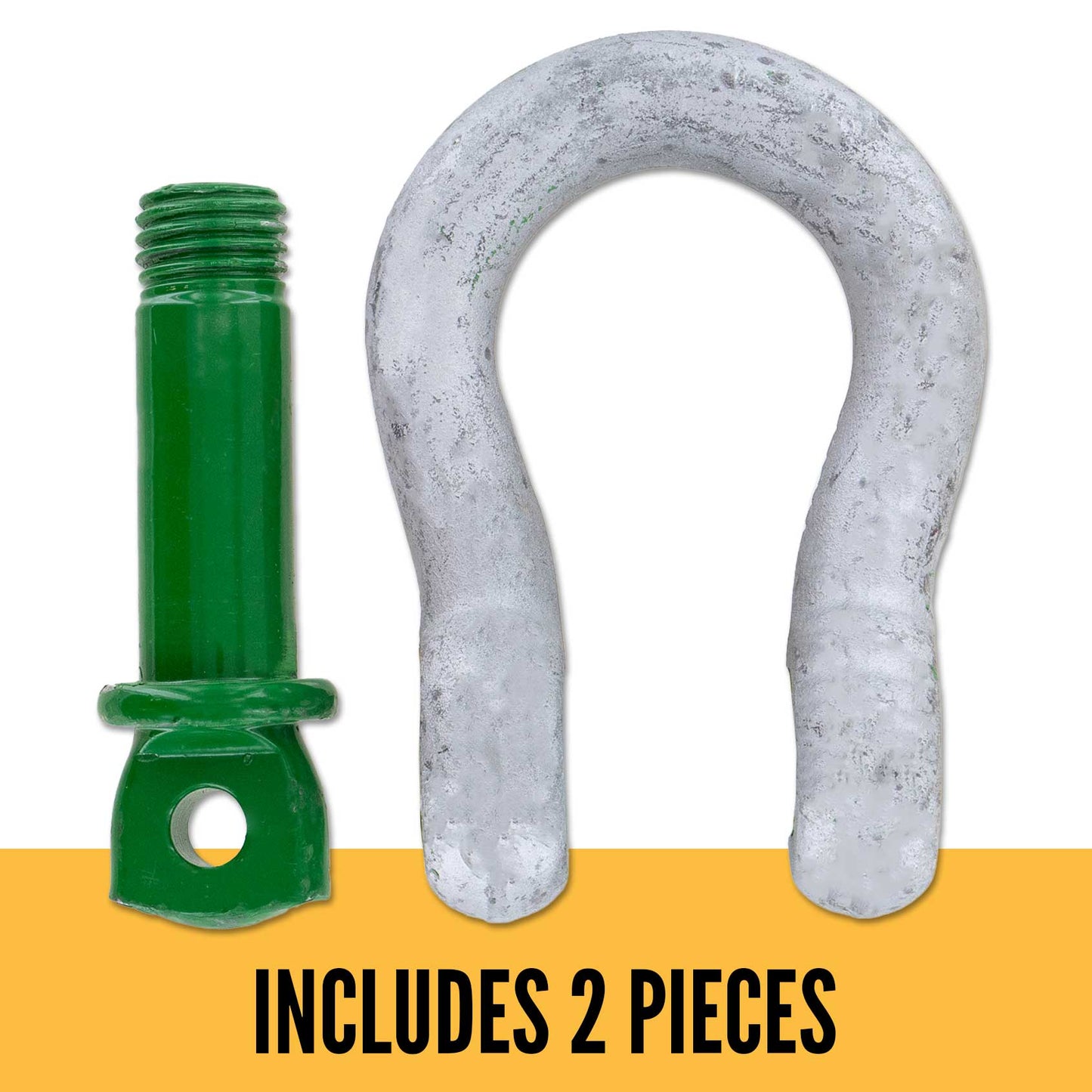

A quick release screw style pin allows these shackles to attach and detach quickly, making them perfect for temporary or non-permanent lifting jobs. Anchor bow shackles have a wider shape than D shaped shackles and are suitable for both single- and multi-leg rigging systems.
G-4161 Shackle Features
- Approved for use at temperatures between -40°F / -40°C and 392°F / 200°C.
- Designed to reduce wire rope wear by hiding the screw thread in a chamber.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
