SKU: SPAS1-18-VB

1-1/8" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 9.5 Ton

1-1/8" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 9.5 Ton!

Skip to product information
1 of 8

SKU: SPAS1-18-VB

1-1/8" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 9.5 Ton

1-1/8" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 9.5 Ton!

Regular price $86.04
Sale price $86.04 Regular price
0% off
Ships in 1-3 business days.
Request Bulk Pricing
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Fill out the form below or give our sales consultants a call at 866-444-9990.

Specifications

  • Working load limit: 9.5 tons (Metric) / 20,943 lbs.
  • Inside width: 2.94"
  • Mouth width: 1.84"
  • Finish: Galvanized
  • Safety factor: 6:1
  • Manufacturer name: Van Beest
  • Brand part number: GPGHBB28
  • Inside height: 4.25"
  • Pin size: 1-1/4"
  • Shackle size: 1-1/8"
  • Standards: Meets all requirements of EN13889, ASME B30.26, and Federal Specification RR-C-271.
  • Type: Screw Pin Anchor
  • Material: Grade 6 High-Tensile Steel
  • Product weight: 6.97 lbs.
  • Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.

Description

Van Beest 9.5 Ton Screw Pin Anchor Shackles

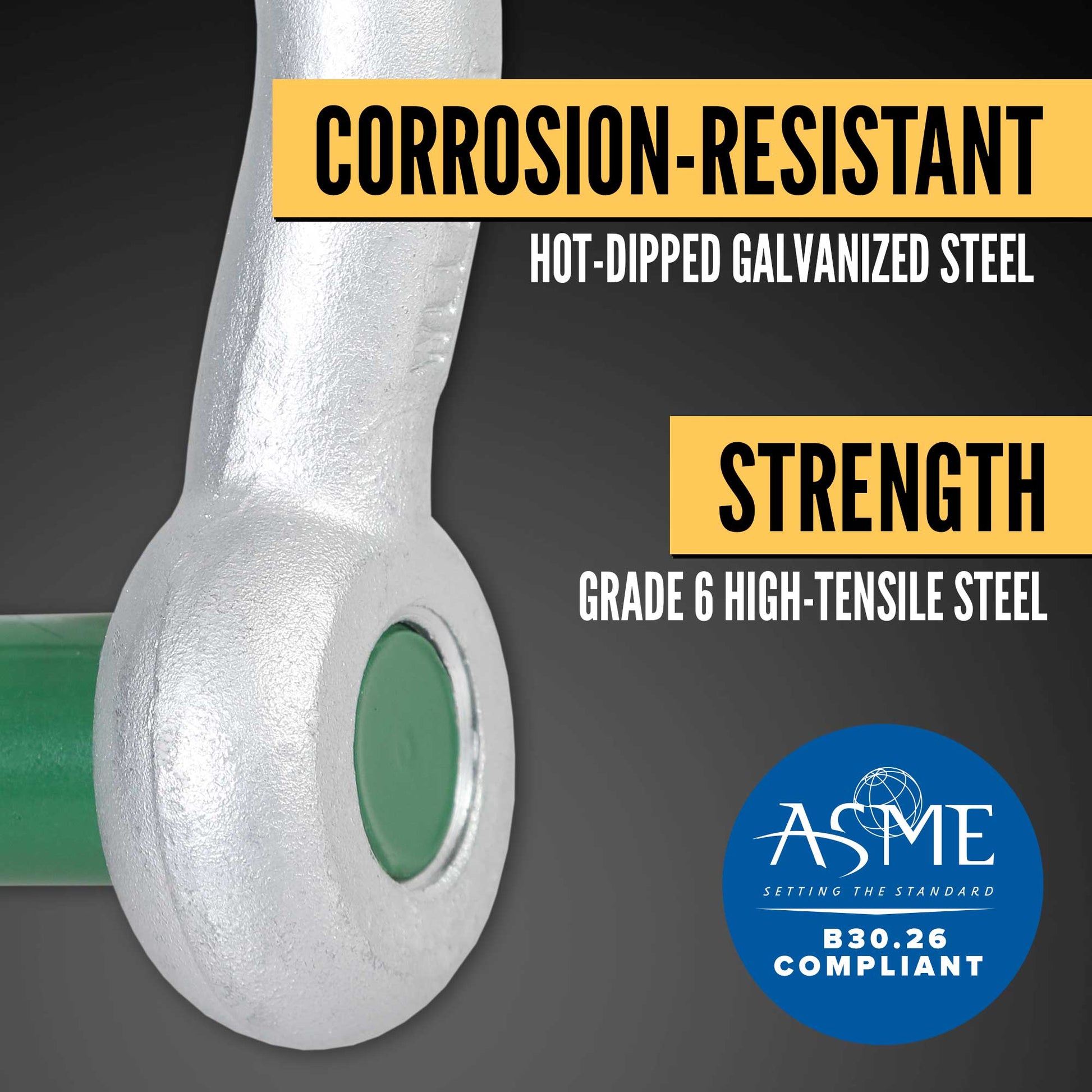

Van Beest Green Pin® Anchor Shackles are extremely high quality, European-made shackles. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile Grade 6 steel that is quenched and tempered from corrosion.

Why Choose Screw Pin Anchor Shackles?

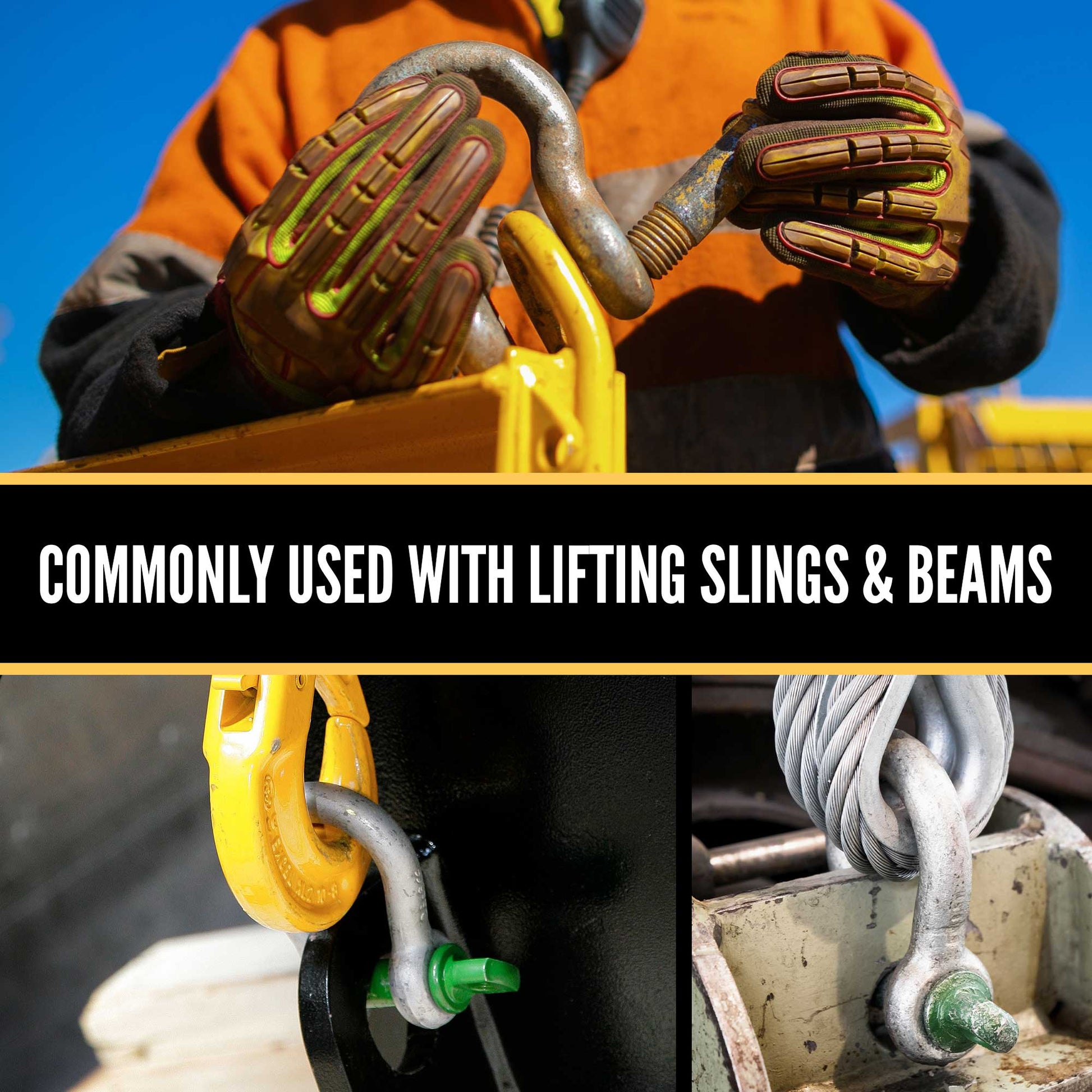

A quick release screw style pin allows these shackles to attach and detach quickly, making them perfect for temporary or non-permanent lifting jobs. Anchor bow shackles have a wider shape than D shaped shackles and are suitable for both single- and multi-leg rigging systems.

G-4161 Shackle Features

  • Approved for use at temperatures between -40°F / -40°C and 392°F / 200°C.
  • Designed to reduce wire rope wear by hiding the screw thread in a chamber.

Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
