SKU: SPAS78-VB
7/8" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 6.5 Ton
7/8" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 6.5 Ton!
$42.79
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 6.5 tons (Metric) / 14,330 lbs.
Brand part number: GPGHBB22
Finish: Galvanized
Inside height: 3.28"
Inside width: 2.28"
Manufacturer name: Van Beest
Material: Grade 6 High-Tensile Steel
Mouth width: 1.41"
Pin size: 1"
Product weight: 3.31 lbs.
Safety factor: 6:1
Shackle size: 7/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of EN13889, ASME B30.26, ASTM A148M, and Federal Specification RR-C-271.
Type: Screw Pin Anchor
Description

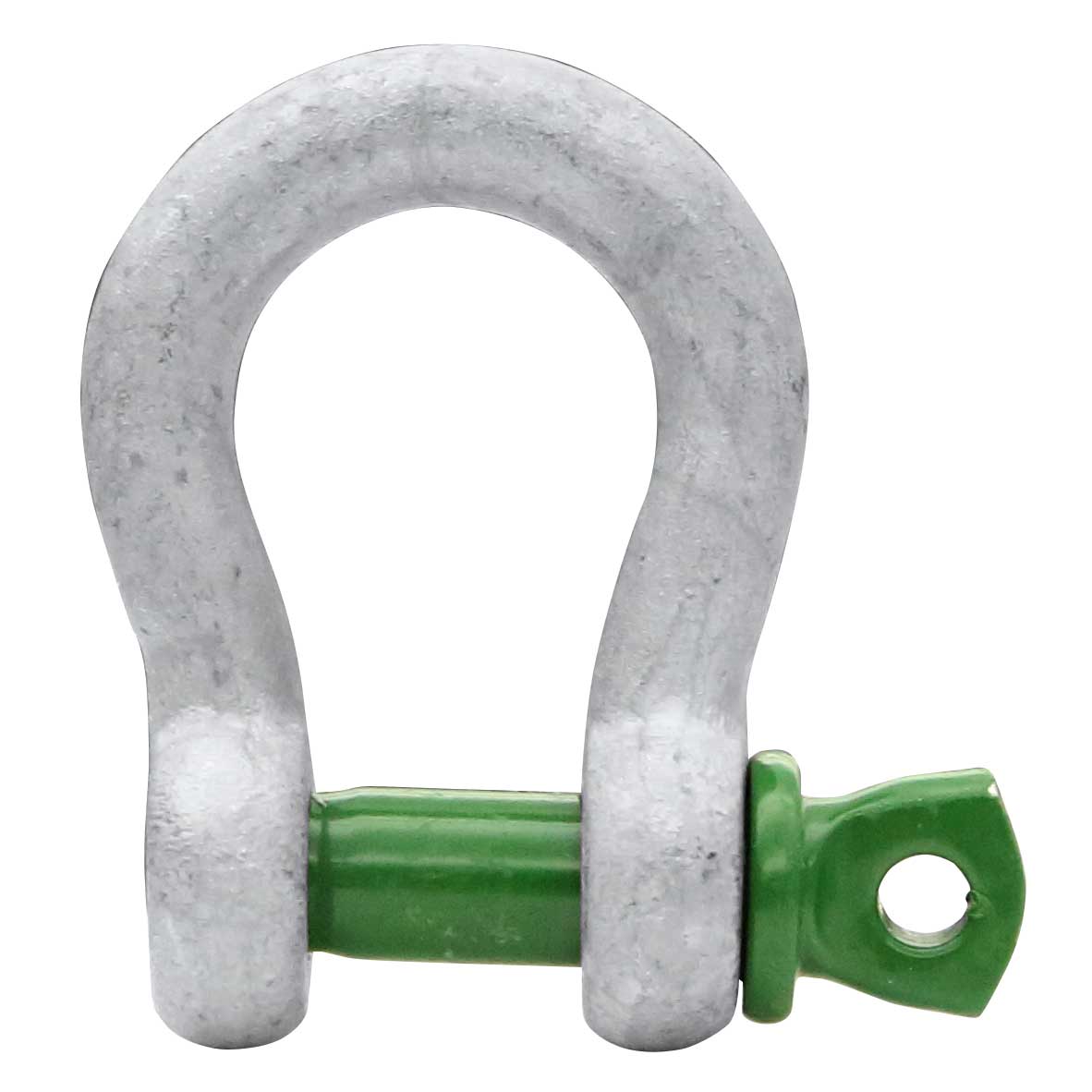

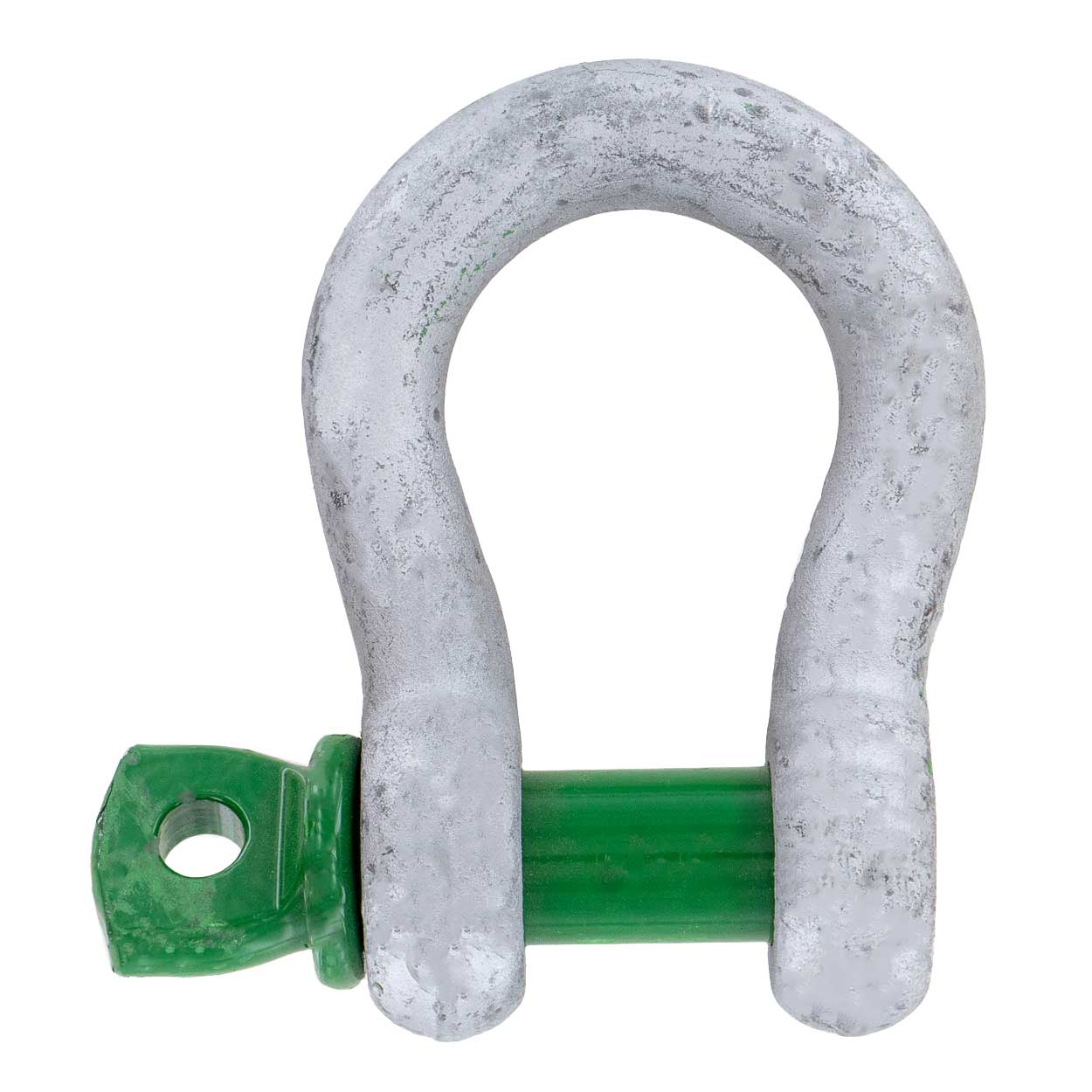

Van Beest 6.5 Ton Screw Pin Anchor Shackles

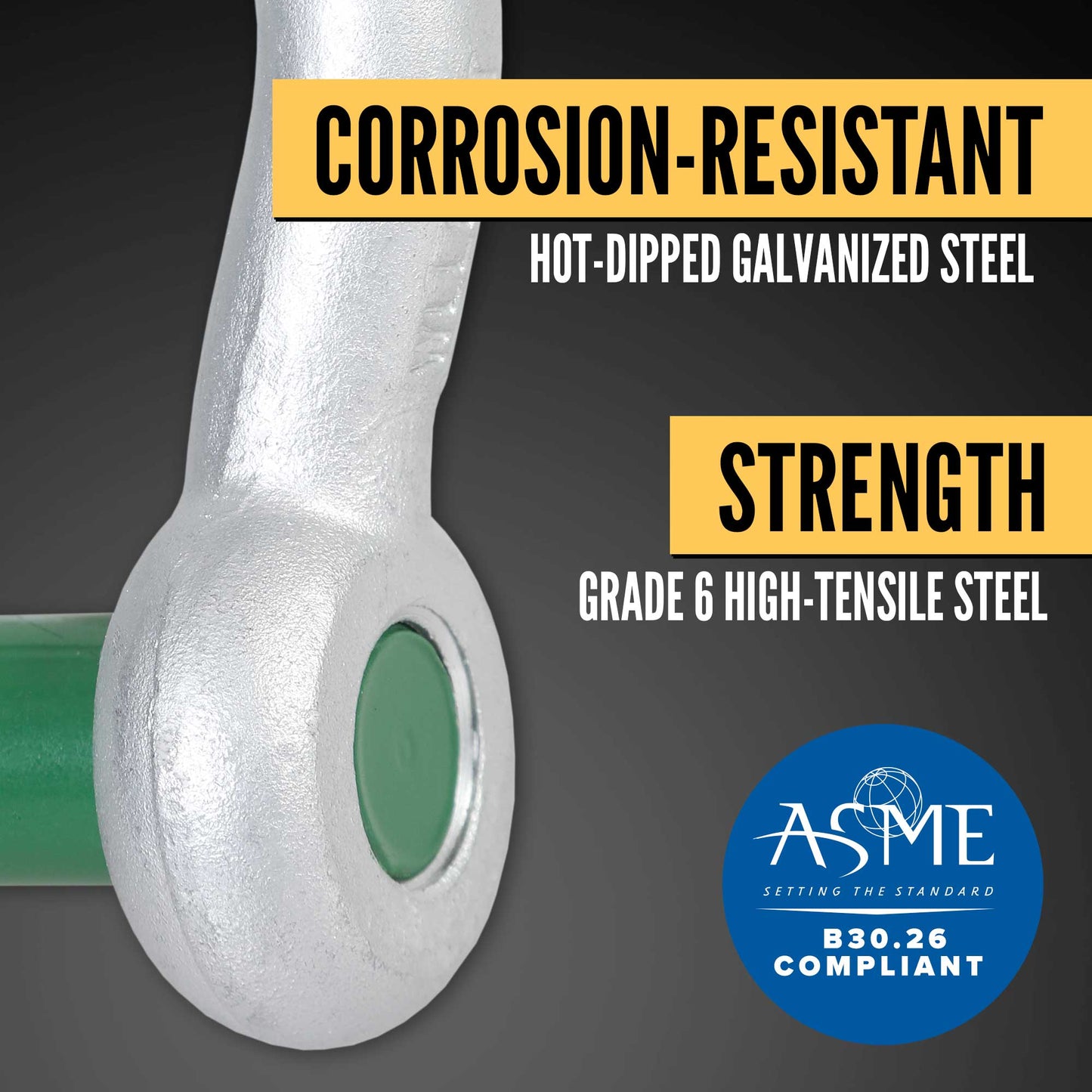

Van Beest Green Pin® Anchor Shackles are extremely high quality, European-made shackles. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile Grade 6 steel that is quenched and tempered from corrosion.
Why Choose Screw Pin Anchor Shackles?

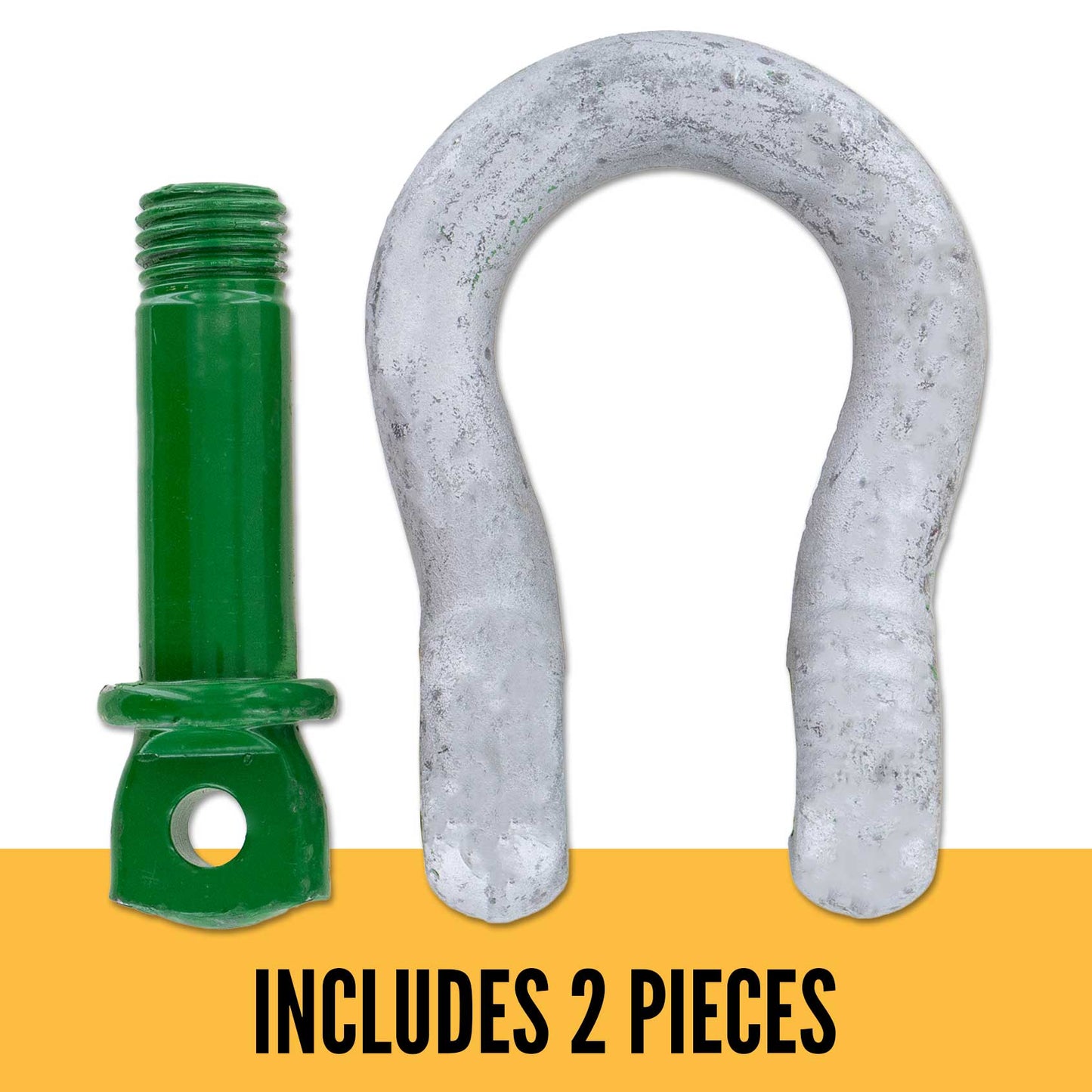

A quick release screw style pin allows these shackles to attach and detach quickly, making them perfect for temporary or non-permanent lifting jobs. Anchor bow shackles have a wider shape than D shaped shackles and are suitable for both single- and multi-leg rigging systems.
G-4161 Shackle Features
- Approved for use at temperatures between -40°F / -40°C and 392°F / 200°C.
- Designed to reduce wire rope wear by hiding the screw thread in a chamber.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
California Residents: WARNING
-
Uncompromising Quality, Always Compliant
We only source the best shackles when it comes to quality so you can have peace of mind on the job site. All of our shackles are compliant and meet or exceed the required standards to keep your job moving.
-
