2-1/2" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 55 Ton
2-1/2" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 55 Ton!
Specifications
Specifications
- Working load limit: 55 tons (Metric) / 121,254 lbs.
- Inside width: 7.09"
- Mouth width: 4.13"
- Finish: Galvanized
- Safety factor: 6:1
- Manufacturer name: Van Beest
- Brand part number: GPGHBB65
- Inside height: 10.25"
- Pin size: 2-3/4"
- Shackle size: 2-1/2"
- Standards: Meets all requirements of EN13889, ASME B30.26, and Federal Specification RR-C-271.
- Type: Screw Pin Anchor
- Material: Grade 6 High-Tensile Steel
- Product weight: 82.89 lbs.
- Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
Description
Description

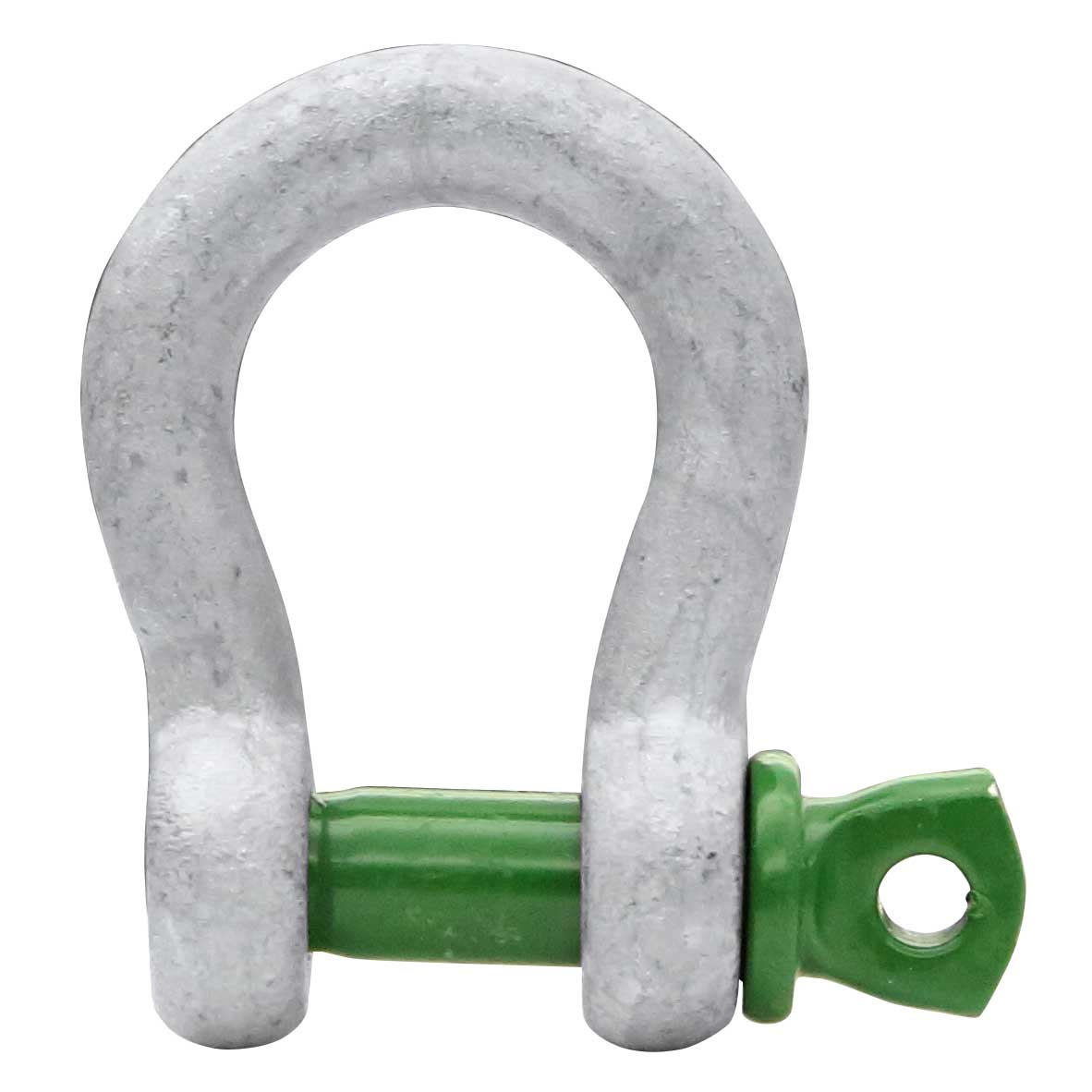

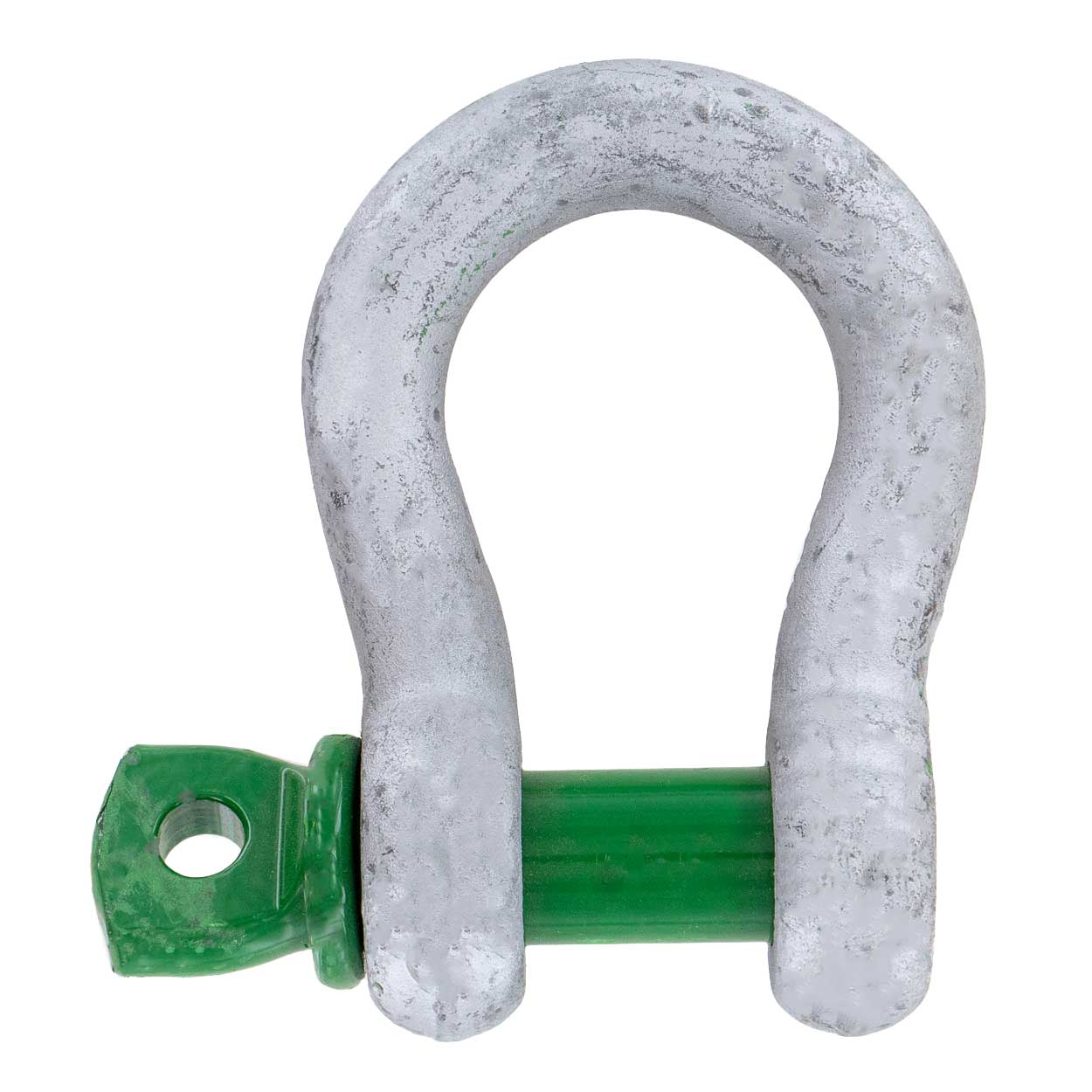

Van Beest 55 Ton Screw Pin Anchor Shackles

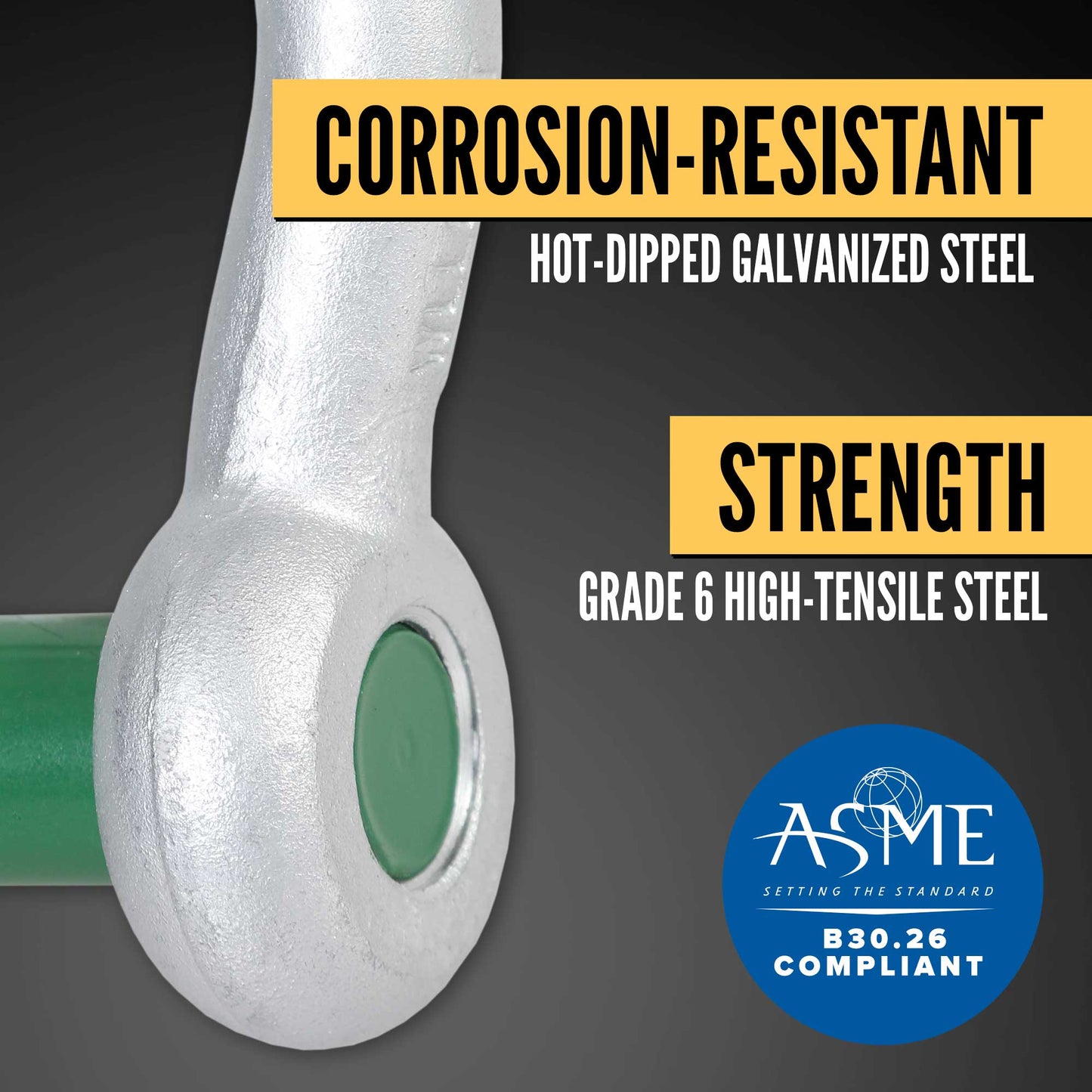

Van Beest Green Pin® Anchor Shackles are extremely high quality, European-made shackles. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile Grade 6 steel that is quenched and tempered from corrosion.
Why Choose Screw Pin Anchor Shackles?

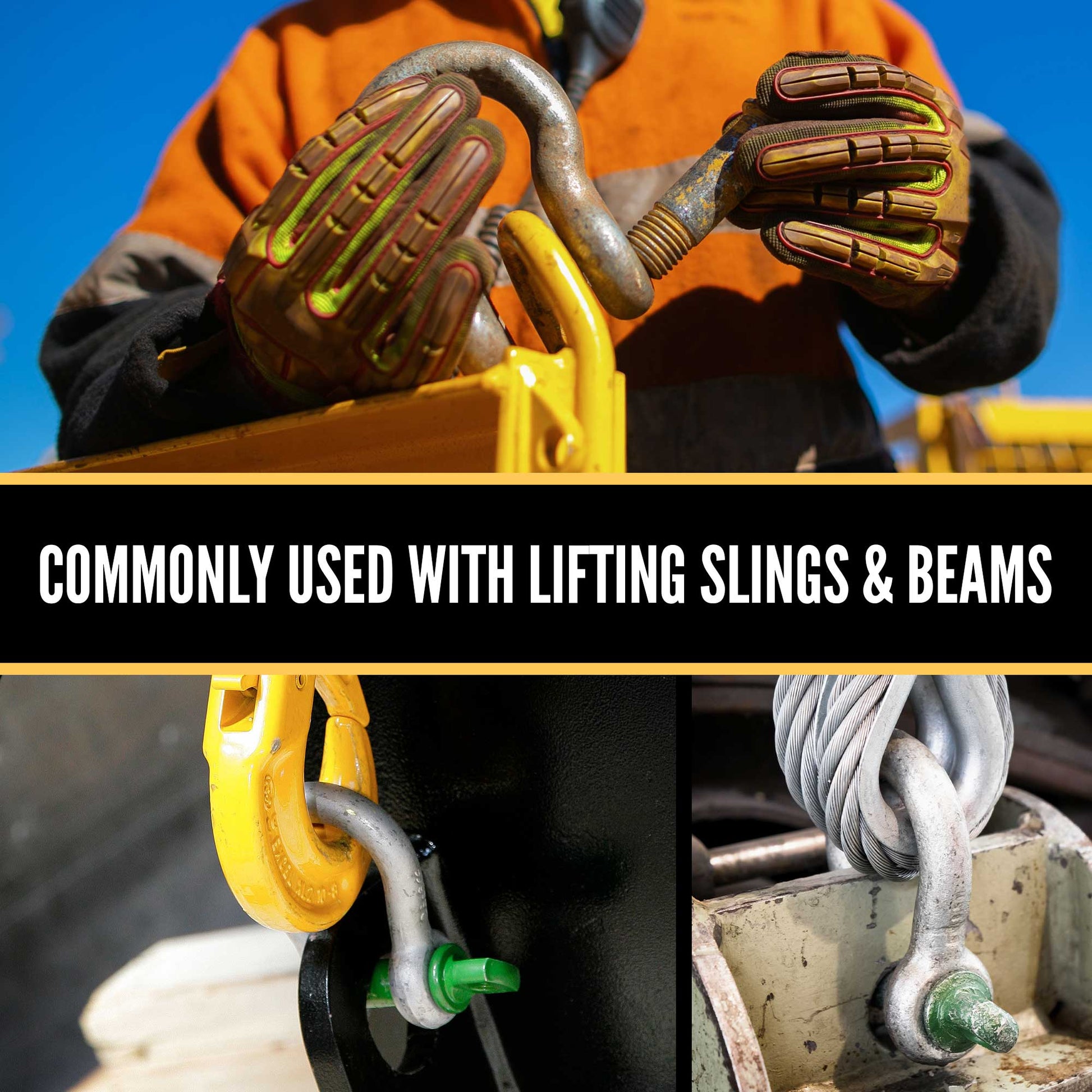

A quick release screw style pin allows these shackles to attach and detach quickly, making them perfect for temporary or non-permanent lifting jobs. Anchor bow shackles have a wider shape than D shaped shackles and are suitable for both single- and multi-leg rigging systems.
G-4161 Shackle Features
- Approved for use at temperatures between -40°F / -40°C and 392°F / 200°C.
- Designed to reduce wire rope wear by hiding the screw thread in a chamber.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
