SKU: SPCN-11435-1-AC

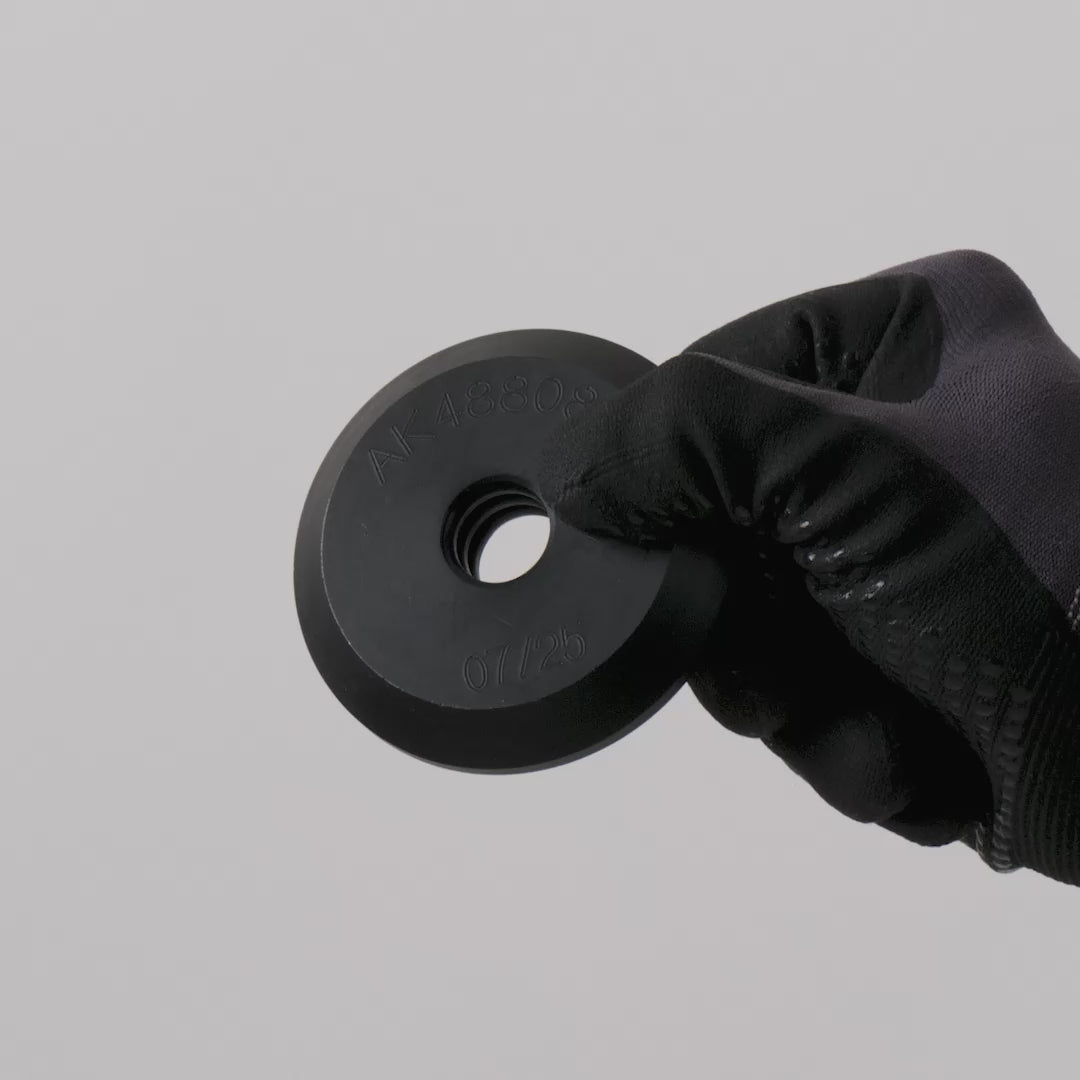

Actek 1-1/4"-3.5 x 1" Coil Nut
Actek 1-1/4"-3.5 x 1" Coil Nut!
SKU: SPCN-11435-1-AC
Actek 1-1/4"-3.5 x 1" Coil Nut
$58.60
Lengths:
Diameters:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Hoist Rings
Build Your Hoist RingPayment Options

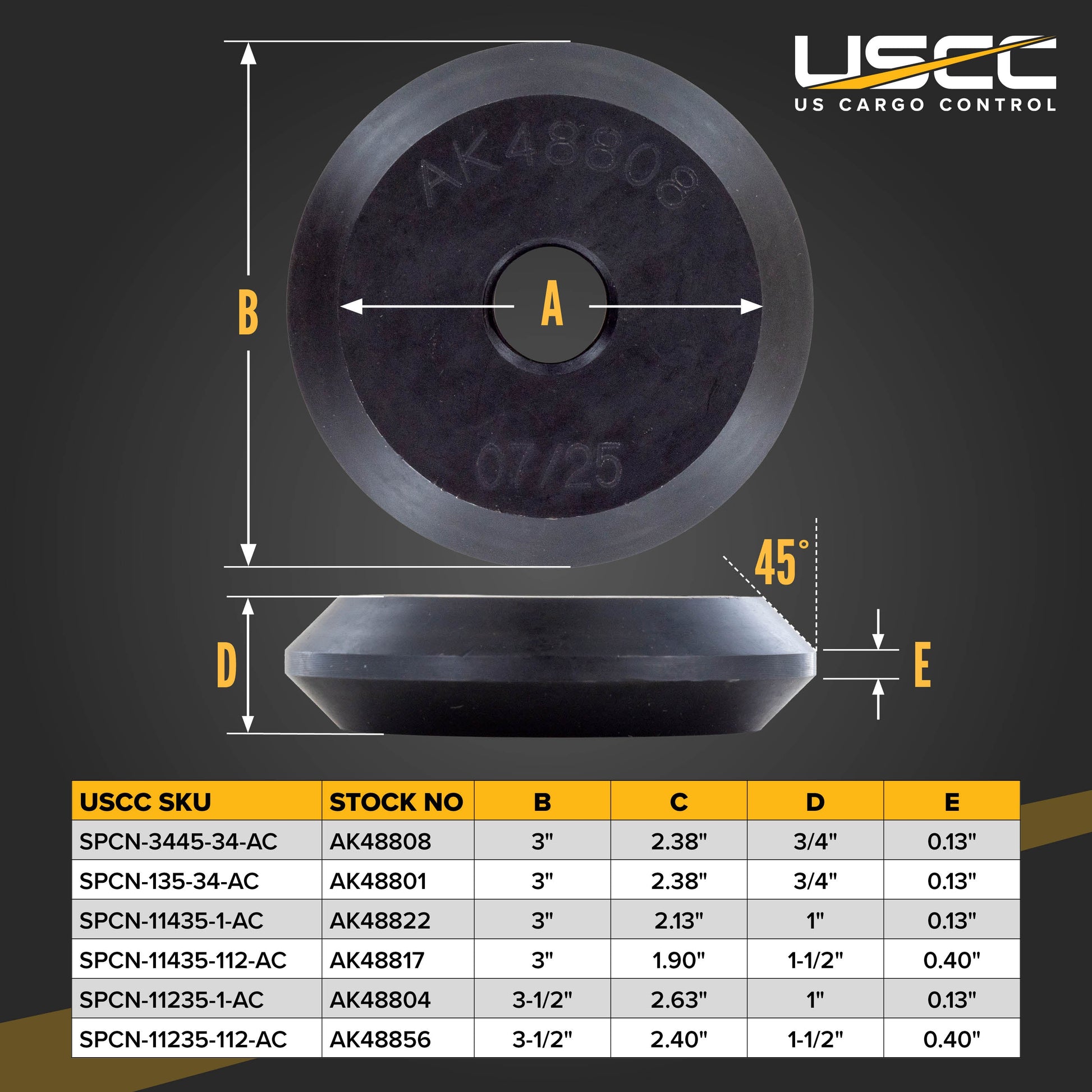

Specifications
Safety Factor: 5:1
Rated for Overhead Lifting: Yes

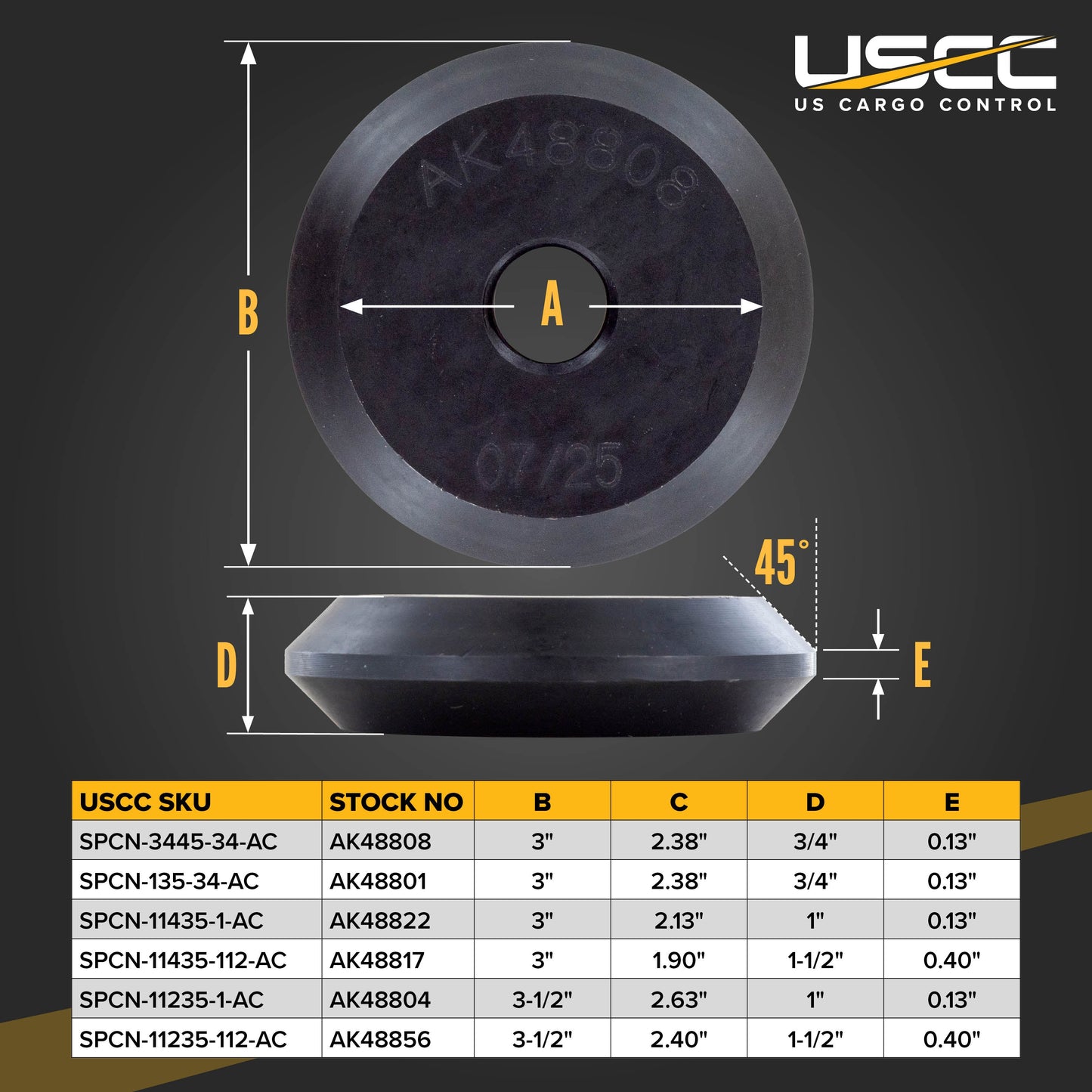

Diameter: 1-1/4" - 3-1/2 Bolt
Length: 1" Nut

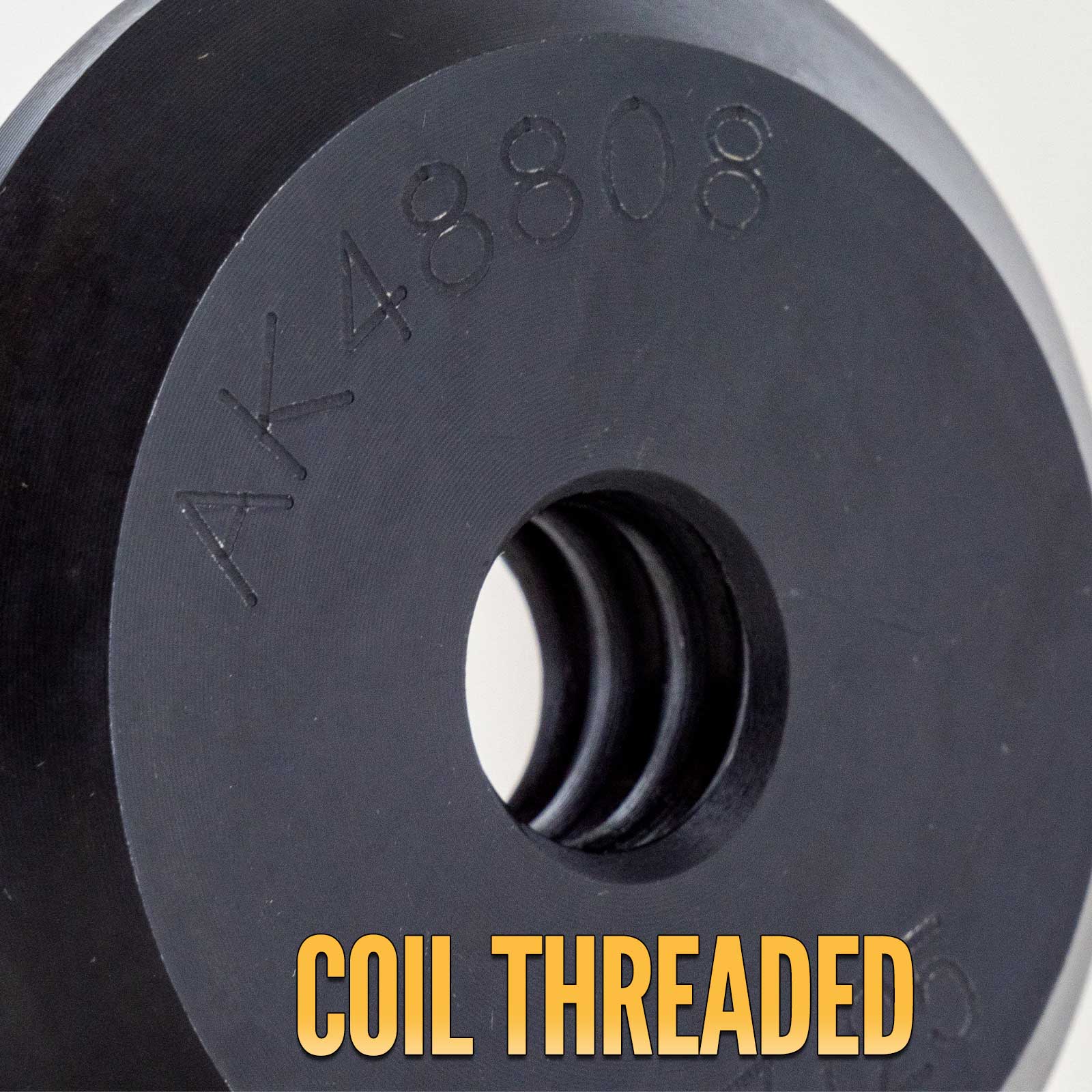

Thread Type: Coil
Material: Alloy Steel
Finish: Black Oxide
Product Weight: 1.5 lbs.
Manufacturer Name: Actek®
Brand Part Number: AK48822
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Street Plate Hoist Ring - Sold Separately.
Description

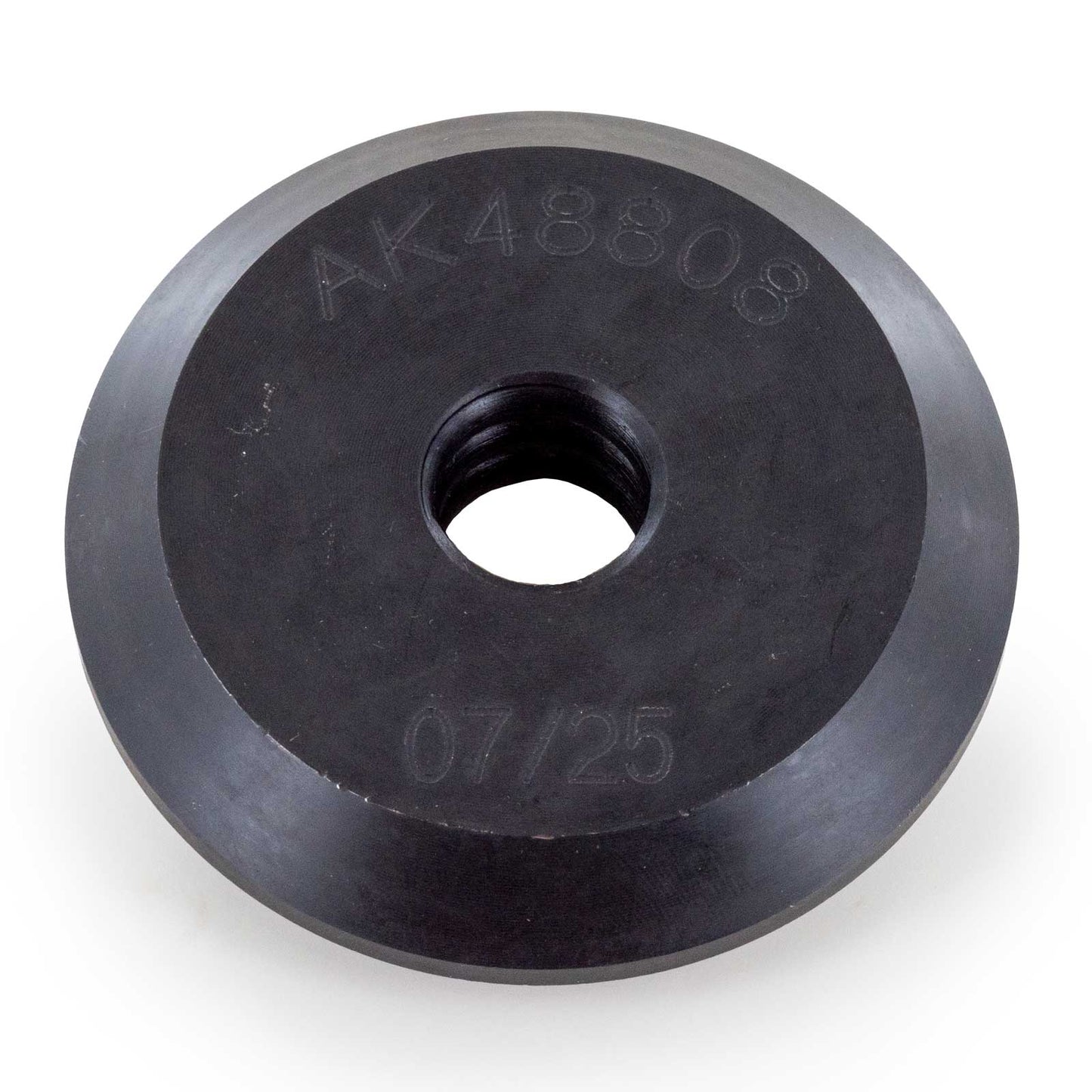

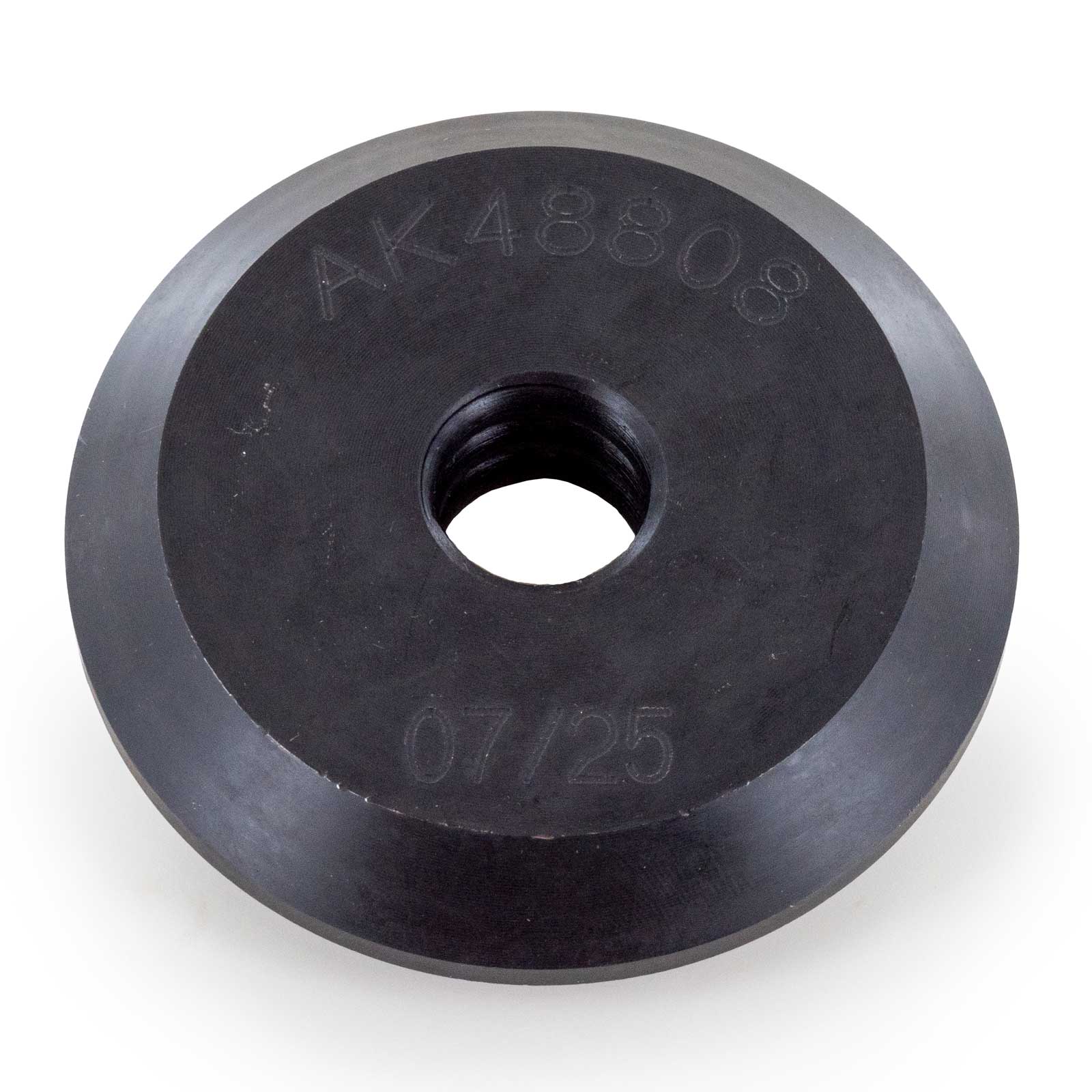

Actek® Street Plate Coil Nut

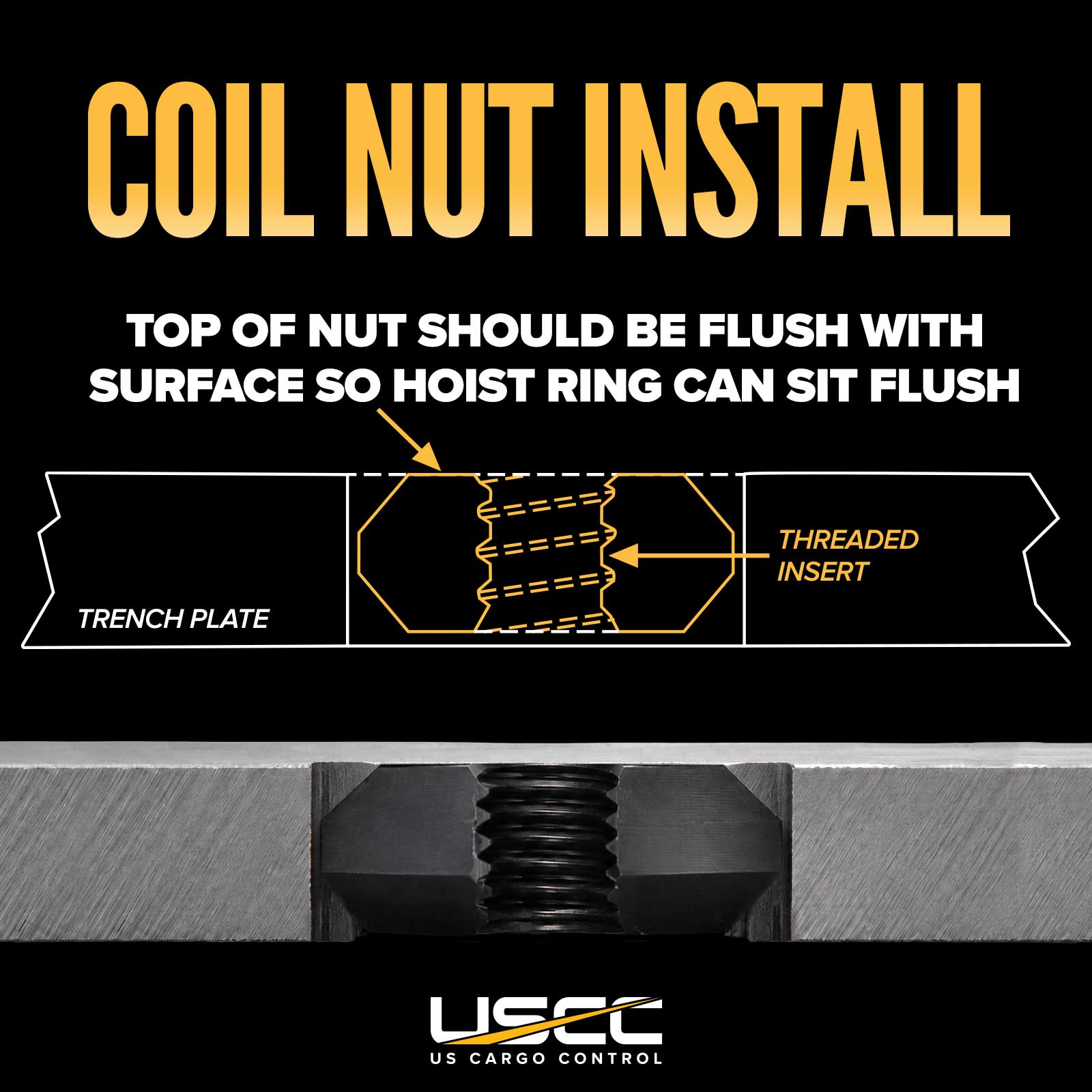

The Actek® Street Plate system requires a matched nut and ring - and this Actek® 1-1/4"-3.5 x 1" Coil Nut is the insert that completes it. Weld it into an A36 steel road plate or cast it into a concrete panel, thread in the matching Actek® Street Plate hoist ring, and you have a rated, reusable lifting point built for repeated heavy use. AISI 4130 alloy steel, quenched and tempered, with a phosphate finish per DOD-P-16232F and certified heat treatment. Do not substitute commercial nuts - thread tolerances are precision-matched to Actek® rings only.
Why Choose Actek® Street Plate Coil Nuts?

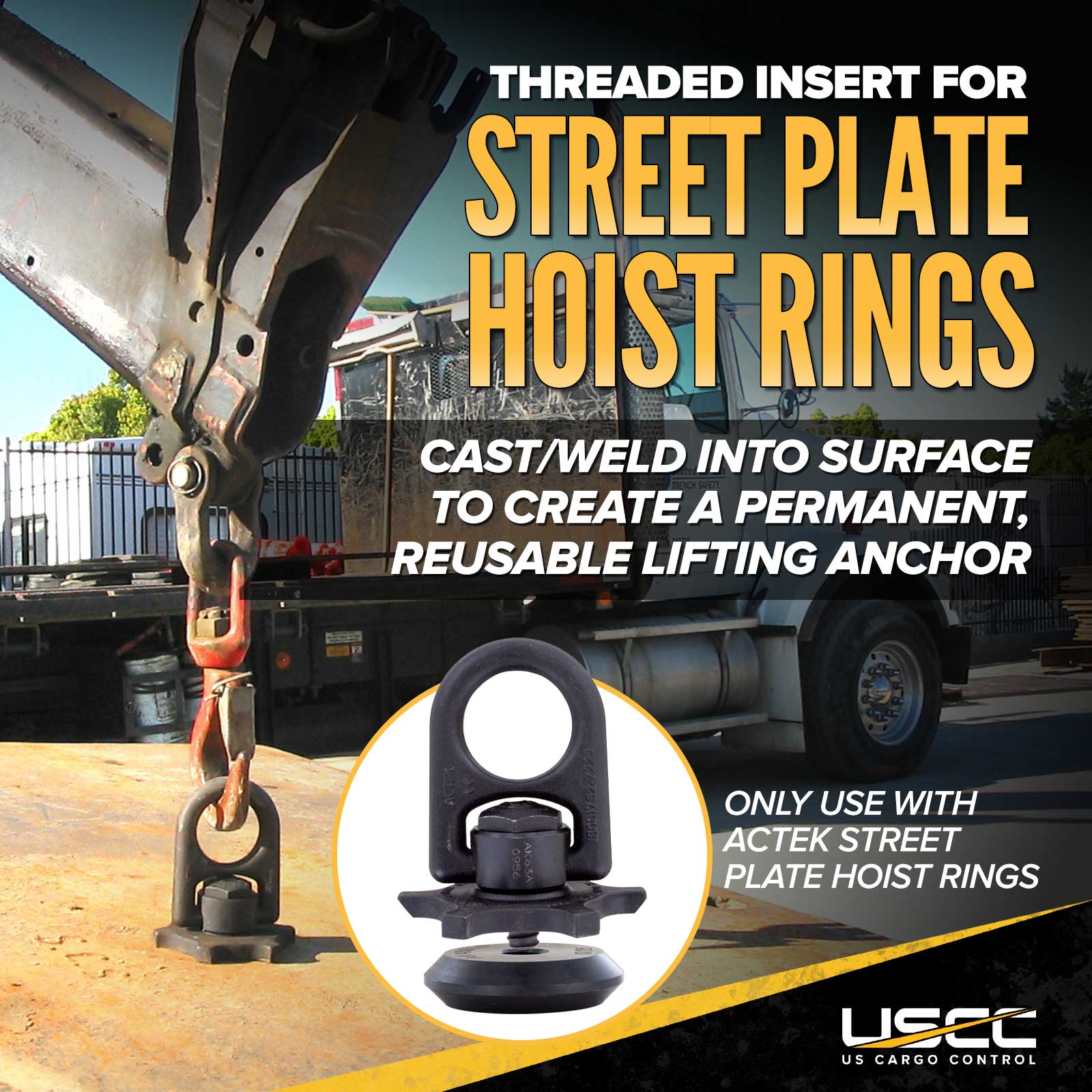

Actek® rings and nuts are manufactured to work as a precision-matched system. The thread tolerances between them are not interchangeable with commercial hardware from other suppliers, which will not meet the specifications required for safe lifting at rated capacity. Always pair Actek® coil nuts with Actek® Street Plate hoist rings.

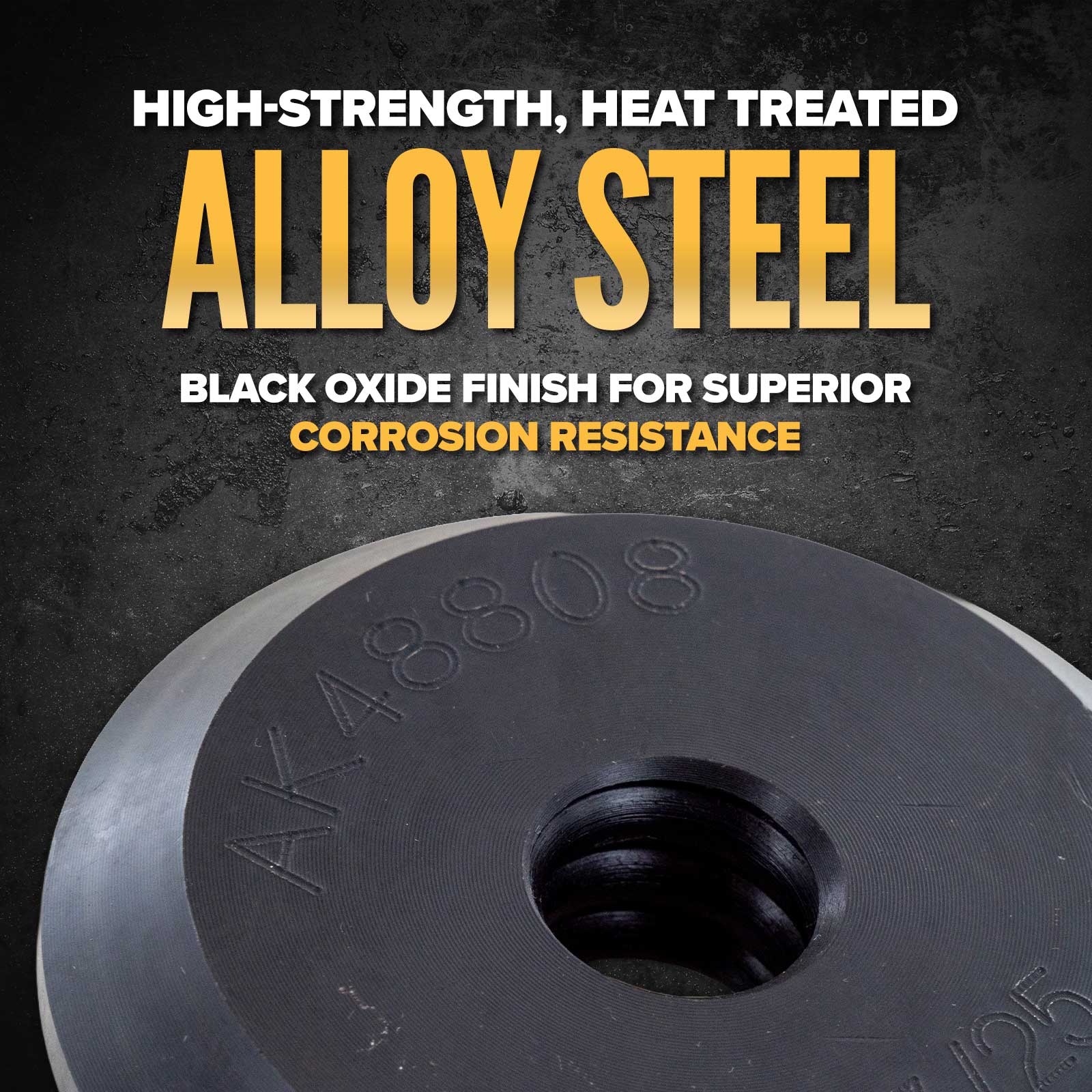

AISI 4130 Alloy Steel Construction
- AISI 4130 Alloy Steel, Quenched and Tempered: The nut is manufactured from 4130 chrome-moly steel - selected for its combination of strength, toughness, and weldability. The quench-and-temper treatment ensures consistent mechanical properties for reliable performance in both welded and embedded applications.
- Phosphate Finish Per DOD-P-16232F: Military-specification phosphate coating provides corrosion resistance and improves adhesion for paint or protective coatings applied to completed street plate assemblies.
- Magnetic Particle Inspected: Every nut is inspected for surface and near-surface defects before shipment.
- Certified Heat Treatment: Heat treatment certification is included for full quality documentation.
Questions?
Actek® Street Plate Hoist Rings compatible with these coil nuts are in our hoist ring collection. Match the ring's coil thread size to this nut's thread specification when ordering - the system requires a paired set. Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions. Need a size, capacity, or configuration we don't carry? Request a custom hoist ring and our team will work directly with the manufacturer to build it for you.
