SKU: SPCN-11435-112-AC
Actek 1-1/4"-3.5 x 1-1/2" Coil Nut
Actek 1-1/4"-3.5 x 1-1/2" Coil Nut!
SKU: SPCN-11435-112-AC
Actek 1-1/4"-3.5 x 1-1/2" Coil Nut
$58.60
Lengths:
Diameters:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Hoist Rings
Build Your Hoist RingPayment Options

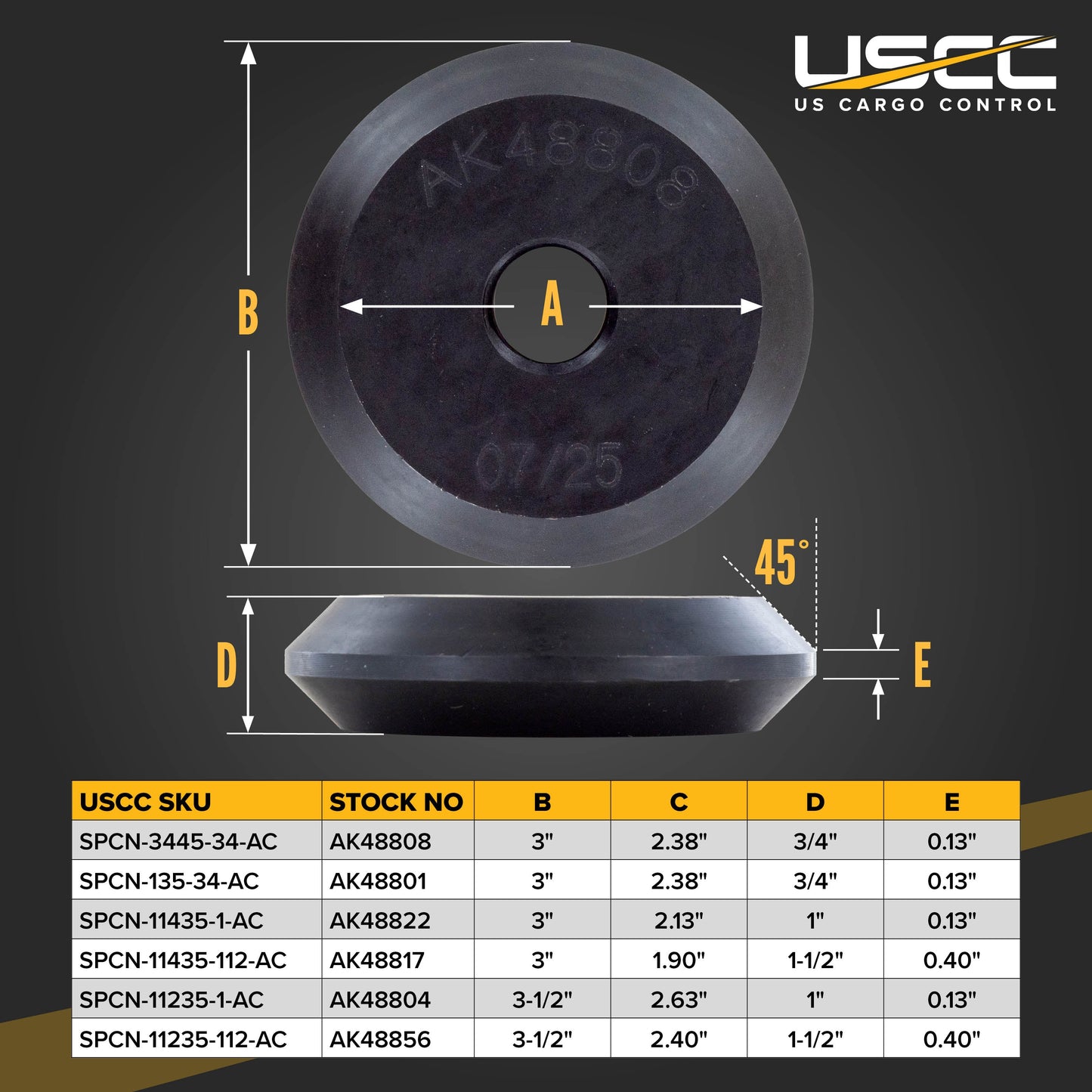

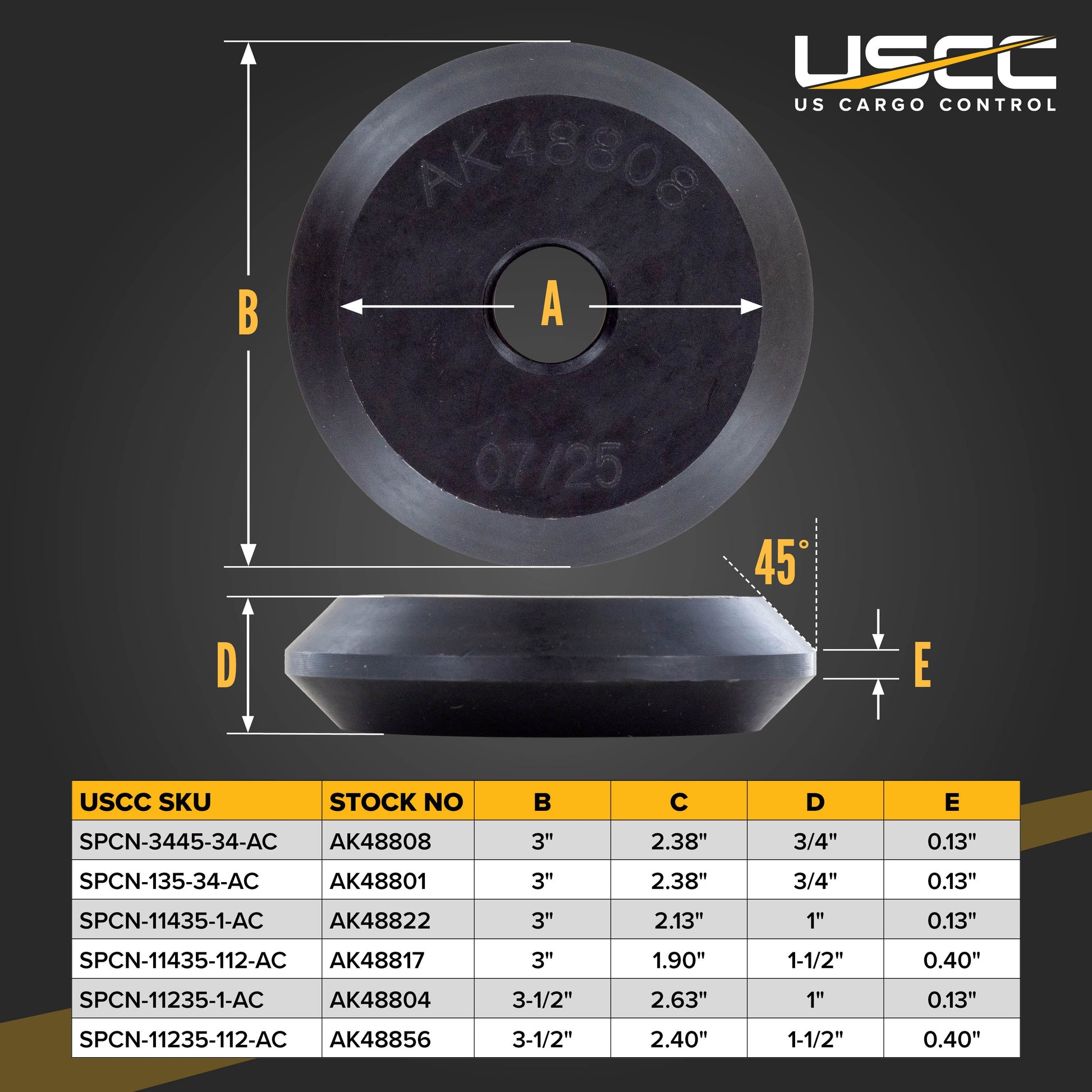

Specifications
Safety Factor: 5:1
Rated for Overhead Lifting: Yes
Diameter: 1-1/4" - 3-1/2 Bolt
Length: 1-1/2" Nut

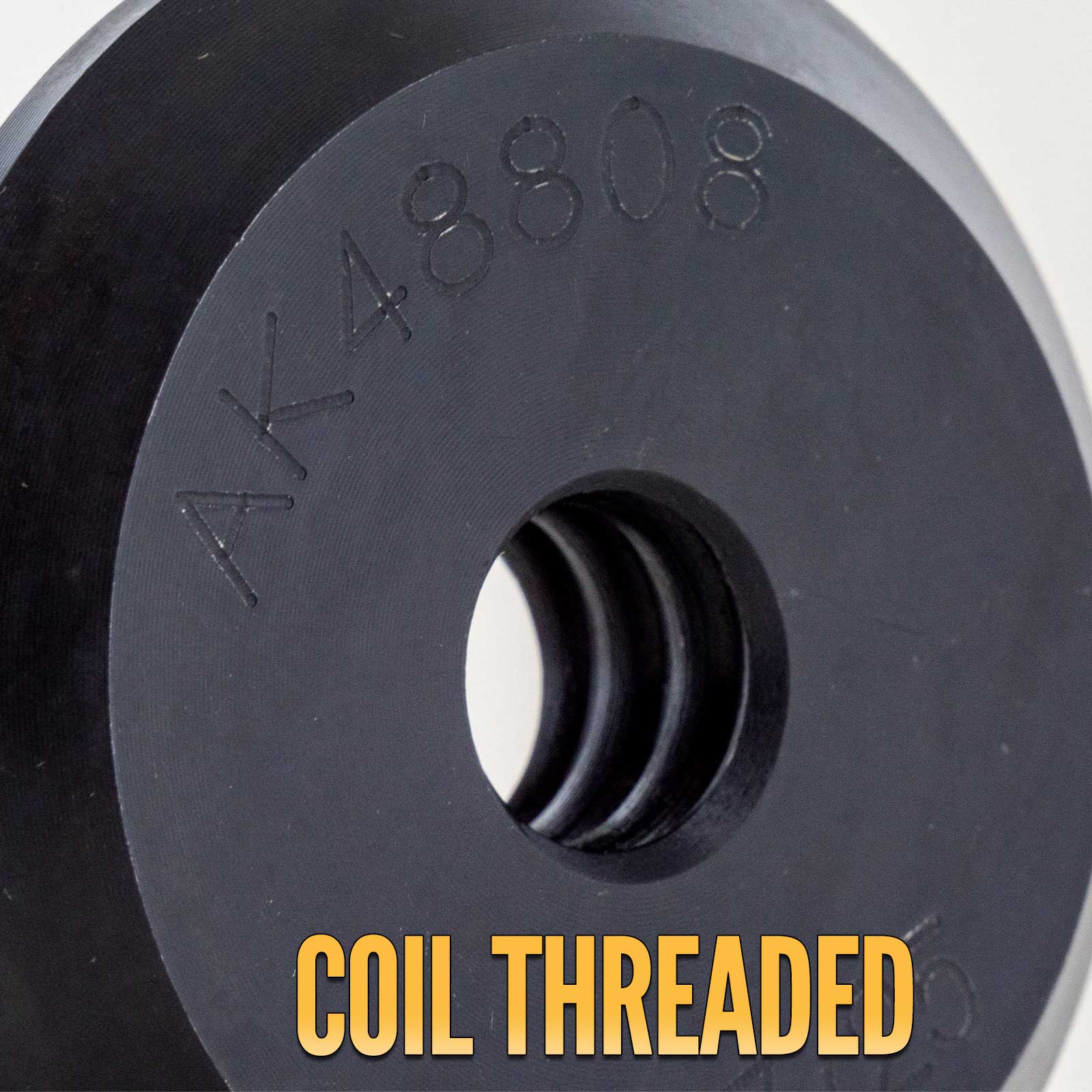

Thread Type: Coil
Material: Alloy Steel
Finish: Black Oxide
Product Weight: 2.3 lbs.
Manufacturer Name: Actek®
Brand Part Number: AK48817
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Street Plate Hoist Ring - Sold Separately.
Description

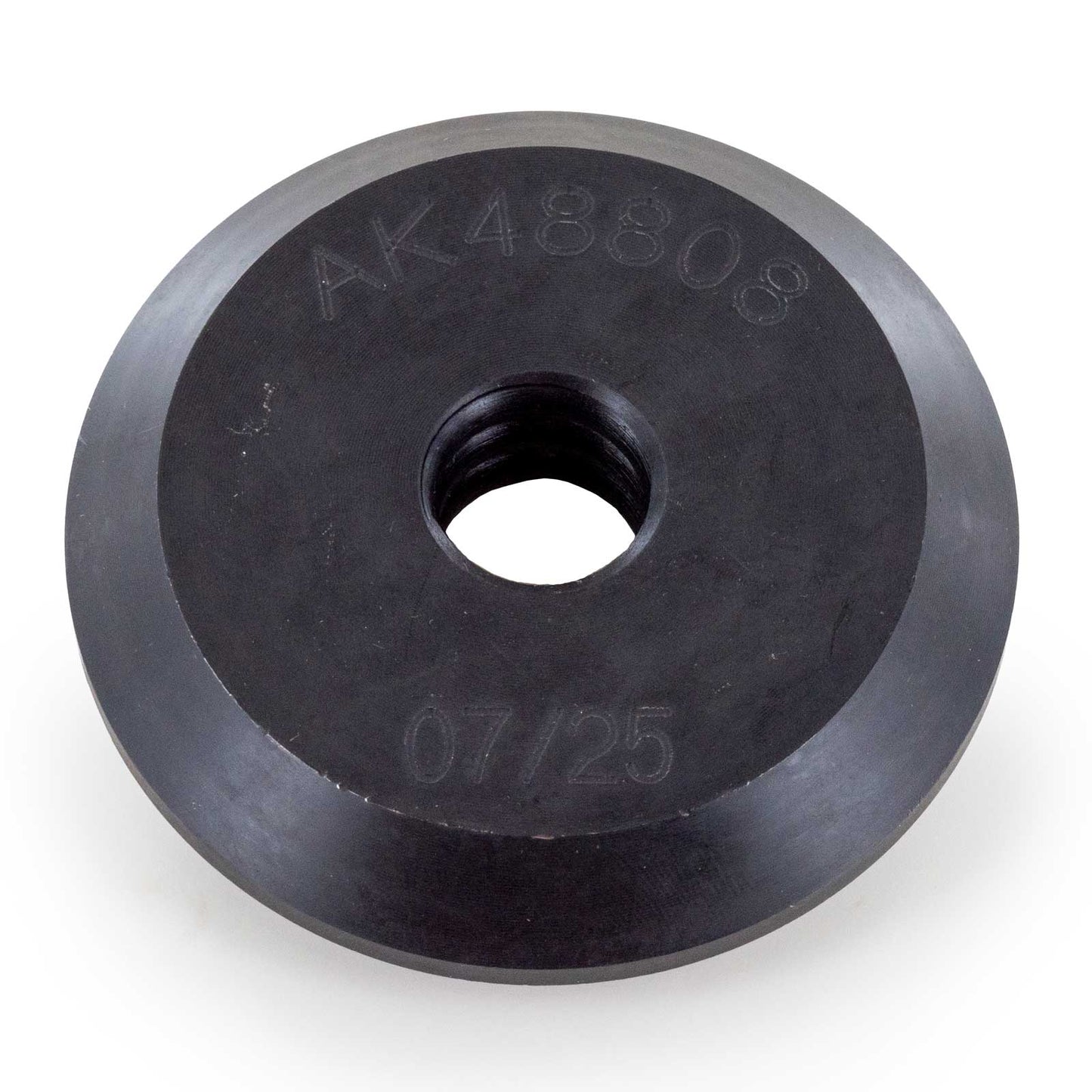

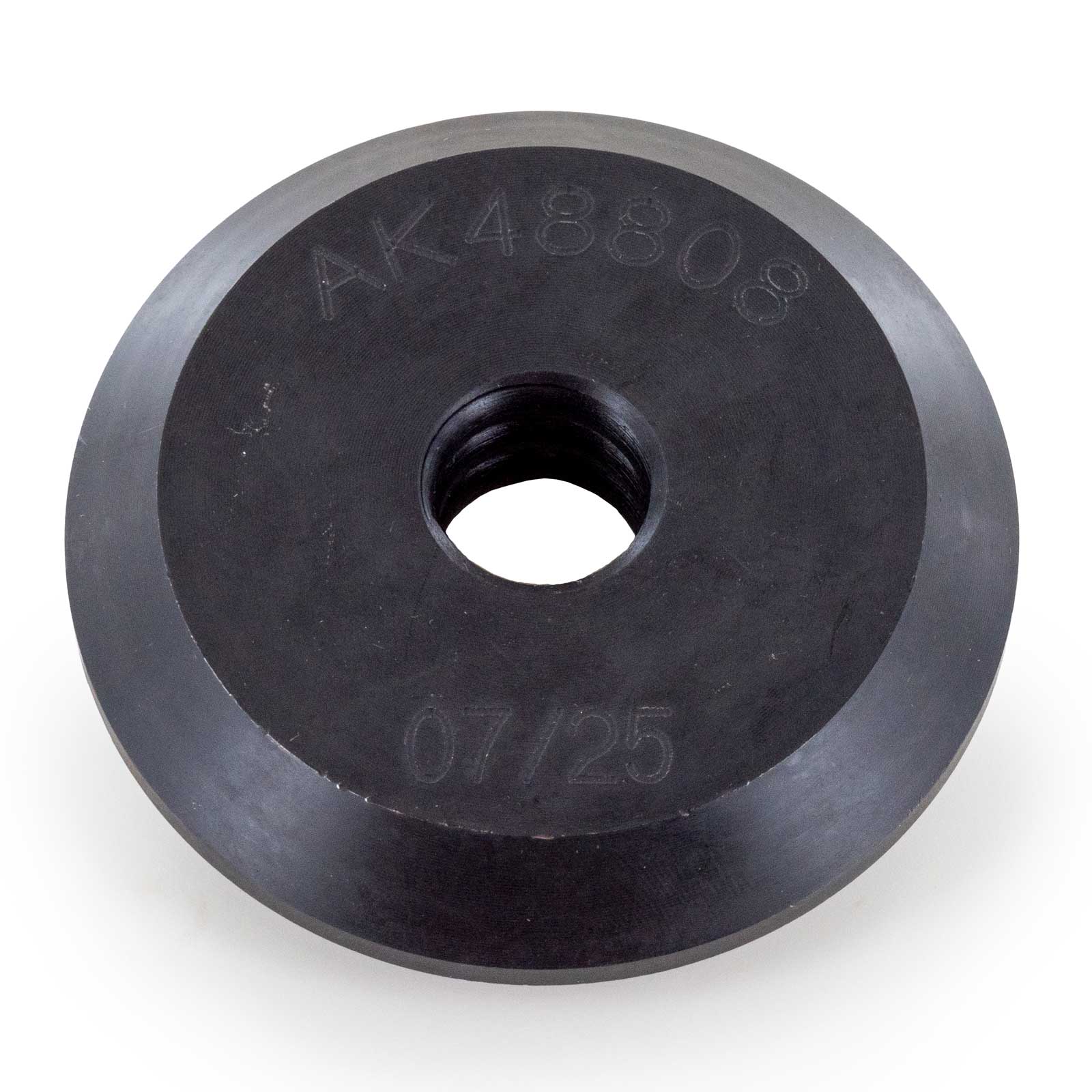

Actek® Street Plate Coil Nut

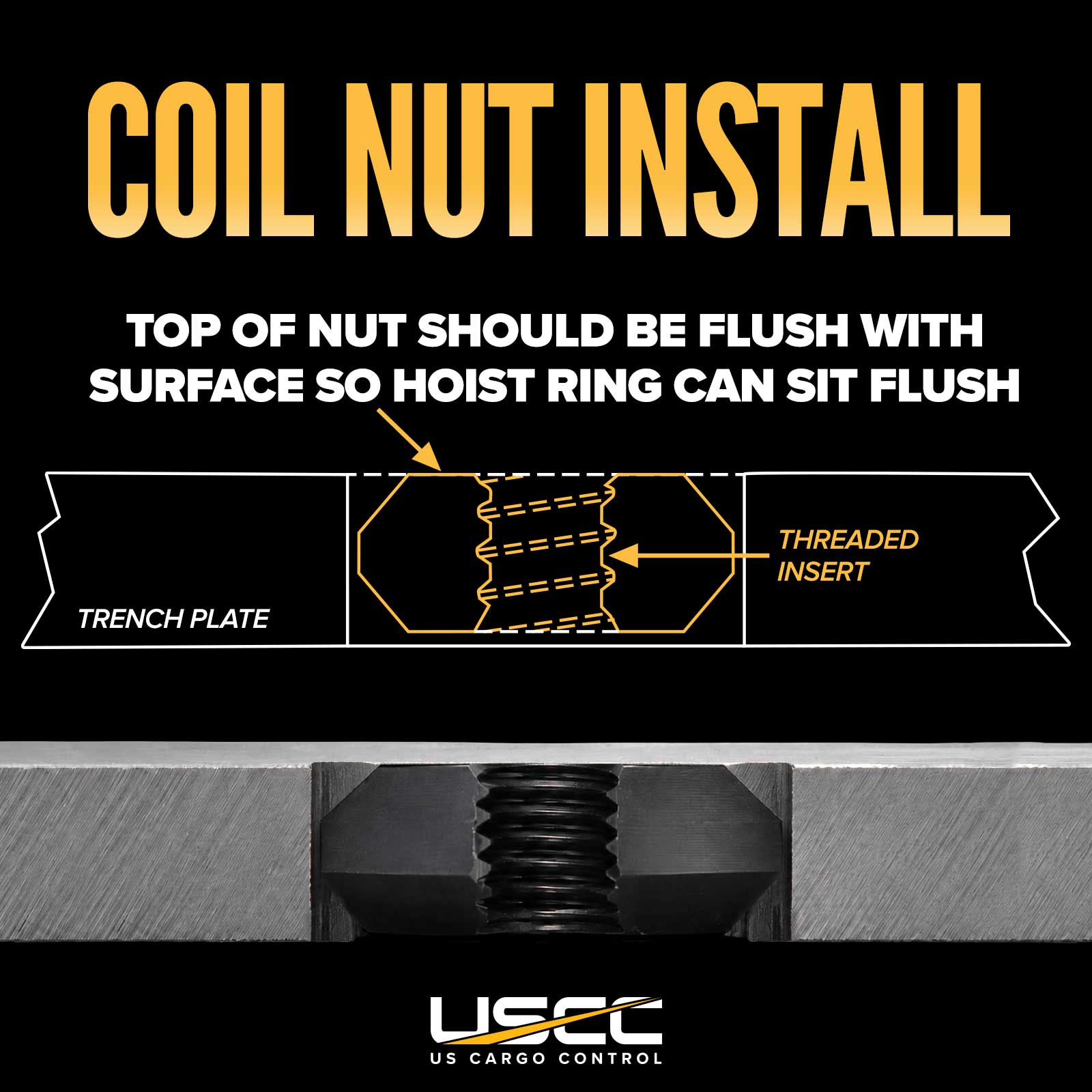

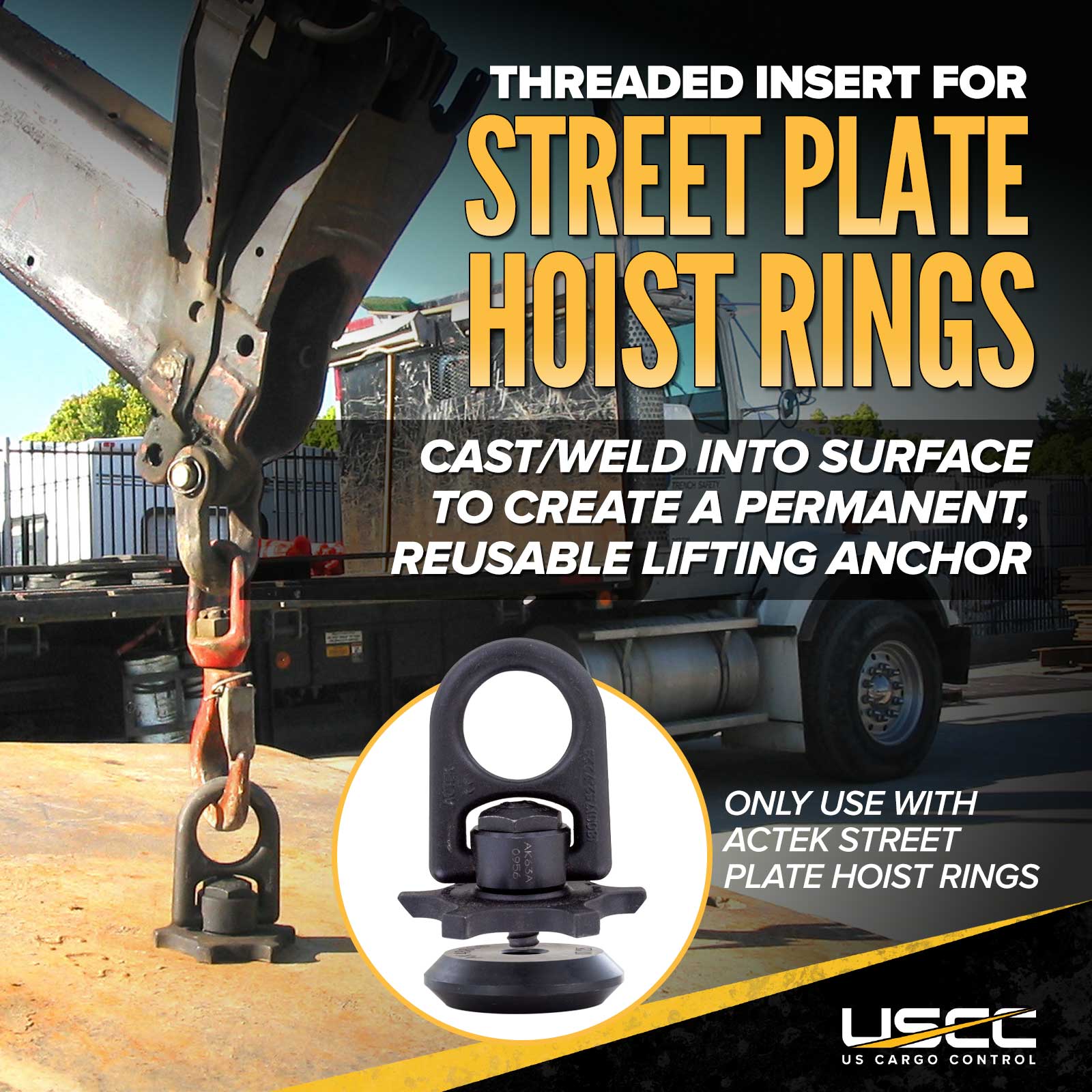

Actek® coil nuts serve two equally common applications: cast into precast concrete panels and tilt-up walls as a permanent embedded lifting anchor, or welded directly into steel trench and road plates for repeated lifting operations in roadway and utility work. This 1-1/4"-3.5 x 1-1/2" nut is the insert that Actek® Street Plate hoist rings thread into - and it must be Actek® brand to ensure the precision thread tolerances the system requires. Manufactured from AISI 4130 alloy steel, quenched and tempered, magnetic particle inspected.
Why Choose Actek® Street Plate Coil Nuts?
Actek® rings and nuts are manufactured to work as a precision-matched system. The thread tolerances between them are not interchangeable with commercial hardware from other suppliers, which will not meet the specifications required for safe lifting at rated capacity. Always pair Actek® coil nuts with Actek® Street Plate hoist rings.
AISI 4130 Alloy Steel Construction
- AISI 4130 Alloy Steel, Quenched and Tempered: The nut is manufactured from 4130 chrome-moly steel - selected for its combination of strength, toughness, and weldability. The quench-and-temper treatment ensures consistent mechanical properties for reliable performance in both welded and embedded applications.
- Phosphate Finish Per DOD-P-16232F: Military-specification phosphate coating provides corrosion resistance and improves adhesion for paint or protective coatings applied to completed street plate assemblies.
- Magnetic Particle Inspected: Every nut is inspected for surface and near-surface defects before shipment.
- Certified Heat Treatment: Heat treatment certification is included for full quality documentation.
Questions?
Actek® Street Plate Hoist Rings compatible with these coil nuts are in our hoist ring collection. Match the ring's coil thread size to this nut's thread specification when ordering - the system requires a paired set. Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions. Need a size, capacity, or configuration we don't carry? Request a custom hoist ring and our team will work directly with the manufacturer to build it for you.
