SKU: 516BWR636-250FT-D
5/16" 6x37 Bright Wire Rope - EIPS IWRC | 250' Coil - Domestic
5/16" 6x37 Bright Wire Rope - EIPS IWRC | 250' Coil - Domestic!
SKU: 516BWR636-250FT-D
5/16" 6x37 Bright Wire Rope - EIPS IWRC | 250' Coil - Domestic
$822.73
Lengths:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 5.27 tons / 10,540 lbs.
Grade: EIPS
Length: 250'
Core: IWRC
Finish: Bright
Product weight: 45 lbs.
Rated for Overhead Lifting: Yes
Rope construction: 6x36
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Weight per foot: 0.18 lbs.
Wire rope class: 6x37
Wire rope diameter: 5/16"
Additional Info: Right Hand Regular Lay
Description

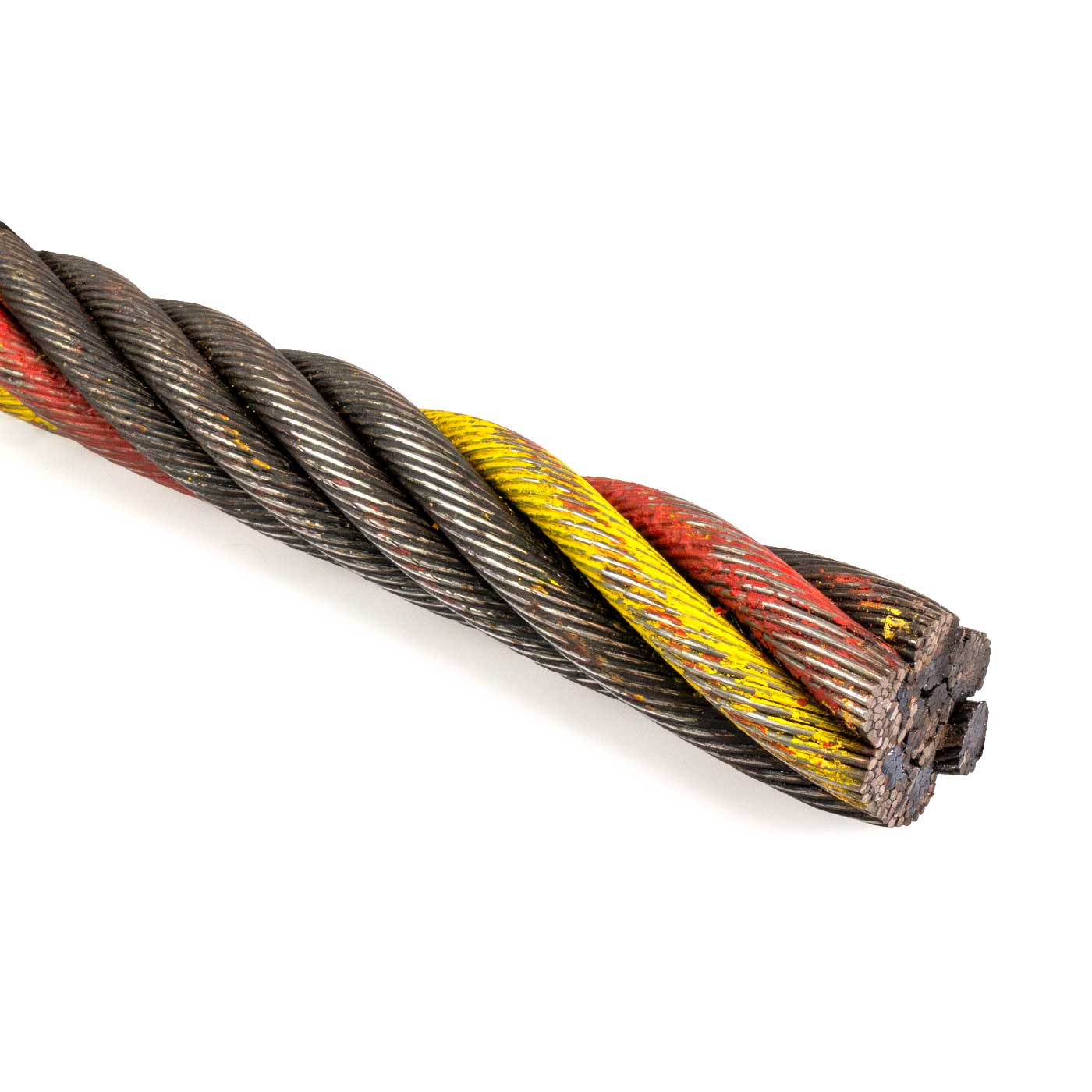

Domestic 5/16" 6x37 Bright Wire Rope - EIPS IWRC
Engineered in the USA from Extra Improved Plow Steel (EIPS), this 5/16" bright wire rope features a 6x37 class designed for superior flexibility and fatigue resistance. With an Independent Wire Rope Core (IWRC), it offers internal support and crush resistance for dependable performance under tension. It's ideal for hoisting, winch lines, suspension systems, and other repetitive-bend applications where movement is frequent and consistent durability is key.
Colored strands may appear in some domestic wire ropes for manufacturer ID or visibility purposes; these color variations do not affect assembly break strength.Flexible Wire Cable for Winches, Lifting & Moving Applications

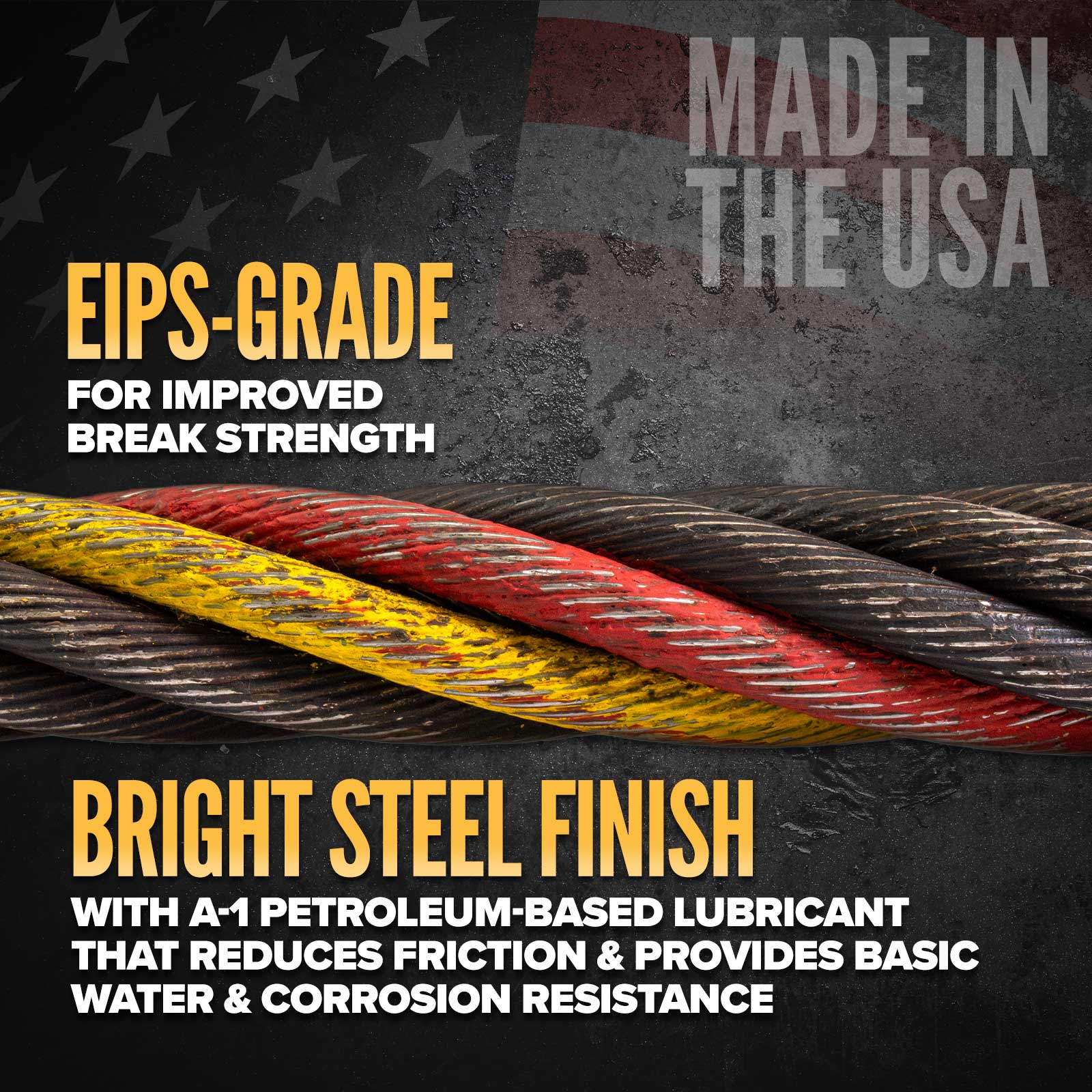

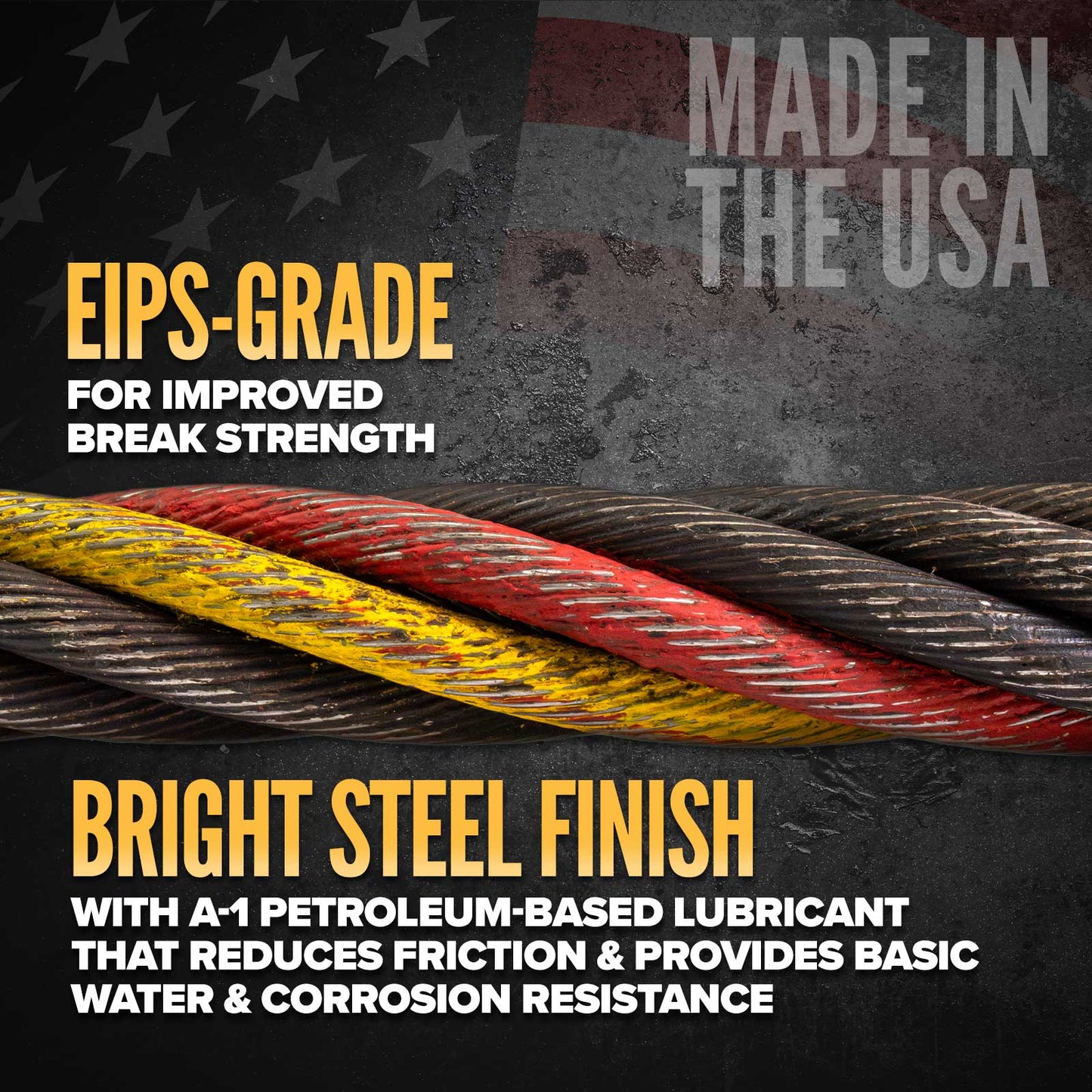

The 6x36 construction allows for greater bending without breakage, trading off a bit of abrasion resistance for higher flexibility compared to 6x19 wire ropes. A bright finish treated with petroleum-based lubricant reduces internal friction and adds light moisture protection. This rope complies with RR-W-410 and ASTM A1023 specifications, delivering strength and flexibility for everyday rigging tasks.
6x37 Wire Rope Configuration
Our wire rope is made using EIPS-grade cable. EIPS (Extra Improved Plow Steel) refers to the strength of the wire rope - its tensile strength is around 10% greater than an IPS grade, improving the break strength.

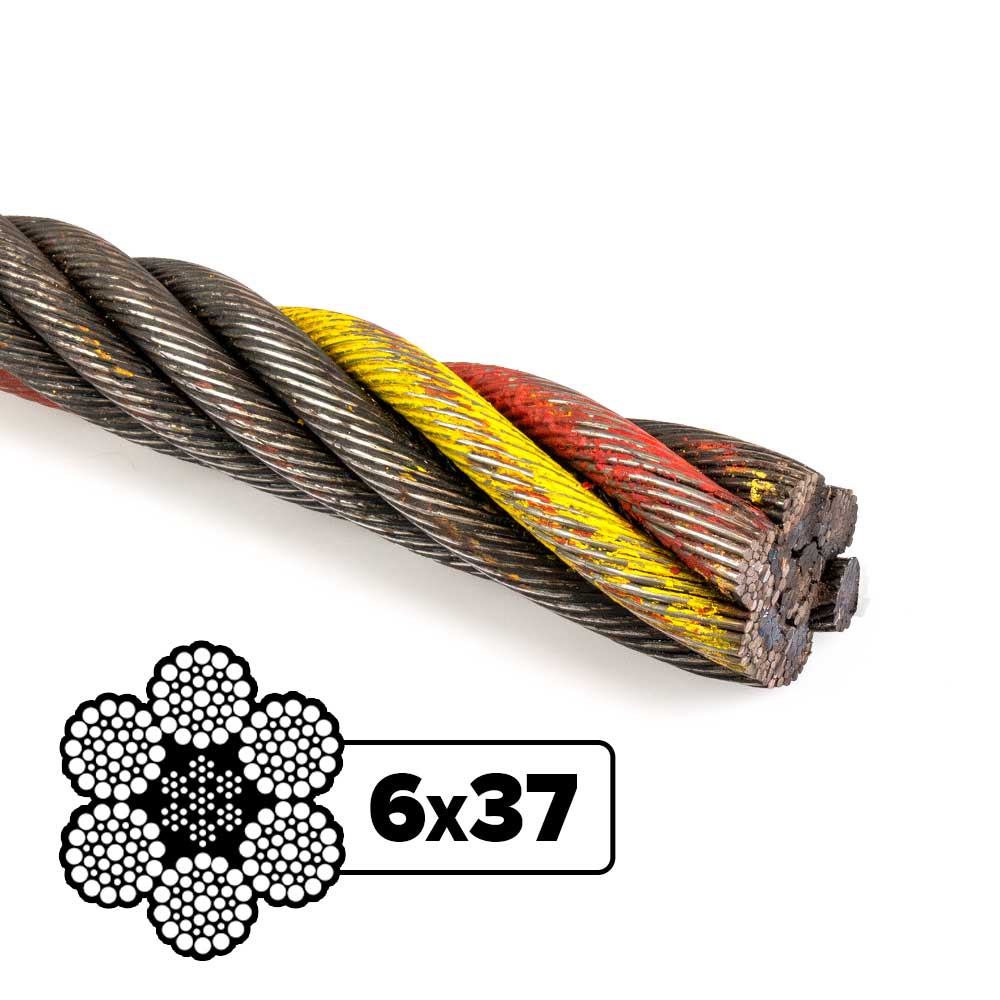

The class of this wire rope is 6x37. These numbers nominally refer to the construction of the wire rope - the number of outer strands around the core and an estimation of the number of wires within each of these outer strands. so for a 6x37 class, the number of outer strands is 6, and the number of wires making up each strand can range from 27-49. The construction of the rope you will be receiving is 6x36 - if you are looking for something different, please call.
Key Features
- USA-made using EIPS-grade steel for high tensile strength
- 6x36 construction offers maximum flexibility and superior fatigue resistance
- Bright uncoated finish with petroleum lubricant to reduce wear and moisture exposure

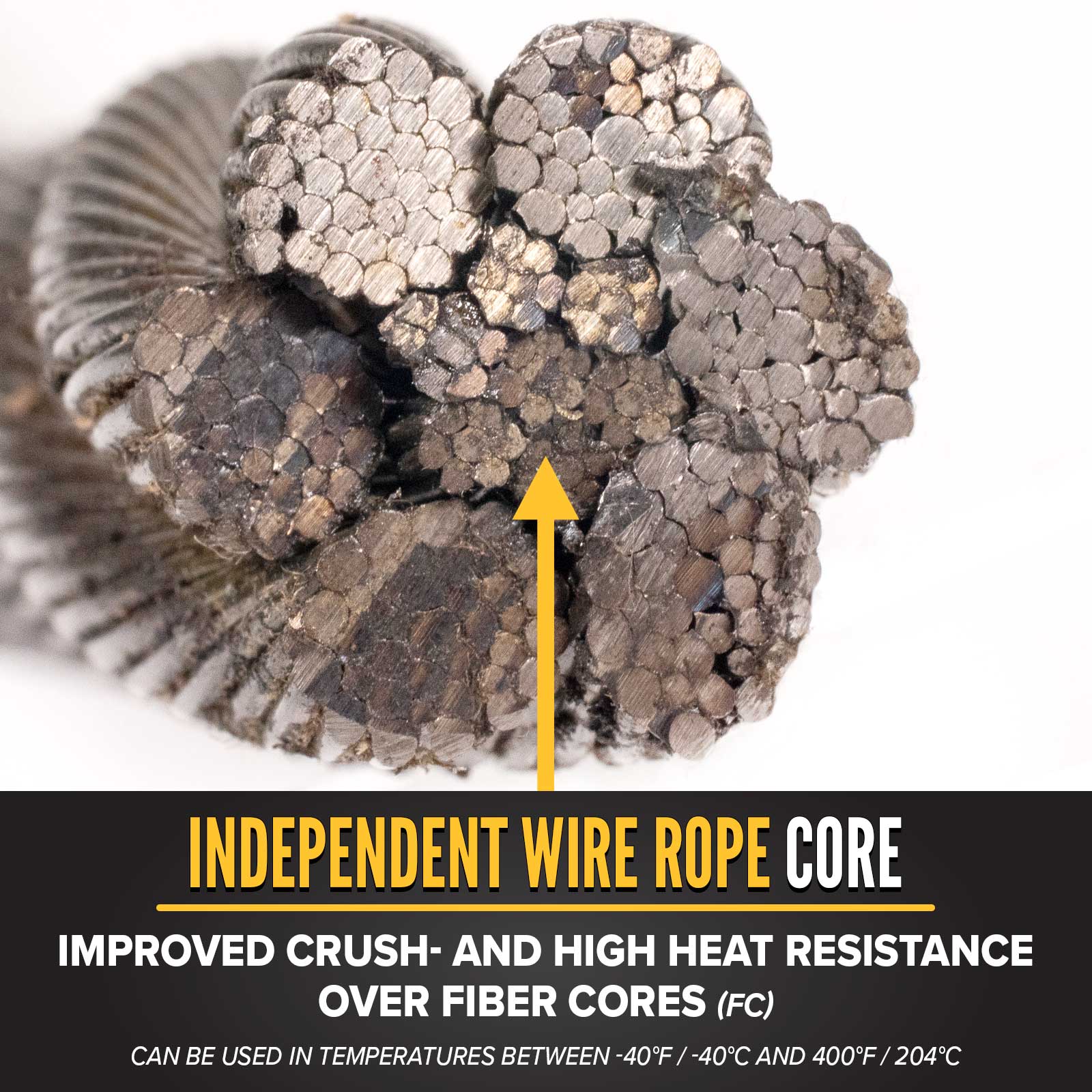

- IWRC core resists crushing and improves performance under pressure
- Complies with RR-W-410 and ASTM A1023 federal specifications
- Ideal for hoisting, suspension, and dynamic lifting systems
Compatible Accessories for Full System Setup
Pair this rope with our trusted selection of wire rope fittings and versatile rigging hardware, including turnbuckles and eye bolts. Use wire rope thimbles to protect loops from wear and finish your system securely with Crosby wire rope clips. For job-specific builds, explore our range of custom wire rope assemblies.
