SKU: SWHR78-9-350-CR

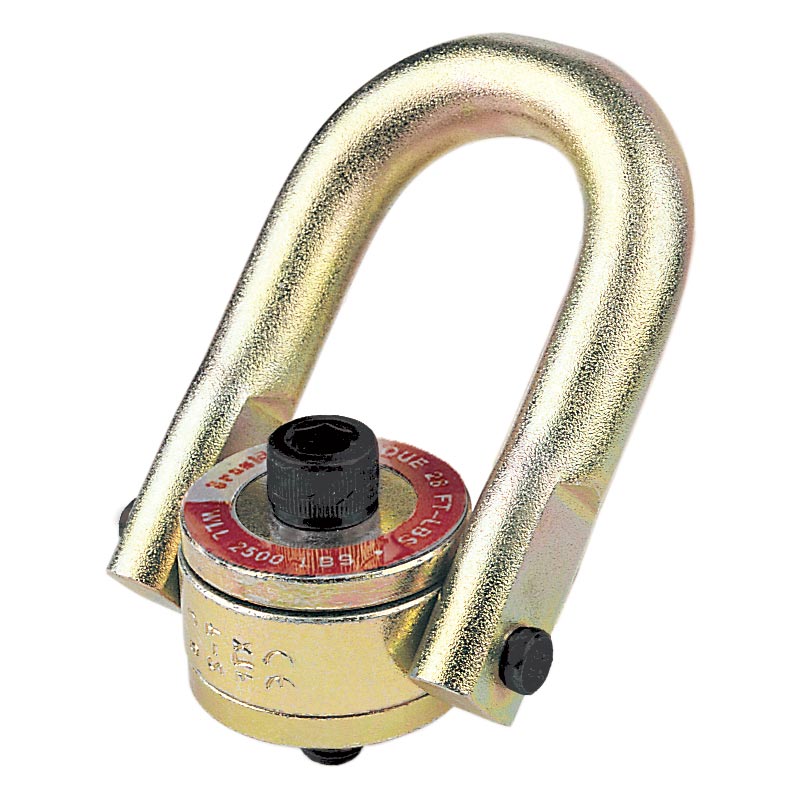

Crosby® 7/8"-9 x 1.64" Swivel Hoist Ring - HR-125
Crosby® 7/8"-9 x 1.64" Swivel Hoist Ring - HR-125!
Authorized Distributor
SKU: SWHR78-9-350-CR
Crosby® 7/8"-9 x 1.64" Swivel Hoist Ring - HR-125
Authorized Distributor
$740.00
Lengths:
Diameters:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working Load Limit (lbs.): 8000
Safety Factor: 5:1
Rated for Overhead Lifting: Yes
Diameter: 7/8" - 9 Bolt
Length: 3-1/2" Bolt
Thread Type: UNC
Material: Alloy Steel
Finish: Zinc Plated
Torque: 160ft-lbs
Product Weight: 6.96 lbs.
Standards: Meets or exceeds ASME B30.26 requirements.
Manufacturer Name: Crosby®
Brand Part Number: 1016957
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Effective Thread Projection: 1-2/3 in
Description
Crosby® HR-125 Swivel Hoist Ring

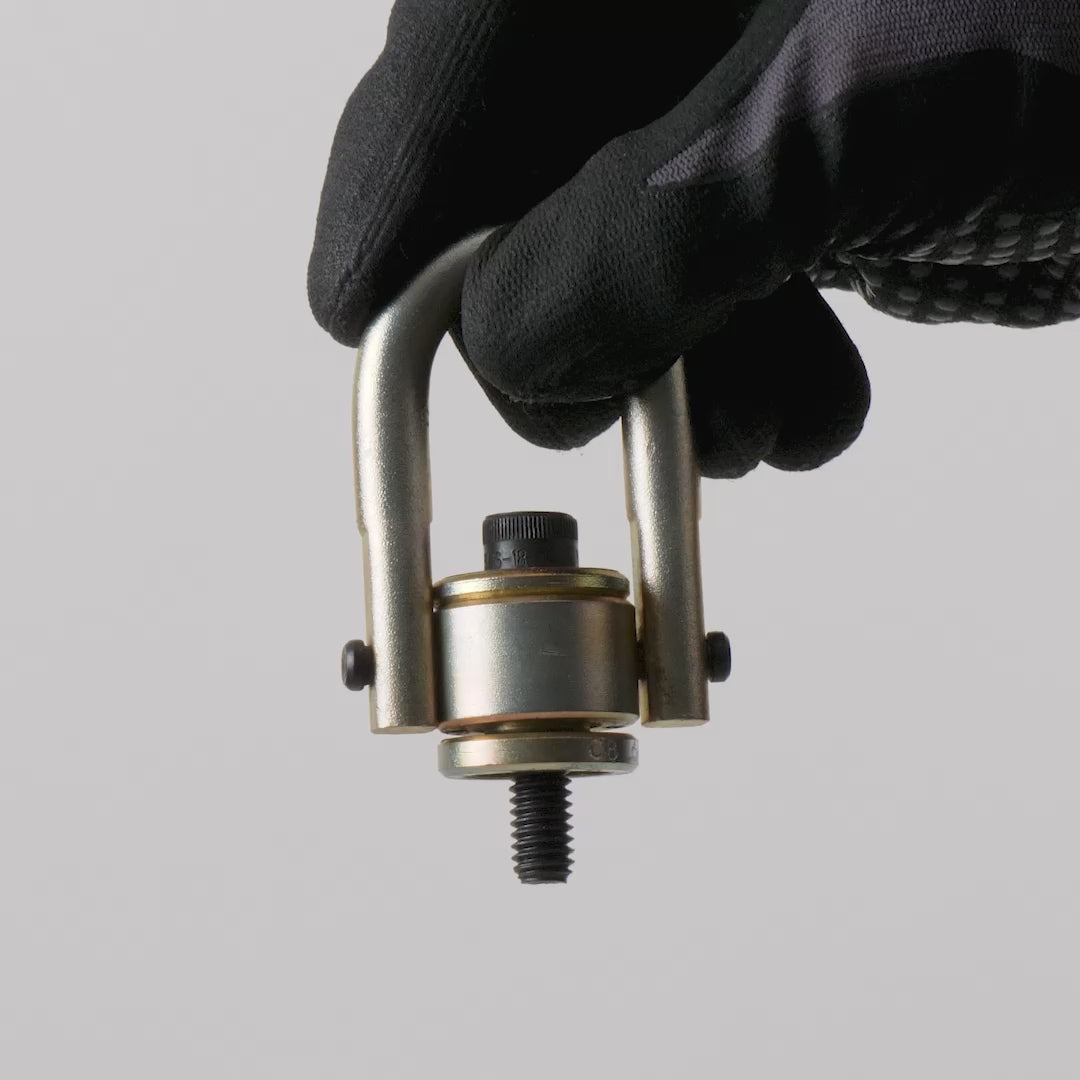

Crosby® HR-125 Swivel Hoist Rings are the industry-standard lifting point for applications where a standard eye bolt isn't safe enough. This 7/8"-9 x 1.64" effective thread projection ring holds 100% of its working load limit from 0° to 90° - something a standard eye bolt cannot do. The bail pivots 180° and the base swivels 360° through a precision bushing, keeping the ring aligned with the direction of force regardless of how the load shifts.
Why Choose Crosby® HR-125 Hoist Rings?
Crosby® is the benchmark for rigging hardware quality. The HR-125 is their industry-standard swivel hoist ring - built to exceed ASME B30.26 requirements and individually proof tested before it leaves the factory.
Premium Alloy Construction
- Quenched and Tempered Alloy Steel: All load-bearing components are alloy steel, heat treated for enhanced strength, toughness, and fatigue resistance in industrial lifting service.
- Zinc-Plated Yellow Chromate Finish: Corrosion protection for field conditions and industrial environments.
- E-Clip Bolt Retention: The bolt is secured with an E-clip on grooved threads, allowing full disassembly for thorough component inspection without losing hardware. Replacement bolt kits sold separately.
- Multiple Bolt Lengths Available: Short bolts for ferrous workpieces (steel, iron); long bolts for non-ferrous workpieces (aluminum, non-ferrous alloys). Select the correct length for your material type.
Individually Proof Tested
- 100% Proof Tested to 2‑1/2x WLL: Every HR-125 is individually proof tested to two-and-a-half times its working load limit with certification - not batch sampled, every unit.
- Fatigue Rated to 20,000 Cycles: Tested at 1‑1/2 times WLL for reliable long-term performance in high-cycle applications.
- Color-Coded Washer: Red washer identifies UNC (coarse) threads. Working load limit and recommended torque are permanently stamped into the washer for quick field identification and inspection.
- PIC Code for Material Traceability: Product Identification Code along with WLL and the Crosby® name stamped directly into the hardware for full material traceability.
Meets and Exceeds Industry Standards
ASME B30.26 - and Beyond
The HR-125 meets all requirements of ASME B30.26, including identification, ductility, design factor, proof load, and temperature requirements - and exceeds it in areas the standard does not address, including fatigue life, impact properties, and material traceability.
5:1 Design Factor
Ultimate load is five times the working load limit, providing the rated safety factor throughout the ring's service life.
Questions?
We also carry the Crosby® HR-1000 Heavy Lift Hoist Rings with a larger forged bail for heavier-duty applications, and the Crosby® SL-150 Slide-Loc™ for tool-free installation. Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions. Need a size, capacity, or configuration we don't carry? Request a custom hoist ring and our team will work directly with the manufacturer to build it for you.
California Residents: WARNING
Add the Essentials
Complete your order with these essentials, compatible with:
Crosby® 7/8"-9 x 1.64" Swivel Hoist Ring - HR-125
My Cart:
$199
-
Quenched and Tempered Alloy Steel
Every load-bearing component in the HR-125 is alloy steel, heat treated through a quench and temper process for enhanced strength, toughness, and fatigue resistance. That's the construction standard behind Crosby's® reputation as the benchmark for rigging hardware.
-
Color-Coded Washer for Fast Field Identification
A red washer marks this ring as UNC (coarse) thread, with working load limit and recommended torque permanently stamped right into it. That makes correct identification and inspection quick and straightforward, even on a busy jobsite.
-
Zinc-Plated Finish for Increased Corrosion Protection
The yellow chromate zinc plating gives this hoist ring reliable corrosion protection in field conditions and industrial environments. It's built to hold up to repeated use without compromising the ring's performance or appearance over time.
-
