SKU: SWHR516-18-150-CR

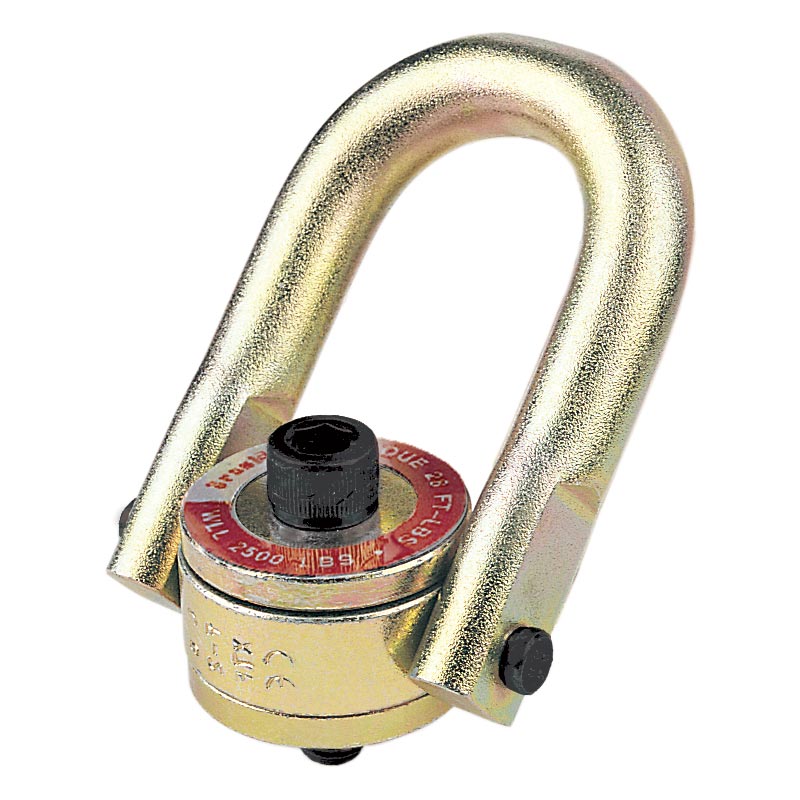

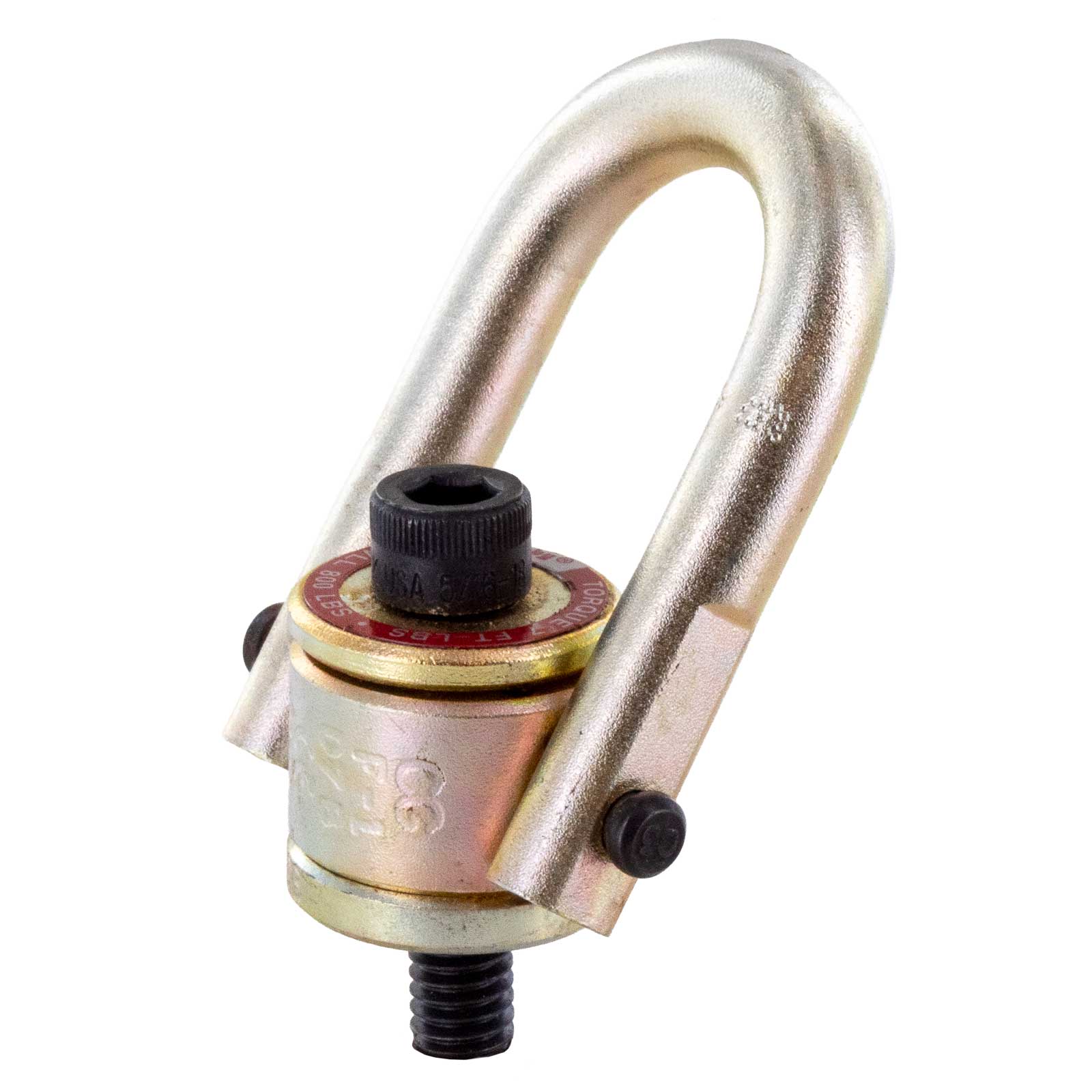

Crosby® 5/16" x 1-1/2" Swivel Hoist Ring - HR-125
Crosby® 5/16" x 1-1/2" Swivel Hoist Ring - HR-125!
Authorized Distributor
Related Articles
$262.00
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 800 lbs.
Brand part number: 1016887
Finish: Zinc Plated
Manufacturer name: Crosby®
Product weight: .37 lbs.
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds ASTM F541 & ASME B18.15 requirements.
Description
Swivel Hoist Rings are a popular choice for a variety of rigging and lifting applications. Hoist rings can pivot and swivel at the base, allowing them to rotate freely with the motion of the load. Standard eye bolts are also used for similar lifting applications, but are static and will experience a loss of capacity when loaded at an angle.

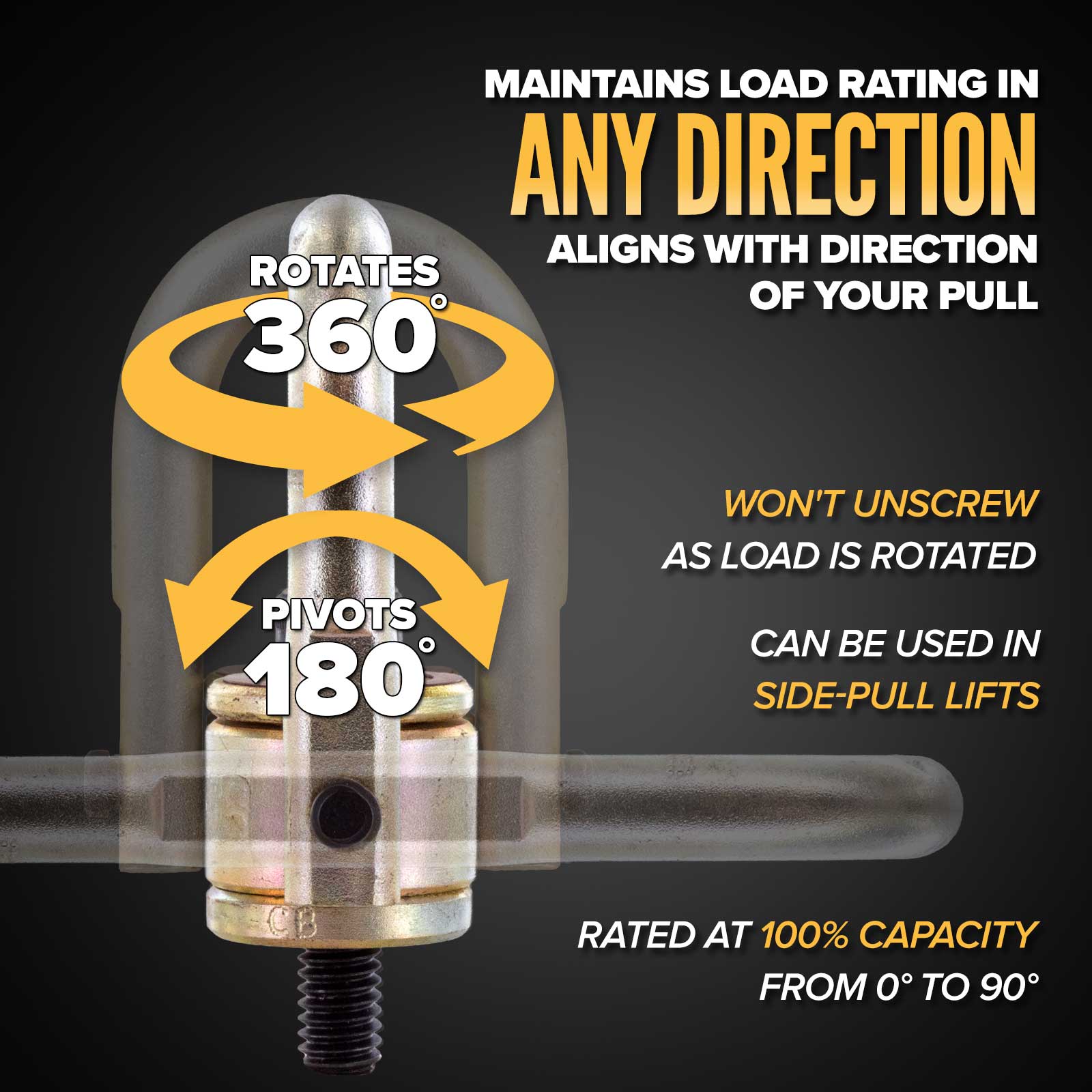

For example, if during a lift a wind gust causes the load to turn, a swivel eye bolt will rotate with the load without any loss of rated load capacity. The ring pivots 180° and the base swivels 360° using a swivel bushing to allow lifting in any direction, all while keeping the ring aligned with the direction of force for maximum load capacity and safety.

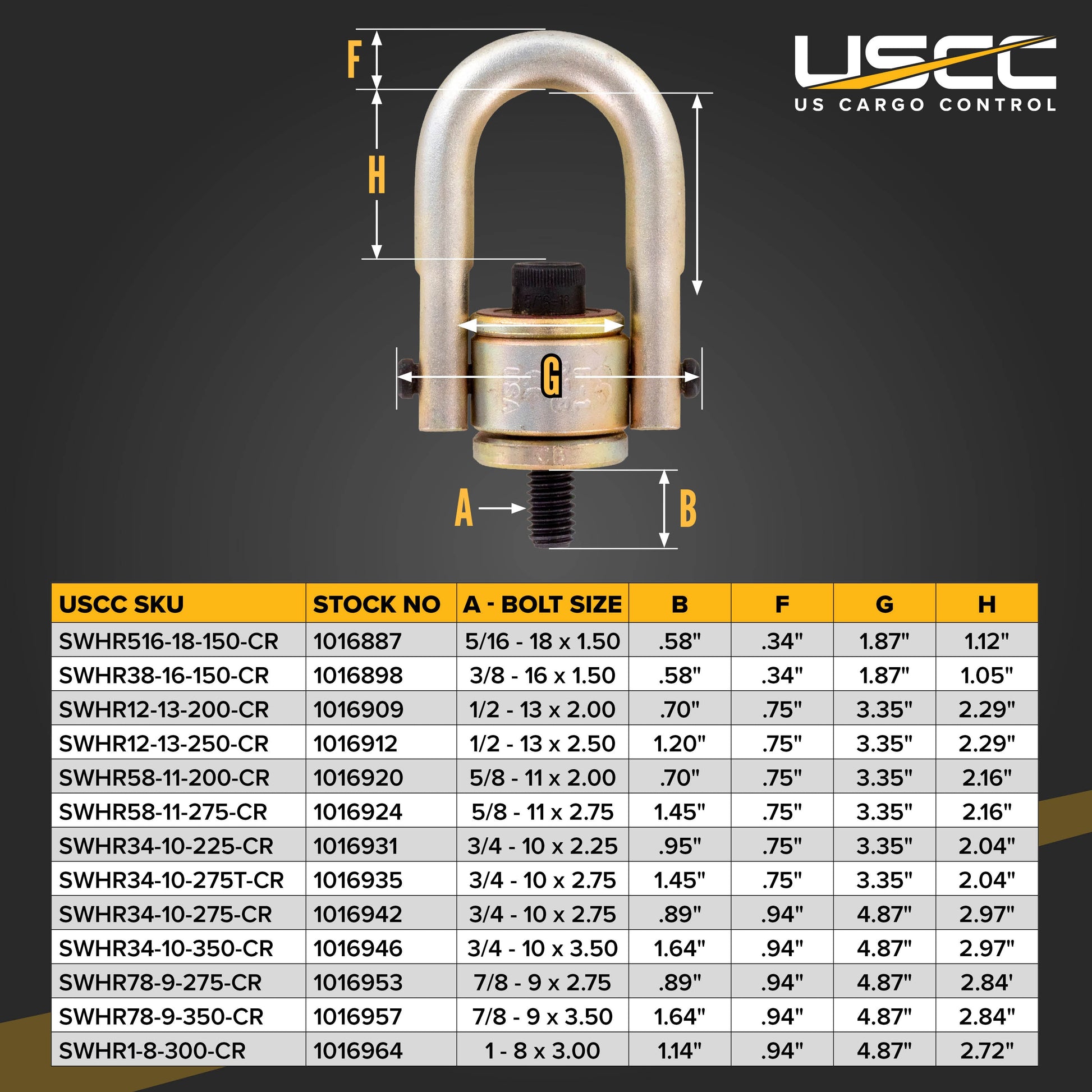

Bolt Size: 5/16" x 1.5" (additional sizes available)
Working Load Limit: 800 lbs.
Looking for more rigging supplies? Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions.
