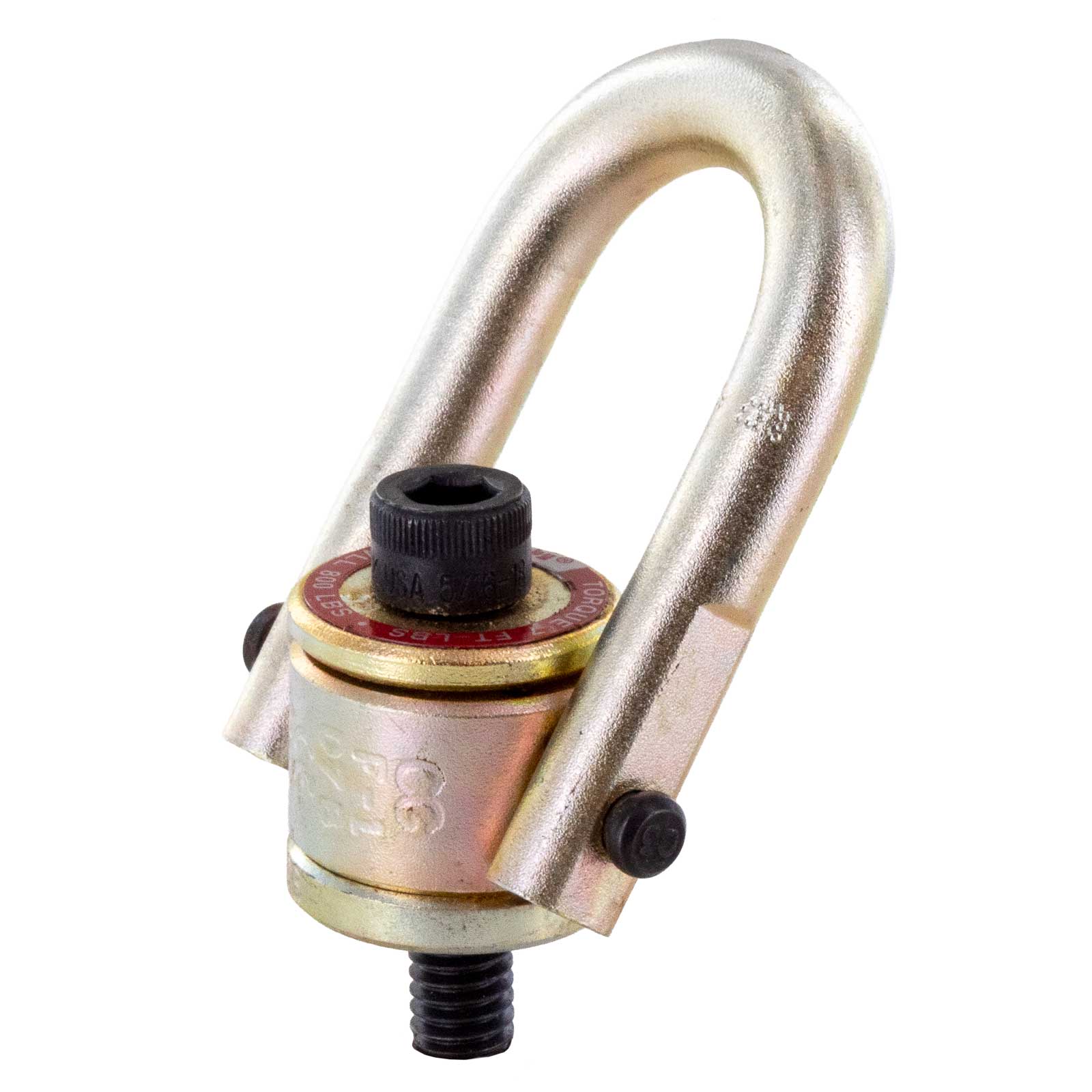

Crosby® HR-125 Swivel Hoist Ring

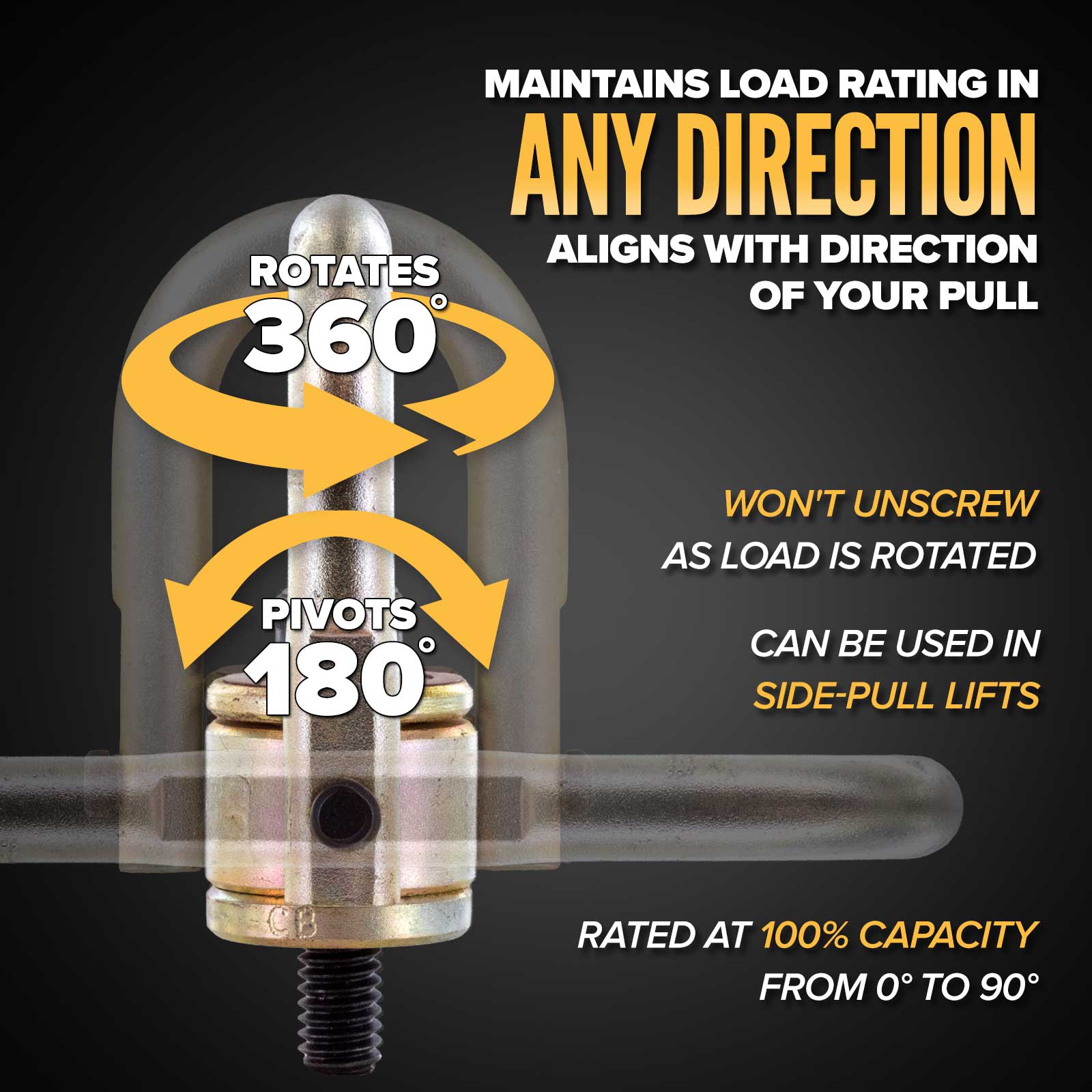

The Crosby® HR-125 Hoist Ring - 3/8"-16 x 0.58" effective thread projection - replaces static eye bolts on lifting applications where load direction can't be guaranteed vertical. A standard eye bolt can shed most of its rated capacity under angular loading; the HR-125 holds 100% WLL from 0° to 90°, with 360° swivel and 180° pivot that keep the ring aligned with the force of the lift on every pick.

Why Choose Crosby® HR-125 Hoist Rings?

Crosby® is the benchmark for rigging hardware quality. The HR-125 is their industry-standard swivel hoist ring - built to exceed ASME B30.26 requirements and individually proof tested before it leaves the factory.

Premium Alloy Construction

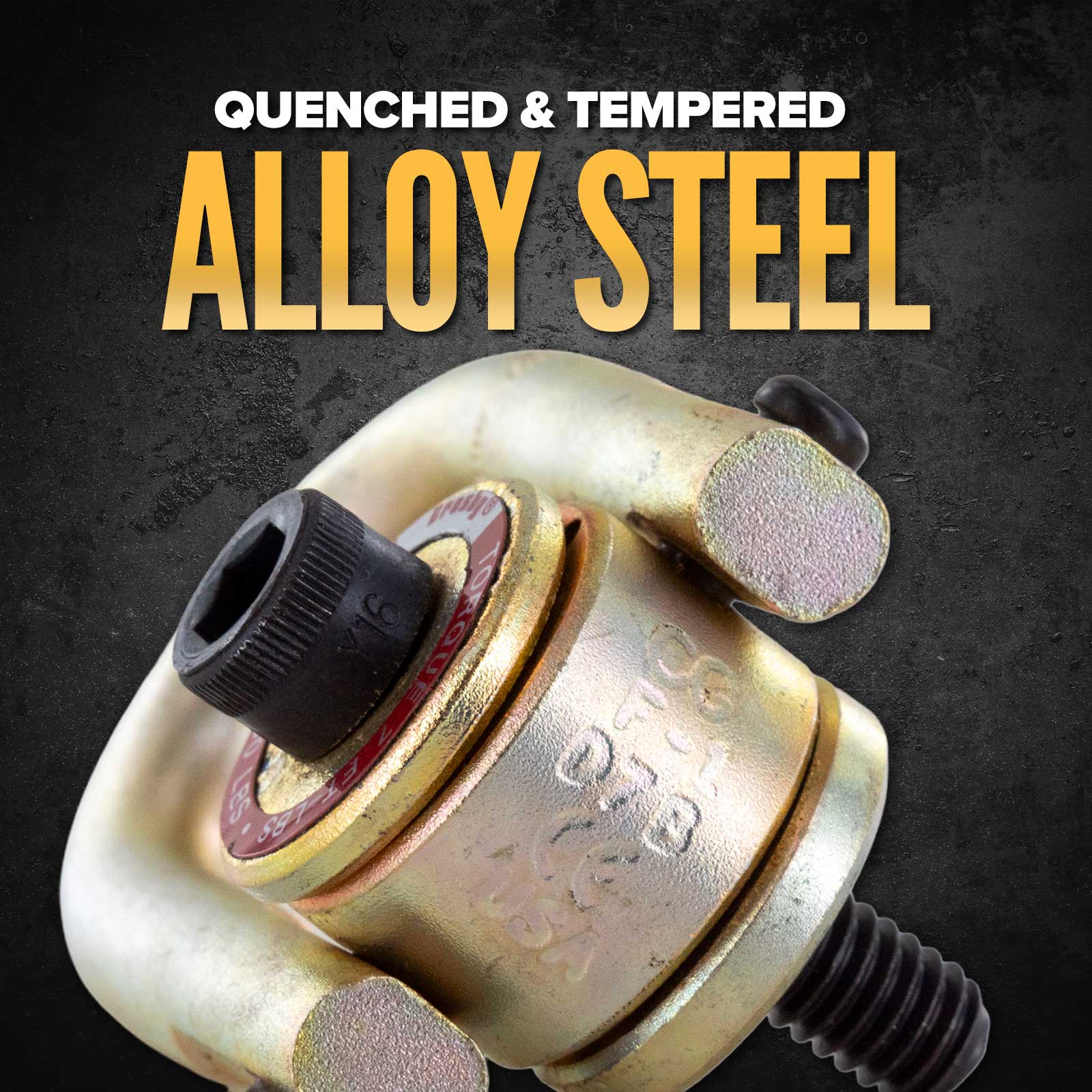

• Quenched and Tempered Alloy Steel: All load-bearing components are alloy steel, heat treated for enhanced strength, toughness, and fatigue resistance in industrial lifting service.
• Zinc-Plated Yellow Chromate Finish: Corrosion protection for field conditions and industrial environments.
• E-Clip Bolt Retention: The bolt is secured with an E-clip on grooved threads, allowing full disassembly for thorough component inspection without losing hardware. Replacement bolt kits sold separately.

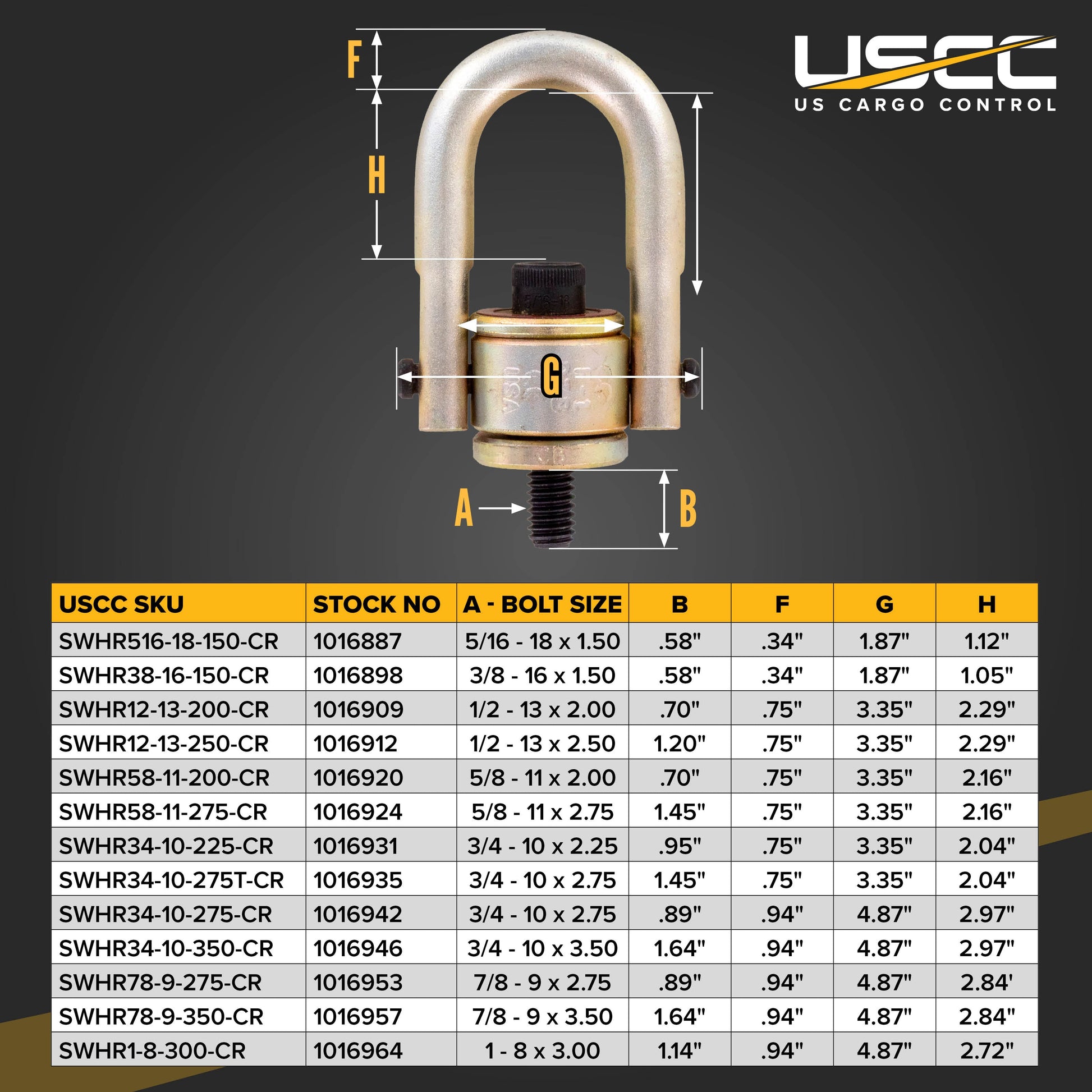

• Multiple Bolt Lengths Available: Short bolts for ferrous workpieces (steel, iron); long bolts for non-ferrous workpieces (aluminum, non-ferrous alloys). Select the correct length for your material type.

Individually Proof Tested

• 100% Proof Tested to 2‑1/2x WLL: Every HR-125 is individually proof tested to two-and-a-half times its working load limit with certification - not batch sampled, every unit.
• Fatigue Rated to 20,000 Cycles: Tested at 1‑1/2 times WLL for reliable long-term performance in high-cycle applications.
• Color-Coded Washer: Red washer identifies UNC (coarse) threads. Working load limit and recommended torque are permanently stamped into the washer for quick field identification and inspection.
• PIC Code for Material Traceability: Product Identification Code along with WLL and the Crosby® name stamped directly into the hardware for full material traceability.

Meets and Exceeds Industry Standards

ASME B30.26 - and Beyond

The HR-125 meets all requirements of ASME B30.26, including identification, ductility, design factor, proof load, and temperature requirements - and exceeds it in areas the standard does not address, including fatigue life, impact properties, and material traceability.

5:1 Design Factor

Ultimate load is five times the working load limit, providing the rated safety factor throughout the ring's service life.

Questions?

We also carry the Crosby® HR-1000 Heavy Lift Hoist Rings with a larger forged bail for heavier-duty applications, and the Crosby® SL-150 Slide-Loc™ for tool-free installation. Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions. Need a size, capacity, or configuration we don't carry? Request a custom hoist ring and our team will work directly with the manufacturer to build it for you.
