description

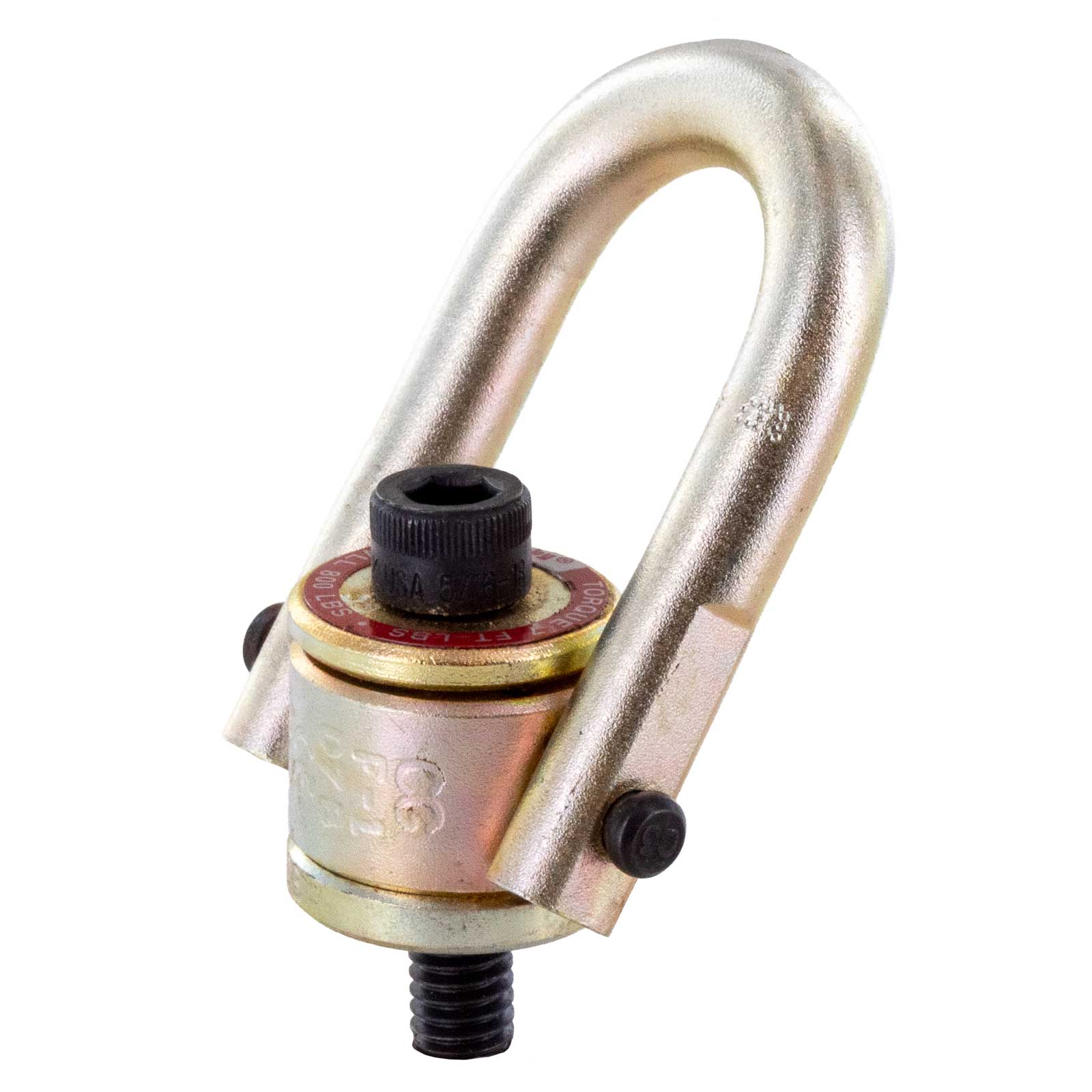

Swivel Hoist Rings are a popular choice for a variety of rigging and lifting applications. Hoist rings can pivot and swivel at the base, allowing them to rotate freely with the motion of the load. Standard eye bolts are also used for similar lifting applications, but are static and will experience a loss of capacity when loaded at an angle.

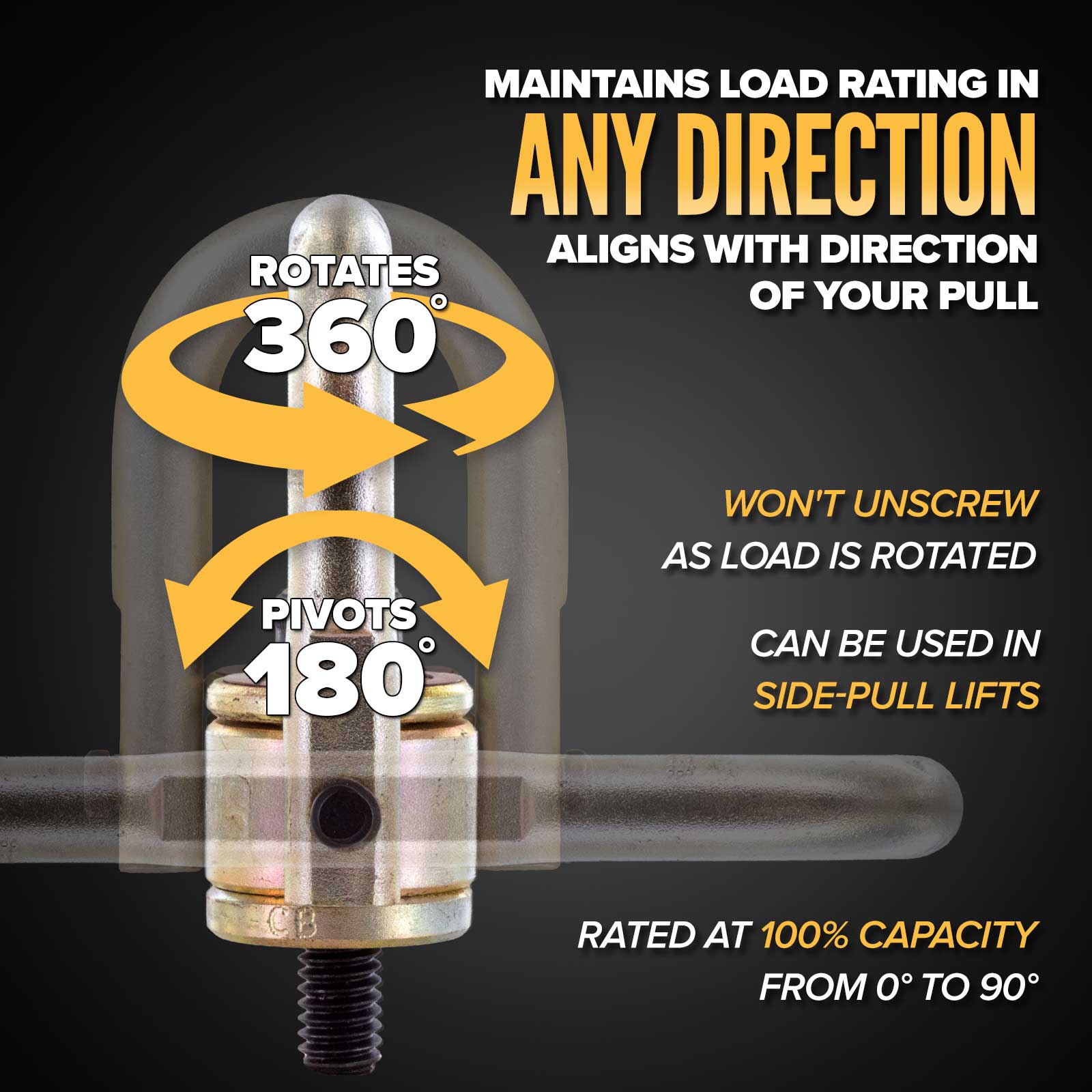

For example, if during a lift a wind gust causes the load to turn, a swivel eye bolt will rotate with the load without any loss of rated load capacity. The ring pivots 180° and the base swivels 360° using a swivel bushing to allow lifting in any direction, all while keeping the ring aligned with the direction of force for maximum load capacity and safety.
Bolt Size: 5/8"x 2.75" (additional sizes available)
Working Load Limit: 4,000 lbs.
Looking for more rigging supplies? Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions.
California Residents: WARNING
Swivel Hoist Rings are a popular choice for a variety of rigging and lifting applications. Hoist rings can pivot and swivel at the base, allowing t...
Swivel Hoist Rings are a popular choice for a variety of rigging and lifting applications. Hoist rings can pivot and swivel at the base, allowing them to rotate freely with the motion of the load. Standard eye bolts are also used for similar lifting applications, but are static and will experience a loss of capacity when loaded at an angle.
For example, if during a lift a wind gust causes the load to turn, a swivel eye bolt will rotate with the load without any loss of rated load capacity. The ring pivots 180° and the base swivels 360° using a swivel bushing to allow lifting in any direction, all while keeping the ring aligned with the direction of force for maximum load capacity and safety.
Bolt Size: 5/8"x 2.75" (additional sizes available)
Working Load Limit: 4,000 lbs.
Looking for more rigging supplies? Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions.
California Residents: WARNING

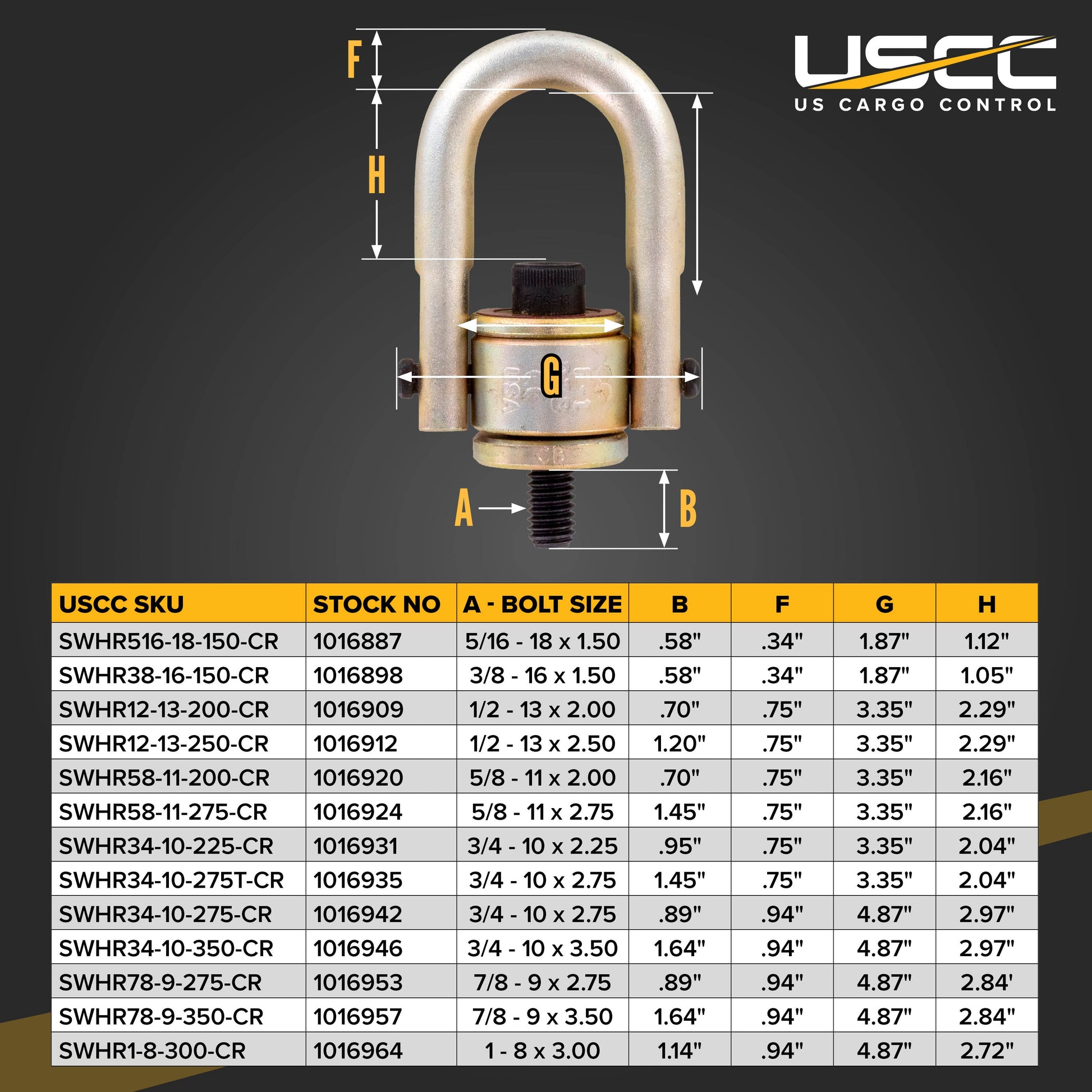

specifications
Working Load Limit:
4,000 lbs.
Product Weight (lbs.):
2.47
Finish:
Zinc Plated
Manufacturer Name:
Crosby®
Brand Part Number:
1016924
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Product Guide:
