description

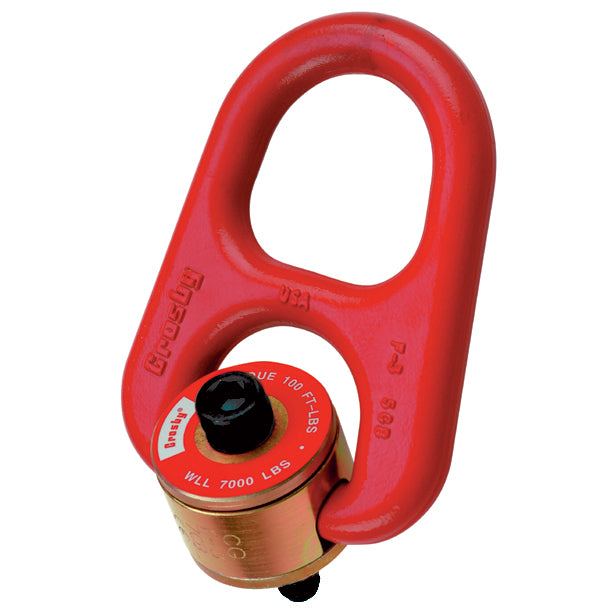

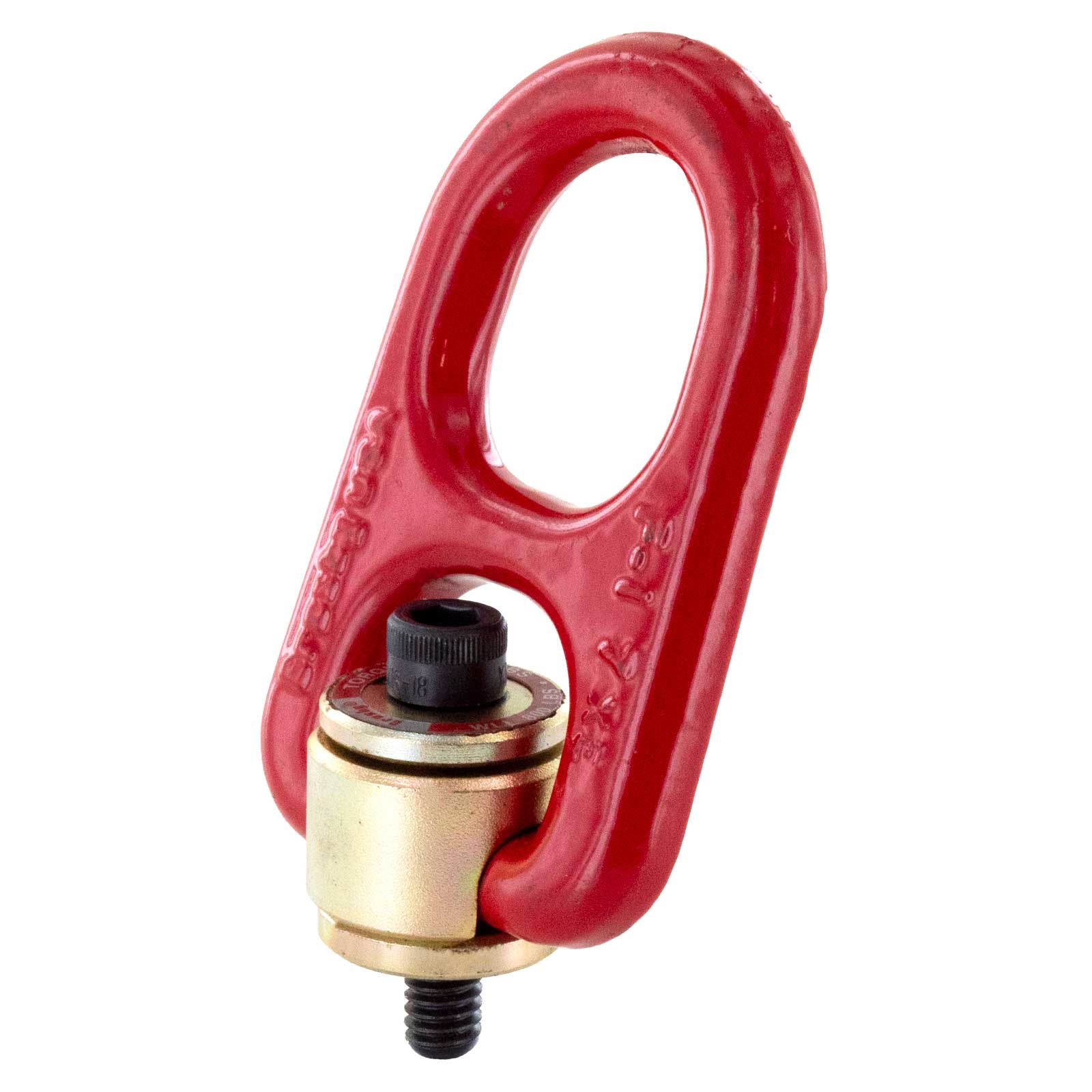

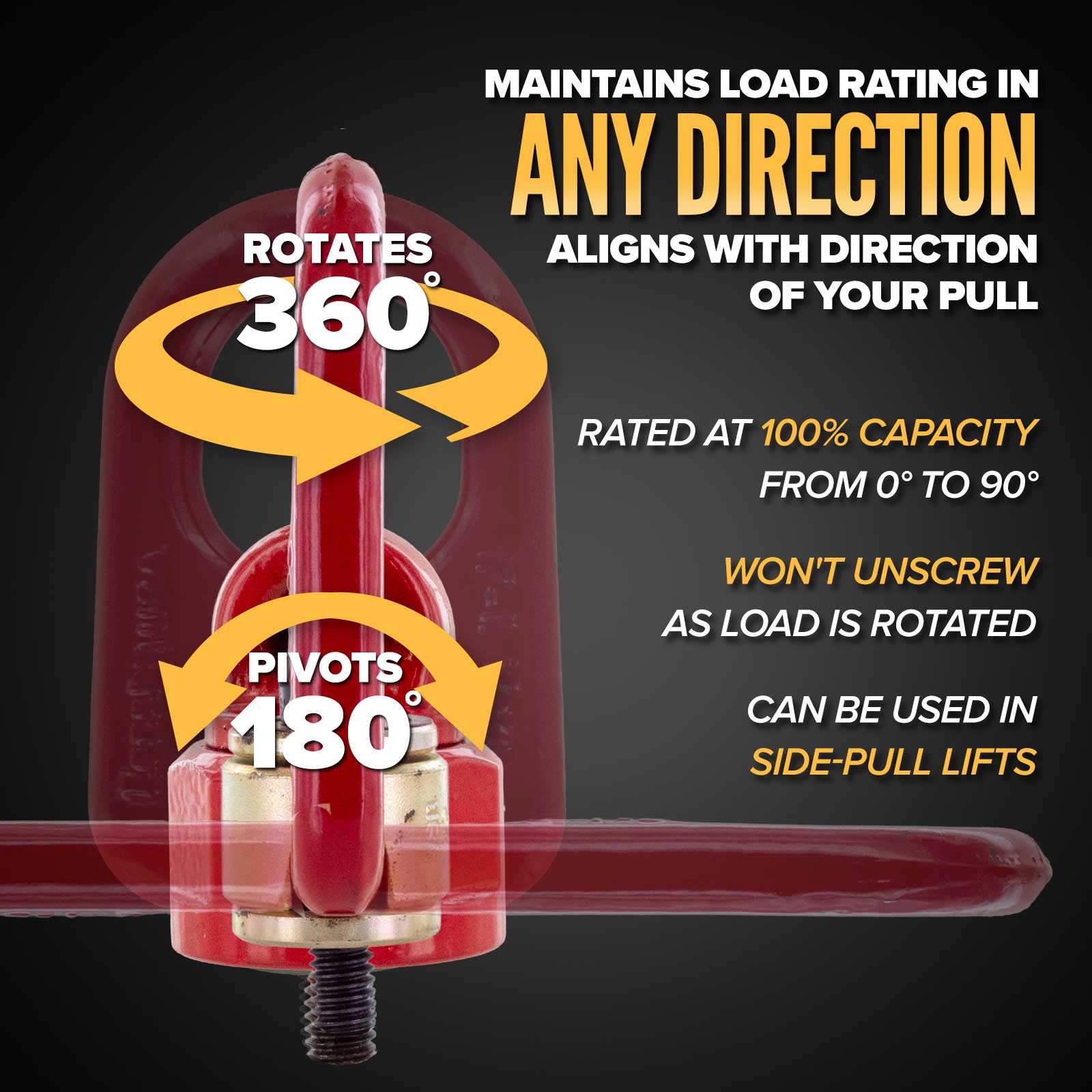

Heavy Lift Swivel Hoist Rings are designed for increased toughness to hold up in potentially harsh field conditions. Featuring a larger opening than standard hoist ring bails, it's even easier to attach sling hooks and other lifting fittings for quick securement. Unlike standard eye bolts which are static, hoist rings can pivot and swivel at the base, allowing them to rotate freely with the motion of the load. The ring pivots 180° and the base swivels 360° using a swivel bushing to allow lifting in any direction, all while keeping the ring aligned with the direction of force for maximum load capacity and safety.
The top washer of the swivel bolt is color-coded for easy identification (Red = UNC threads) and the working load limit and recommended torque value are stamped into each washer. These heavy lift swivel bolts are individually proof test to 2-1/2 times the stated Working Load Limit.

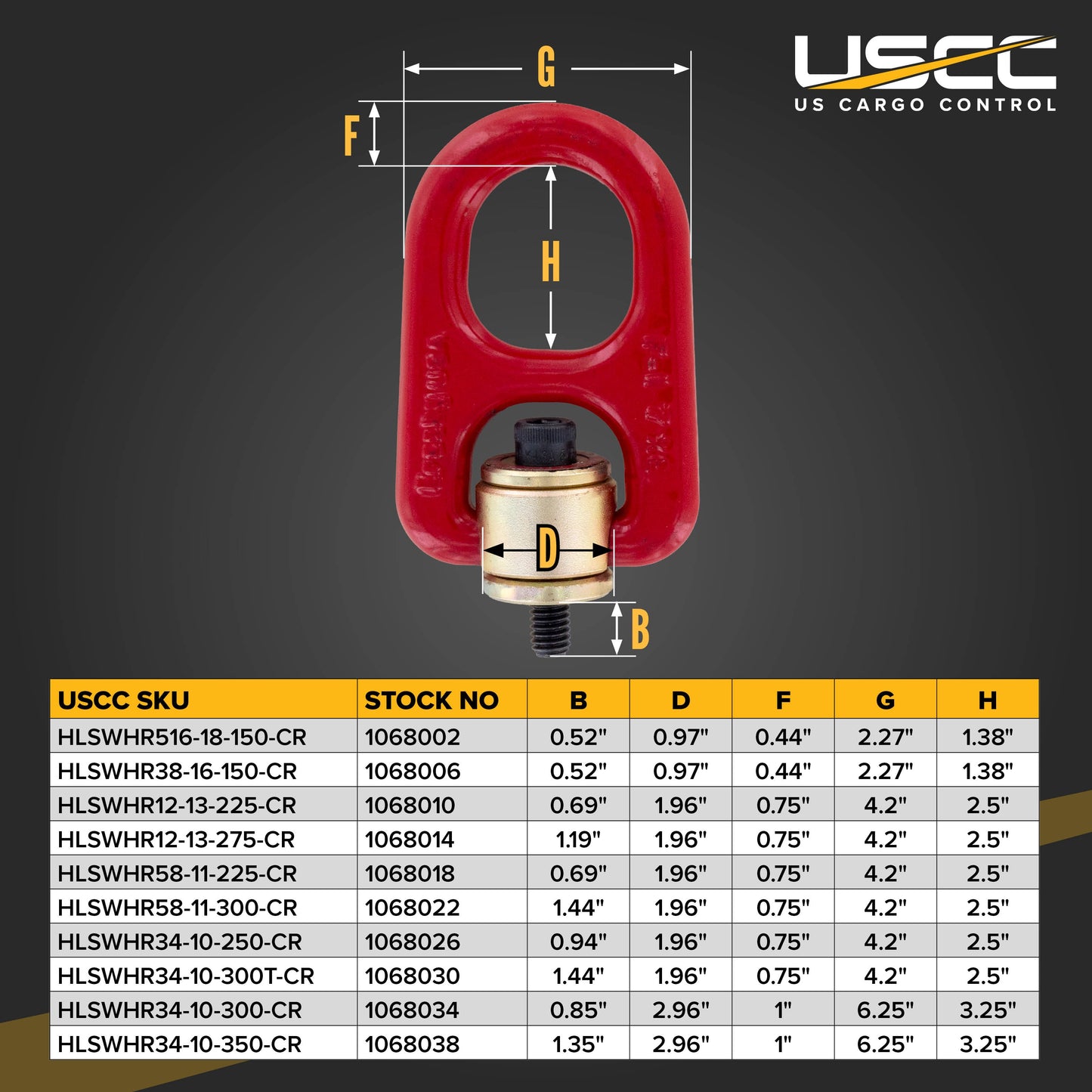

Bolt Size: 3/8" x 1.5" (additional sizes available)
Working Load Limit: 1,000 lbs.
Looking for more rigging supplies? Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions.
California Residents: WARNING
Heavy Lift Swivel Hoist Rings are designed for increased toughness to hold up in potentially harsh field conditions. Featuring a larger opening tha...
Heavy Lift Swivel Hoist Rings are designed for increased toughness to hold up in potentially harsh field conditions. Featuring a larger opening than standard hoist ring bails, it's even easier to attach sling hooks and other lifting fittings for quick securement. Unlike standard eye bolts which are static, hoist rings can pivot and swivel at the base, allowing them to rotate freely with the motion of the load. The ring pivots 180° and the base swivels 360° using a swivel bushing to allow lifting in any direction, all while keeping the ring aligned with the direction of force for maximum load capacity and safety.
The top washer of the swivel bolt is color-coded for easy identification (Red = UNC threads) and the working load limit and recommended torque value are stamped into each washer. These heavy lift swivel bolts are individually proof test to 2-1/2 times the stated Working Load Limit.
Bolt Size: 3/8" x 1.5" (additional sizes available)
Working Load Limit: 1,000 lbs.
Looking for more rigging supplies? Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions.
California Residents: WARNING
specifications
Working Load Limit:
1,000 lbs.
Product Weight (lbs.):
.62
Finish:
Self-Colored
Manufacturer Name:
Crosby®
Brand Part Number:
1068006
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
