SKU: ULR-42-450-304-AC
Actek M42X4.50 E=304mm Ultra Lifting Ring - 10,000 kgs
Actek M42X4.50 E=304mm Ultra Lifting Ring - 10,000 kgs!
SKU: ULR-42-450-304-AC
Actek M42X4.50 E=304mm Ultra Lifting Ring - 10,000 kgs
$979.00
Lengths:
Diameters:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Hoist Rings
Build Your Hoist RingPayment Options
Specifications
Working Load Limit (lbs.): 22000
Safety Factor: 4:1
Rated for Overhead Lifting: Yes
Diameter: M42x4.50
Length: 304mm Bolt
Thread Type: Metric
Finish: Painted Finish
Product Weight: 19 lbs.
Standards: Meets or exceeds EN1677-4 European Standards requirements.
Manufacturer Name: Actek®
Brand Part Number: AK44363
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: WLL (kgs.): 10,000
Description

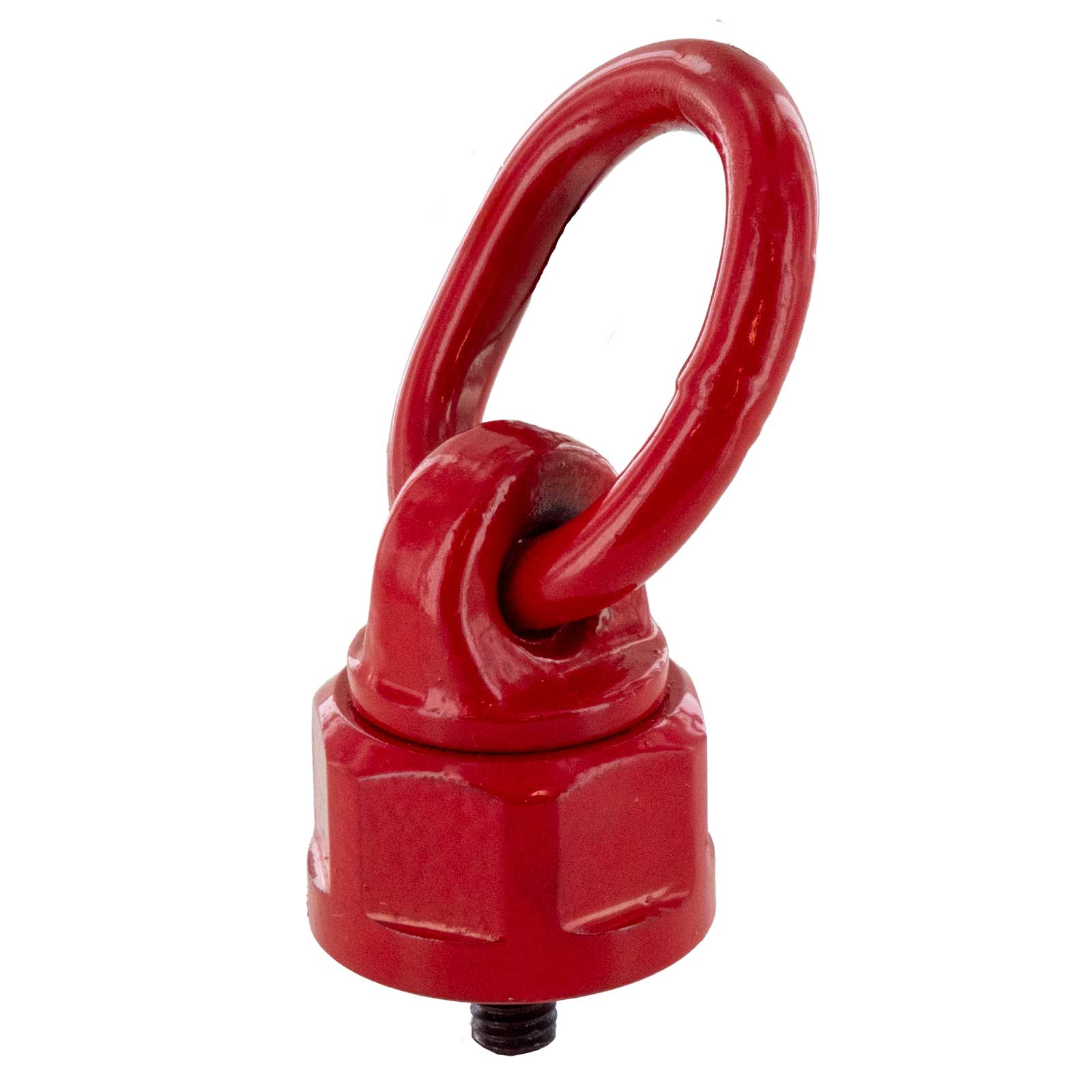

Actek® Metric Ultra Lifting Ring
For metric-threaded stamping dies, injection molds, and industrial components that require side-mounted lifting points, this Actek® M42x4.50 Ultra Lifting Ring with 304mm thread projection handles 10,000 kgs. of working load. The oversized bail accepts a wide range of hook sizes and styles, and the 360°/180° swivel-pivot action aligns with the lifting direction to maintain 100% WLL from any angle. EN1677-4 certified.
Why Choose Actek® Metric Ultra Lifting Rings?
Actek® Manufacturing & Engineering has built a reputation for precision lifting hardware since 1989. Every Metric Ultra Lifting Ring ships with full documentation and is individually serialized for traceability.
Engineered for Side-Mounted and Overhead Lifting

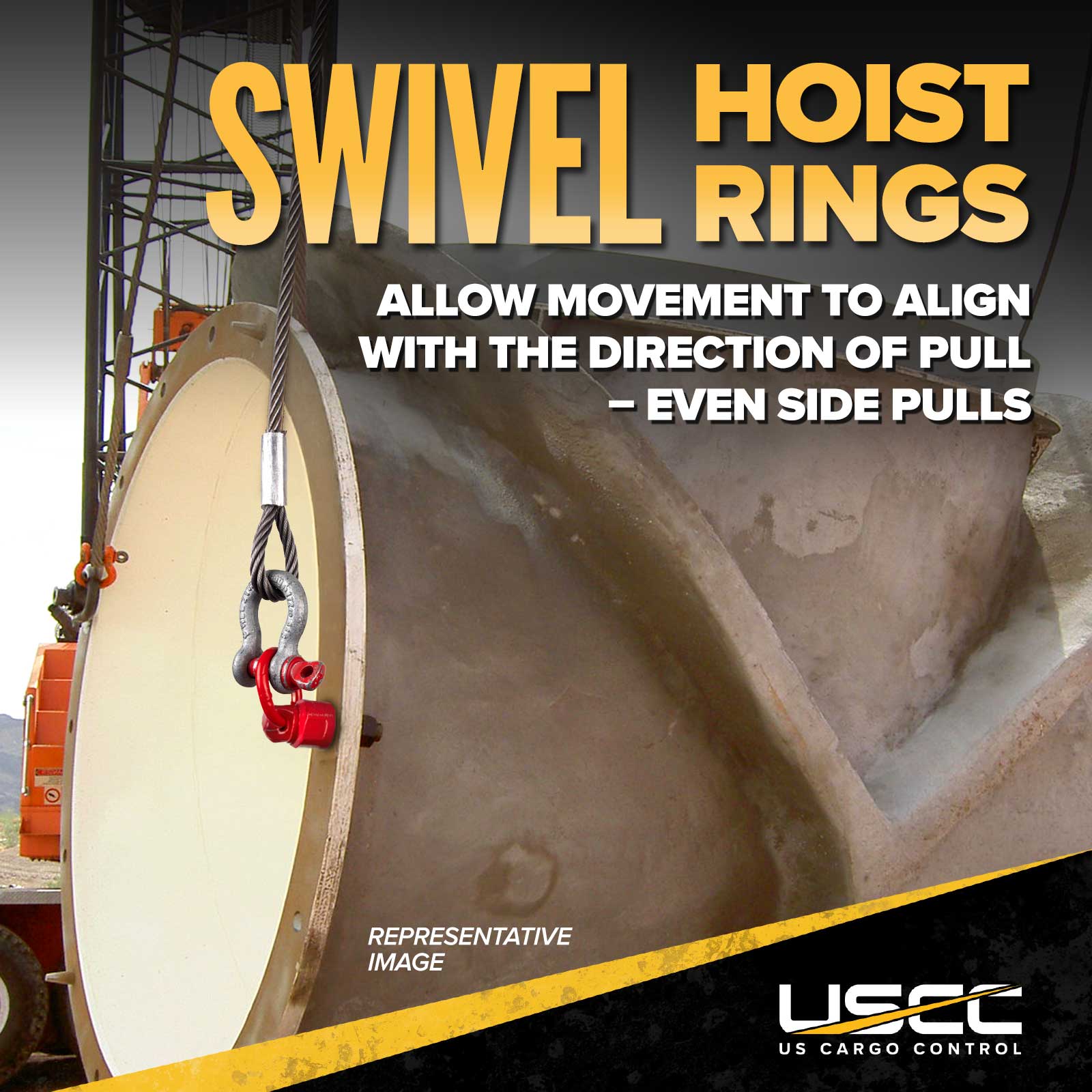

- Designed for Side-Mounted Applications: Purpose-built for mounting on the side face of molds, dies, and machinery - not just the top. The ring aligns with the overhead crane hook automatically, providing safe and flexible lift configurations.
- 360° Swivel and 180° Pivot: The oversized bail rotates 360° and pivots 180° to align with the direction of pull, maintaining 100% of the working load limit during both overhead and side-angled lifts.
- Metric Threading - M42x4.50: Standard ISO metric thread for direct compatibility with European-spec tooling, international machinery standards, and metric-threaded fixtures. Thread projection E=304mm.
- Extra Large Bail Accepts Many Hook Sizes: The oversized ring opening accommodates a wide range of hook sizes and styles, reducing rigging changeover time in production environments.
- Aircraft Quality Alloy Steel: Manufactured from high-strength aircraft quality alloy steel with certified heat treatment for consistent mechanical properties and long service life.
- Black Oxide Finish Per Military Specification: The black oxide treatment bonds directly into the steel surface, providing corrosion resistance that holds up through repeated installation and handling without chipping or flaking.
Individually Proof Tested and Serialized
- 200% Proof-Load Tested: Every ring is proof-load tested to twice its rated working load limit. Not batch tested - every unit individually verified before it ships.
- Magnetic Particle Inspected: Each ring is magnetic particle inspected to detect surface and near-surface defects before shipment.
- Serialized for Full Traceability: Every ring carries a unique serial number enabling complete documentation through inspection, maintenance, and retirement cycles.
- Certified Heat Treatment: Heat treatment certification is included with every ring for quality documentation and compliance records.
Meets Industry Standards
Meets and Exceeds EN1677-4
These Metric Ultra Lifting Rings are designed to meet and exceed EN1677-4 European standard requirements for swivel lifting hardware. EN1677-4 specifies a minimum 4:1 safety factor; these rings are built to that standard and beyond, making them the correct choice for EN-compliance specifications.
4:1 Safety Factor
Minimum breaking strength meets the 4:1 safety factor required by EN1677-4, providing the rated safety margin for certified industrial lifting operations.
ISO 9001 Certified Manufacturer
Actek® Manufacturing & Engineering is an ISO 9001 certified manufacturer.
Questions?
We also carry Actek® UNC Ultra Lifting Rings for standard US-spec tooling and equipment. Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions.
