SKU: SWHR-78-9-1-AC
Actek 7/8"-9 x 1" Swivel Hoist Ring - 8,000 lbs. WLL
Actek 7/8"-9 x 1" Swivel Hoist Ring - 8,000 lbs. WLL!
SKU: SWHR-78-9-1-AC
Actek 7/8"-9 x 1" Swivel Hoist Ring - 8,000 lbs. WLL
$319.93
Lengths:
Diameters:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Hoist Rings
Build Your Hoist RingPayment Options

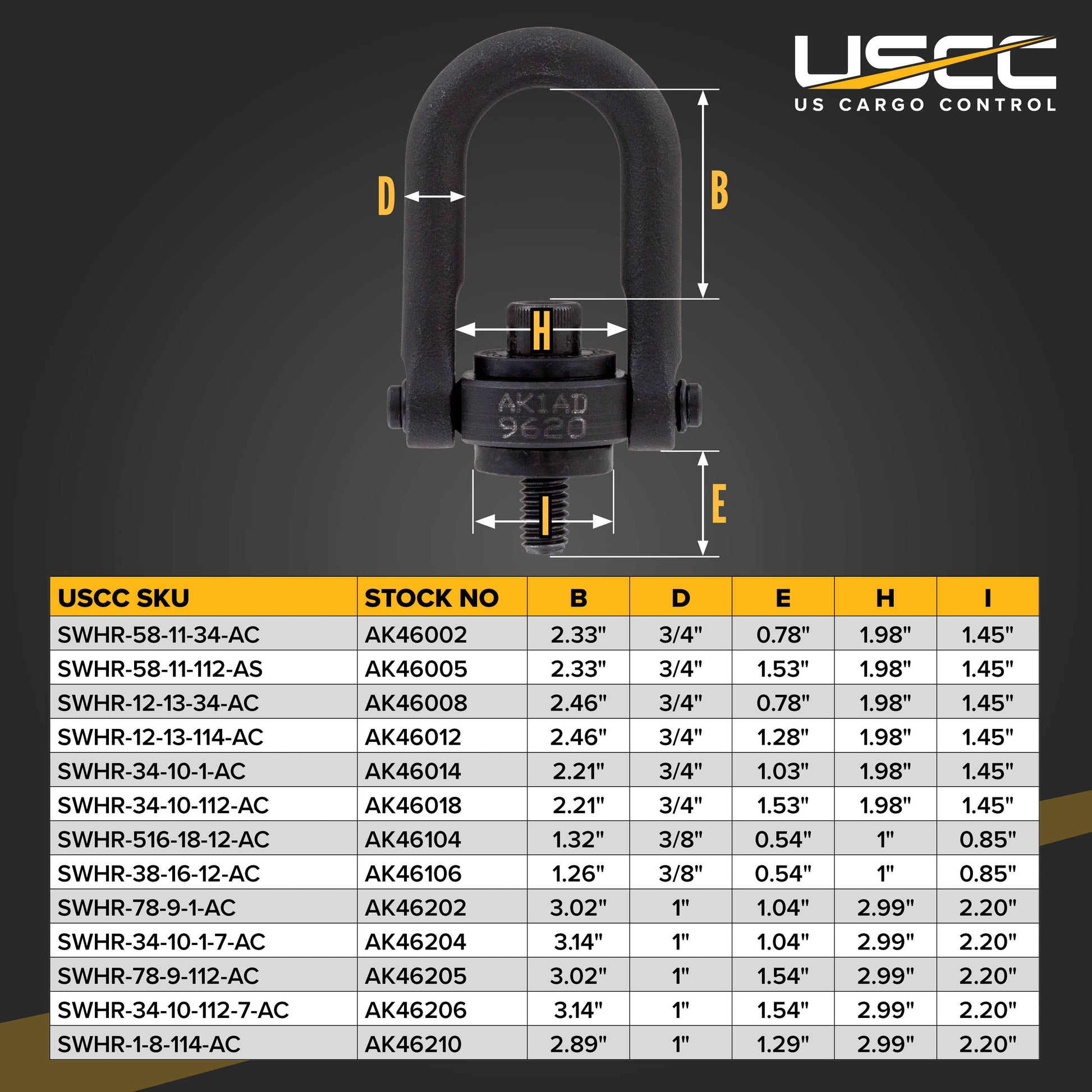

Specifications
Working Load Limit (lbs.): 8000
Safety Factor: 5:1
Rated for Overhead Lifting: Yes
Diameter: 7/8" - 9 Bolt
Length: 1" Bolt
Thread Type: UNC
Material: Alloy Steel
Finish: Black Oxide
Torque: 160 ft-lbs
Product Weight: 7 lbs.
Standards: Meets or exceeds ASME B30.26 requirements.
Manufacturer Name: Actek®
Brand Part Number: AK46202
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Description

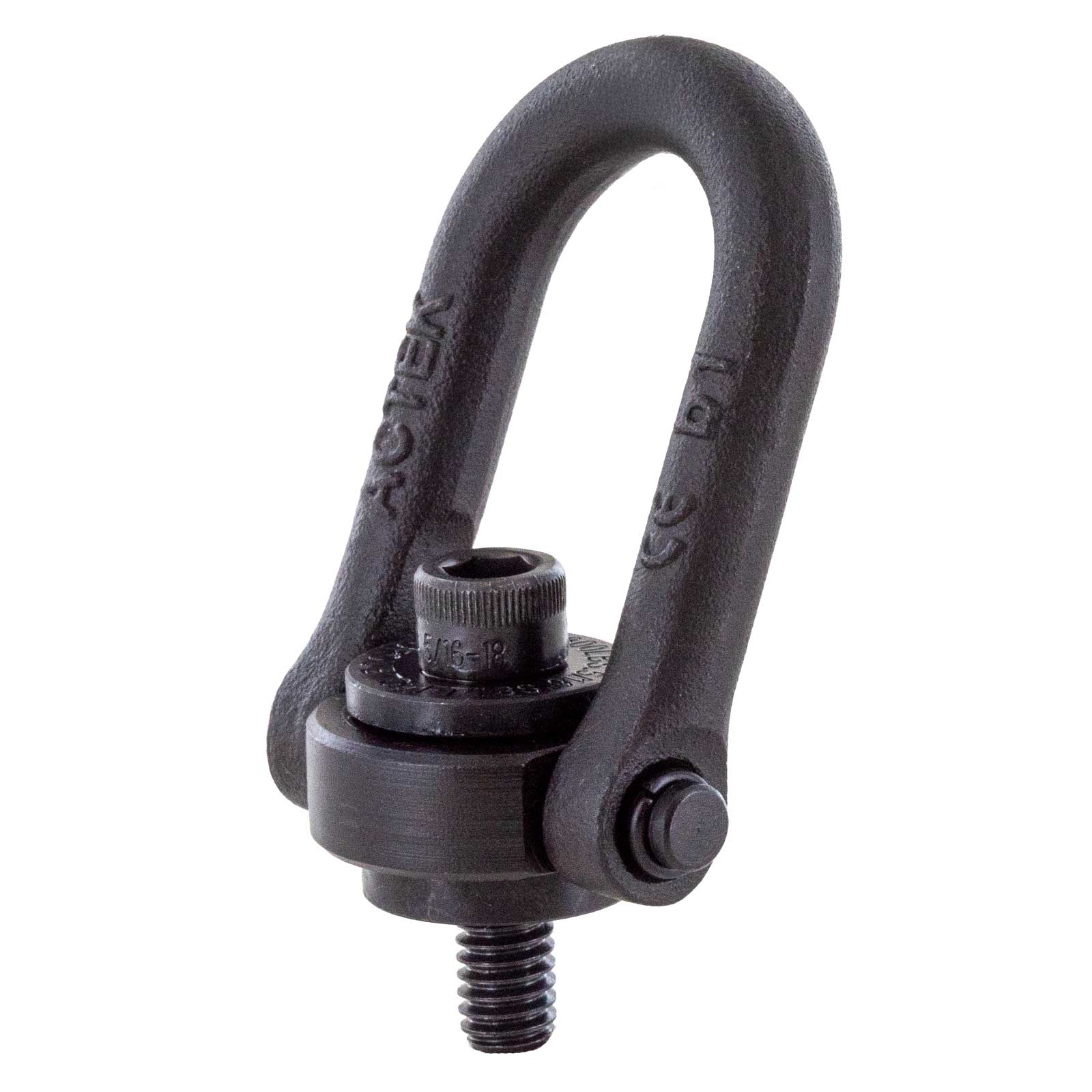

Actek® Safety Swivel Hoist Ring

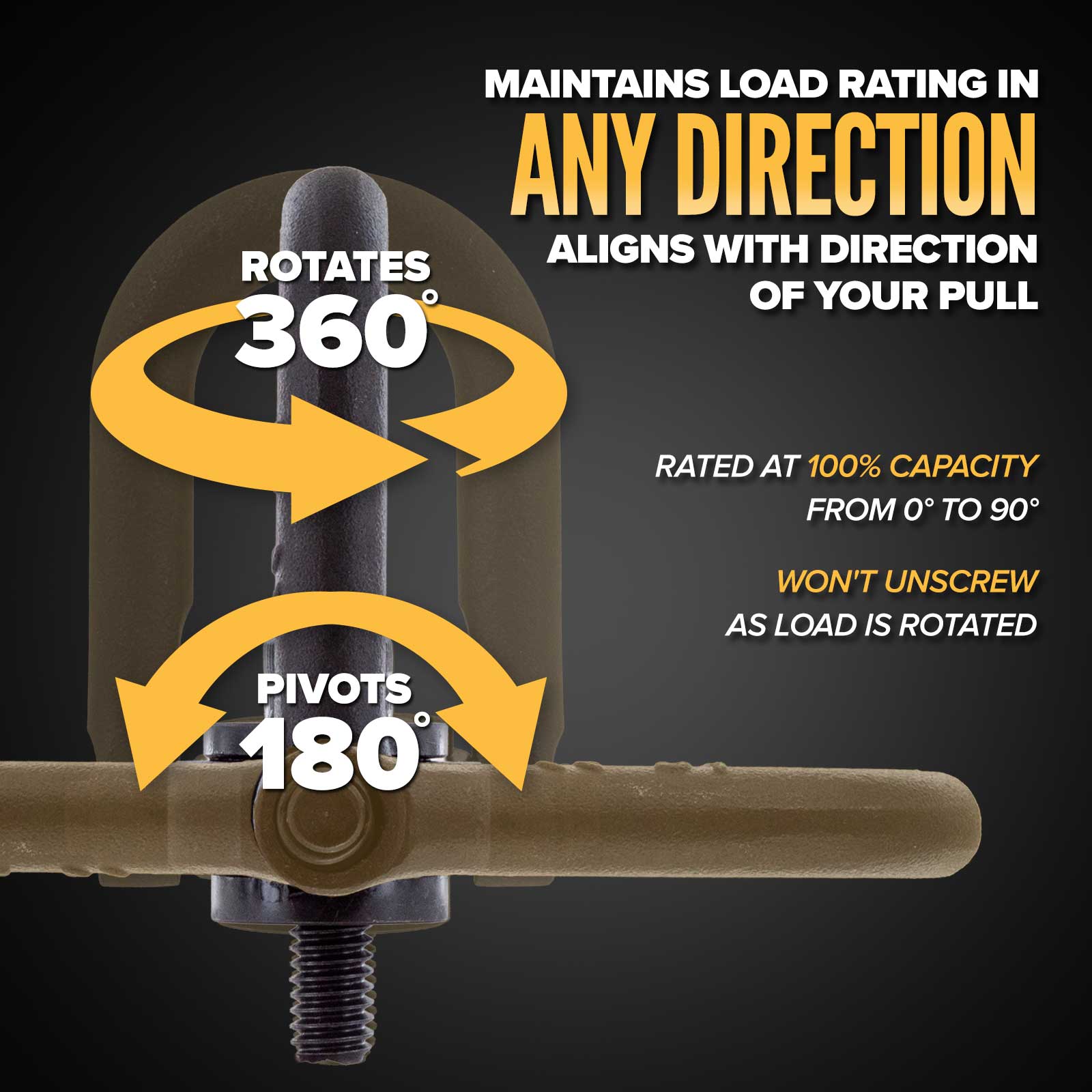

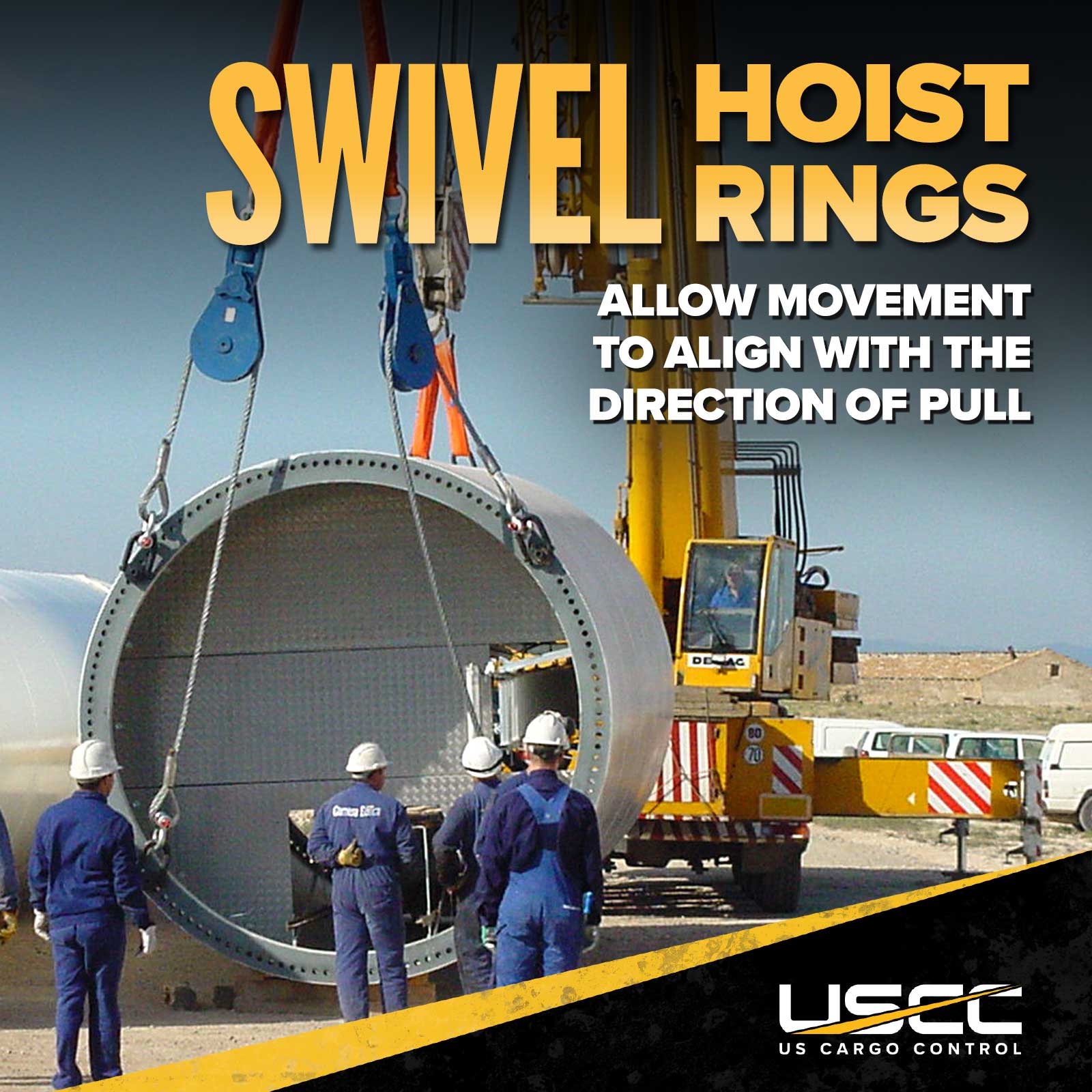

Actek® Safety Swivel Hoist Rings deliver a certified, angle-rated lifting point for machinery, molds, dies, and fabricated components where load direction can change mid-lift. This 7/8"-9 x 1" ring is rated at 8,000 lbs. WLL and holds 100% of that capacity from any direction of pull - something a standard eye bolt cannot do. The bail pivots 180° and the base swivels 360°, automatically aligning with the force of the lift so every pick is as safe as the hardware allows.
Why Choose Actek® Safety Swivel Hoist Rings?
Actek® Manufacturing & Engineering has built a reputation for precision lifting hardware since 1989. Every ring ships with full documentation and is backed by a rigorous quality control process.
Durable Construction
- Black Oxide Finish: The black oxide treatment is a chemical conversion coating that bonds directly into the steel surface - not a layer applied on top. Unlike painted or plated finishes that can chip, peel, or flake under repeated handling, the black oxide becomes part of the metal itself, providing corrosion and wear resistance that holds up through repeated installation, removal, and demanding industrial use.
- Fatigue Tested to 20,000 Cycles: Rated to 1‑1/2 times the working load limit for long service life in high-cycle production environments.
Individually Proof Tested and Serialized

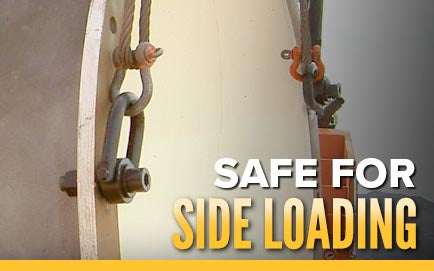

- Rated for Overhead Lifting: Certified for rated overhead lifting applications. Maintains 100% working load limit from 0° to 90° - full rated capacity on straight vertical lifts and angular side pulls alike.
- 200% Proof-Load Tested: Every hoist ring is proof-load tested to twice its rated working load limit - not batch tested, every unit individually.
- Unique Serial Number for Full Traceability: Each ring carries its own serial number for documentation through inspection, maintenance, and retirement cycles.
- Ships with Certificate of Conformance: Individually packaged with a certificate of conformance, safety information, and application instructions.
- 5:1 Design Factor: Minimum breaking strength is five times the working load limit.
Meets and Exceeds Industry Standards
ASME B30.26 Compliant
These rings meet or exceed all requirements of ASME B30.26, including identification, ductility, design factor, proof load, and temperature requirements - plus additional performance criteria like fatigue life and material traceability that the standard does not mandate.
ISO 9001 Certified Manufacturer
Actek® Manufacturing & Engineering is an ISO 9001 certified manufacturer.
Questions?
We also carry Actek® Stainless Steel Swivel Hoist Rings for corrosive environments, and Crosby® Swivel Hoist Rings as an alternative. Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions. Need a size, capacity, or configuration we don't carry? Request a custom hoist ring and our team will work directly with the manufacturer to build it for you.
