SKU: SSHR-34-10-1-25-AC
Actek 3/4"-10 x 1" Stainless Steel Hoist Ring - 2,500 lbs. WLL
Actek 3/4"-10 x 1" Stainless Steel Hoist Ring - 2,500 lbs. WLL!
SKU: SSHR-34-10-1-25-AC
Actek 3/4"-10 x 1" Stainless Steel Hoist Ring - 2,500 lbs. WLL
$436.57
Lengths:
Diameters:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Hoist Rings
Build Your Hoist RingPayment Options

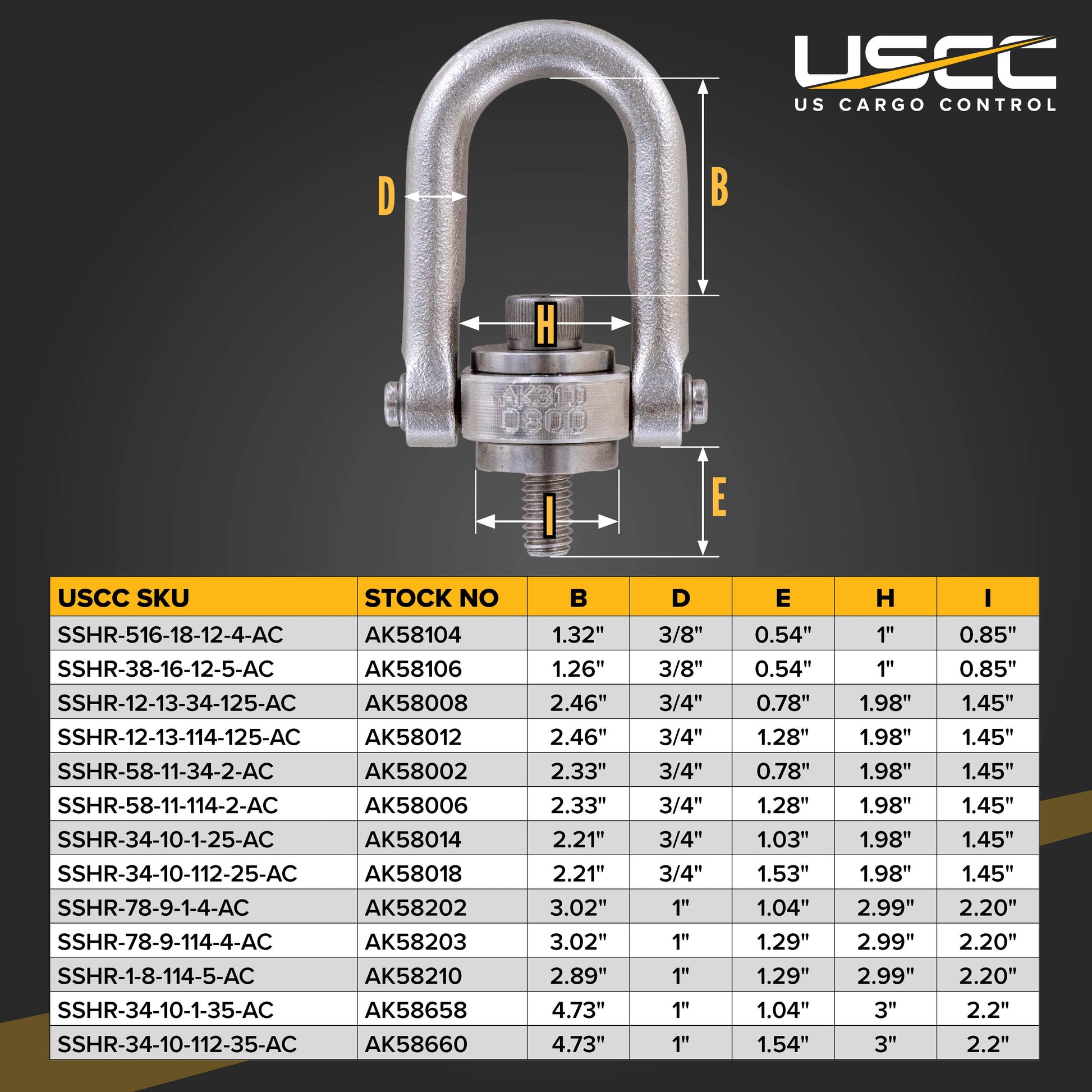

Specifications
Working Load Limit (lbs.): 2500
Safety Factor: 5:1
Rated for Overhead Lifting: Yes
Diameter: 3/4" - 10 Bolt
Length: 1" Bolt
Thread Type: UNC
Material: 316 Stainless Steel
Torque: 50 ft-lbs
Product Weight: 2.7 lbs.
Standards: Meets or exceeds ASME B30.26 requirements.
Manufacturer Name: Actek®
Brand Part Number: AK58014
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Description

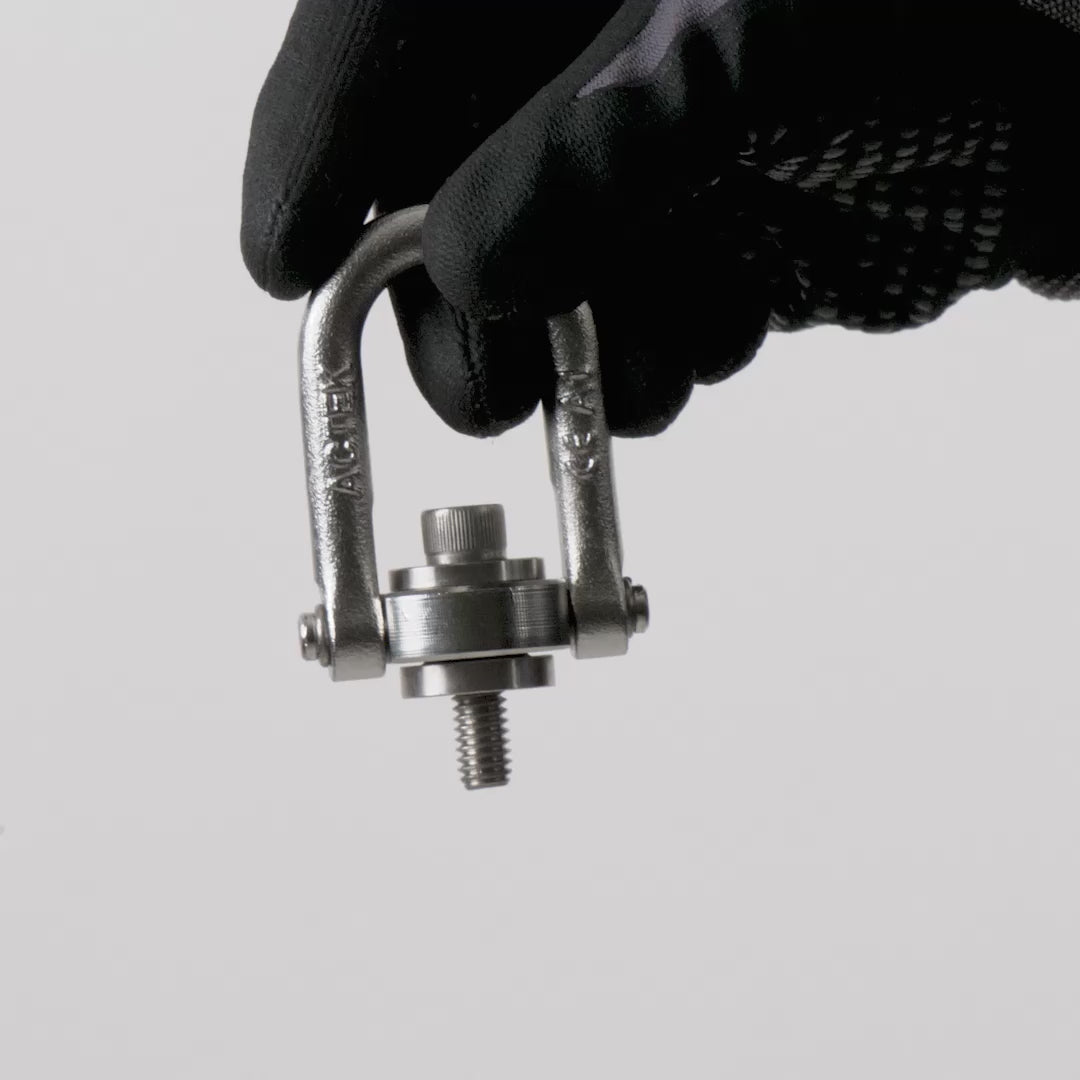

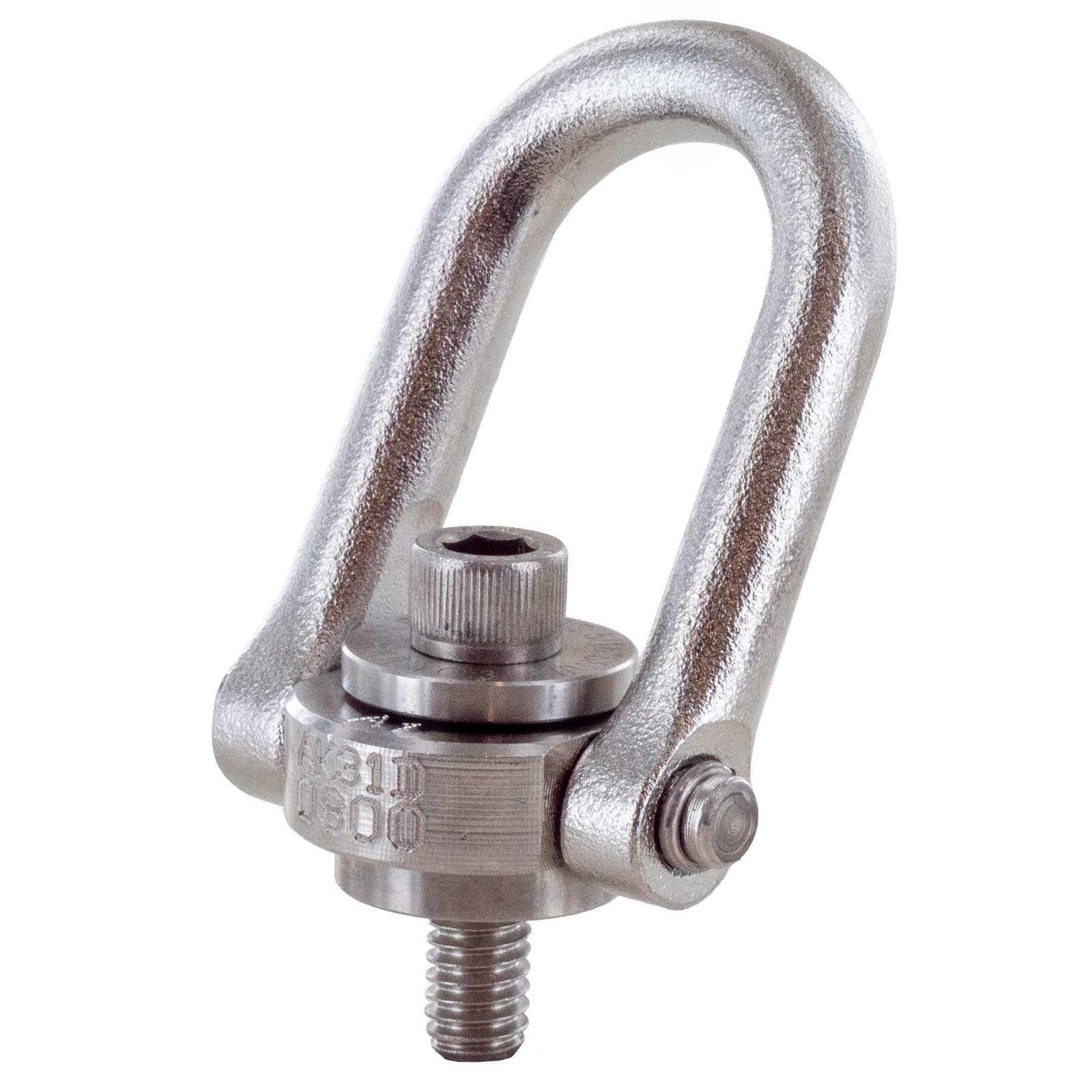

Actek® Stainless Steel Swivel Hoist Ring
Rated at 2,500 lbs. WLL and threaded 3/4-10" with a 1" thread projection, this Actek® Stainless Steel Swivel Hoist Ring is manufactured from 316 stainless steel - not 304 - for superior corrosion resistance in saltwater, chemical-contact, and food-processing environments where alloy steel has no business being. Same 360° swivel and 180° pivot action as the standard alloy line.
Why Choose Actek® Stainless Steel Hoist Rings?
When you need a certified lifting point that holds up to the elements, 316 stainless steel is the industry-standard material. Actek® backs it with the same proof testing and individual serialization as their full alloy line.
316 Stainless Steel Construction

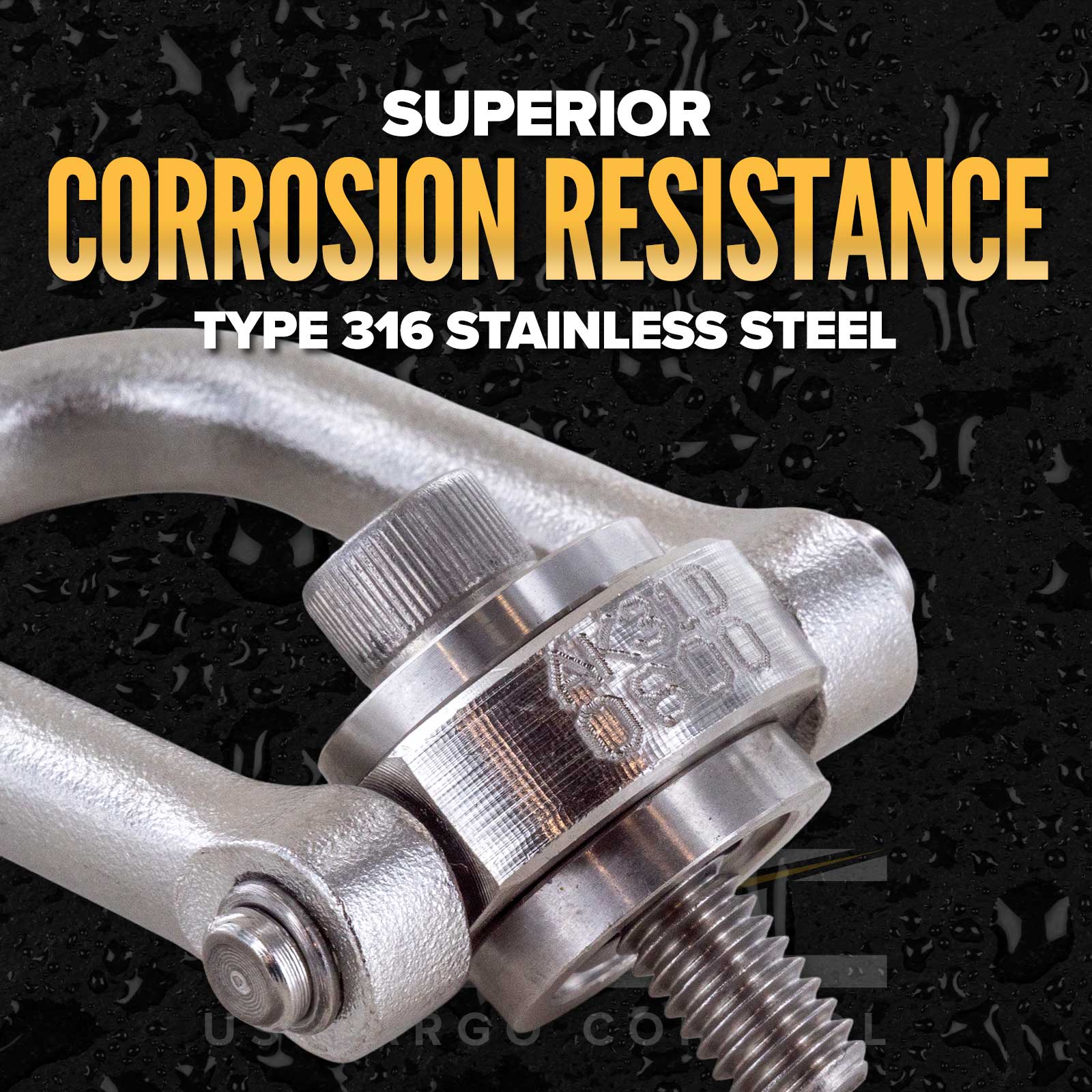

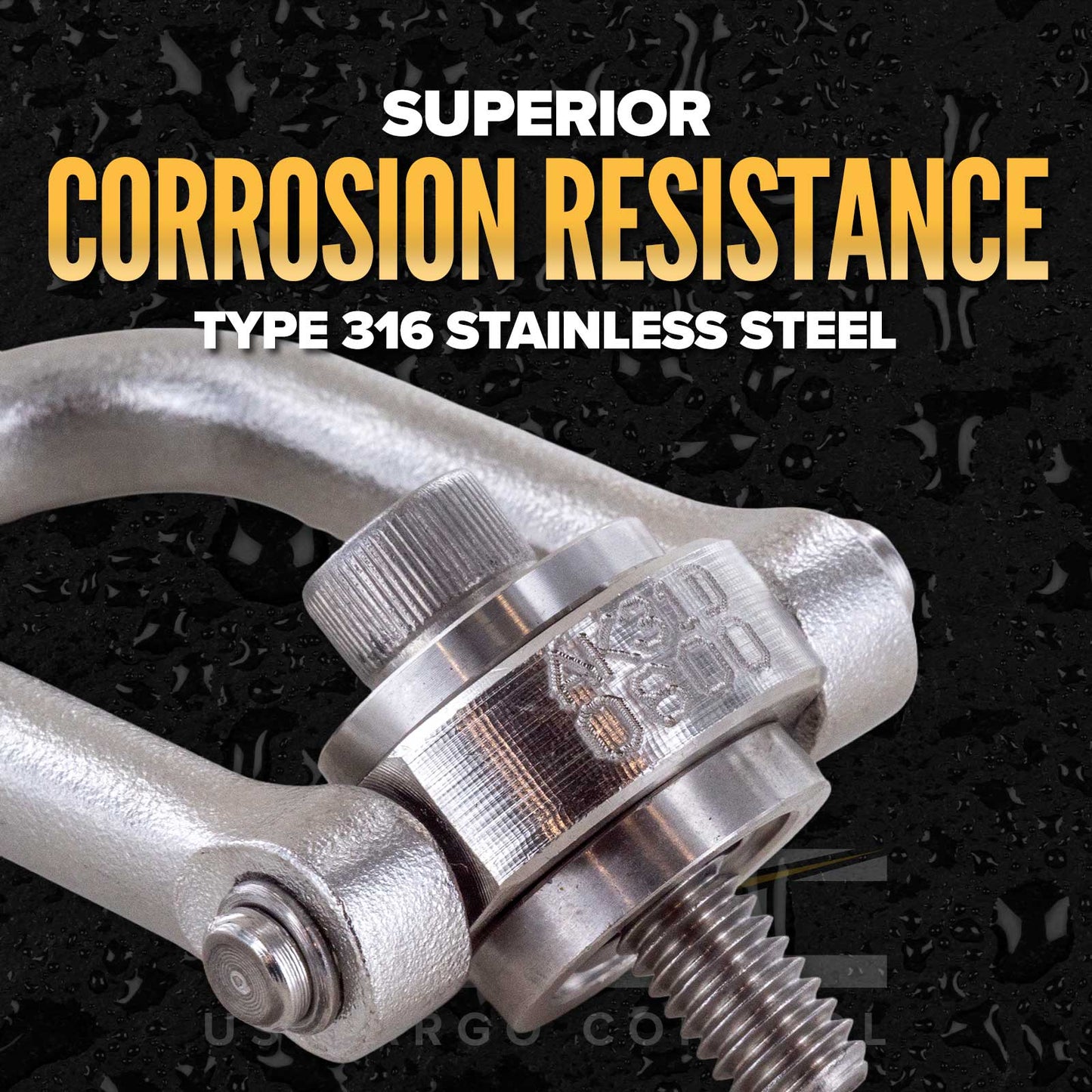

- 316 Stainless Steel: Superior corrosion resistance compared to 304 stainless. Suited for saltwater, chemical exposure, food-processing washdown, and other environments where alloy steel would degrade over time.
- Liquid Penetrant Inspected: Every ring is inspected using liquid penetrant testing - the appropriate non-destructive inspection method for non-magnetic stainless steel materials.
- Rated for Overhead Lifting: Certified for rated overhead lifting applications. Maintains 100% working load limit from 0° to 90° - full rated capacity on straight vertical lifts and angular side pulls alike.
- Fatigue Tested: Each ring is tested to 20,000 cycles at 1.5 times its rated load, demonstrating long-term reliability for repeated lifting operations.

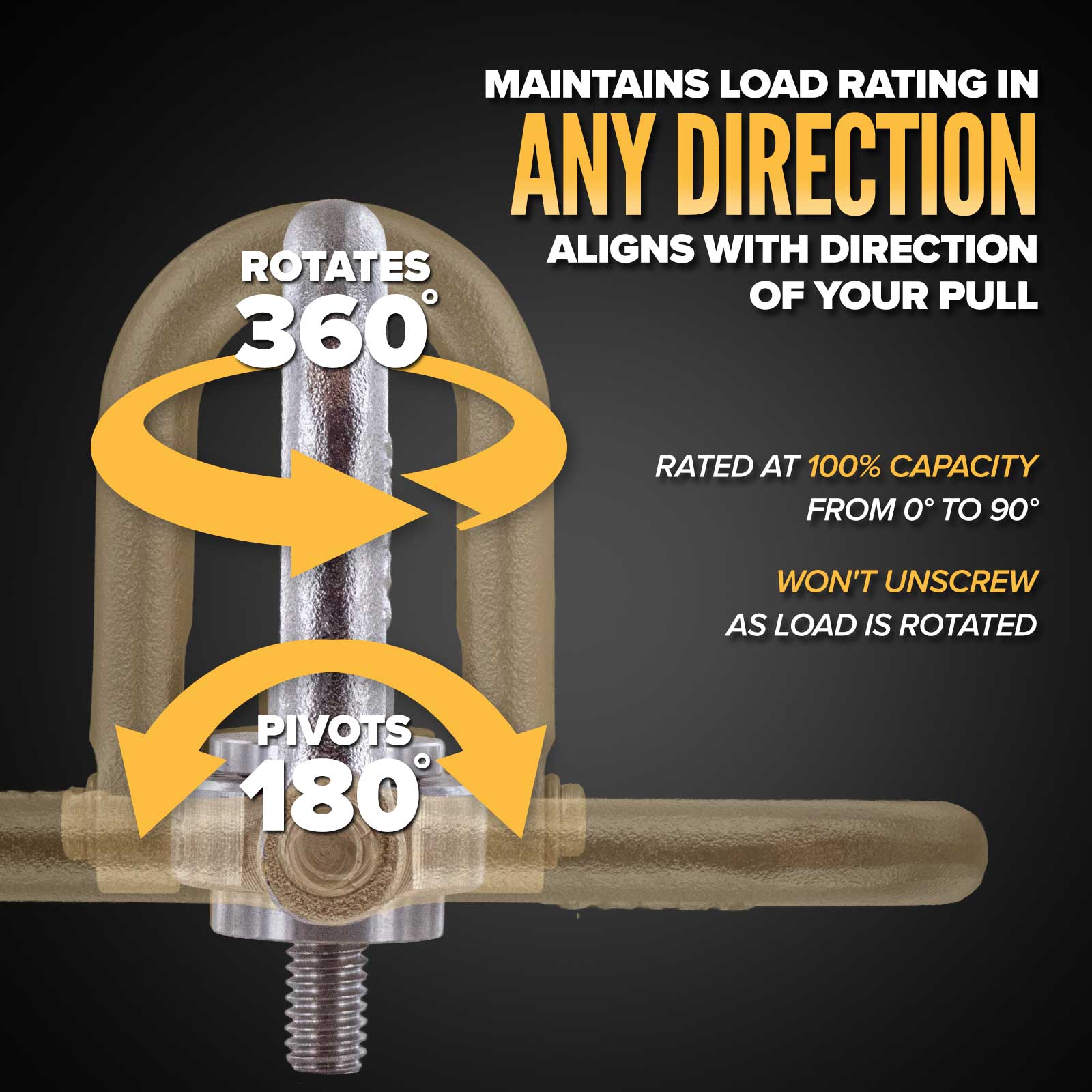

- 360° Swivel and 180° Pivot: Full range-of-motion lifting maintains 100% rated capacity from any angle of pull, identical to the alloy version.
- Fatigue Tested to 20,000 Cycles: Rated to 1‑1/2 times the working load limit for long service life in demanding environments.
Individually Proof Tested and Serialized
- 200% Proof-Load Tested: Every unit is individually proof-load tested to twice its rated working load - not batch sampled, every ring.
- Unique Serial Number for Full Traceability: Individual serialization enables documentation through inspection, maintenance, and retirement cycles.
- Ships with Certificate of Conformance: Each ring is individually packaged with a certificate of conformance and application instructions.
- 5:1 Design Factor: Minimum breaking strength is five times the working load limit.
Meets Industry Standards
ASME B30.26 Compliant
These stainless steel hoist rings meet or exceed all applicable requirements of ASME B30.26 for lifting hardware, covering identification, ductility, design factor, proof load, and temperature performance.
ISO 9001 Certified Manufacturer
Actek® Manufacturing & Engineering is an ISO 9001 certified manufacturer.
Questions?
We also offer Actek® Safety Swivel Hoist Rings in alloy steel for general industrial use, and Crosby® Swivel Hoist Rings as an alternative brand. Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions. Need a size, capacity, or configuration we don't carry? Request a custom hoist ring and our team will work directly with the manufacturer to build it for you.
