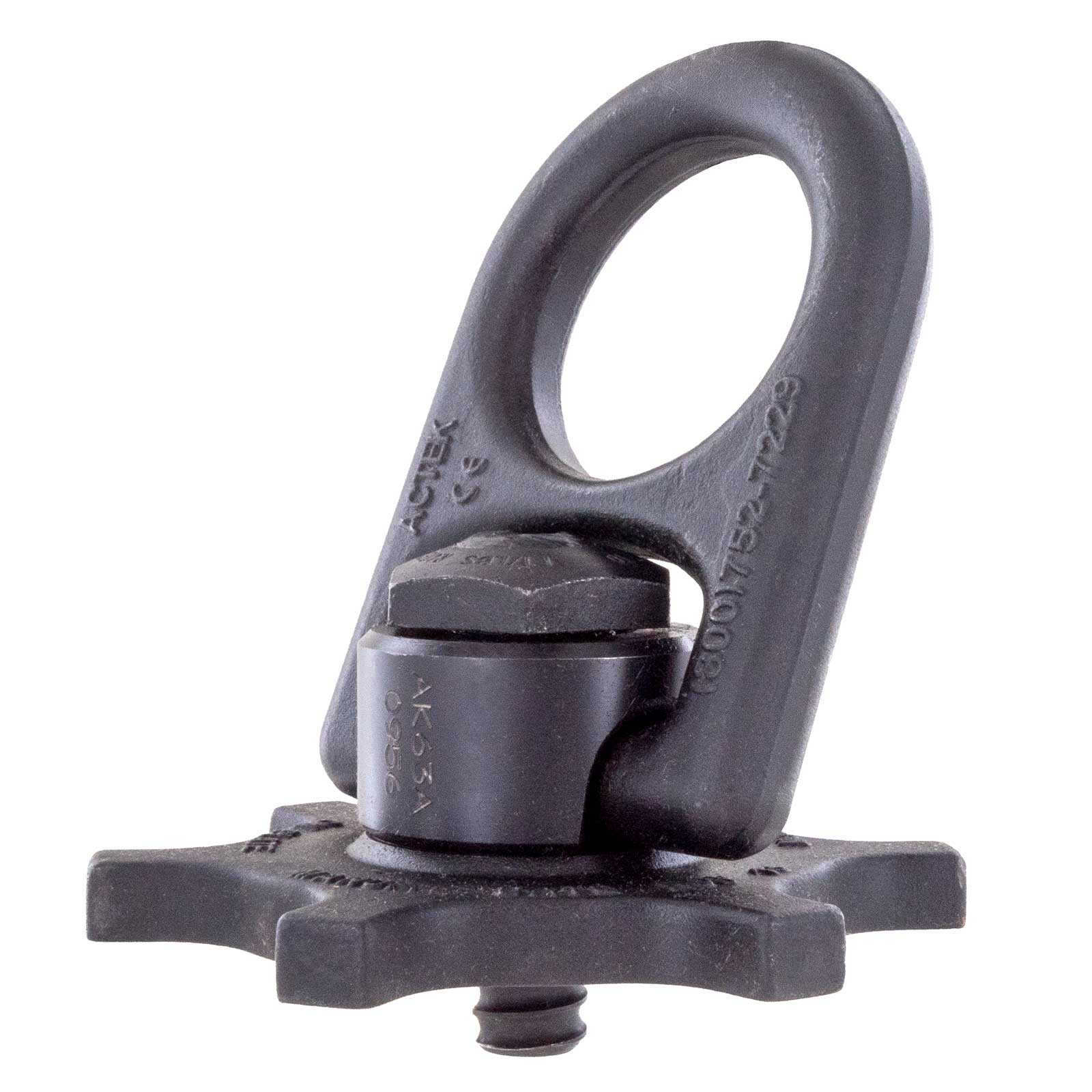

Actek® Street Plate Swivel Hoist Ring

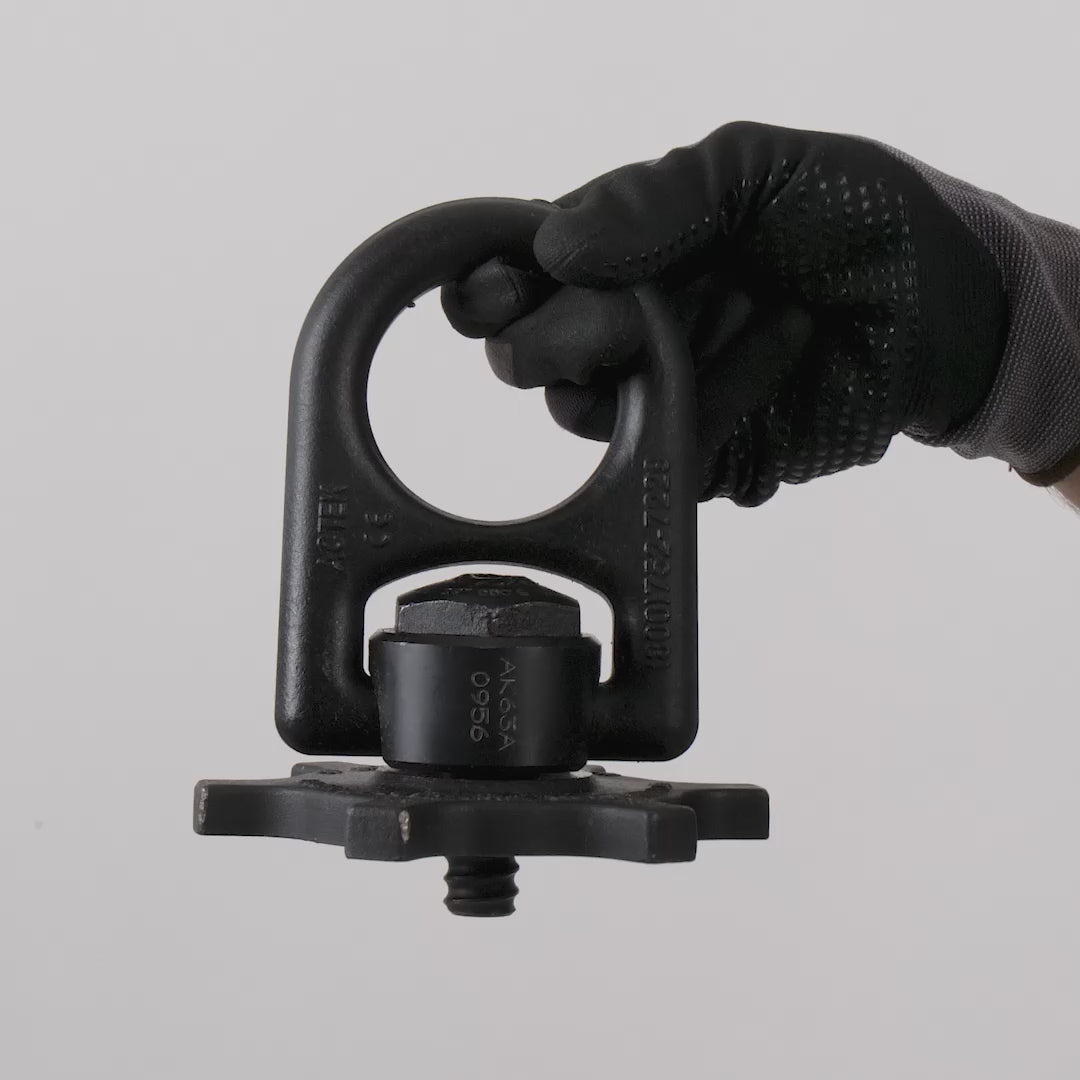

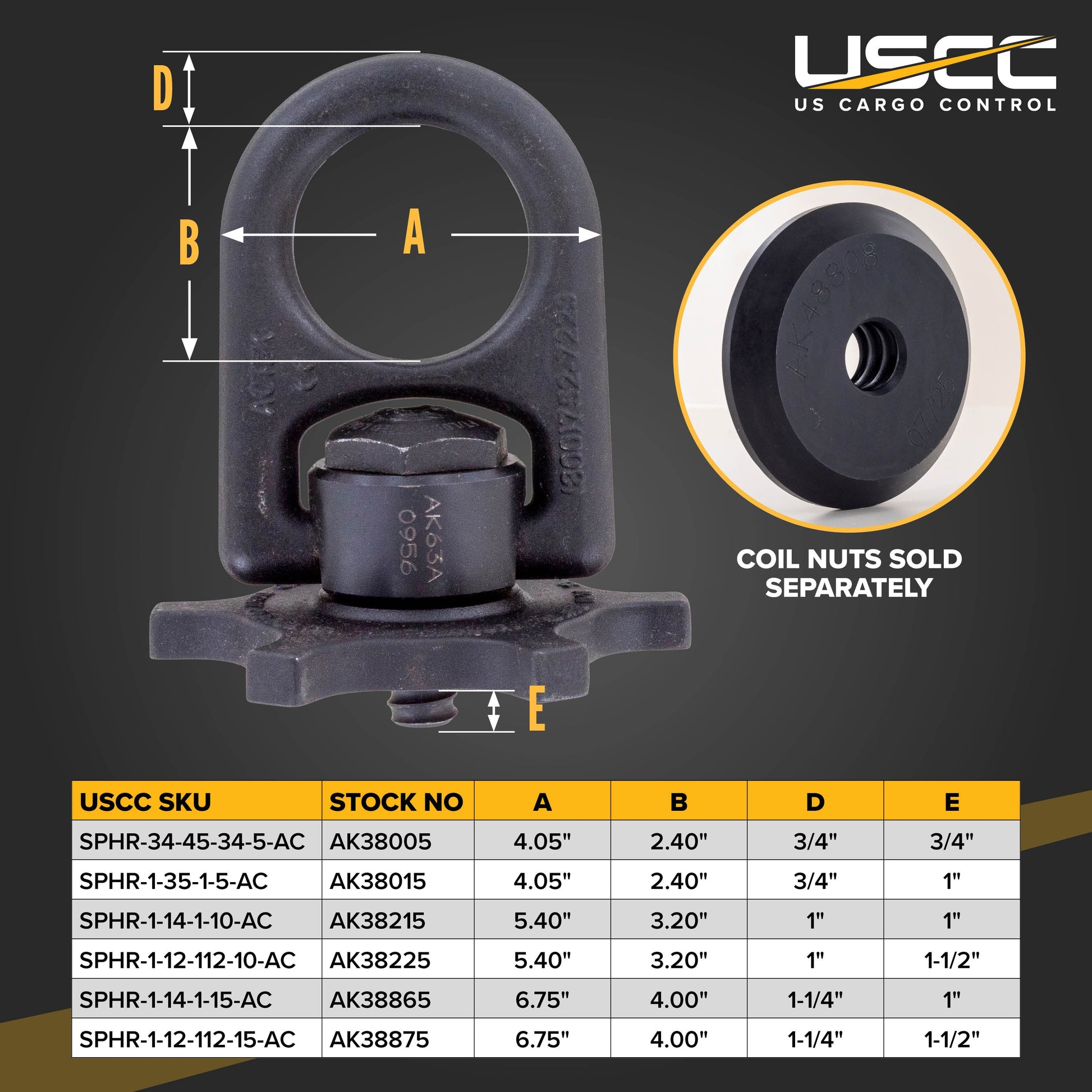

Actek® Street Plate Hoist Rings are engineered for lifting steel road plates, trench covers, utility access plates, and precast concrete panels safely and efficiently in active job sites. This 1-3.5" coil x 1" ring is rated at 5,000 lbs. WLL, installs by hand in seconds, and swivels 360° and pivots 180° so your rigging can approach from any angle without reducing rated capacity. Compatible Actek® Street Plate Coil Nuts - which can be welded into steel plates or embedded in concrete - are sold separately.

Why Choose Actek® Street Plate Hoist Rings?

Actek® developed the Street Plate Lifting Ring system specifically for the utility industry - a purpose-built tool for the repeated, high-volume plate handling that road crews and utility contractors deal with every day. Each ring is built to hold up to the wear and tear of demanding field conditions, day after day.

Built for Field Performance

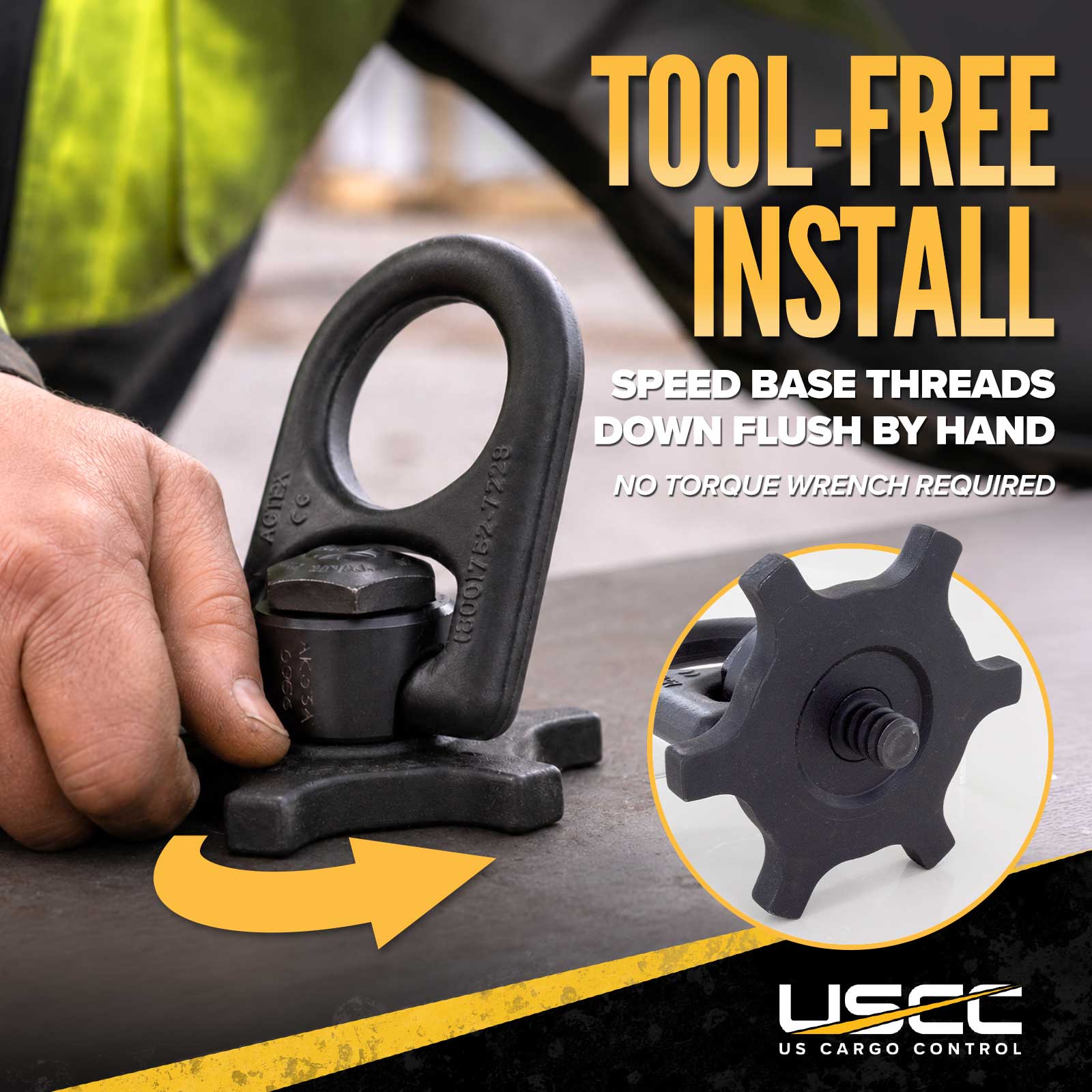

• No Tools Required: The star-shaped base design threads into the coil nut by hand and tightens without a wrench. Install, lift, remove, and move on - no stopping for tools between plates.

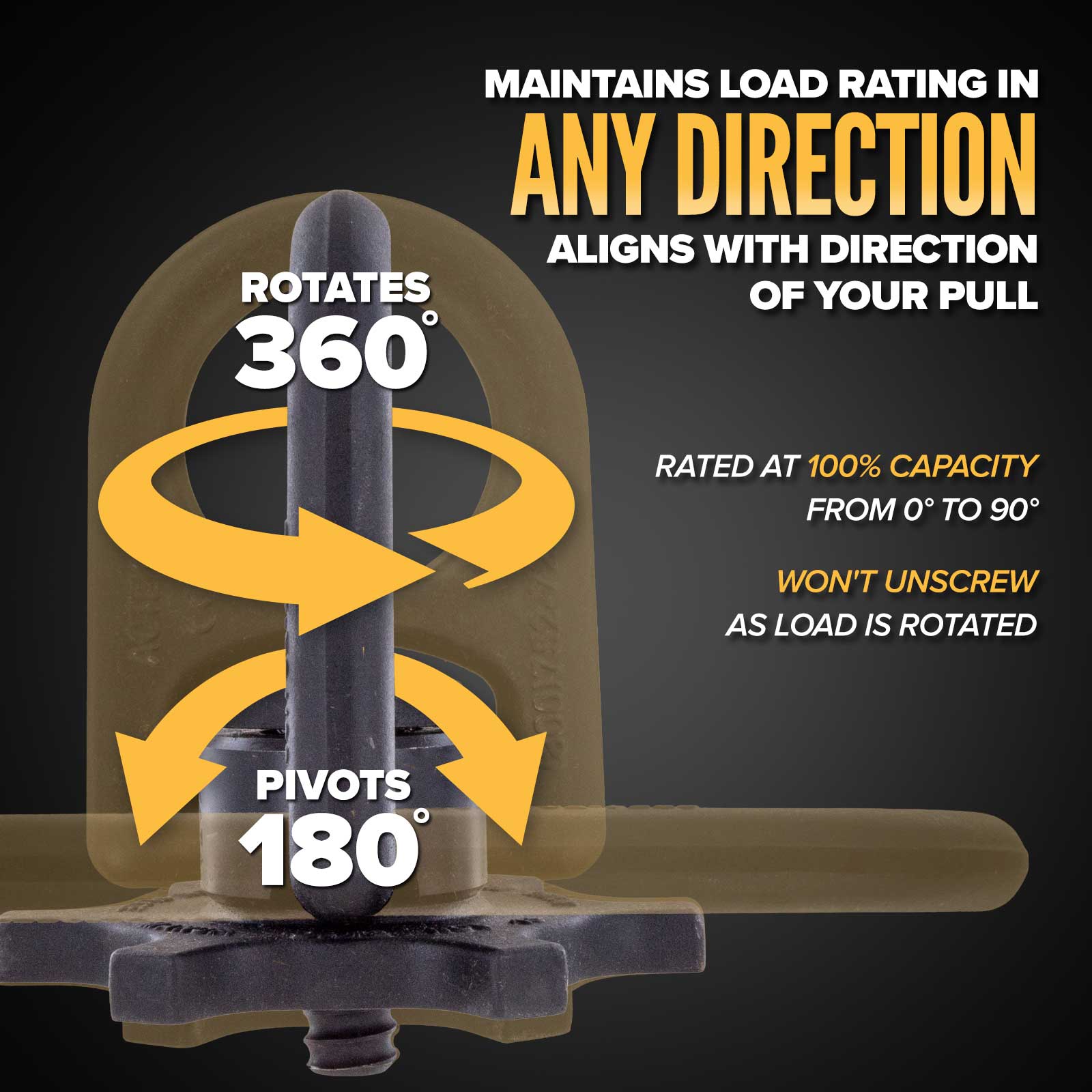

• 360° Swivel and 180° Pivot: Full range of motion keeps the ring aligned with the crane hook or rigging regardless of load orientation. Full rated capacity is maintained from any angle of pull.

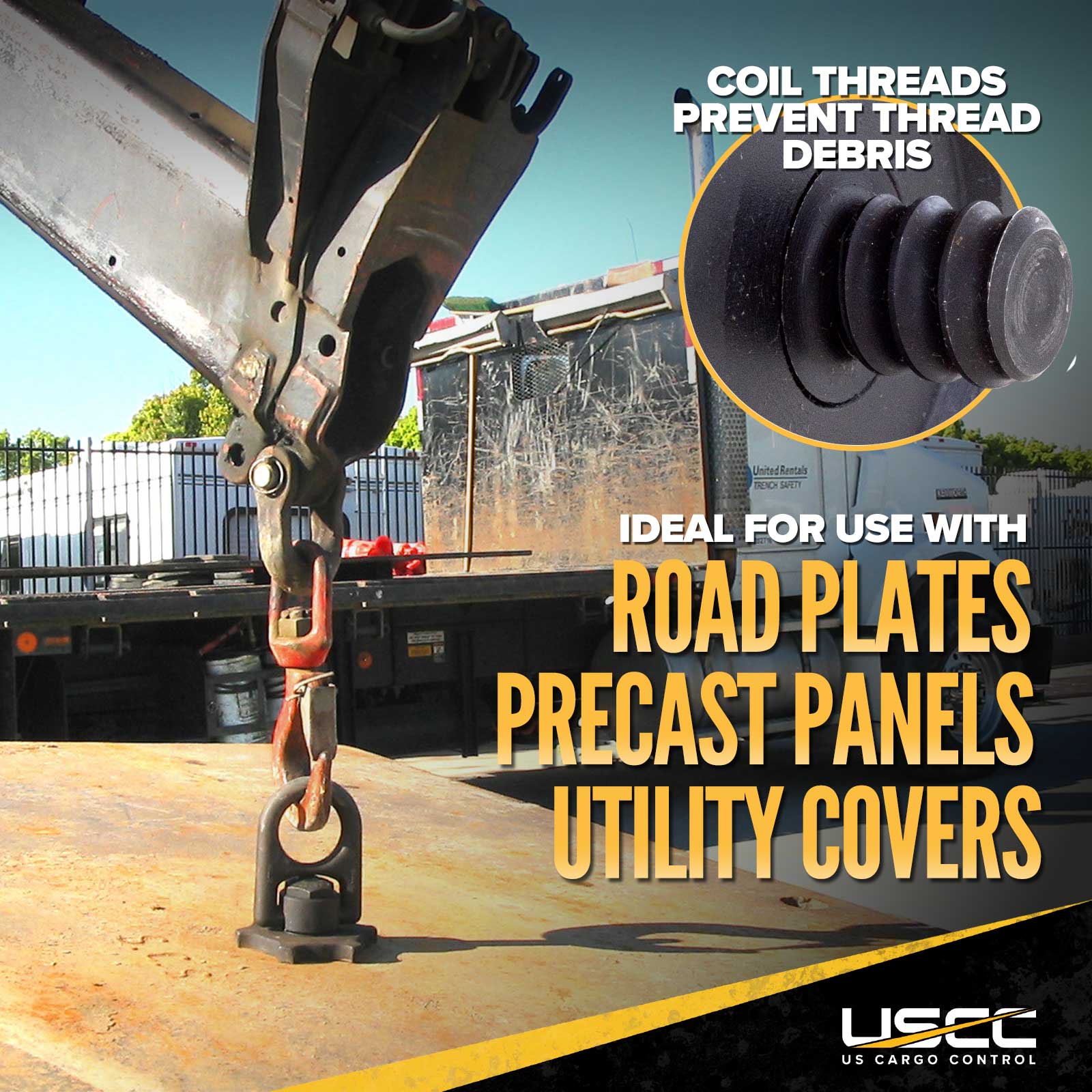

• Debris-Resistant Coil Thread Design: The open coil-thread geometry prevents dirt, concrete debris, and road grime from packing into the threads the way they would in a standard machine thread, keeping the connection ready to use even after sitting exposed on a jobsite.
• Coil-Thread Matched System: Works with Actek® Street Plate Coil Nuts (sold separately), which can be welded into steel road plates or embedded in concrete. Thread sizes must match between ring and nut - do not substitute commercial hardware.

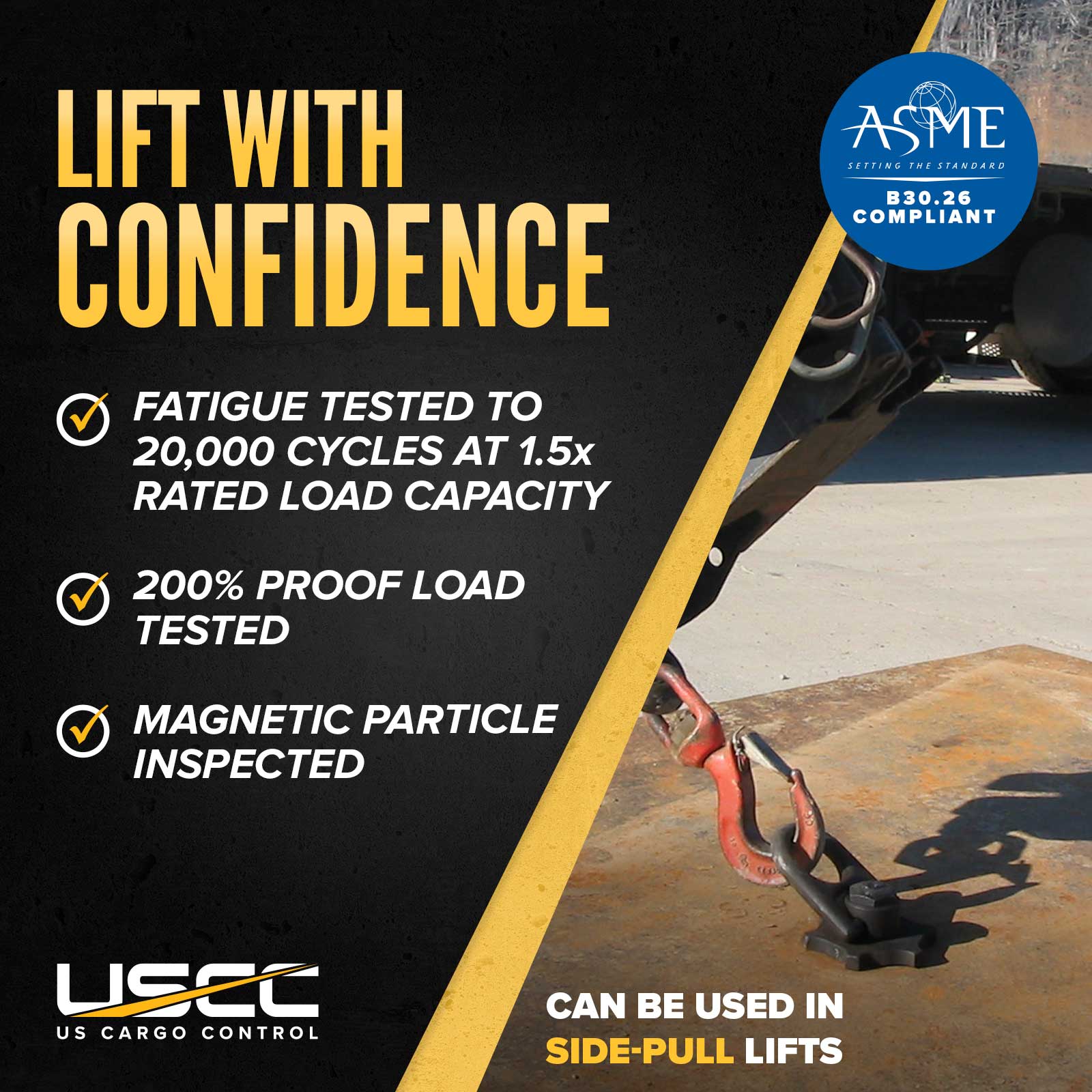

Proof Tested and Individually Serialized

• Rated for Overhead Lifting: Certified for rated overhead lifting applications. Maintains 100% working load limit from 0° to 90° - full rated capacity on straight vertical lifts and angular side pulls alike.
• 200% Proof-Load Tested: Every ring is proof-load tested to twice its working load limit before shipment.
• Unique Serial Number: Individual serial numbers provide full traceability throughout the ring's service life.
• 5:1 Design Factor: Minimum breaking strength is five times the working load limit.
• Magnetic Particle Inspected: Each ring is inspected for surface and near-surface defects before it ships.

Meets Industry Standards

ASME B30.26

Actek® Street Plate hoist rings meet or exceed all applicable requirements of ASME B30.26 for swivel lifting hardware, including identification, ductility, design factor, and proof load requirements.

ISO 9001 Certified Manufacturer

Actek® Manufacturing & Engineering is an ISO 9001 certified manufacturer.

Questions?

Actek® coil nuts compatible with these rings are sold separately - match the coil thread size to the ring specification when ordering. We also carry the full line of Actek® swivel hoist rings for standard threaded lifting applications. Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions. Need a size, capacity, or configuration we don't carry? Request a custom hoist ring and our team will work directly with the manufacturer to build it for you.
