SKU: SBHR-12-13-E34-AC
Actek 1/2"-13 E=3/4 Speed Base Forged Hoist Ring - 2,500 lbs. WLL
Actek 1/2"-13 E=3/4 Speed Base Forged Hoist Ring - 2,500 lbs. WLL!
SKU: SBHR-12-13-E34-AC
Actek 1/2"-13 E=3/4 Speed Base Forged Hoist Ring - 2,500 lbs. WLL
$221.67
Diameters:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Hoist Rings
Build Your Hoist RingPayment Options
Specifications
Working Load Limit (lbs.): 2500
Safety Factor: 5:1
Rated for Overhead Lifting: Yes
Diameter: 1/2" - 13 Bolt
Thread Type: UNC
Material: Alloy Steel
Finish: Black Oxide
Torque: No torque wrench required.
Product Weight: 4.32 lbs.
Standards: Meets or exceeds ASME B30.26 requirements.
Manufacturer Name: Actek®
Brand Part Number: AK42002
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.

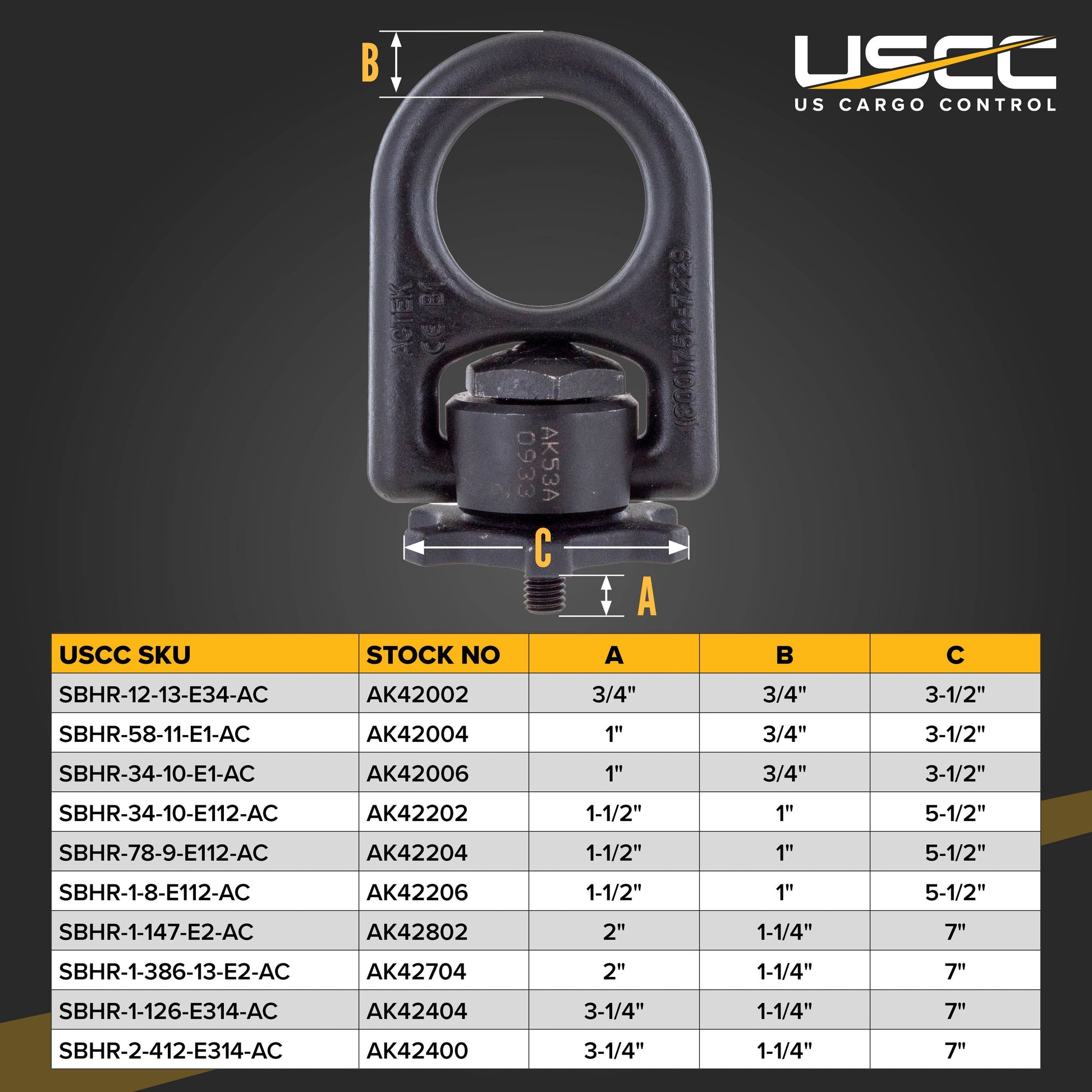

Additional Info: Effective Thread Projection: 3/4 in
Description

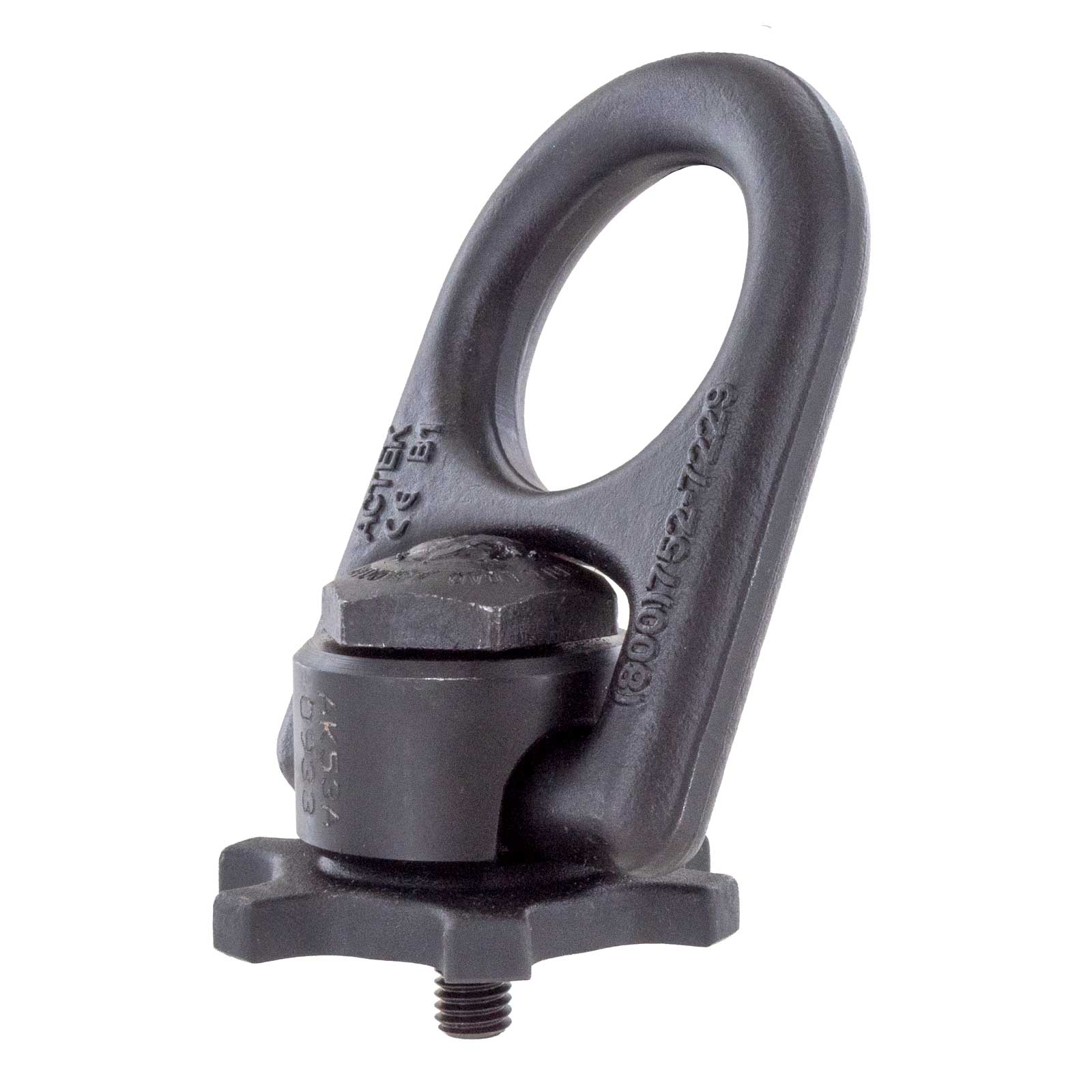

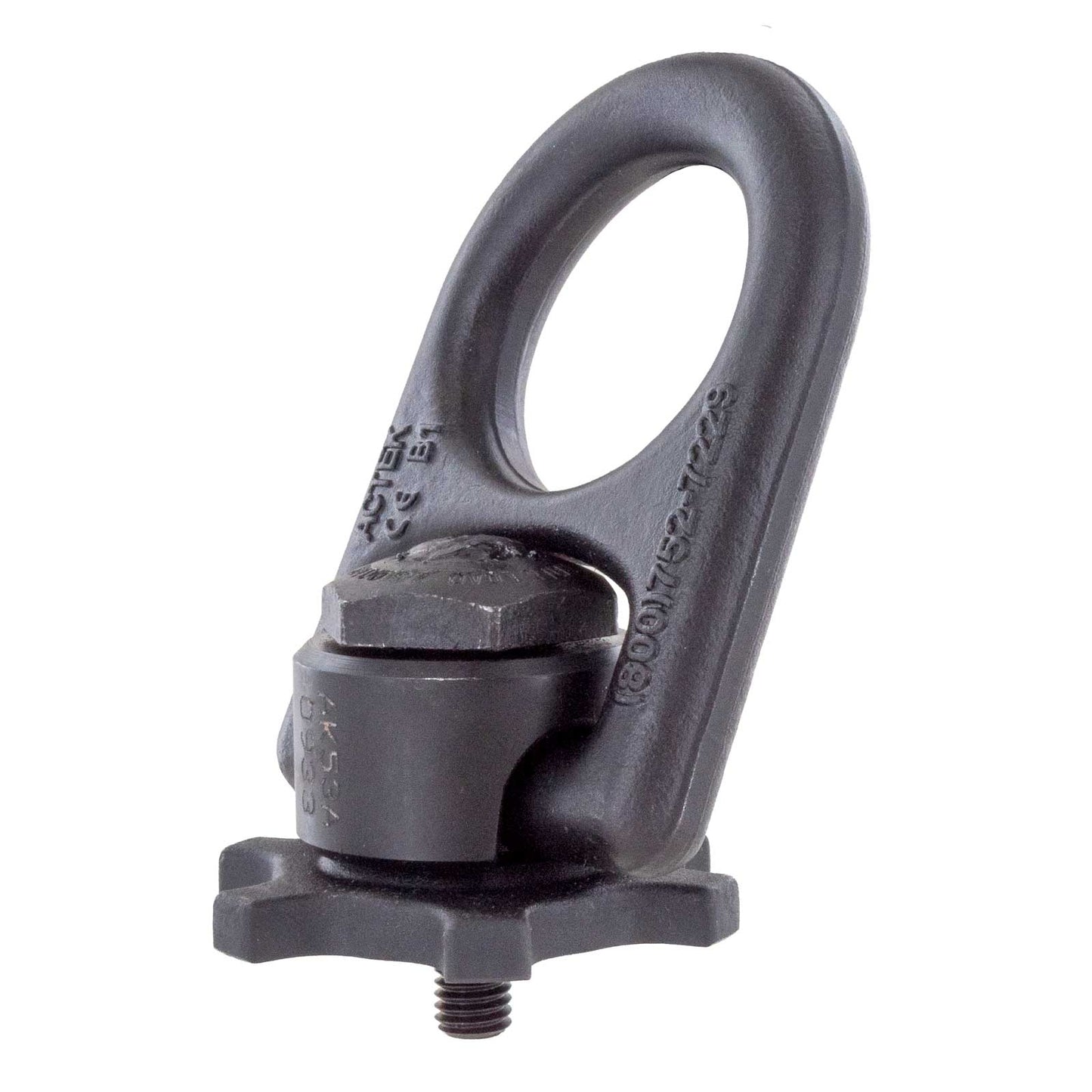

Actek® SPEED BASE® Forged Hoist Ring
This Actek® SPEED BASE® Hoist Ring - 1/2-13" threading, E=3/4" engagement, 2,500 lbs. WLL - is the right lifting point when production requires the same ring to go in and out of tooling many times a shift. Thread it down by hand, tap one of the protruding metal tabs with a hammer; no torque wrench needed. 360° swivel and 180° pivot deliver the same angle-rated performance as a conventional swivel hoist ring, without the installation overhead.
Why Choose Actek® SPEED BASE® Hoist Rings?
For production environments where the same lifting points cycle in and out of tooling multiple times a day, SPEED BASE® rings cut installation time without compromising strength or safety.
Tool-Free Installation Design

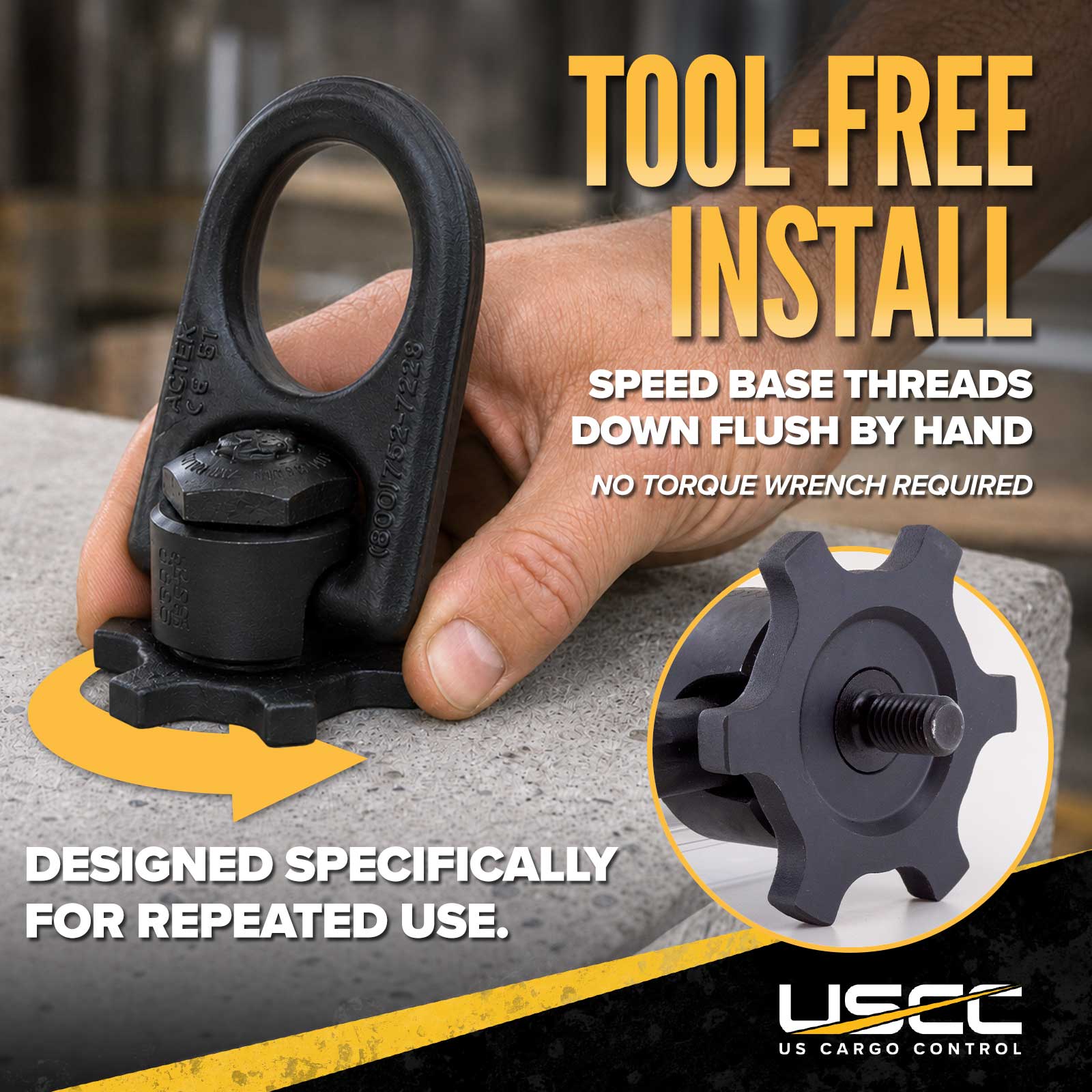

- No Torque Wrench Required: Spin the round base down flush by hand, then tap one of the protruding metal tabs with a hammer to seat it. Installation takes seconds. Removal is equally fast.

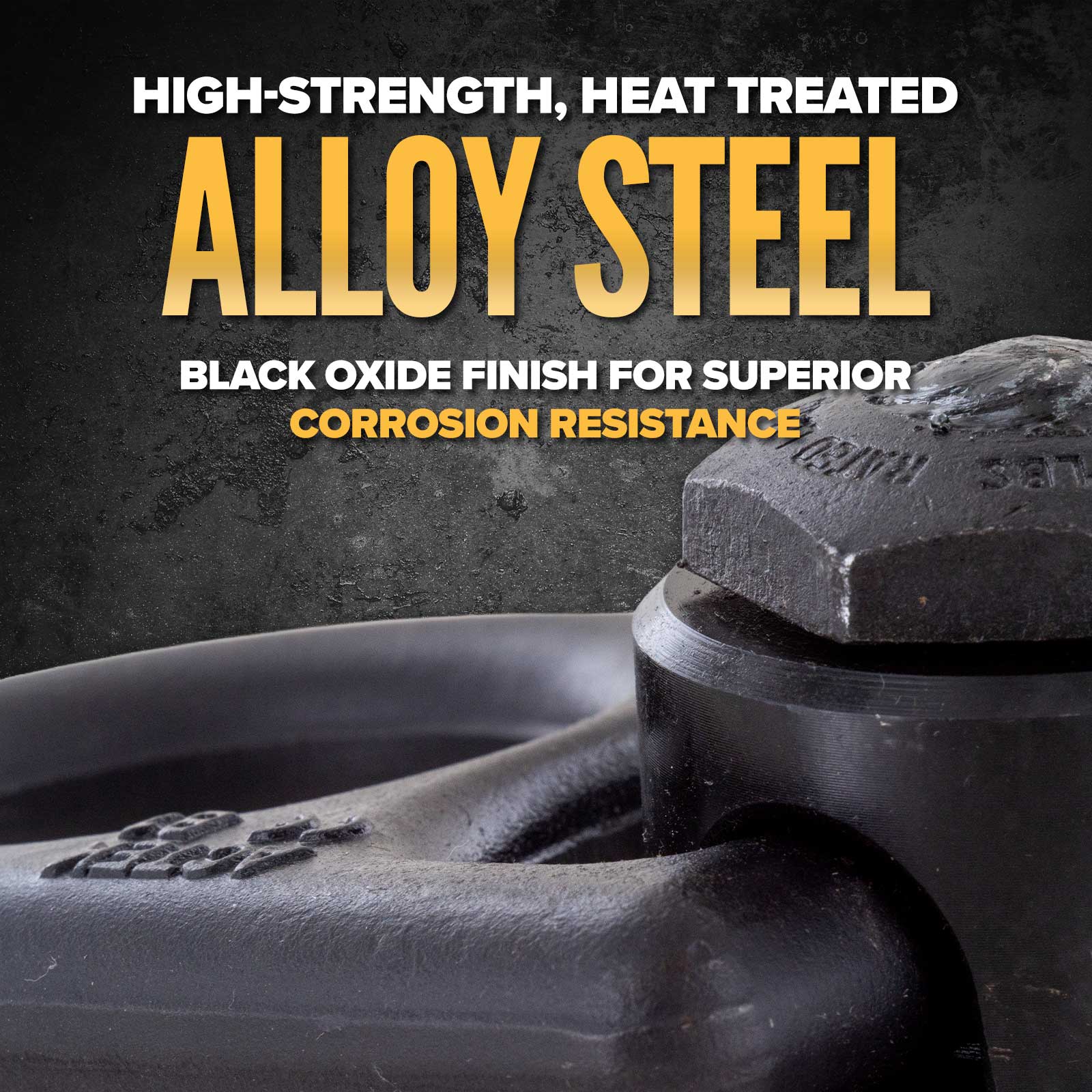

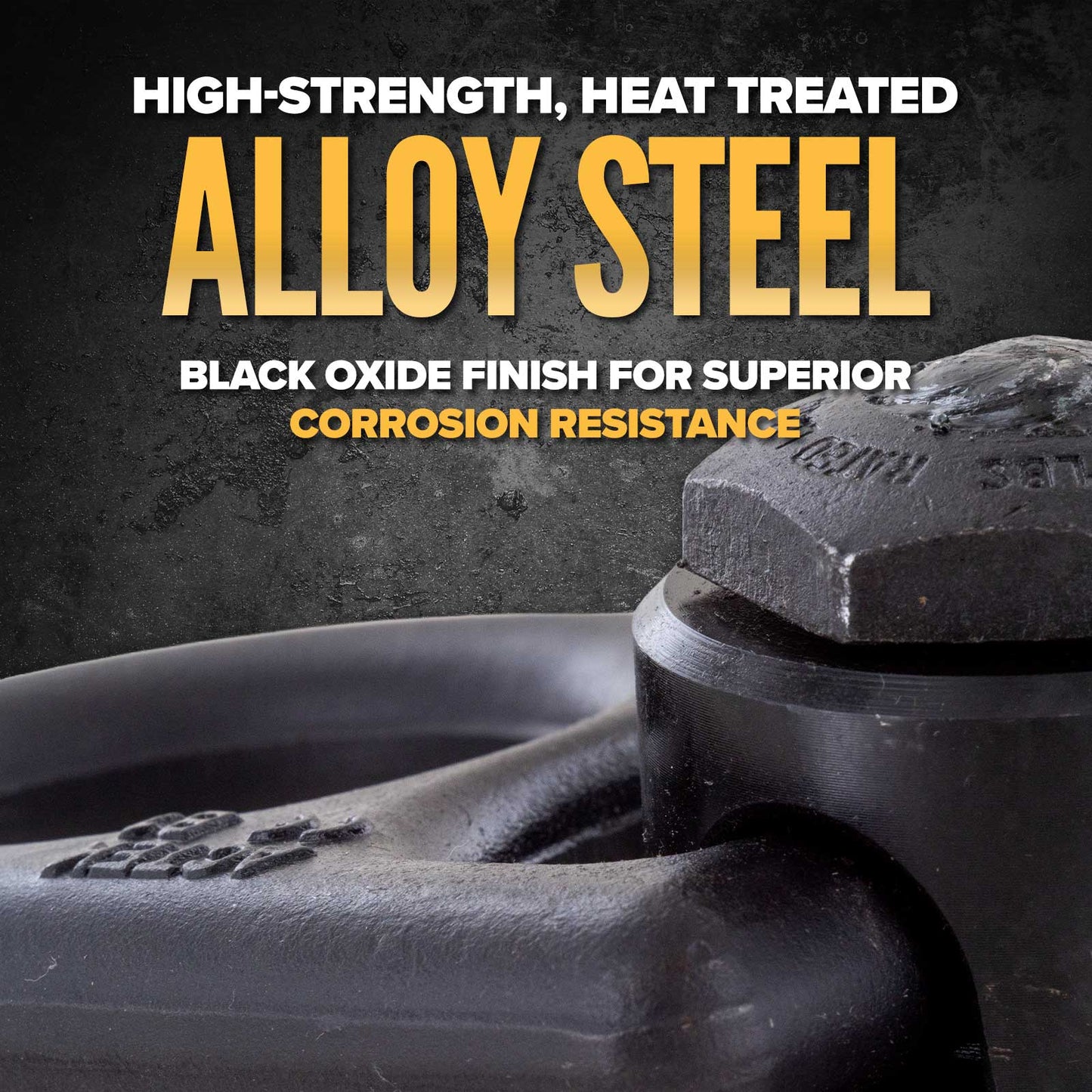

- Forged Alloy Steel Construction: High-strength forged alloy steel for the durability needed in active production environments with repeated install-remove cycles.
- Black Oxide Finish: Provides corrosion resistance and a clean appearance that holds up to shop floor conditions.

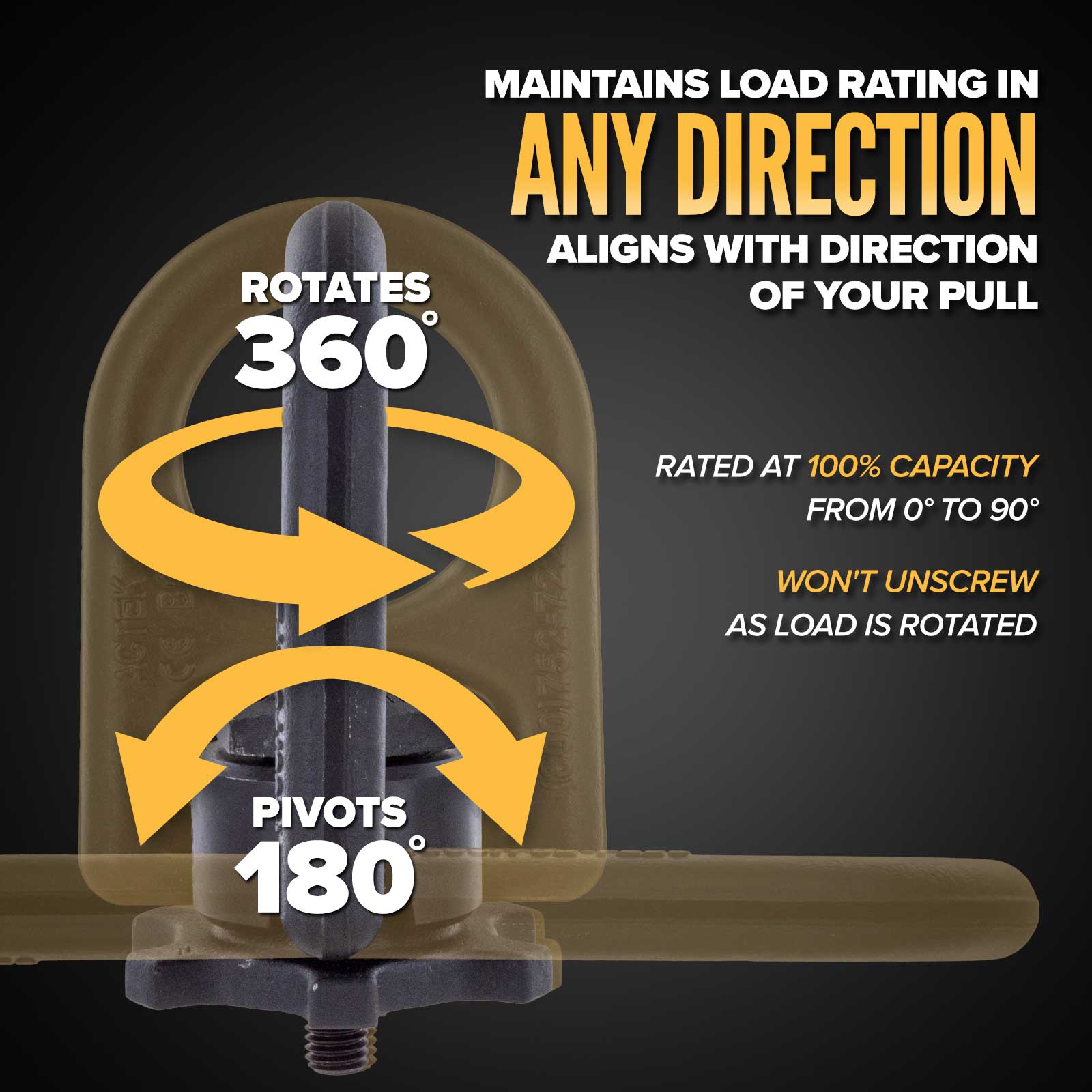

- 360° Swivel and 180° Pivot: Automatically aligns with the direction of the lift, maintaining 100% working load limit from any angle - same as a conventional swivel hoist ring.
Proof Tested and Individually Serialized
- Rated for Overhead Lifting: Certified for rated overhead lifting applications. Maintains 100% working load limit from 0° to 90° - full rated capacity on straight vertical lifts and angular side pulls alike.
- 200% Proof-Load Tested: Every SPEED BASE® ring is proof-load tested to twice its rated working load limit.
- Unique Serial Number: Individual serialization for full traceability through service life and inspection cycles.
- Magnetic Particle Inspected: Each ring is inspected for surface and near-surface defects before shipment.
- 5:1 Design Factor: Minimum breaking strength is five times the working load limit.
Meets Industry Standards
ASME B30.26
Actek® SPEED BASE® Hoist Rings meet or exceed all applicable requirements of ASME B30.26 for swivel lifting hardware, including identification, design factor, and proof load requirements.
ISO 9001 Certified Manufacturer
Actek® Manufacturing & Engineering is an ISO 9001 certified manufacturer.
Questions?
We also carry the full line of Actek® Safety Swivel Hoist Rings for standard torqued-bolt applications, and Crosby® Swivel Hoist Rings as an alternative. Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions. Need a size, capacity, or configuration we don't carry? Request a custom hoist ring and our team will work directly with the manufacturer to build it for you.
