SKU: LF17EHSGS14
1/4" 1x7 EHS Galvanized Guy Wire | Linear Foot
1/4" 1x7 EHS Galvanized Guy Wire | Linear Foot!
SKU: LF17EHSGS14
$0.59
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 3.325 tons / 6,650 lbs.
Grade: EHS
Length: 1'
Finish: Galvanized
Product weight: 0.12 lbs.
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets all requirements of ASTM A475-03
Weight per foot: 0.12
Wire rope class: 1x7
Wire rope diameter: 1/4"
Description
1/4" 1x7 Guy Wire for Towers
This 1x7 guy wire offers excellent tensile strength and very little stretch and flexibility, perfect for applications involving tensioning and bracing. Constructed from Extra High Strength (EHS) grade steel, these steel cables are designed to add stability to antennas, towers, and free-standing structures.

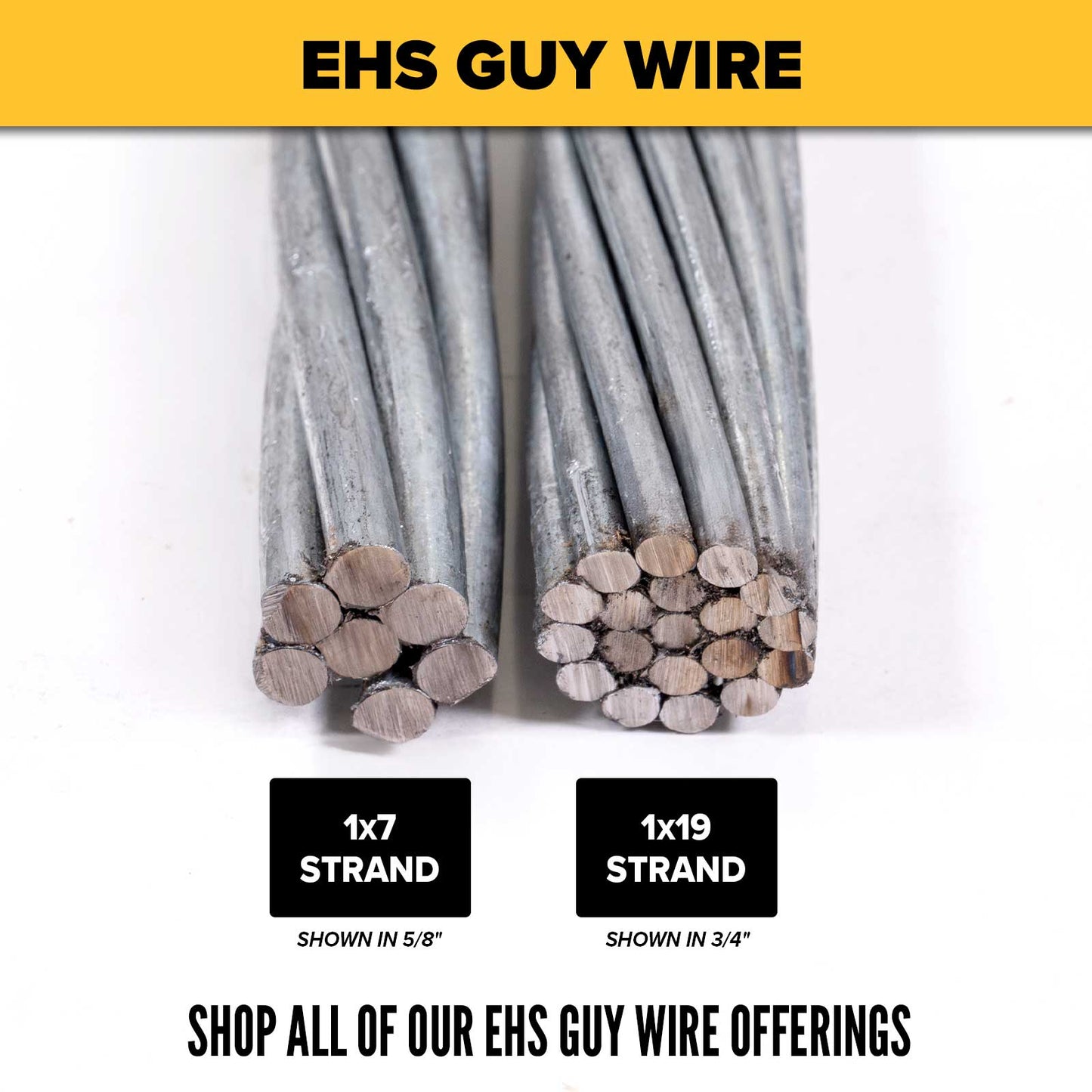

It has a protective galvanized finish for added strength and protection from corrosive elements, and the 1x7 construction is the stiffest guy wire we carry. It you are looking for compressive force resistance or a little more flexibility, check out our 1x19 guy wire.

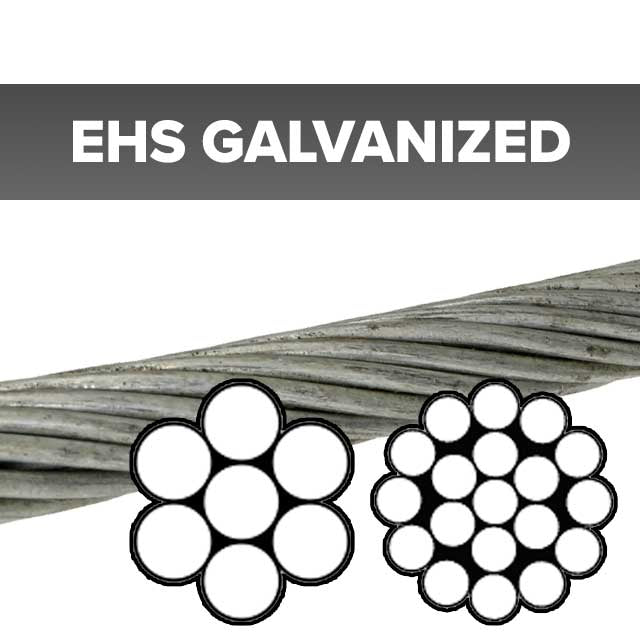

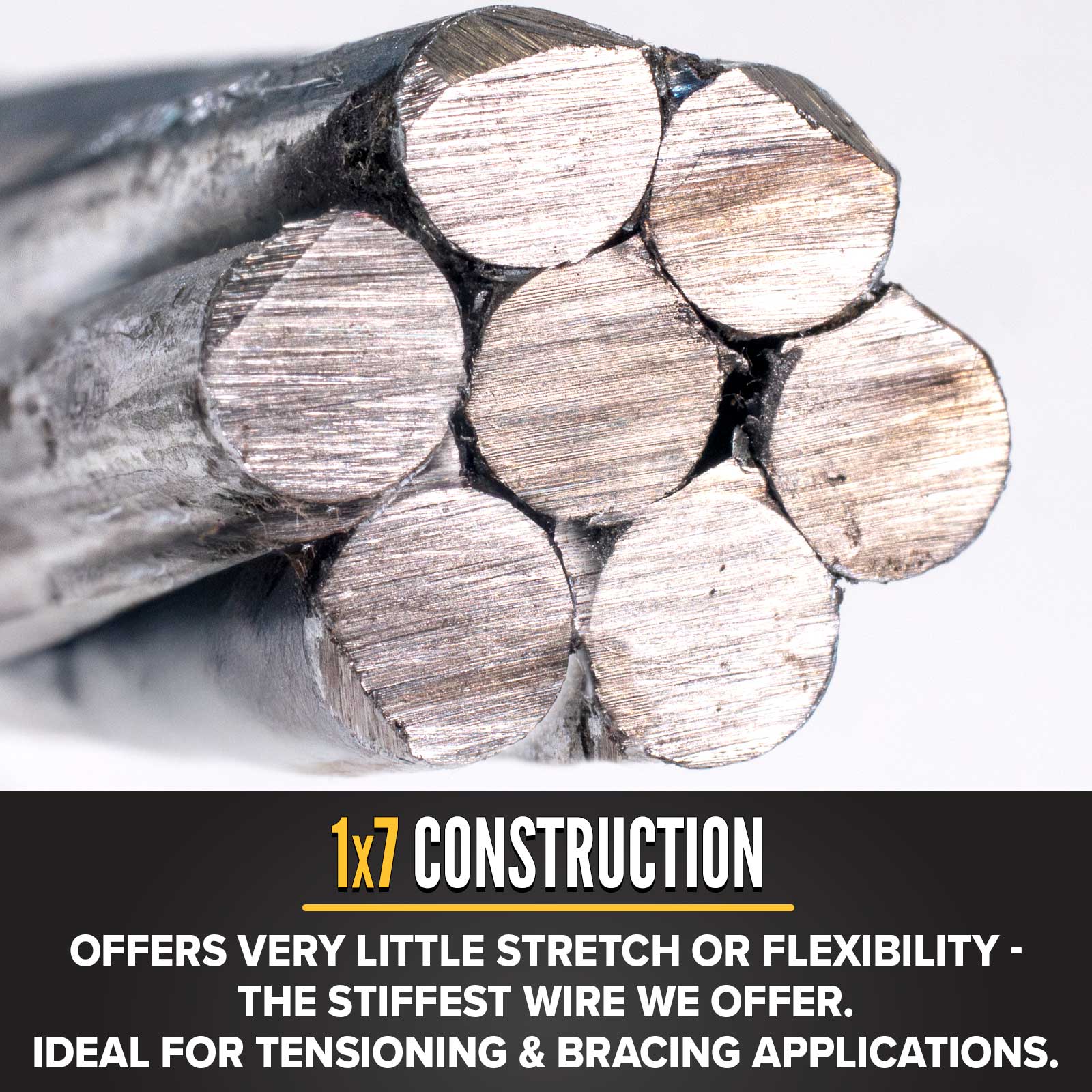

1x7 Guy Strand Configuration
Our guy wire is made using EHS-grade cable. EHS (Extra High Strength) refers to the strength of the material - its tensile strength is around 40% greater than a the HS grade, improving the overall break strength. It also has a galvanized finish for corrosion-resistance.
The class of this cable is 1x7. The second number refers to the number of wires in the single strand - in this instance, it would be 7 wires.
Galvanized Guy Cable Features:
- Our guy wire meets all requirements of ASTM A475-03.
- This item is imported from a vetted vendor - if you are looking for wire rope from a specific country, please call in or fill out our custom wire rope form.
- A certificate of conformity is available for a nominal fee - please request when you place your order.
Guy Wire by the Foot Ordering FAQ
Does this guy wire come as one length? Yes, the quantity you add to the cart will be provided as one unbroken length. So if you add this to the cart with a quantity of 800, you will receive one 800-foot long section of guy wire.
Can I order multiple separate lengths? Yes. For example, if you need two 2500-foot lengths of cable, you would set the quantity to 2500 and then add that to the cart twice. For each separate instance you add this to the cart, you will get a separate length of rope.
Can I order lengths less than the minimum order quantity if when combined they will be greater than the minimum order quantity? Yes - please call to speak to one of our product experts to place this order.
Accessories & More
Complete your EHS guy wire assembly - we also carry guy wire fittings and hardware, including guy wire clamps and guy wire tensioners.
Custom 1x7 configurations are also available - call or fill out our online form for a quote!
