SKU: 114BWR636-5000FT-D
1-1/4" 6x37 Bright Wire Rope - EIPS IWRC | 5,000' Coil - Domestic
1-1/4" 6x37 Bright Wire Rope - EIPS IWRC | 5,000' Coil - Domestic!
SKU: 114BWR636-5000FT-D
1-1/4" 6x37 Bright Wire Rope - EIPS IWRC | 5,000' Coil - Domestic
$103,090.91
Lengths:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 79.9 tons / 159,800 lbs.
Grade: EIPS
Length: 5,000'
Core: IWRC
Finish: Bright
Product weight: 14450 lbs.
Rated for Overhead Lifting: Yes
Rope construction: 6x36
Shipping and returns: This item ships LTL; learn more. This item cannot be returned due to safety risks associated with used materials.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Weight per foot: 2.89 lbs.
Wire rope class: 6x37
Wire rope diameter: 1-1/4"
Additional Info: Right Hand Regular Lay
Description

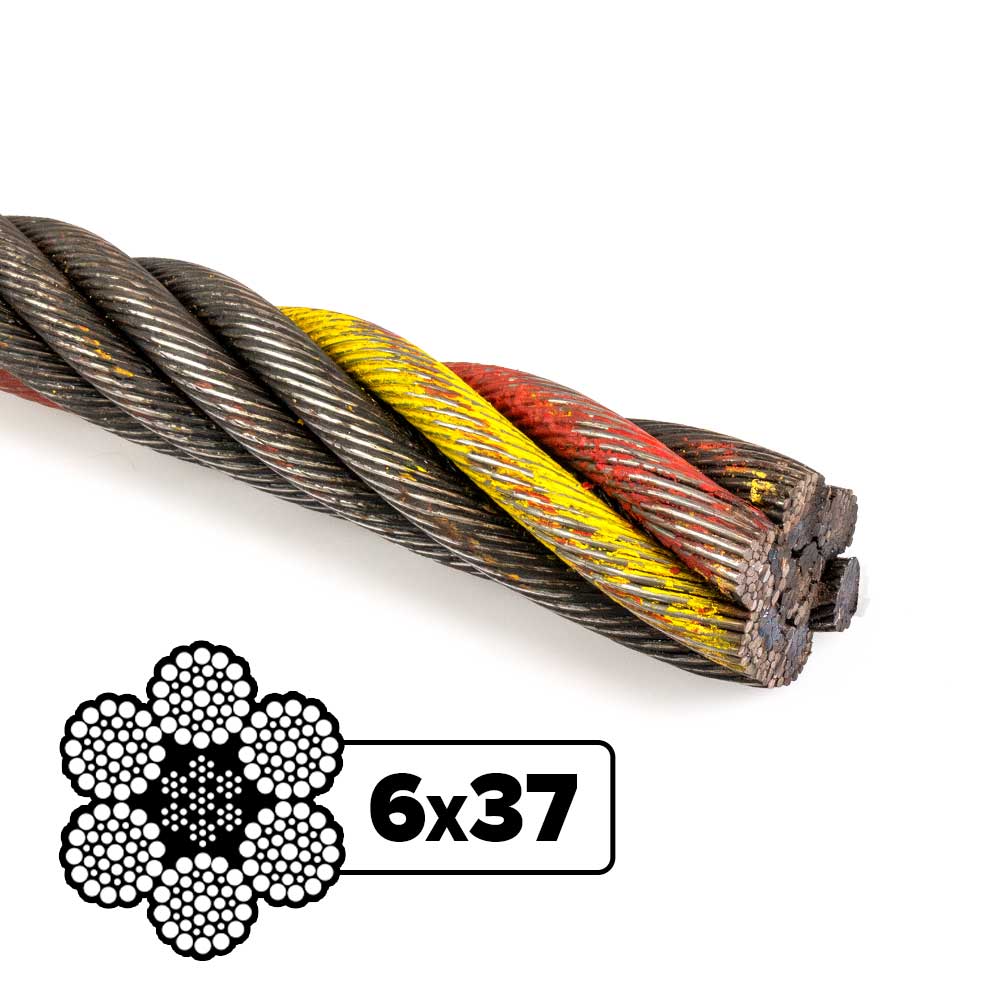

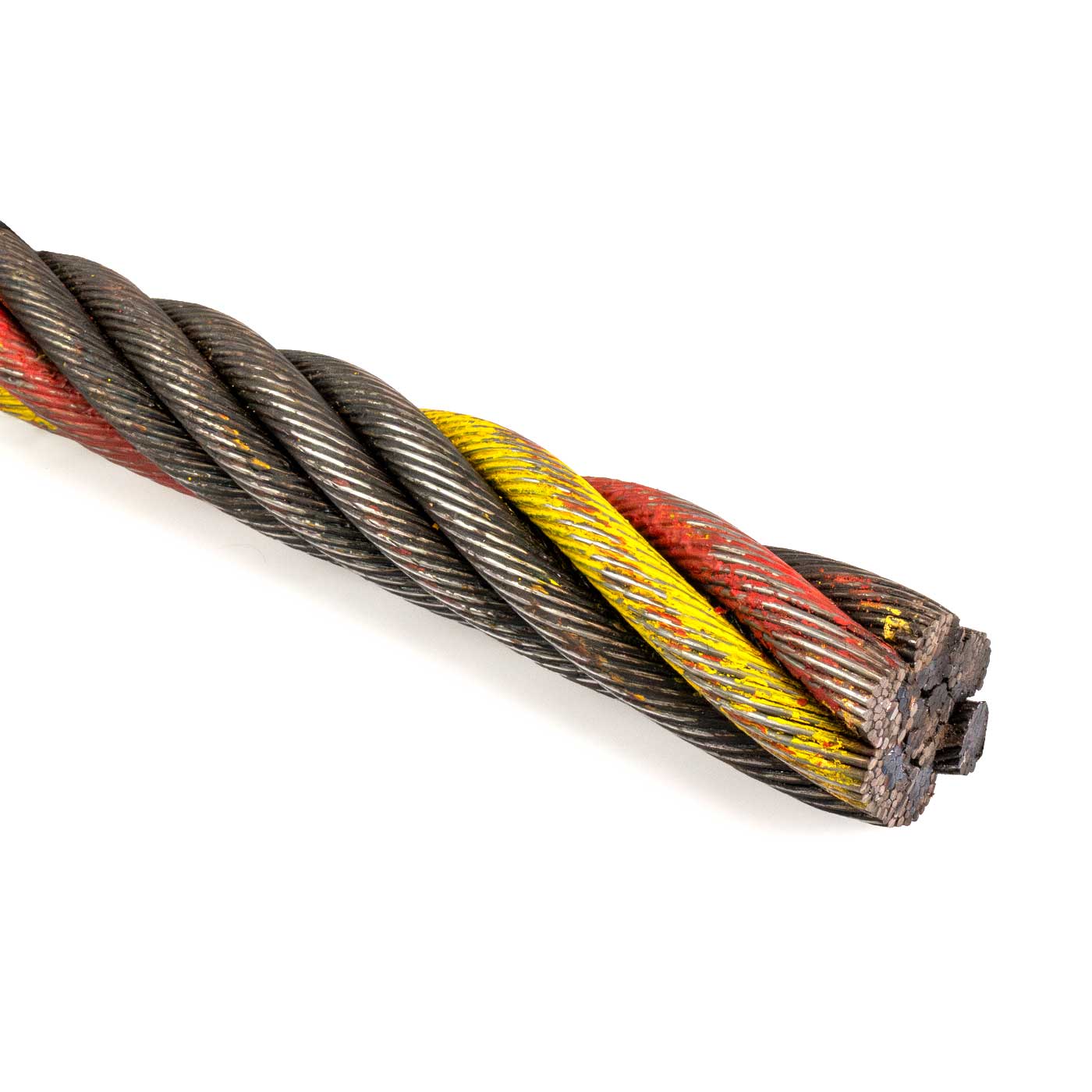

Domestic 1-1/4" 6x37 Bright Wire Rope - EIPS IWRC
Engineered in the USA using Extra Improved Plow Steel (EIPS), this 1-1/4" bright wire rope features a 6x36 construction and an Independent Wire Rope Core (IWRC) for maximum strength, flexibility, and fatigue resistance. Designed to perform in high-cycle lifting, winching, and suspension systems, it’s ideal for structural rigging where repeated bending is required.
Colored strands may appear in some domestic wire ropes for manufacturer ID or visibility purposes; these color variations do not affect assembly break strength.High-Capacity Flexible Wire Rope for Rigging & Winch Systems
The 6x37 class enhances bendability and reduces fatigue failure, especially in applications that demand frequent movement. Though slightly less abrasion-resistant than 6x19 class, this rope excels in flexibility-focused environments. A petroleum-based lubricant protects both the internal and external strands from friction and light corrosion. This rope meets the dimensional and strength standards of RR-W-410 and ASTM A1023, ensuring it’s built for critical load-bearing jobs.
6x37 Wire Rope Configuration

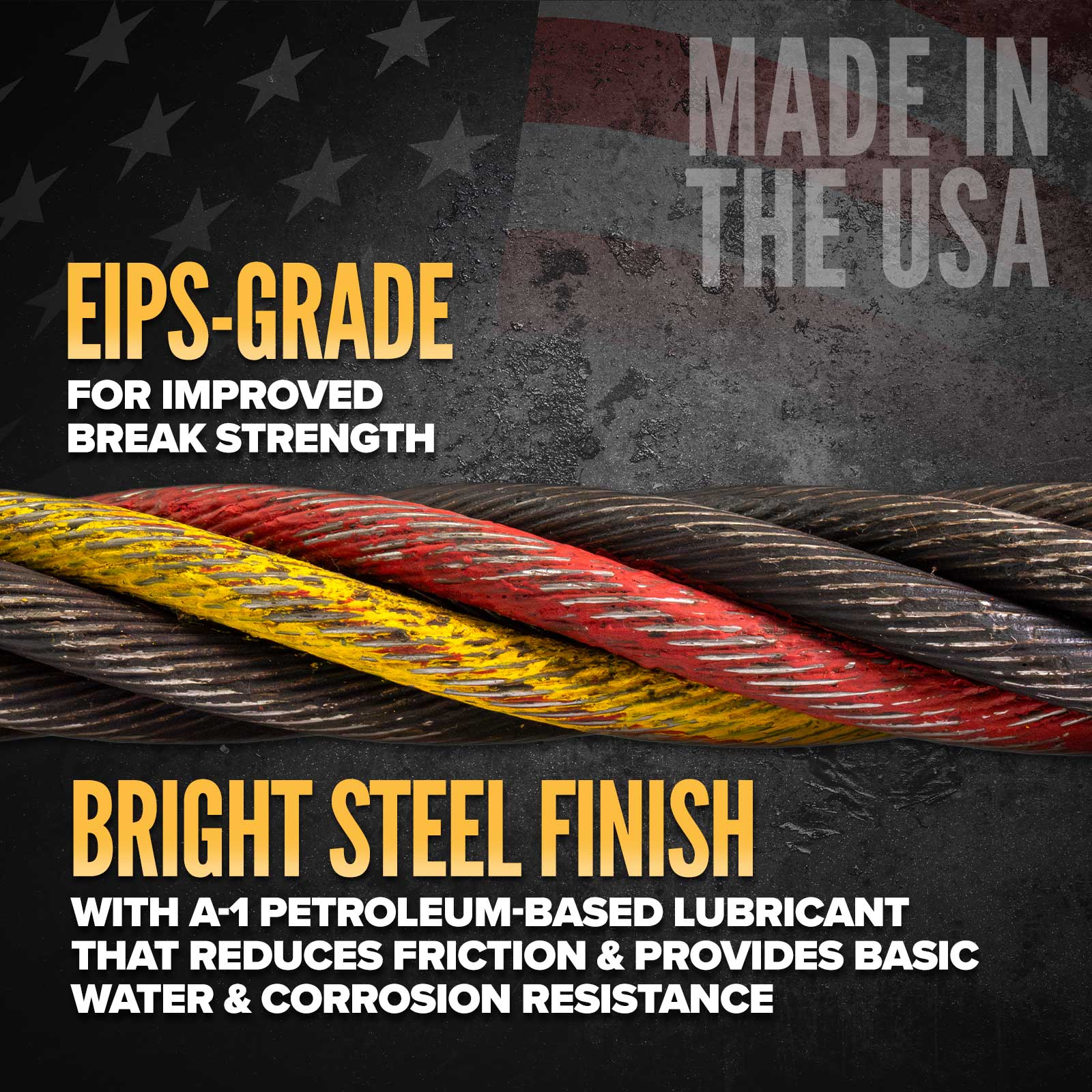

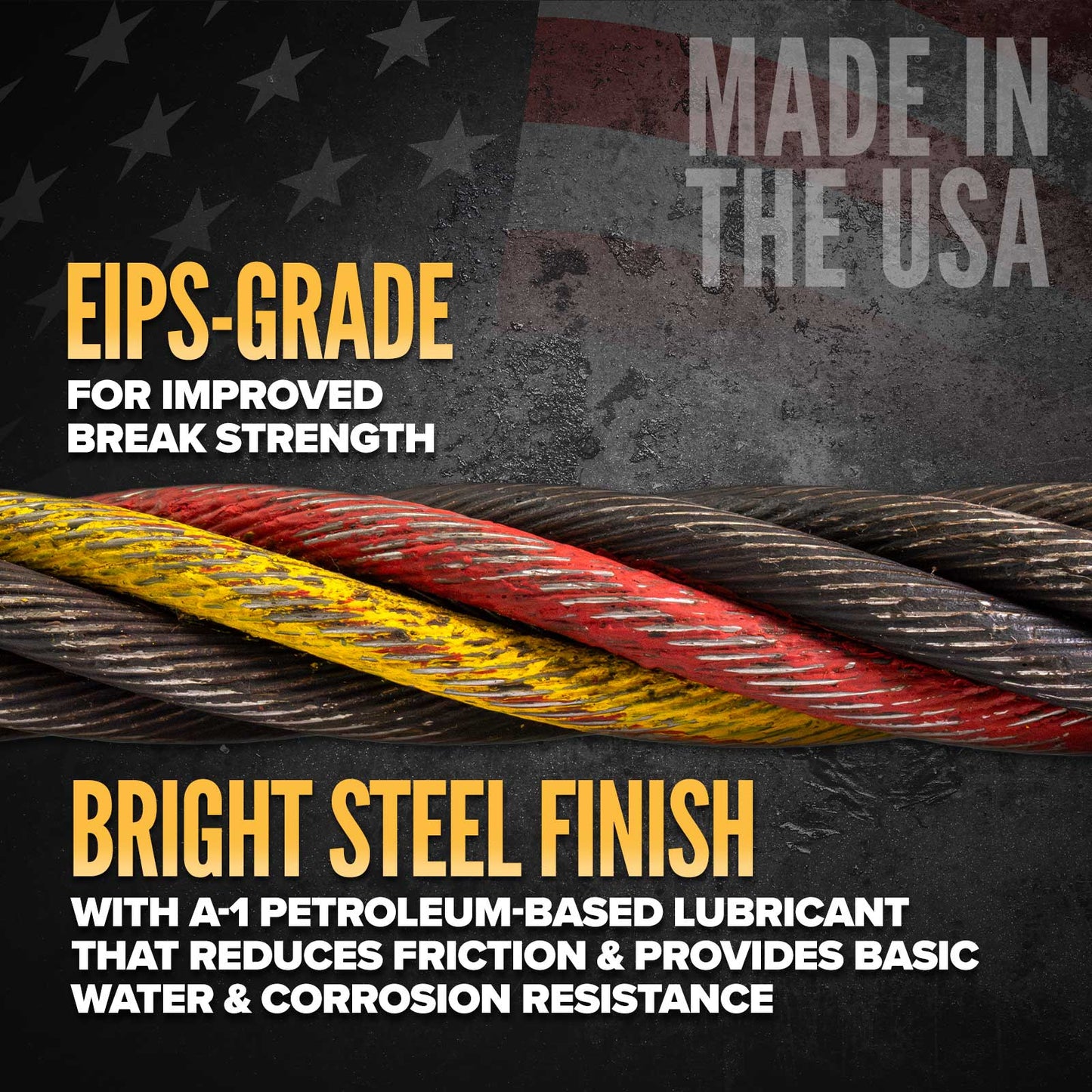

Our wire rope is made using EIPS-grade cable. EIPS (Extra Improved Plow Steel) refers to the strength of the wire rope - its tensile strength is around 10% greater than an IPS grade, improving the break strength.
The class of this wire rope is 6x37. These numbers nominally refer to the construction of the wire rope - the number of outer strands around the core and an estimation of the number of wires within each of these outer strands. so for a 6x37 class, the number of outer strands is 6, and the number of wires making up each strand can range from 27-49. The construction of the rope you will be receiving is 6x36 - if you are looking for something different, please call.
Key Features
- USA-made with EIPS-grade steel for increased tensile strength and durability
- 6x36 construction offers superior flexibility and fatigue resistance
- Bright uncoated finish with petroleum lubricant for internal and external protection

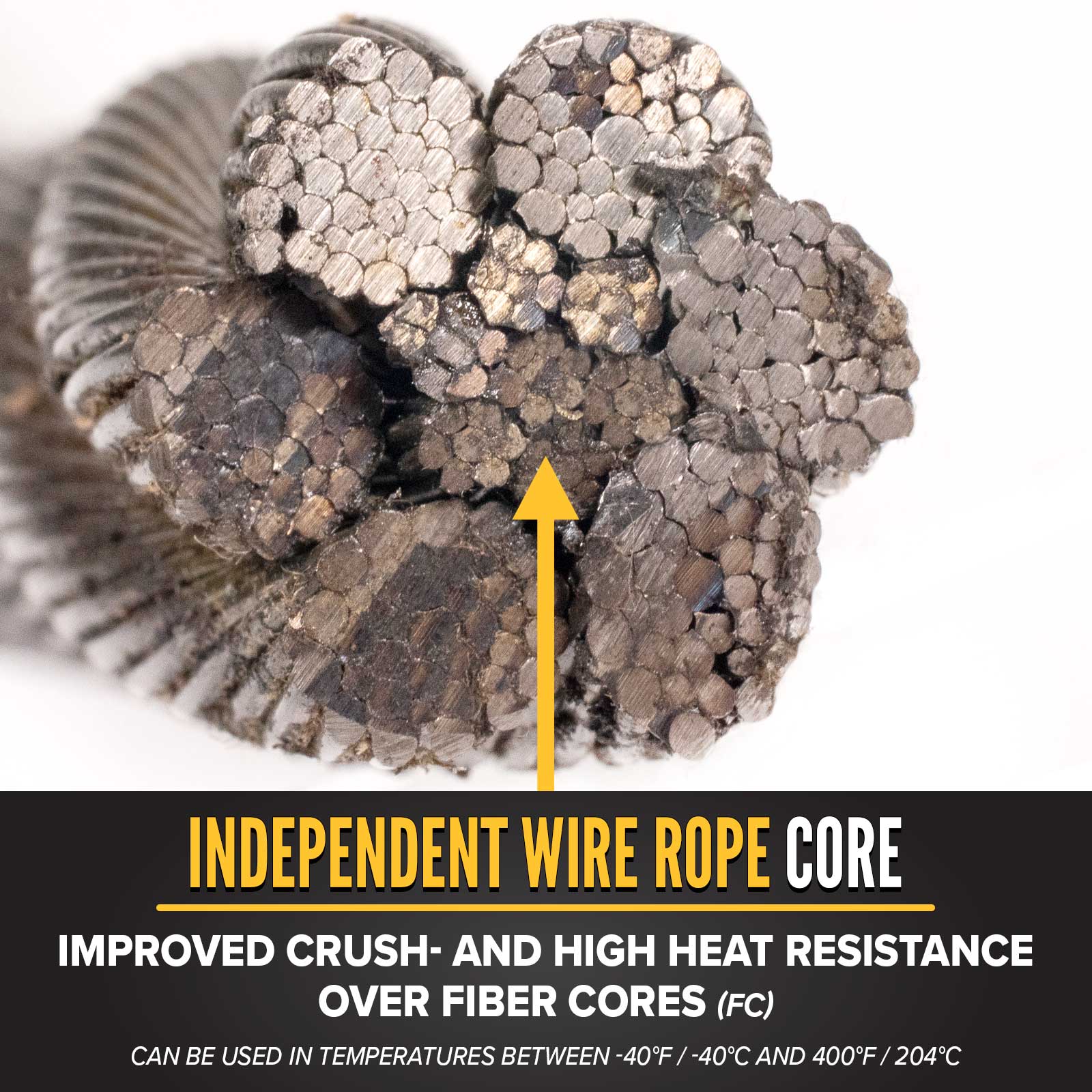

- IWRC core enhances crush resistance and maintains load shape under pressure
- Complies with RR-W-410 and ASTM A1023 federal specifications
- Perfect for hoisting, suspension, winch lines, and structural rigging systems
Compatible Accessories for Full System Setup
Pair this wire rope with high-performance wire rope fittings and industrial-grade rigging hardware such as eye bolts, shackles, and turnbuckles. For increased longevity, add wire rope thimbles to protect looped ends and finish your setup with trusted Crosby wire rope clips. If your project requires a custom configuration, explore our custom wire rope assembly options.
