SKU: SW1-14-6-D

1/4" x 6' Standard Eye Wire Rope Sling | Domestic

1/4" x 6' Standard Eye Wire Rope Sling | Domestic!

Skip to product information
1 of 6
Authorized Distributor
SKU: SW1-14-6-D
Authorized Distributor
$27.19

Request Bulk Pricing
Made to Order
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Bulk Pricing Discounts

Business Solutions

Questions? Need it custom?

We Can Help!

Payment Options

Amazon
American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Diameter: 1/4"
Grade: EIPS
Length: 6'

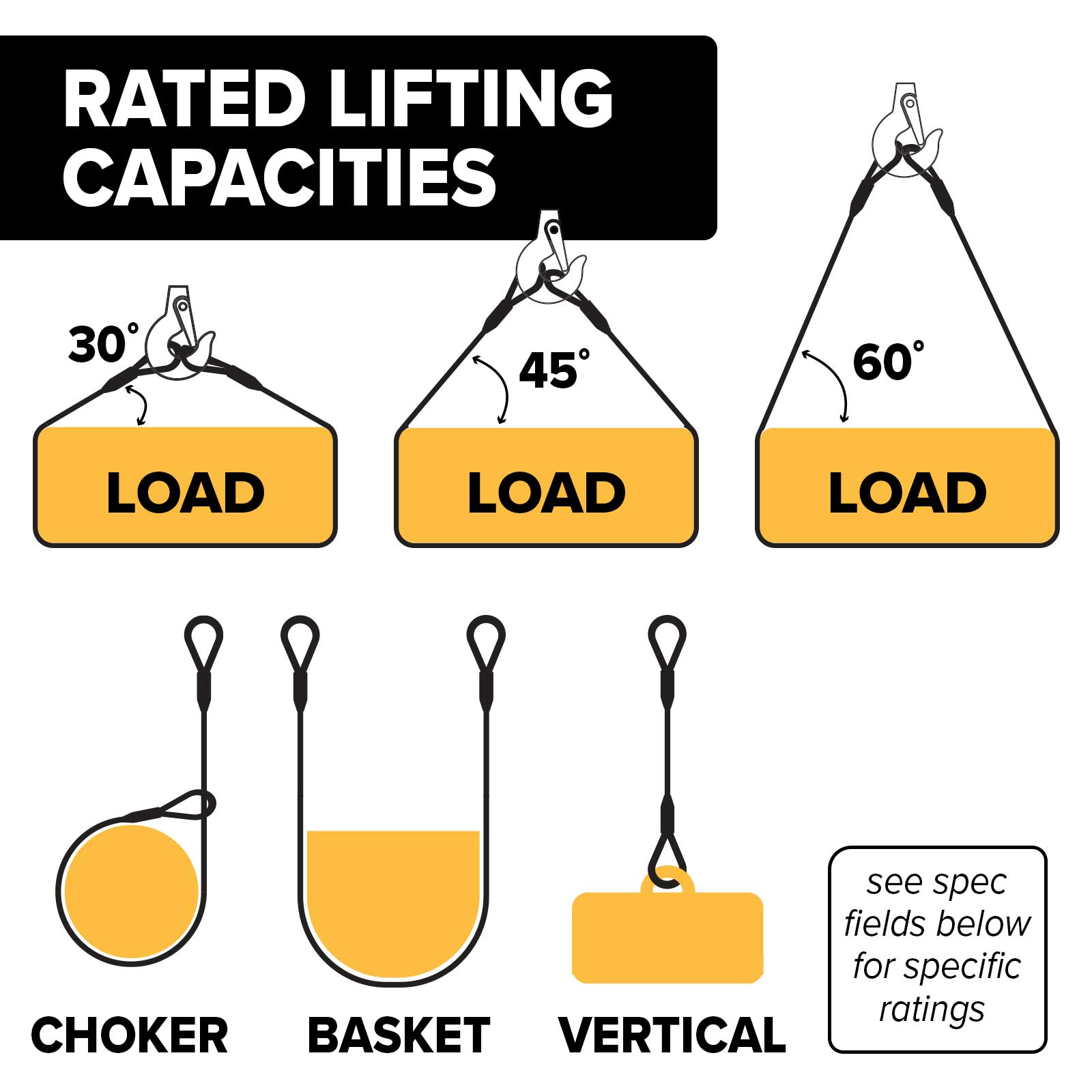

30 degree capacity: 0.65 tons / 1,300 lbs.
45 degree capacity: 0.91 tons / 1,820 lbs.
60 degree capacity: 1.1 tons / 2,200 lbs.
More Info: Eye dimensions: 2"W x 4"L Rated capacities based on a D/d ratio of 25 Rope Class: 6x19
Basket capacity: 1.3 tons / 2,600 lbs.
Choker capacity: 0.48 tons / 0,960 lbs.
Core: IWRC
End fitting: Flemish Eye
Manufacturer name: Crosby®
Material: Bright Steel Wire Rope
Product weight: .95 lbs.
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or excceds all ASME B30.9 & OSHA 1910.184 requirements.
Vertical capacity: 0.65 tons / 1,300 lbs.
Description

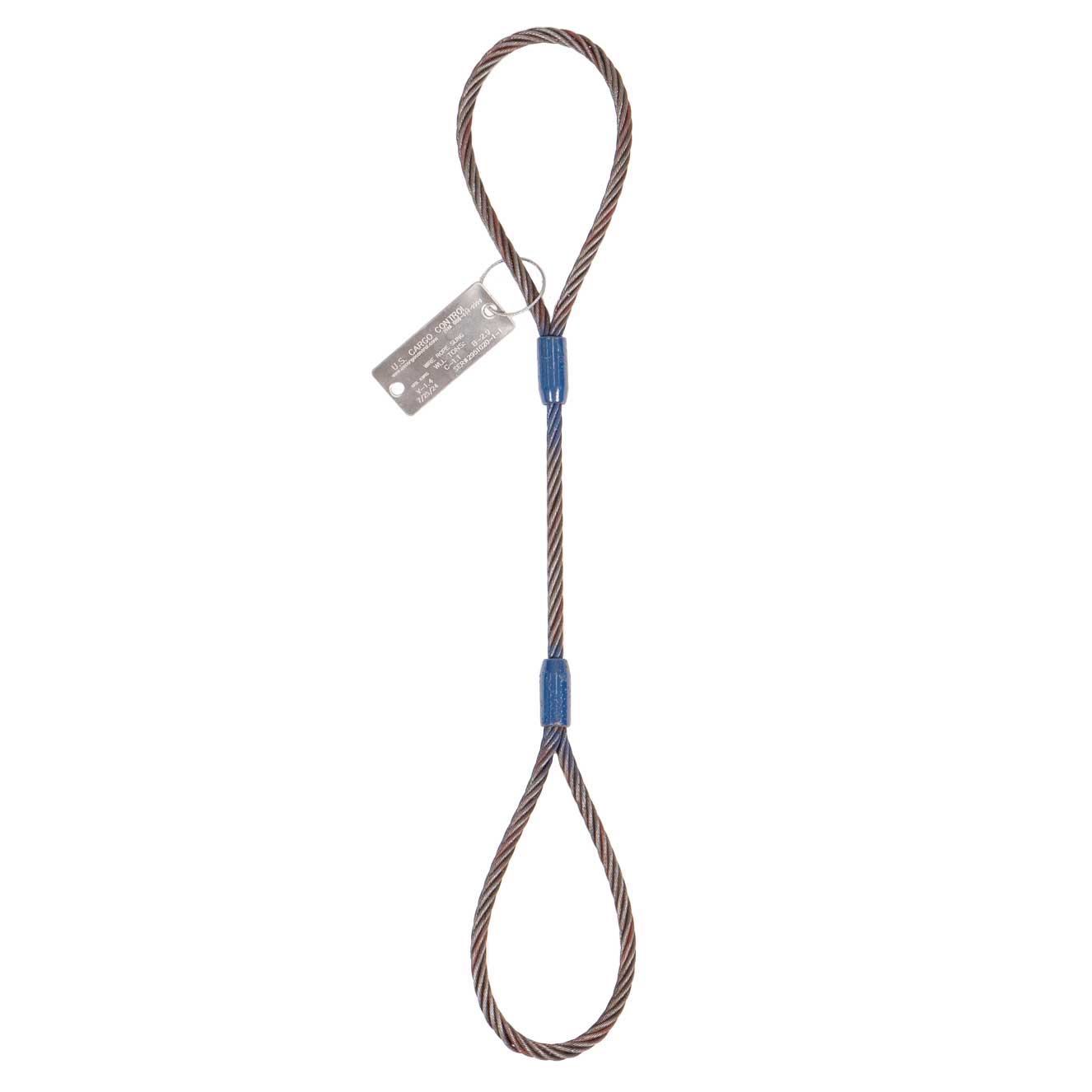

Domestic 0.65 Ton Lifting Wire Rope Sling | Eye & Eye

Wire rope slings are a common choice in the lifting industry - they are more cost-efficient than chain slings and more strong, durable, and temperature-resistant than many synthetic lifting slings. Along with these built-in advantages, choosing a single leg wire rope sling results in a simpler lifting setup when compared with multi-leg slings. It's faster to connect, can maneuver better in tight spaces, and can be used in a more versatile range of hitches and angled lifts.

This lifting wire rope sling is manufactured using quality Crosby hardware and a domestically-made wire rope.

Flemish Eye Benefits

The mechanical splice Flemish eye is the most popular eye configuration, given its reliability and strength. Constructed by splitting the wire rope into two parts, looping / weaving them together to create an eye, and securing them with a fitted swaged sleeve, it offers a higher lifting capacity than hand-tucked eyes.

To extend the life of your wire rope sling eye, add a thimble! It helps to reduce wear and tear, as well as prevent eye deformation.

Made in the USA 1/4" Dia. Wire Sling Construction

Our wire rope slings are made using EIPS-grade IWRC bright steel rope wire. The EIPS (Extra Improved Plow Steel) refers to the strength of the wire rope - its tensile strength is around 10% greater than an IPS grade, improving the lifting capacity. The bright steel classification means it's uncoated except for a lubricant for basic corrosion-resistance.

IWRC stands for Independent Wire Rope Core. Constructed from durable steel, it's more resistant to crushing / pressure and allows for sling use in higher temperature environments than fiber cores. Fiber cores generally only go up to 180°F / 82°C, while IWRC core slings can handle temperatures up to 400°F / 204°C.

Wire Rope Classification

Wire rope classification is a nominal indicator of the rope's construction - the number of outer strands around the core and an estimation of the number of wires within each of these outer strands. This wire rope sling's class is 6x19. That means it will have 6 outer strands, with the number of wires making up each strand ranging from 15-26.

The important takeaway from this classification is that it has fewer wires per strand than a 6x36 wire rope sling - resulting in a finished product that is more abrasion-resistant but not as flexible.

Generally, wire rope slings with a diameter larger than 1" will have a 6x36 classification, while those 1" or smaller will have a 6x19 classification.

6' Wire Rope Cable Sling Features:

  • Design includes a metal tag with capacity, care, and instruction information.
  • Temperature range: -40°F / -40°C to 400°F / 204°C.
  • Meets or exceeds the standards and requirements from ASME B30.9 and OSHA 1910.184.
  • Proof testing certificates can be provided for a nominal fee and should be requested during your initial order.
  • Includes color strand marker for easy identification as domestic wire rope.

Your One-Stop Shop for Lifting Products

For better load stability and higher lifting capacities, take a look at our 2-leg, 3-leg, or 4-leg wire rope slings.

Complete your setup by checking out our full line of lifting and rigging equipment, including common wire rope sling accessories like shackles, wire rope sling protection, and rigging hooks.

Don't see exactly what you're looking for? We also offer custom lifting and rigging options! Get the perfect wire rope sling for your application by calling or filling out our custom wire rope slings online form to get started. Our team of product experts is here to help answer any questions you may have.
