SKU: CL1-12-14

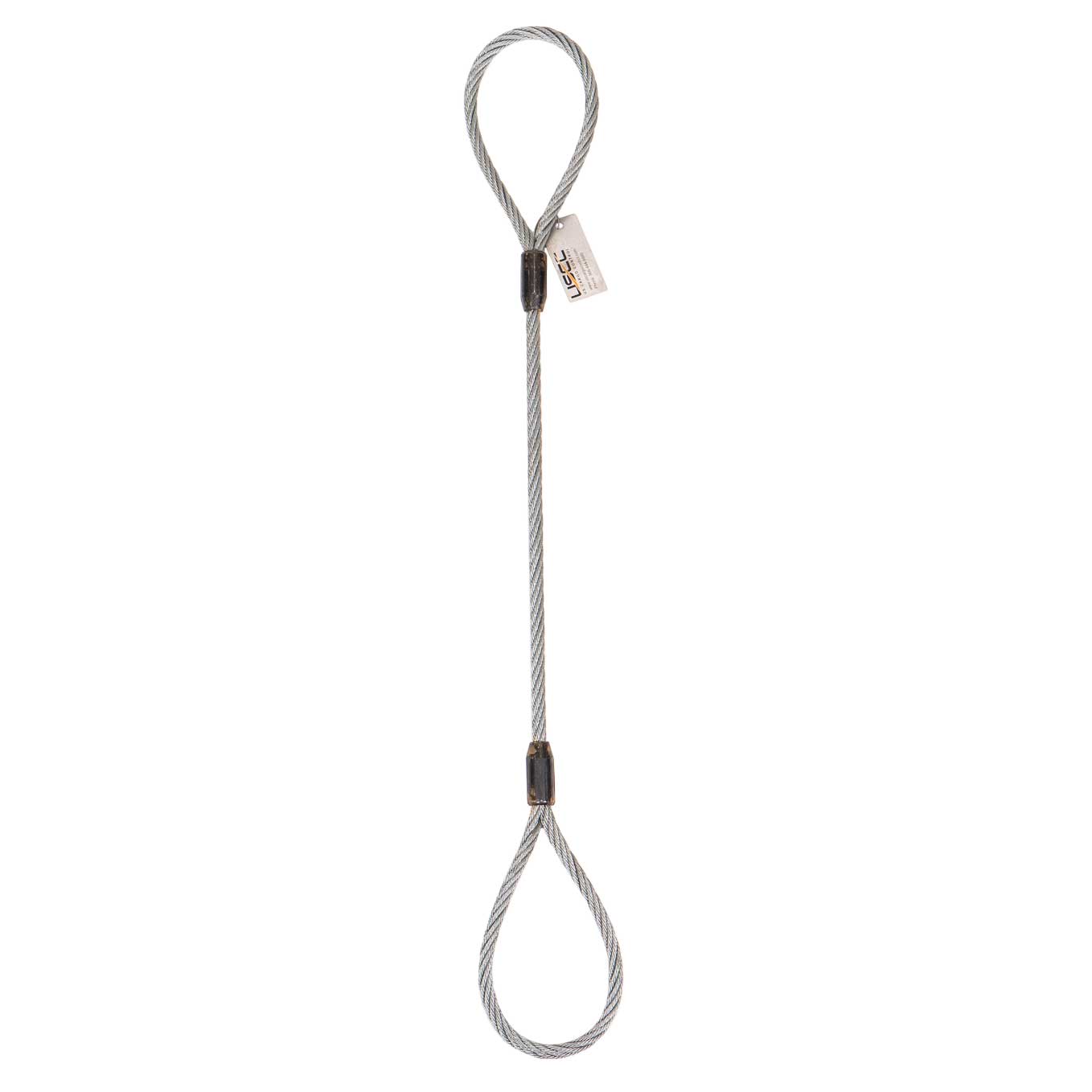

1/2" x 14' Standard Eye Cable Laid Wire Rope Sling | 7x7x7

1/2" x 14' Standard Eye Cable Laid Wire Rope Sling | 7x7x7!

Skip to product information
1 of 7
$89.64

Request Bulk Pricing
Request Bulk Pricing
Made to Order
Ships in 5-8 business days.
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Buy in Bulk

Request a Quote

Questions? Need it custom?

We Can Help!

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Diameter: 1/2"
Grade: EIPS
Length: 14'
Vertical capacity: 1.9 tons / 3,800 lbs.
Choker capacity: 1.4 tons / 2,800 lbs.
Basket capacity: 3.8 tons / 7,600 lbs.
Core: IWRC
End fitting: Turn-Back Eye
Finish: Galvanized
Material: Steel
Product weight: 6.44 lbs.
Rope construction: 7x7
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all ASME B30.9 & OSHA 1910.184 requirements.
Additional Info: Rated capacities for basket hitch based on a D/d ratio of 25
Description

1.9 Ton Cable Laid Sling for Lifting

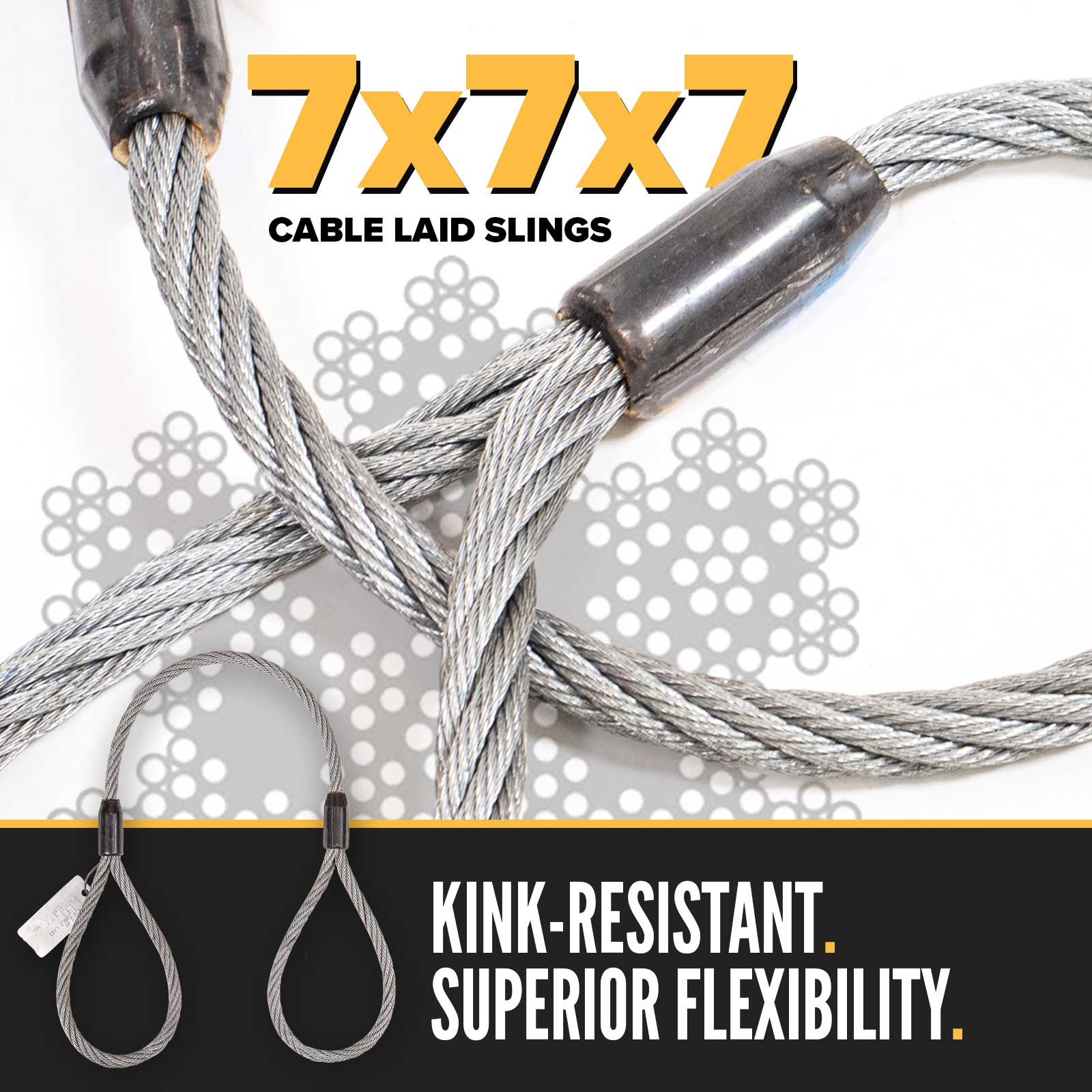

Wire rope slings are a common choice in the lifting industry - they are more cost-efficient than chain slings and more strong, durable, and temperature-resistant than many synthetic lifting slings. Along with these built-in advantages, choosing a 7x7x7 cable laid sling results in more flexibility and resistance to kinking than traditional wire rope configurations. These wire rope lifting slings are also made from galvanized steel wire as opposed to the standard bright steel wire, so it has superior corrosion-resistance.

Sometimes referred to as aircraft cable, these slings are ideal for applications where you need your wire rope to bend.

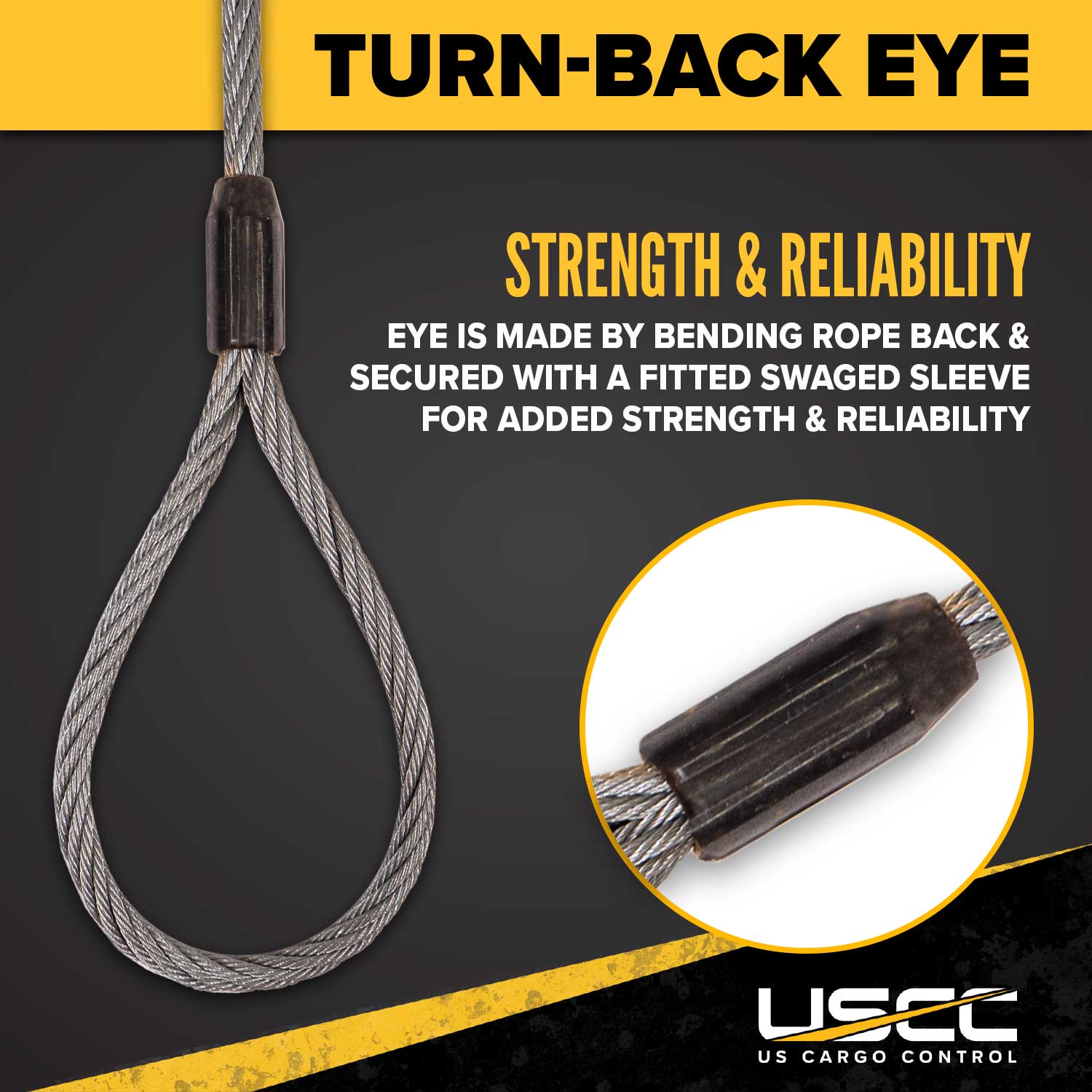

Turn-Back Eye Benefits

Turnback-eyes are made by bending the rope back to create an eye and secured with a fitted swaged sleeve, making them stronger and more reliable than hand-spliced eyes.

To extend the life of your wire rope sling eye, add a thimble! It helps to reduce wear and tear, as well as prevent eye deformation.

1/2" Dia. Wire Sling Construction

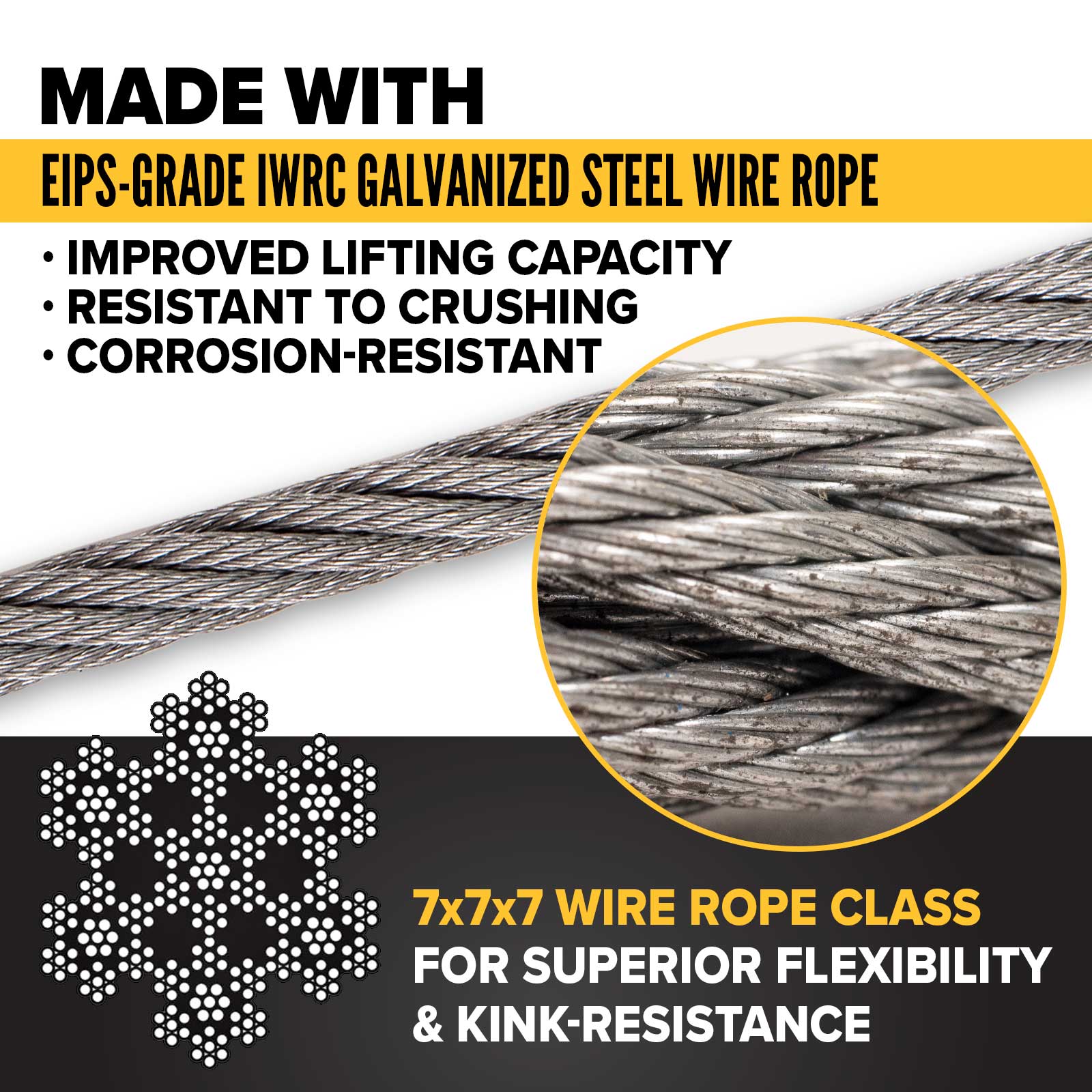

Our cable laid wire rope slings are made using EIPS-grade IWRC galvanized steel rope wire. The EIPS (Extra Improved Plow Steel) refers to the strength of the wire rope - its tensile strength is around 10% greater than an IPS grade, improving the lifting capacity. The galvanized classification means it's been treated with a thin layer of zinc for added corrosion-resistance compared to a sling made of bright steel wire rope.

IWRC stands for Independent Wire Rope Core. Constructed from durable steel, it's more resistant to crushing / pressure and allows for sling use in higher temperature environments than fiber cores. Fiber cores generally only go up to 180°F / 82°C, while IWRC core slings can handle temperatures up to 400°F / 204°C.

14' Wire Rope Cable Sling Features:

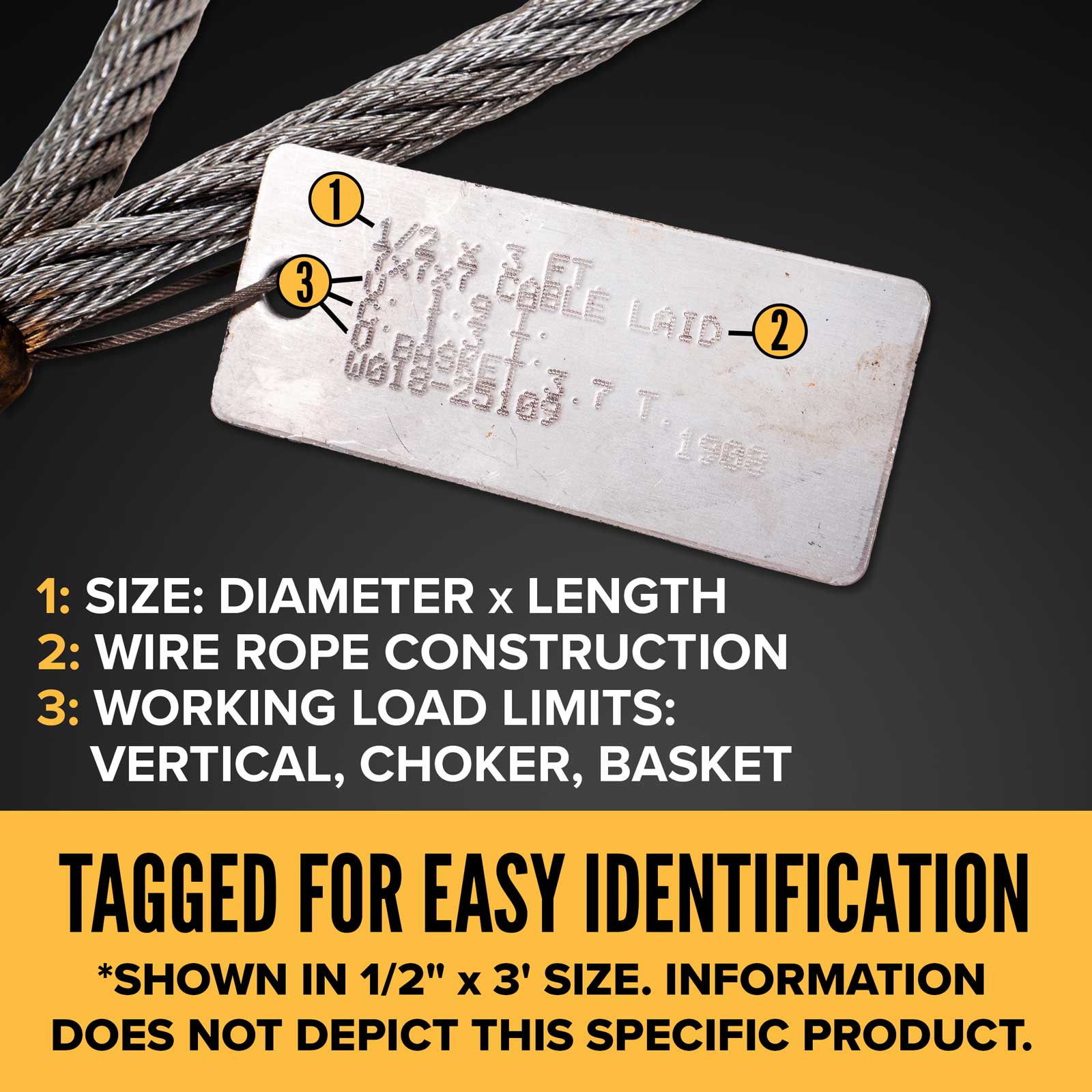

  • Design includes a metal tag with capacity, care, and instruction information.
  • Temperature range: -40°F / -40°C to 400°F / 204°C.
  • Meets or exceeds the standards and requirements from ASME B30.9 and OSHA 1910.184.
  • Proof testing certificates can be provided for a nominal fee and should be requested during your initial order.

Your One-Stop Shop for Lifting Products

Complete your setup by checking out our full line of lifting and rigging equipment, including common wire rope sling accessories like shackles, wire rope sling protection, and rigging hooks.

Don't see exactly what you're looking for? We also offer custom lifting and rigging options! Get the perfect wire rope sling for your application by calling or filling out our custom wire rope slings online form to get started. Our team of product experts is here to help answer any questions you may have.
