SKU: LF1SI304619

1" 6x19 Stainless Steel Wire Rope - Type 304 IWRC | Linear Foot

1" 6x19 Stainless Steel Wire Rope - Type 304 IWRC | Linear Foot!

Skip to product information
1 of 6
$15.27

Request Bulk Pricing
min. order qty: 25
Request Bulk Pricing
Ships in 1-2 business days.
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Buy in Bulk

Request a Quote

Questions? Need it custom?

We Can Help!

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Assembly break strength: 42.7 tons / 85,400 lbs.
Grade: 304 Stainless Steel
Length: 1'
Core: IWRC
Product weight: 1.85 lbs.
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Weight per foot: 1.85
Wire rope class: 6x19
Wire rope diameter: 1"
Additional Info: Right Hand Regular Lay
Description

1" 6x19 Wire Rope Cable | 304 Stainless

Known for flexibility and abrasion-resistance, this type 304 6x19 wire rope is the perfect general use steel cable and can be used for many applications, including as hoisting rope, suspension cables, winch lines, and more. It offers more corrosion-resistance than galvanized wire rope but less than type 316 (316 is considered marine-grade). It's a great choice for most jobs where rust-protection is needed because, while it isn't quite as resistant as type 316, it is a stronger wire and it's generally more cost-effective.

6x19 Wire Rope Configuration

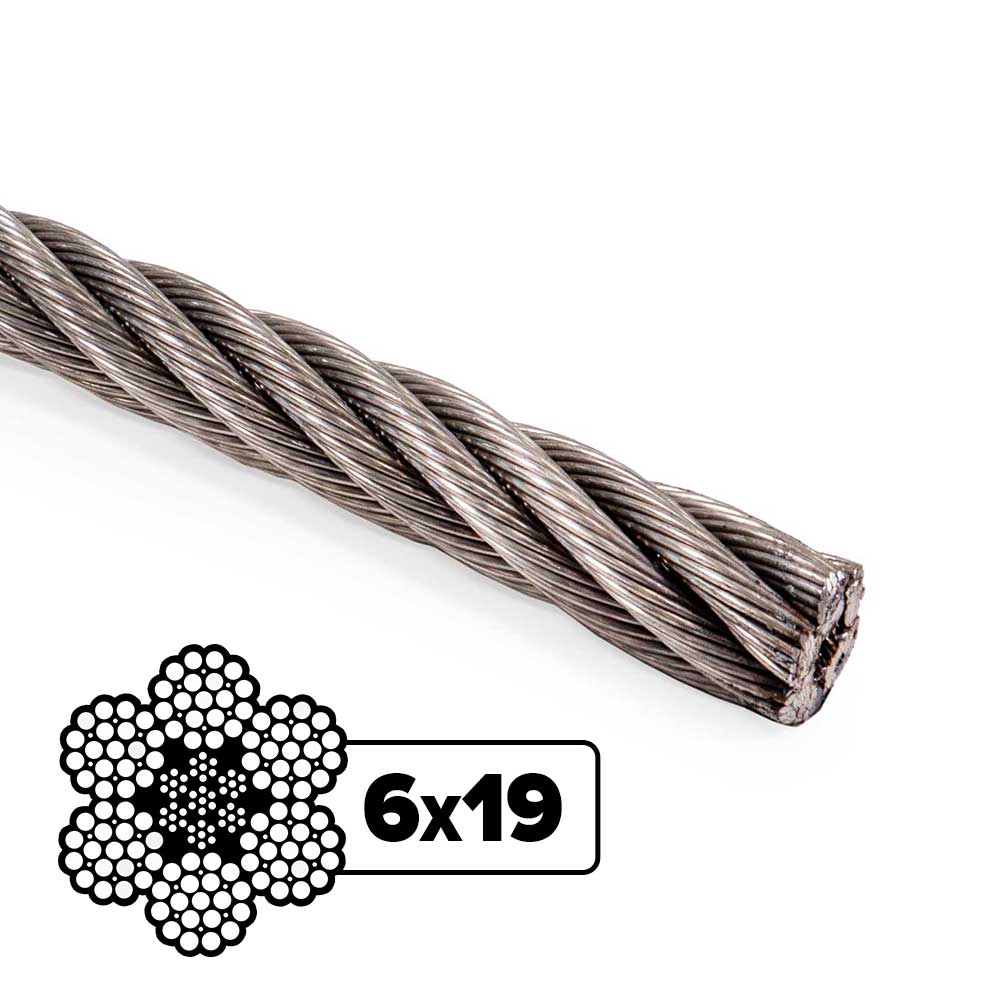

The class of this wire rope is 6x19. These numbers nominally refer to the construction of the wire rope - the number of outer strands around the core and an estimation of the number of wires within each of these outer strands. So for a 6x19 class, the number of outer strands is 6, and the number of wires making up each strand ranges from 15-26. Compared to a 6x37 class, the 6x19 configuration offers better abrasion-resistance; however, it is less flexible and fatigue-resistant.

The independent wire rope core (IWRC) provides more support than a fiber core - it's more resistant to crushing and is better suited for high temperature applications. Their general temperature range is between -40°F / -40°C and 400°F / 204°C.

304 Stainless Wire Rope Features:

  • Our wire rope meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023.
  • This item is imported from a vetted vendor - if you are looking for wire rope from a specific country, please call in or fill out our custom wire rope form.
  • A certificate of conformity is available for a nominal fee - please request when you place your order.

Wire Rope by the Foot Ordering FAQ

Does this wire rope come as one length? Yes, the quantity you add to the cart will be provided as one unbroken length of rope. So if you add this to the cart with a quantity of 1000, you will receive one 1000-foot long rope.

Can I order multiple separate lengths? Yes. For example, if you need two 1500-foot lengths of rope, you would set the quantity to 1500 and then add that to the cart twice. For each separate instance you add this to the cart, you will get a separate length of rope.

Can I order lengths less than the minimum order quantity if when combined they will be greater than the minimum order quantity? Yes - please call to speak to one of our product experts to place this order.

Accessories & More

Complete your wire rope assembly - we also carry wire rope fittings and rigging hardware, including wire rope clips and wire rope thimbles. Make sure to get type 304 accessories - choosing a dfferent finish / material could result in an adverse reaction between the components.

Custom wire rope configurations are also available - call or fill out our online form for a quote!
