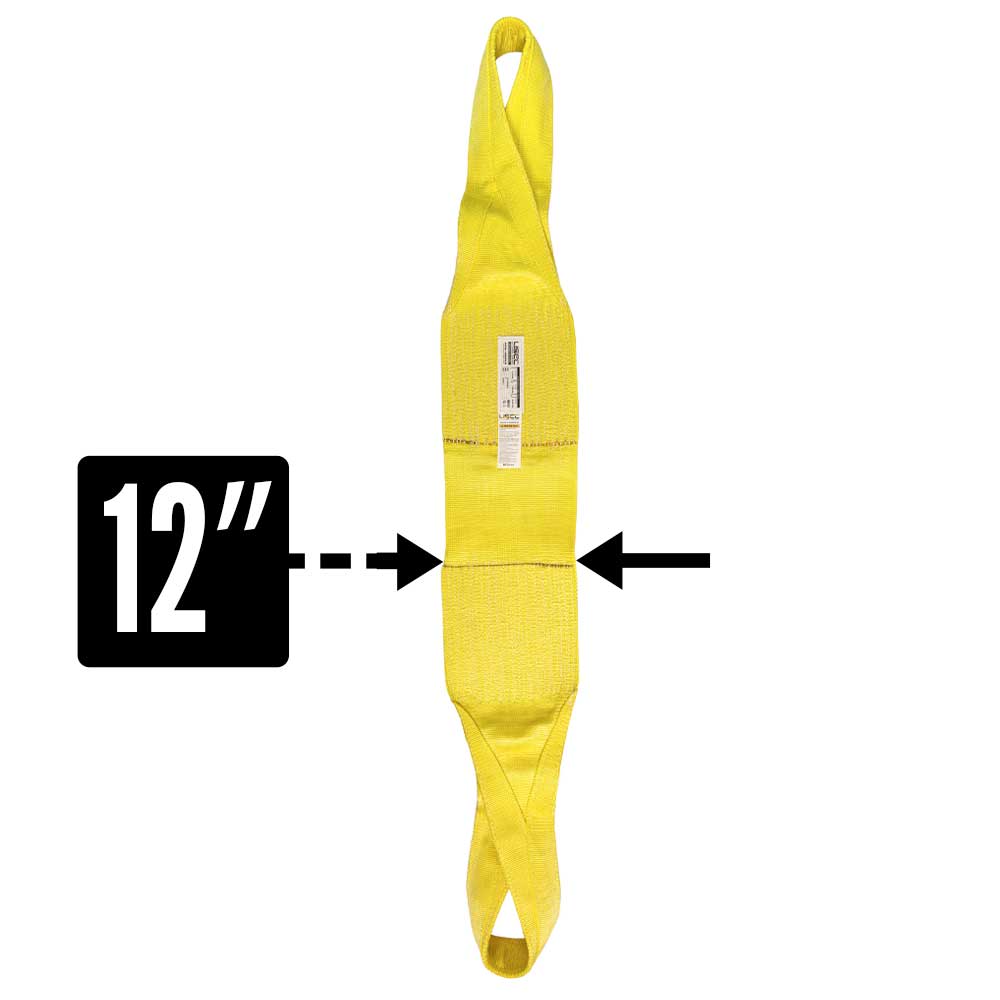

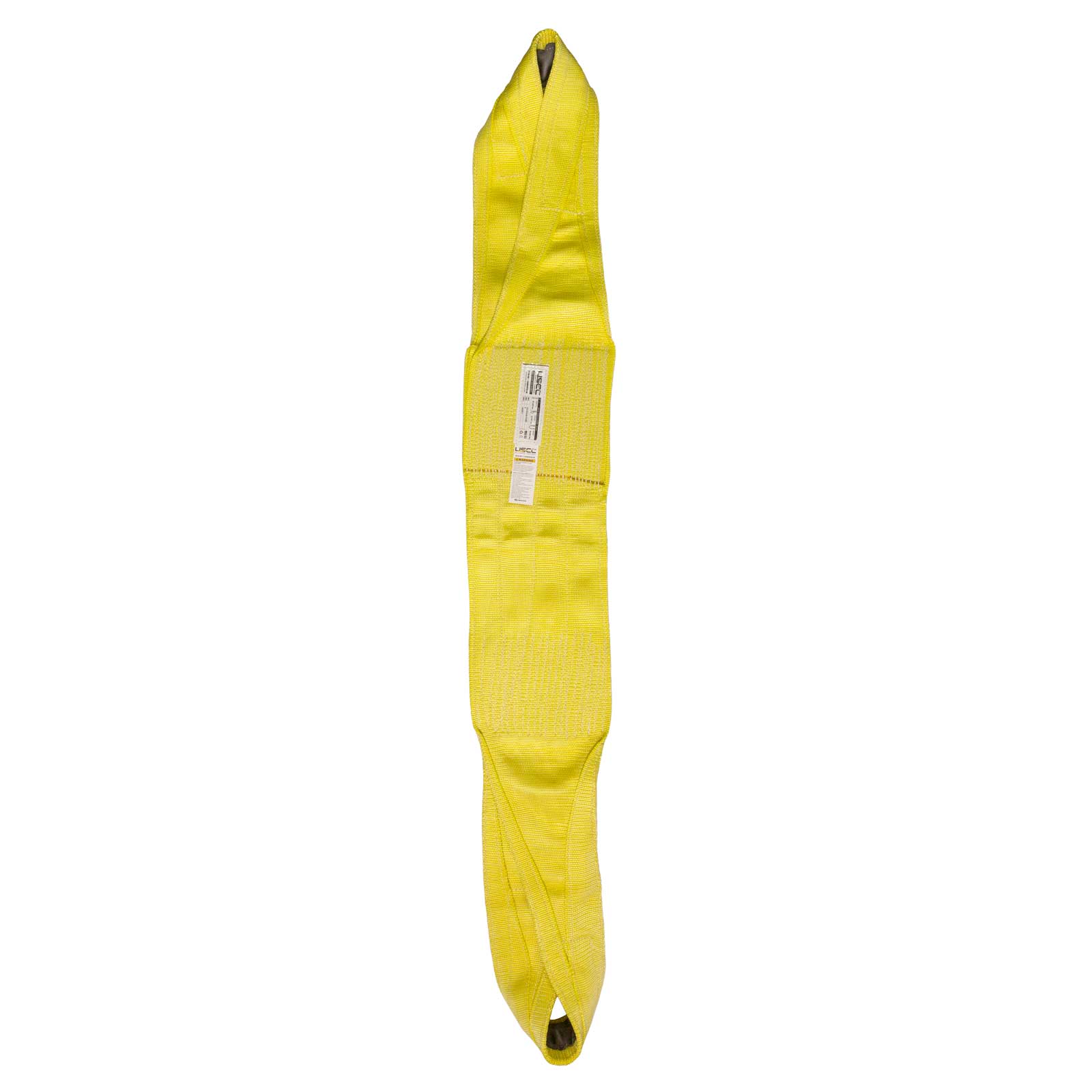

12" x 20' Twisted Eye & Eye Nylon Lifting Strap

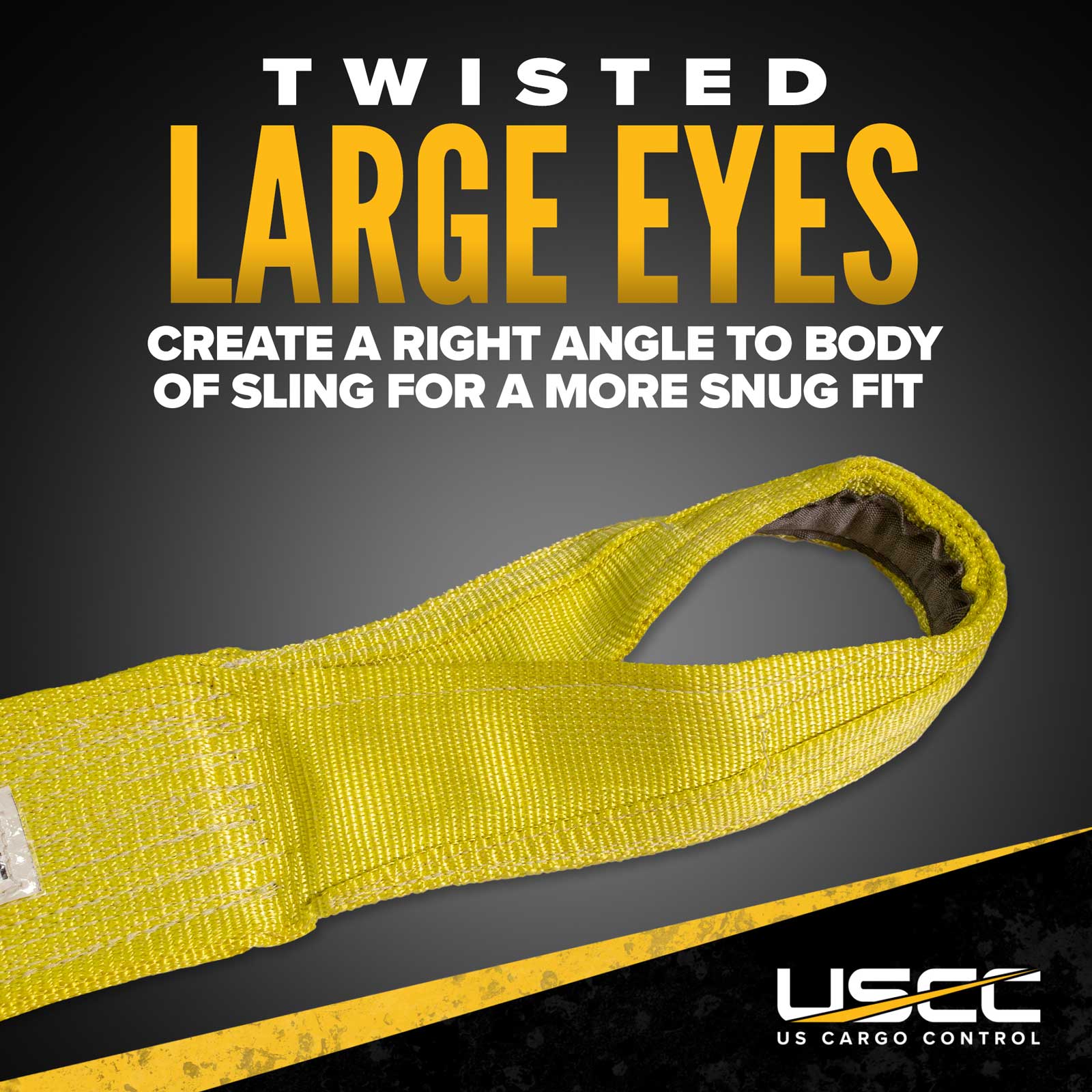

These type 4 synthetic lifting slings have a twisted eye on each end. This design creates a right angle to the body of the sling, which allows for a more snug fit when used with crane hooks.

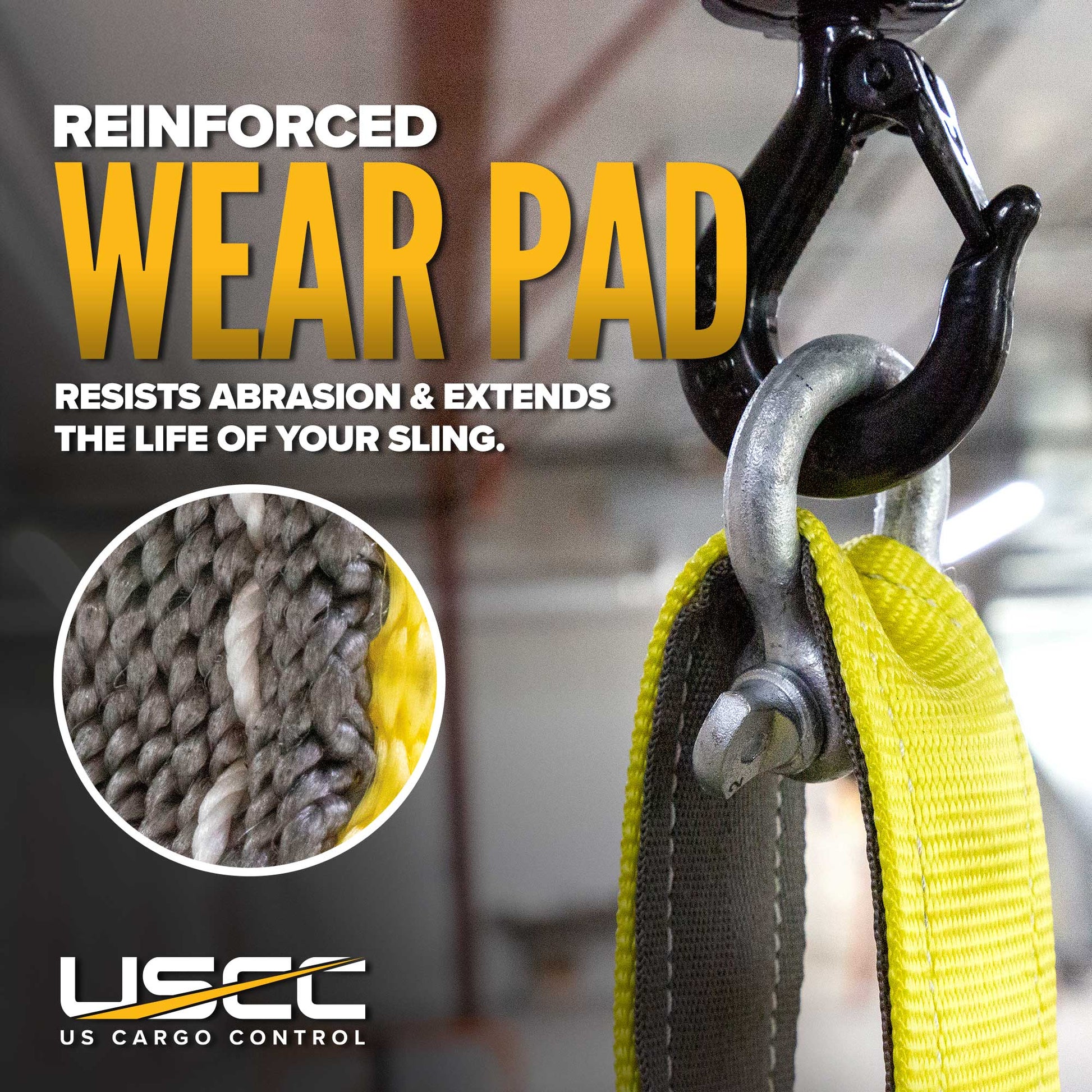

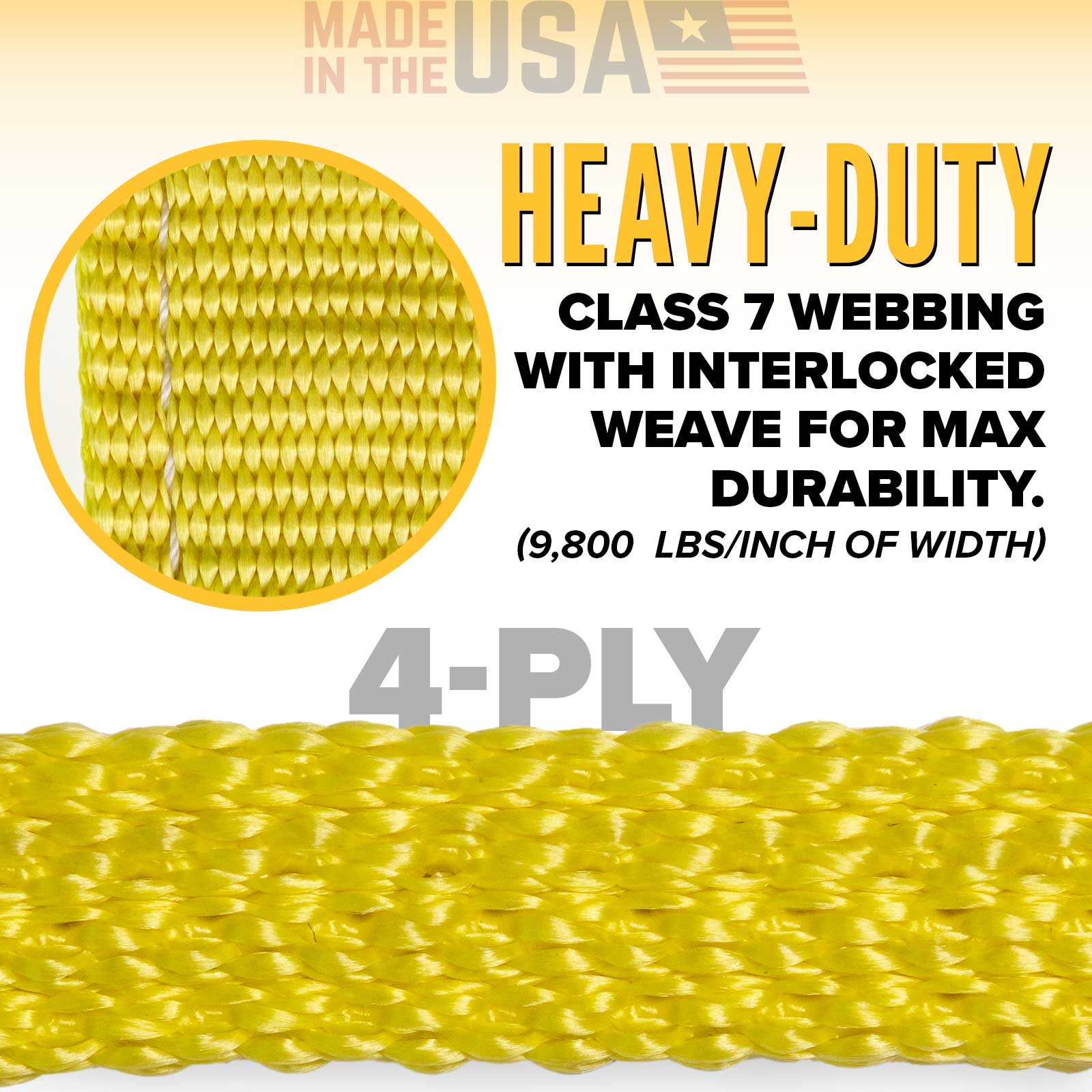

The slings are made in the USA from heavy-duty, industrial-grade webbing, with wear pads in each eye for abrasion resistance. The strap even comes with a sewn-in leather tag that displays the working load limits for each hitch setup.
While this sling is best-suited for use in choker hitches, it also works well in basket and vertical hitches.
Determining Sling Length
Sling length is measured from the load-bearing point of one eye to the load-bearing point of the other eye.
Sling Proof Testing Certificates
Proof testing certificates can be supplied for a nominal fee - they must be requested at the time of order. These proof tests are performed in the factory where the sling is pull-tested to 2x the vertical rating and officially recorded as proof for governing bodies. During the standard manufacturing process, only random slings during a production run are tested for compliance; in order to provide proof testing certificates with your order, every sling must be pull-tested at the time of manufacture.
12" x 20' Twisted Eye & Eye Nylon Lifting Strap
These type 4 synthetic lifting slings have a twisted eye on each end. This design creat...
12" x 20' Twisted Eye & Eye Nylon Lifting Strap
These type 4 synthetic lifting slings have a twisted eye on each end. This design creates a right angle to the body of the sling, which allows for a more snug fit when used with crane hooks.
The slings are made in the USA from heavy-duty, industrial-grade webbing, with wear pads in each eye for abrasion resistance. The strap even comes with a sewn-in leather tag that displays the working load limits for each hitch setup.
While this sling is best-suited for use in choker hitches, it also works well in basket and vertical hitches.
Determining Sling Length
Sling length is measured from the load-bearing point of one eye to the load-bearing point of the other eye.
Sling Proof Testing Certificates
Proof testing certificates can be supplied for a nominal fee - they must be requested at the time of order. These proof tests are performed in the factory where the sling is pull-tested to 2x the vertical rating and officially recorded as proof for governing bodies. During the standard manufacturing process, only random slings during a production run are tested for compliance; in order to provide proof testing certificates with your order, every sling must be pull-tested at the time of manufacture.
specifications
Length:
20'
Width:
12"
Product Weight (lbs.):
56.72
Vertical Capacity:
61,200 lbs.
Basket Capacity:
122,300 lbs.
Choker Capacity:
48,900 lbs.
Plies:
4
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Eye Length:
30"
Note:
All Nylon and Polyester lifting slings have a length tolerance of +/- 2%.
Eye Type:
Eye with Wear Pad
