SKU: EE1-901-16-T4-WP
Nylon Lifting Sling - Twisted Eye & Eye | Reinforced Eyes - 1" x 16' - 1-ply
Nylon Lifting Sling - Twisted Eye & Eye | Reinforced Eyes - 1" x 16' - 1-ply!
SKU: EE1-901-16-T4-WP
$26.25
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Length: 16'
Vertical capacity: 1,600 lbs.
Choker capacity: 1,250 lbs.
Basket capacity: 3,200 lbs.
Eye length: 9"
Plies: 1
Product weight: 2.1 lbs.
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all ASME B30.9 requirements.
Type: Eye with Wear Pad

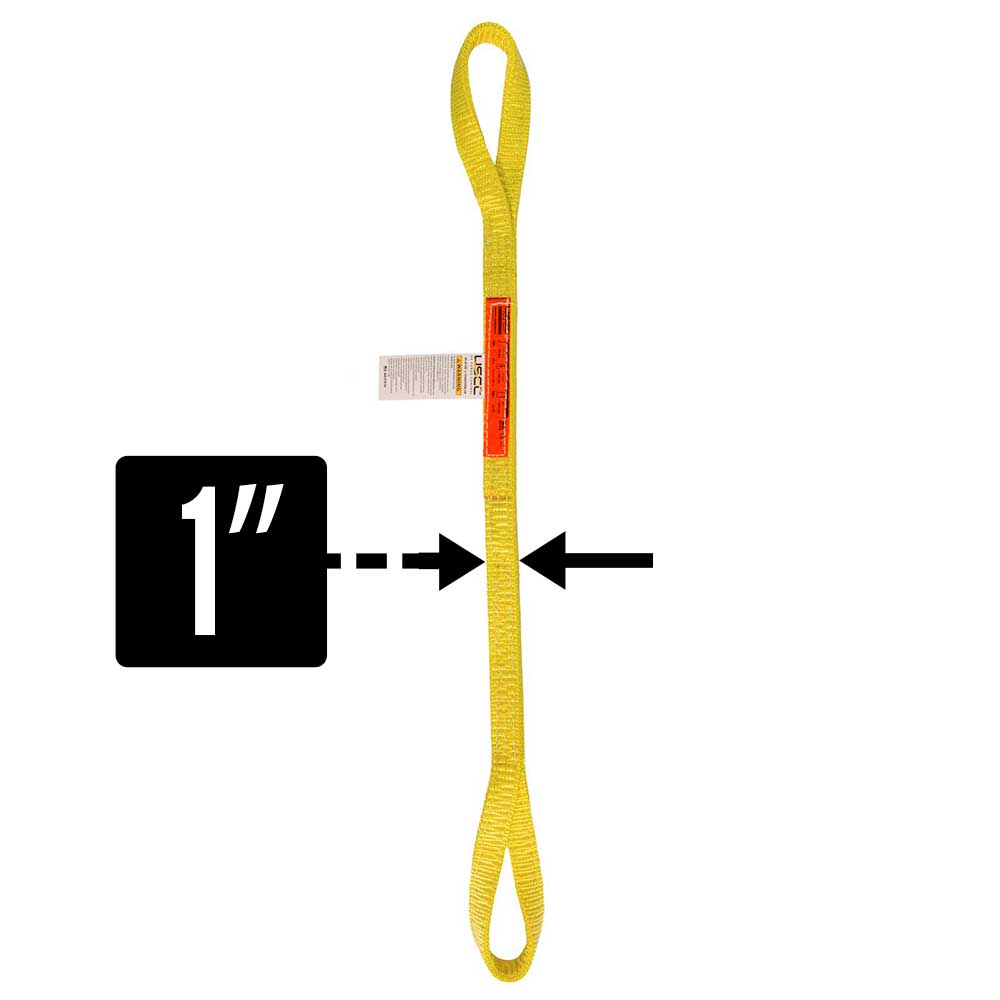

Width: 1"
Additional Info: All Nylon and Polyester lifting slings have a length tolerance of +/- 2%.
Description

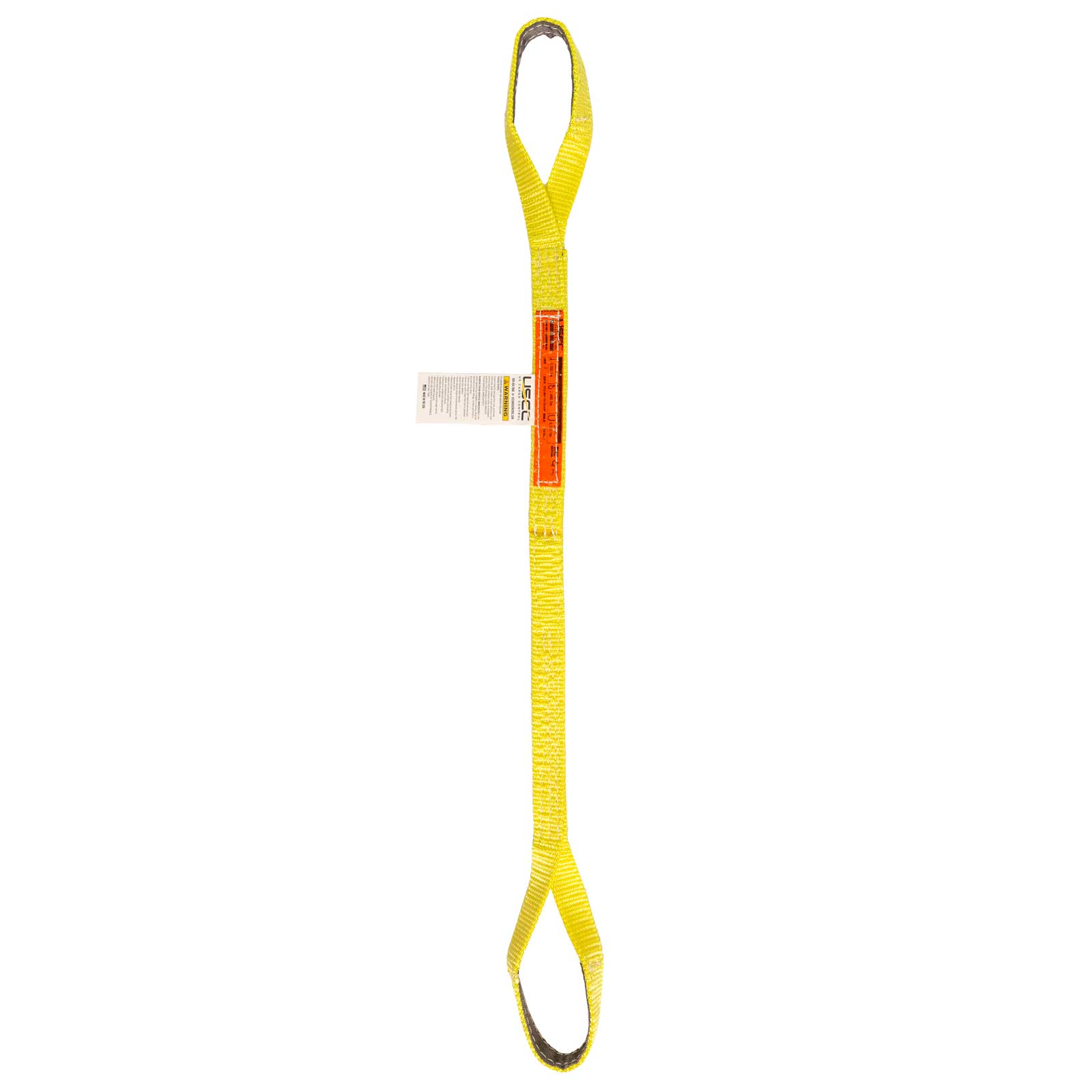

1" x 16' Twisted Eye & Eye Nylon Lifting Strap

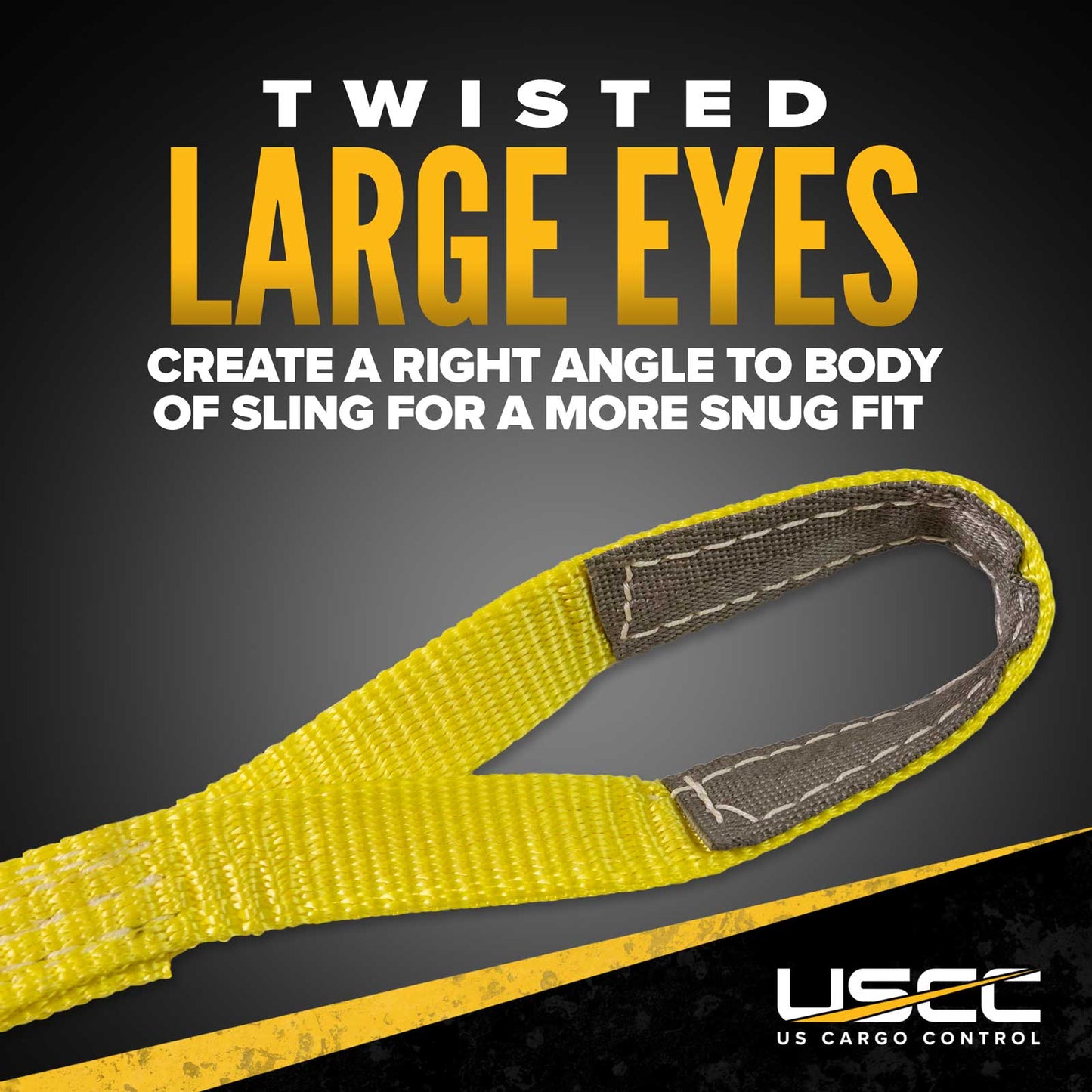

These type 4 synthetic lifting slings have a twisted eye on each end. This design creates a right angle to the body of the sling, which allows for a more snug fit when used with crane hooks.

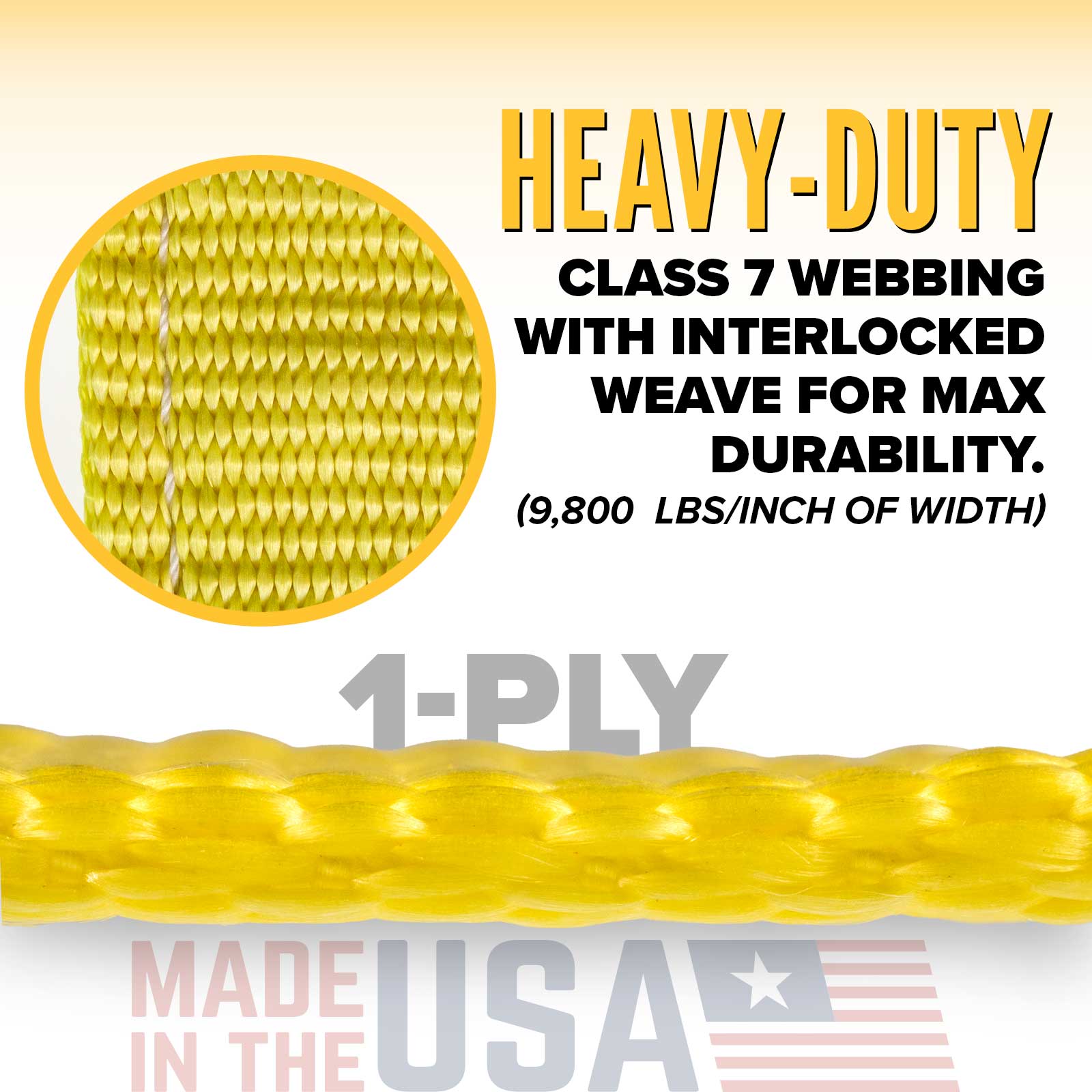

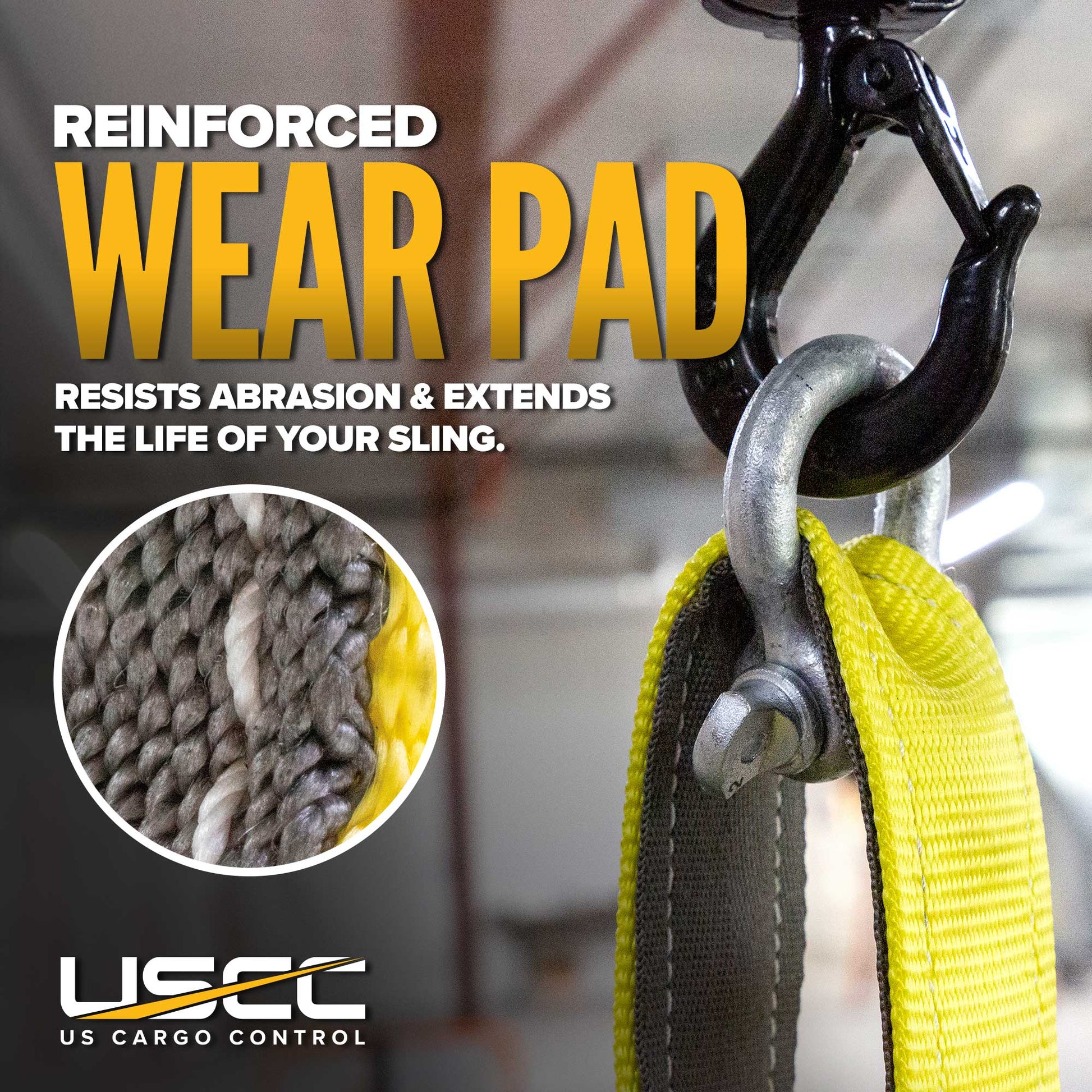

The slings are made in the USA from heavy-duty, industrial-grade webbing, with wear pads in each eye for abrasion resistance. The strap even comes with a sewn-in leather tag that displays the working load limits for each hitch setup.
While this sling is best-suited for use in choker hitches, it also works well in basket and vertical hitches.
Determining Sling Length
Sling length is measured from the load-bearing point of one eye to the load-bearing point of the other eye.
Sling Proof Testing Certificates
Proof testing certificates can be supplied for a nominal fee - they must be requested at the time of order. These proof tests are performed in the factory where the sling is pull-tested to 2x the vertical rating and officially recorded as proof for governing bodies. During the standard manufacturing process, only random slings during a production run are tested for compliance; in order to provide proof testing certificates with your order, every sling must be pull-tested at the time of manufacture.
-
