SKU: SLDLC34-CR
Crosby® 3/4" Slide-Loc™ - SL-150
Authorized Distributor
$116.70
Lengths:
Diameters:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options

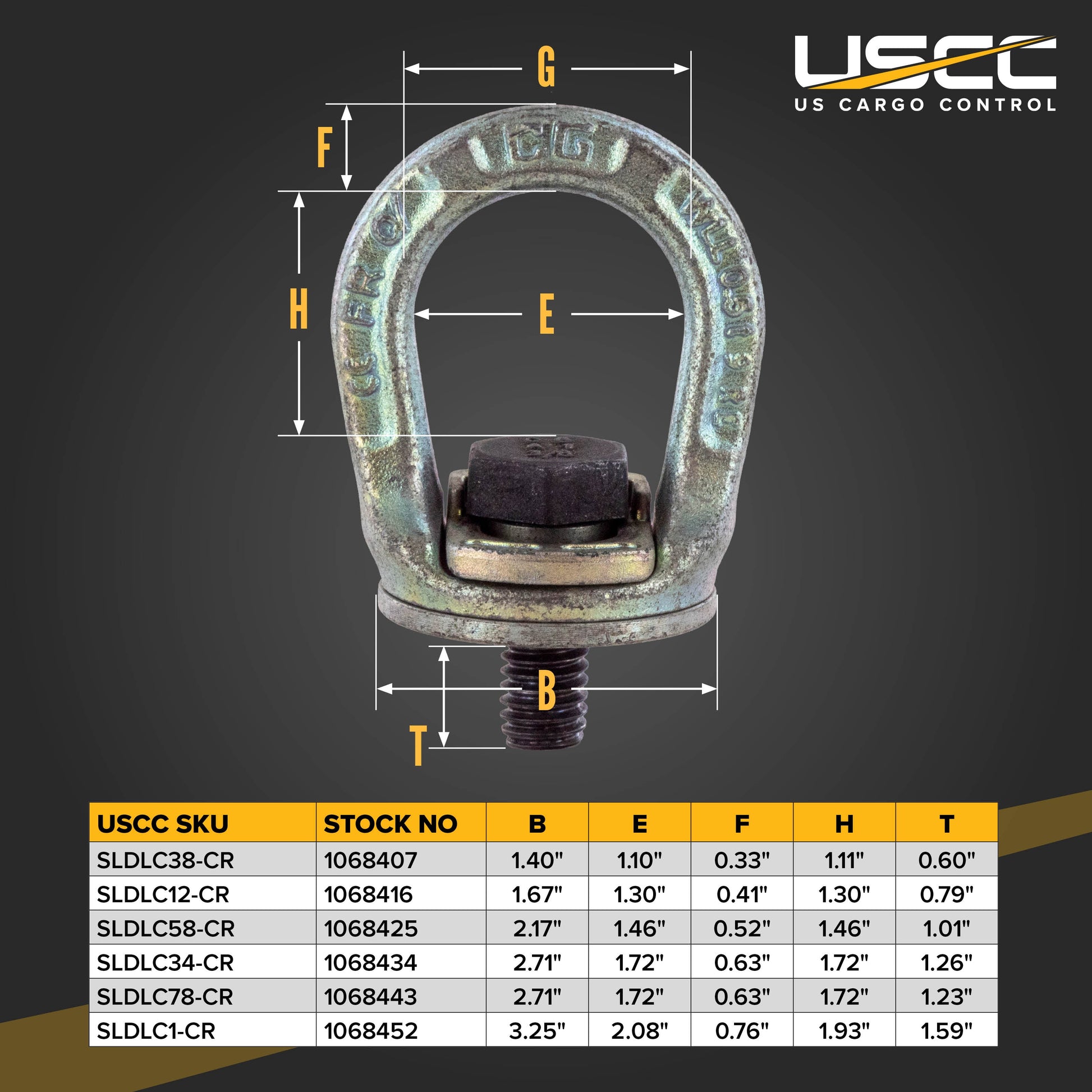

Specifications
Working Load Limit: 4,600 lbs.
Safety Factor: 4:1
Rated for Overhead Lifting: Yes
Diameter: 3/4" - 10 Bolt Diameter
Length: 2" Bolt Length
Thread Type: UNC
Material: Alloy Steel
Finish: Zinc Plated
Torque: No torque wrench required.
Product Weight: 2.05 lbs.
Standards: Meets or exceeds ASME B30.26 requirements.
Manufacturer Name: Crosby®
Brand Part Number: 1068434
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Effective Thread Projection: 1-1/4 in
Description

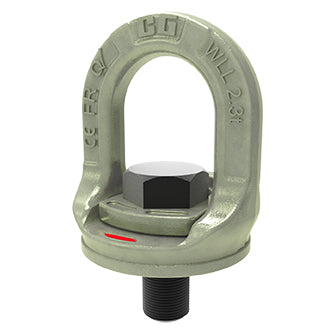

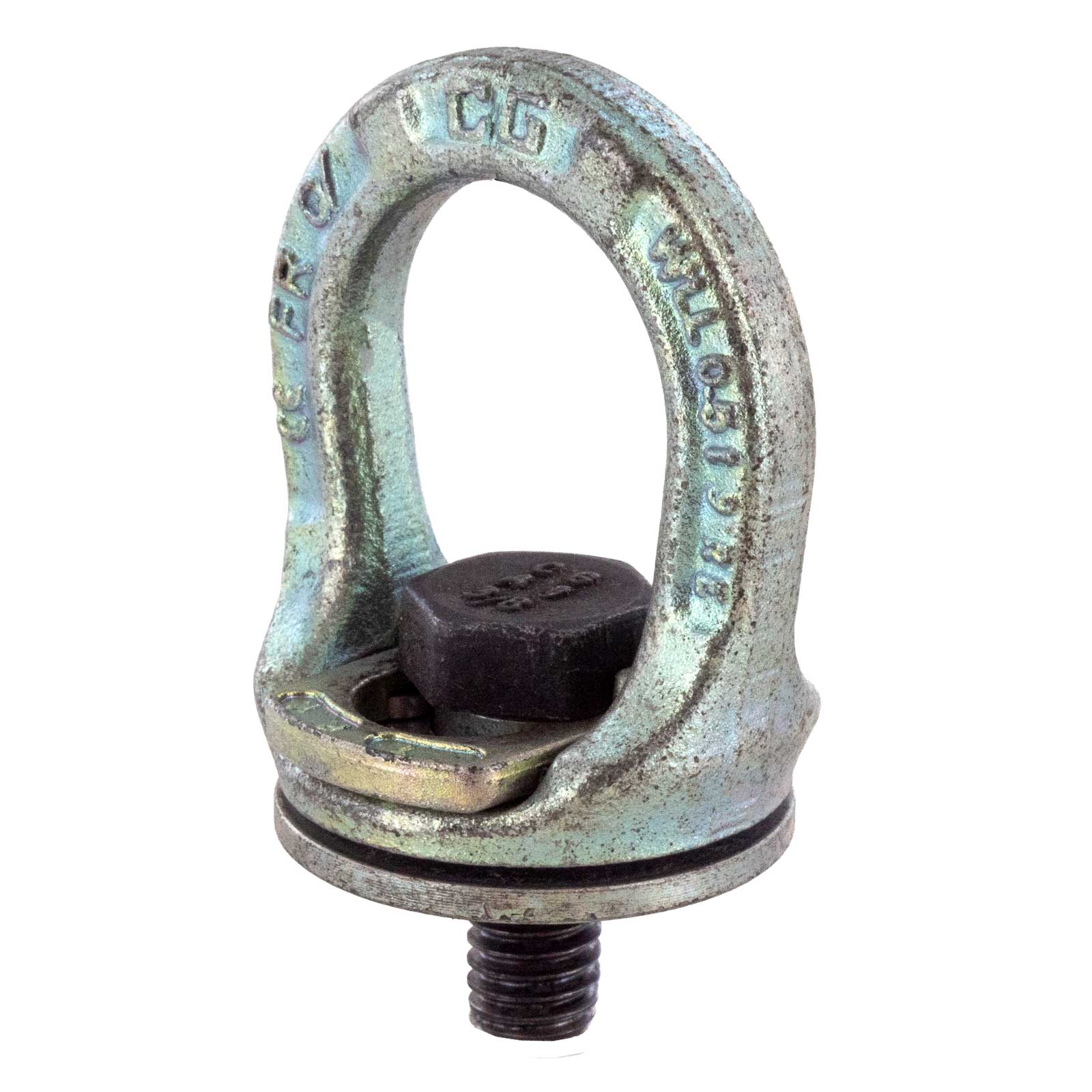

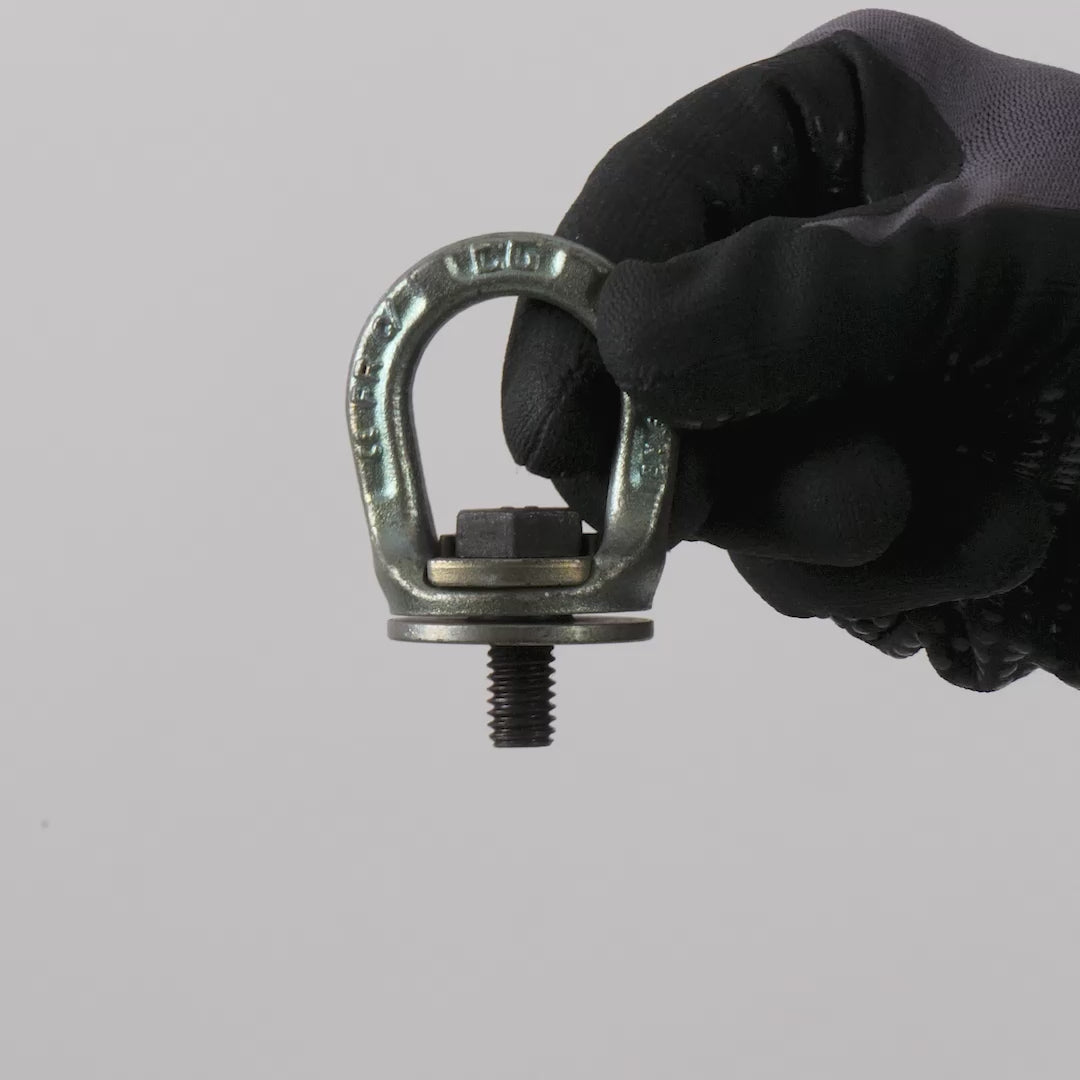

Crosby® SL-150 Slide-Loc™ Hoist Ring
This Crosby® 3/4" Slide-Loc™ SL-150 combines tool-free installation with the angle-rated capacity that standard eye bolts can't deliver. Thread it down by hand, slide the Slide-Loc™ to engage, and confirm with the red QUIC-CHECK® mark before lifting. Full working load limit at any pull angle up to 90°, with a 360° swiveling bail that follows the direction of force automatically.
Why Choose the Crosby® SL-150 Slide-Loc™?
For fabricators, OEM manufacturers, and operations buying lifting points in volume, the SL-150 delivers the angle-rated safety that eye bolts can't match and the tool-free installation speed that full hoist rings can't match-at a price point between both.
Patent-Pending Slide-Loc™ Mechanism

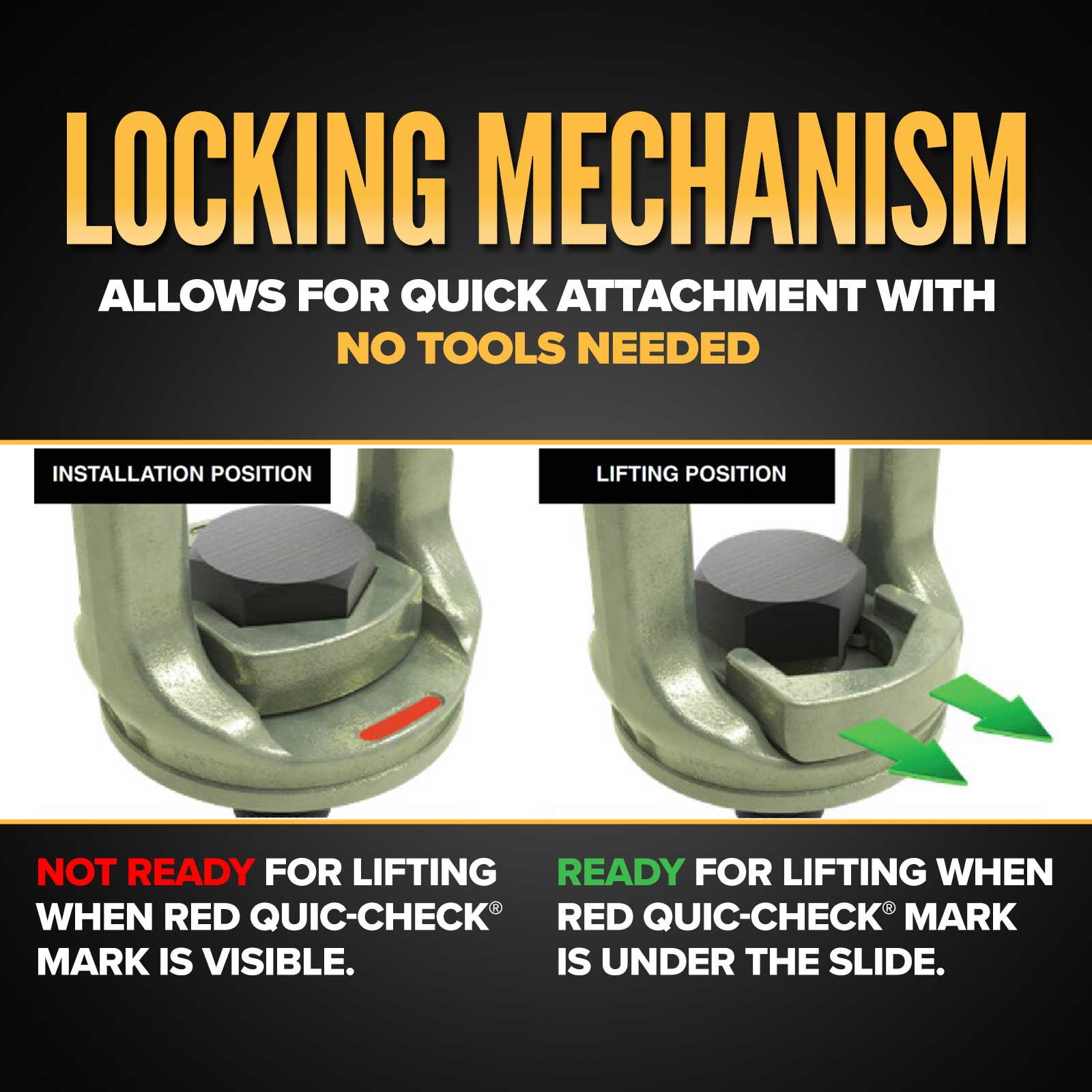

- Tool-Free Installation: Thread the bolt down by hand and slide the lock to engage-no torque wrench needed. Installation takes seconds and is repeatable every time.
- QUIC-CHECK® Visual Indicator: A red mark confirms the Slide-Loc™ is properly engaged and the ring is ready to lift. A fast, reliable go/no-go check visible in any lighting condition.

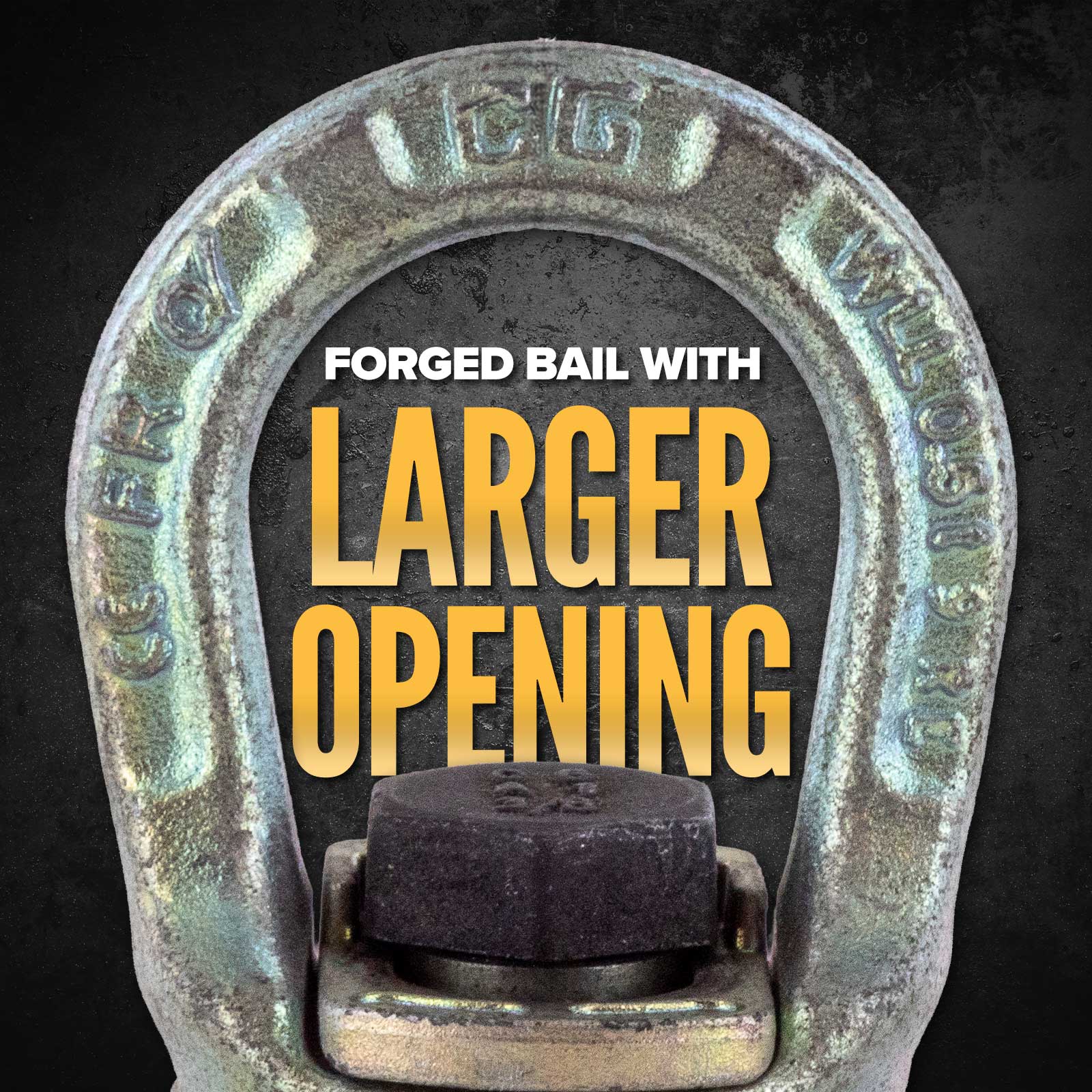

- Larger Eye Opening: The oversized bail opening makes hook attachment faster and easier than standard eye bolts in the field.

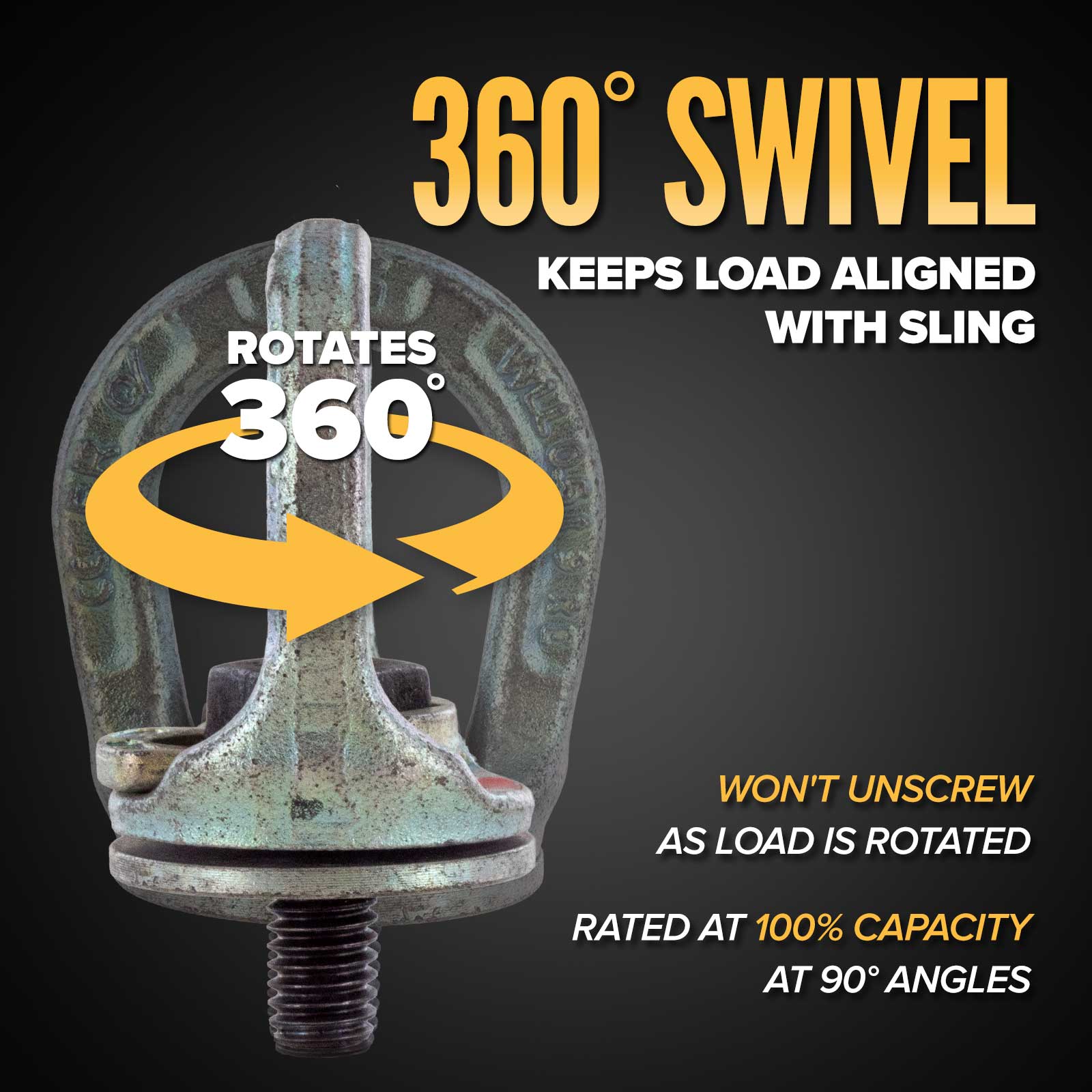

- 360° Swiveling Bail: The bail rotates a full 360° to align automatically with the direction of the lift, maintaining full WLL at any pull angle up to 90°.
Built for Industrial Strength

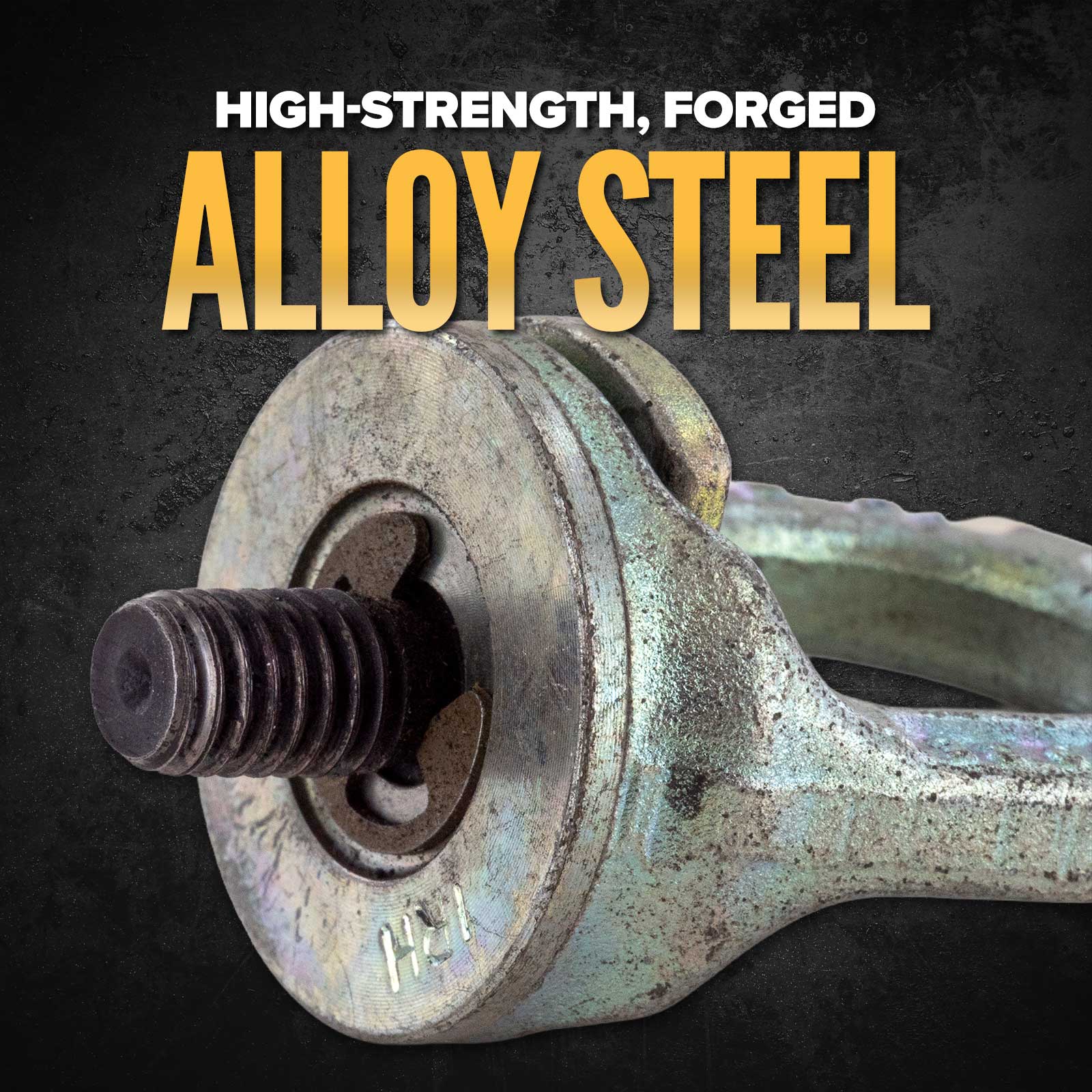

- Forged Alloy Steel Bail, Quenched and Tempered: The bail is forged - not cast - and heat treated for strength and fatigue resistance in demanding lifting conditions.

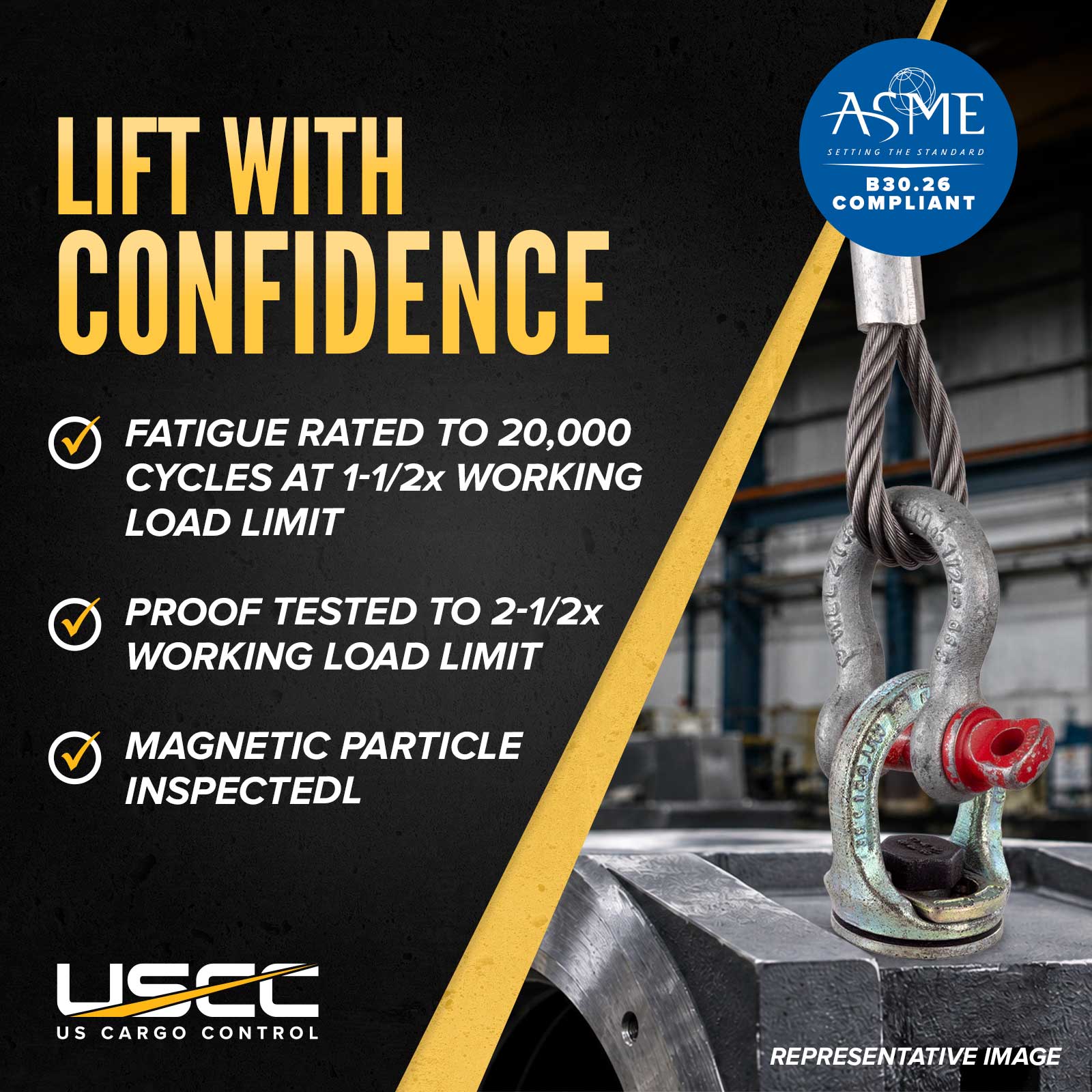

- Proof Tested to 2‑1/2x WLL: Every SL-150 is individually proof tested to two-and-a-half times its working load limit.
- Fatigue Rated to 20,000 Cycles: Tested at 1‑1/2 times WLL for long service life in high-cycle applications.
- UNC and Metric Thread Sizes: Available in sizes from 3/8" to 1" (0.5–3.2 ton WLL) in both UNC and metric configurations.
Meets Industry Standards
ASME B30.26
The Crosby® SL-150 meets applicable requirements of ASME B30.26 for swivel lifting hardware, including design factor, proof load, and identification requirements.
CE Marked - Machinery Directive 2006/42/EC
The SL-150 carries the CE mark in compliance with the EU Machinery Directive 2006/42/EC for applications where CE-marked lifting hardware is required.
Questions?
We also carry the full-pivot Crosby® HR-125 Swivel Hoist Rings and Crosby® HR-1000 Heavy Lift Hoist Rings for applications requiring 180° pivot action. Check out our full selection of rigging hardware including wire rope, shackles, eye bolts, chain, lifting slings, and more. Please contact our sales team with any product questions. Need a size, capacity, or configuration we don't carry? Request a custom hoist ring and our team will work directly with the manufacturer to build it for you.
