SKU: TPSE7000-16
7" x 16' Twin-Path® Sparkeater® High Performance Roundsling | Vertical Cap: 70,000 lbs.
7" x 16' Twin-Path® Sparkeater® High Performance Roundsling | Vertical Cap: 70,000 lbs.!
SKU: TPSE7000-16
$5,626.19
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Length: 16'
Vertical capacity: 70,000 lbs.
Choker capacity: 56,000 lbs.
Basket capacity: 140,000 lbs.
45 degree capacity: 98,980 lbs.
60 degree capacity: 121,240 lbs.
Minimum connection diameter: 1.84"
Product weight: 19.46 lbs.
Safety factor: 5.1
Shipping and returns: This item cannot be returned due to safety risks.
Additional Info: Nominal Body Width: 7"
Minimum bending radius: .92"
Tapered Body Width: 3.5"
Minimum bending radius: .92"
Tapered Body Width: 3.5"
Description

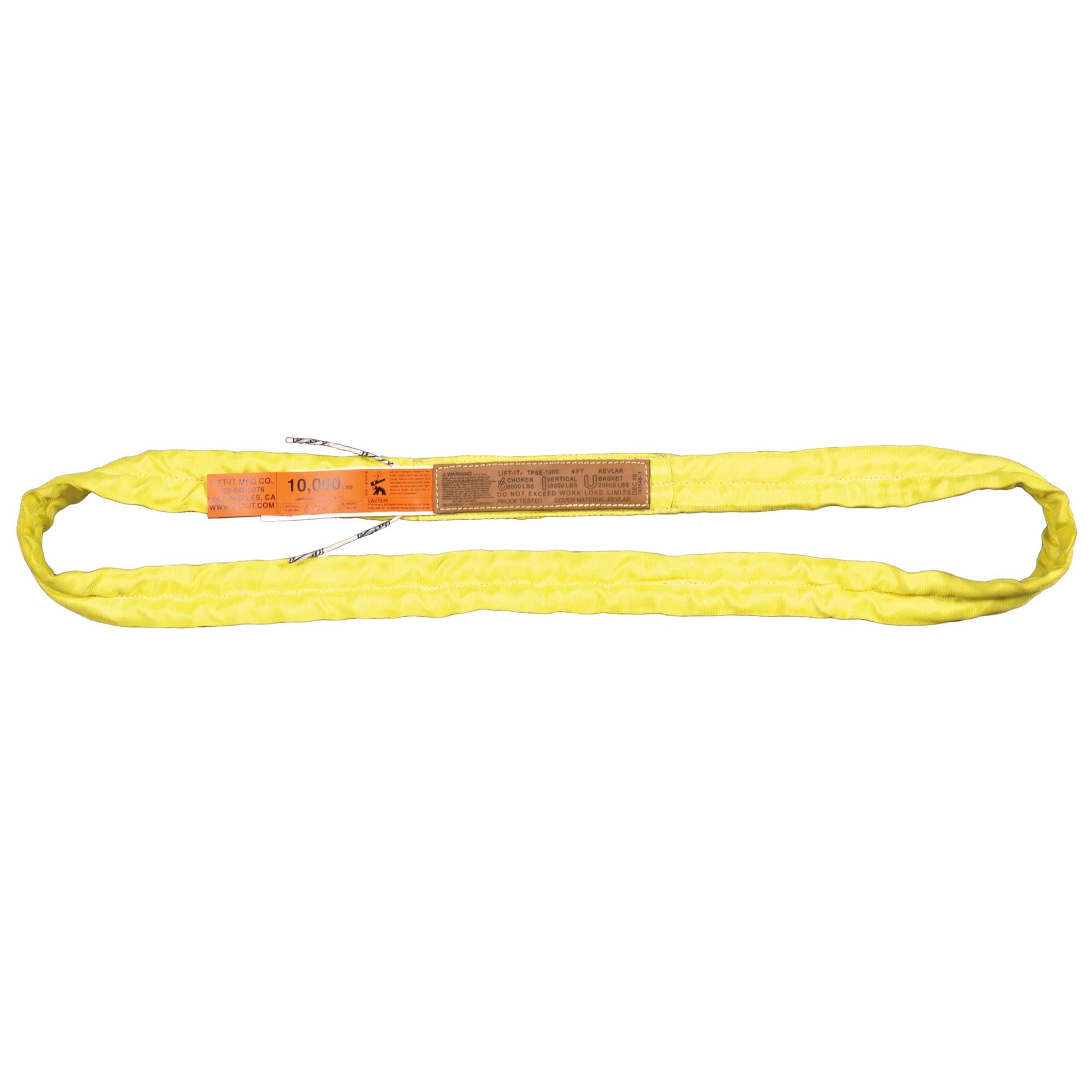

7" x 16' Endless Sparkeater Sling
High temperature Sparkeater slings are designed to withstand temperatures from -40˚F (-40˚C) to 300˚F (149˚C). This superior thermal durability makes them well-suited for hot environments where wire rope or chain slings are not the right fit.
Like other high performance roundslings, Sparkeater slings are lightweight, making them easier for riggers to handle.
Heat-Resistant Sling Construction
Sparkeaster slings are made from two independent paths of Aramid heat-resistant core yarn with a protective outer jacket. This Nomex® jacket helps to protect the core fibers from damage and is both heat- and flame-resistant.
Endless Sparkeater Sling Repairability
A remarkable feature of these slings is repairability – if the sling’s jacket is damaged but the core yarn is unharmed, it can probably be repaired and put back into service.
To meet ASME guidelines and further expand the lifespan of your sling, check out our line of sling protection.
Sling with 70,000 lb. Vertical Capacity Features:
- Tattle tail inspection system offers helpful indication of sling overload
- Non-conductive, non-corrosive, water-resistant, and UV-resistant
- Load-tested to 200% of capacity
- Meets ASME B30.9 standards
Looking for a shackle? Check out our wide body Crosby G-2160 or Van Beest P-6033 shackles. Not sure which shackle size is right for your application? Use our bearing stress calculation guide.
-
