SKU: SP20000CF-14

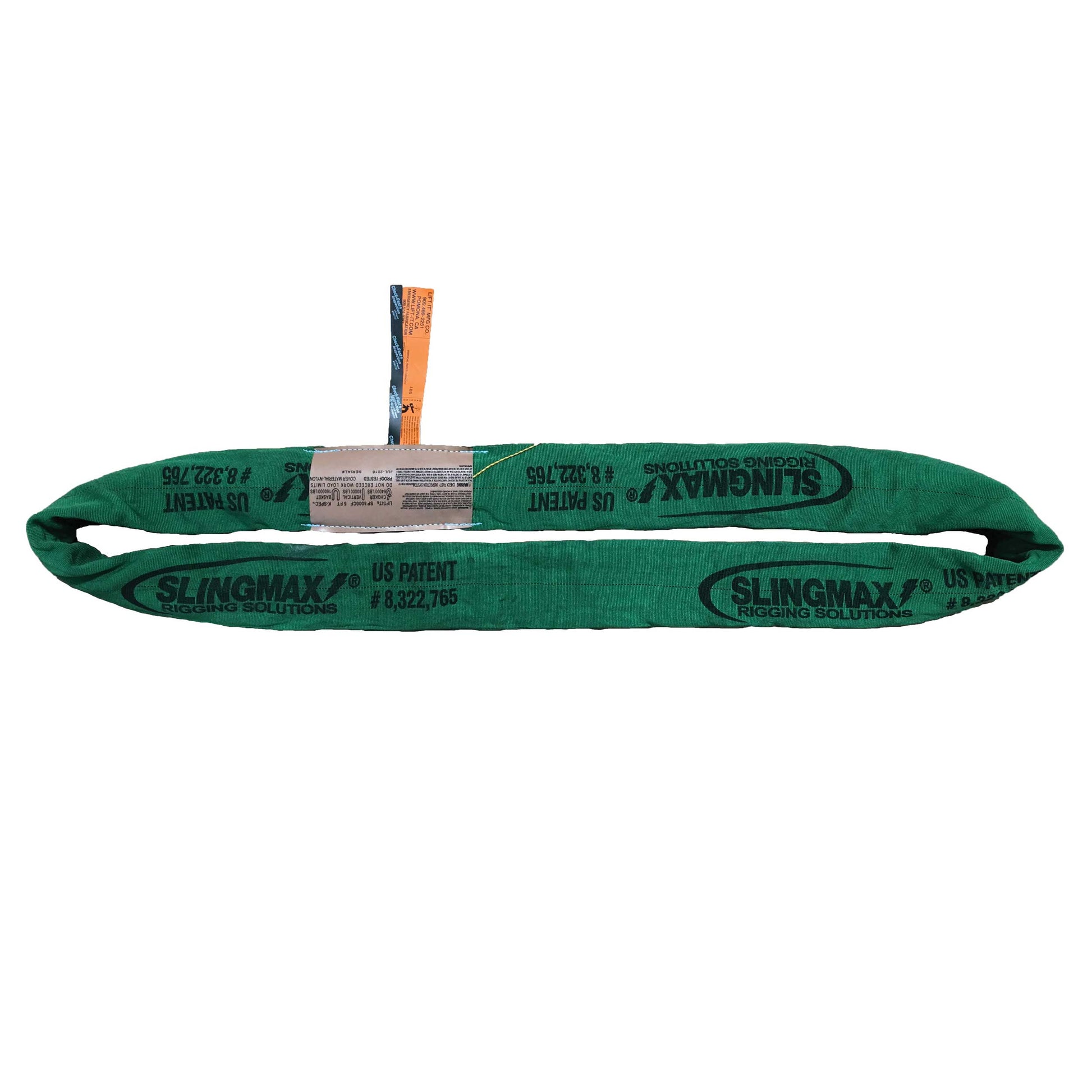

6" x 14' Single-Path High Performance Roundsling | Vertical Cap: 200,000 lbs.

6" x 14' Single-Path High Performance Roundsling | Vertical Cap: 200,000 lbs.!

Skip to product information
$5,765.99

Request Bulk Pricing
Request Bulk Pricing
Ships FREE in 2-5 business days.
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Buy in Bulk

Request a Quote

Questions? Need it custom?

We Can Help!

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Length: 14'
Vertical capacity: 200,000 lbs.
Choker capacity: 160,000 lbs.
Basket capacity: 400,000 lbs.
45 degree capacity: 282,800 lbs.
60 degree capacity: 346,400 lbs.
Minimum connection diameter: 3"
Product weight: 55 lbs.
Safety factor: 5.1
Shipping and returns: This item cannot be returned due to safety risks.
Additional Info: Nominal Body Width: 6"
Minimum bending radius: 1.5"
Description

6" x 14' Endless Single-Path Sling

A Single-Path high performance roundsling is a lightweight lifting solution that’s both strong and load-conforming. At less than 10% of the weight of comparably-sized wire rope or chain slings, it’s easier for riggers to handle and, because it’s made from synthetic materials, is ideal for fragile cargo

Sling Construction

Single-Path slings are made from one path of K-Spec® core yarn with a protective outer jacket. The load-bearing yarn was found to be the longest-lasting fiber currently on the market in an independent study and offers only 1% elongation at rated capacity, a characteristic that’s well-suited for low headroom applications.

The Covermax® jacket helps to protect the core fiber from damage and is created using two layers of industrial-grade nylon. This setup has more than four times the abrasion-resistance of polyester jackets.

Endless Single-Path Sling Repairability

A remarkable feature of these slings is repairability – if the sling’s jacket is damaged but the core yarn is unharmed, it can probably be repaired and put back into service.

To meet ASME guidelines and further expand the lifespan of your sling, check out our line of sling protection.

Sling with 200,000 lb. Vertical Capacity Features:

  • Check-Fast® inspection system offers helpful indication of core yarn damage or if the sling has been overloaded
  • Non-conductive, non-corrosive, water-resistant, and UV-resistant
  • Load-tested to 200% of capacity
  • Meets ASME B30.9 standards
  • Temperature range: -40˚F (-40˚C) to 180˚F (82˚C)

Looking for a shackle? Check out our wide body Crosby G-2160 or Van Beest P-6033 shackles. Not sure which shackle size is right for your application? Use our bearing stress calculation guide.
