description

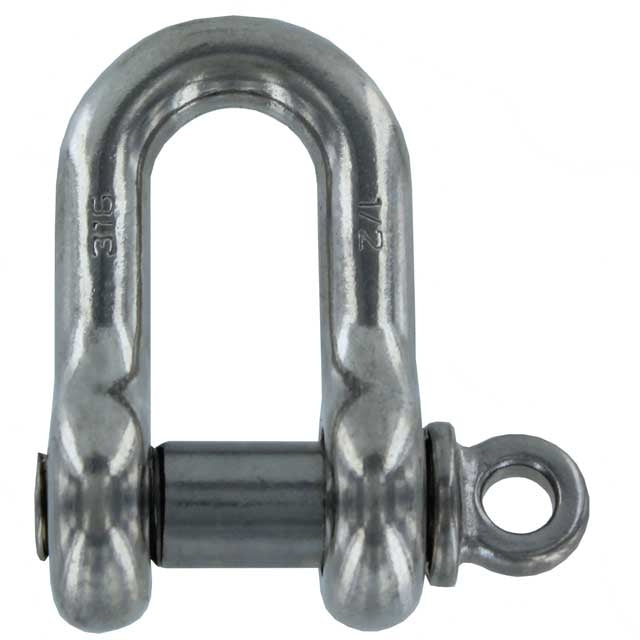

Our Type 316 Stainless Steel Screw Pin Chain Shackles are are made to RR-C-271D, Type IV B, Class 2 Federal Specifications. Measured by the diameter of the bow and NOT the pin, our chain shackles are ideal for marine straight pull applications. If you are looking for shackles that can handle multi-dimensional pulls, check out our Stainless Steel Screw Pin Anchor Shackles. We have a wide variety of other lifting and rigging products:
California Residents: WARNING
California Residents: WARNING
Our Type 316 Stainless Steel Screw Pin Chain Shackles are are made to RR-C-271D, Type IV B, Class 2 Federal Specifications. Measured by the dia...
Our Type 316 Stainless Steel Screw Pin Chain Shackles are are made to RR-C-271D, Type IV B, Class 2 Federal Specifications. Measured by the diameter of the bow and NOT the pin, our chain shackles are ideal for marine straight pull applications. If you are looking for shackles that can handle multi-dimensional pulls, check out our Stainless Steel Screw Pin Anchor Shackles. We have a wide variety of other lifting and rigging products:
California Residents: WARNING
California Residents: WARNING
specifications
Working Load Limit:
1.5 ton
Assembly Break Strength:
12,000 lbs.
Product Weight (lbs.):
.6
Manufacturer Name:
Import
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Inside Height:
0.88"
Mouth Width:
0.88"
Pin Size:
5/8"
Shackle Size:
1/2"
Shackle Dimensions:
S:
1/2"
A:
0.63
B:
1.63
C:
0.88
