Eye Bolts vs. Hoist Rings: What's the Difference?
You need to lift something heavy. You've got a crane, rigging setup, or other equipment ready to go, but now you need a way to connect your hook to your load. If you've been reaching for eye bolts to get the job done, it's worth pausing to make sure this is the right option.
Eye bolts work well in specific situations. But if your lift involves any angle, rotation, or uncertainty about the direction of the load, an eye bolt can fail. That's exactly why hoist rings exist.
In this article, we'll break down the differences between eye bolts and hoist rings and how to know which one is right for your application.
What Are Eye Bolts?

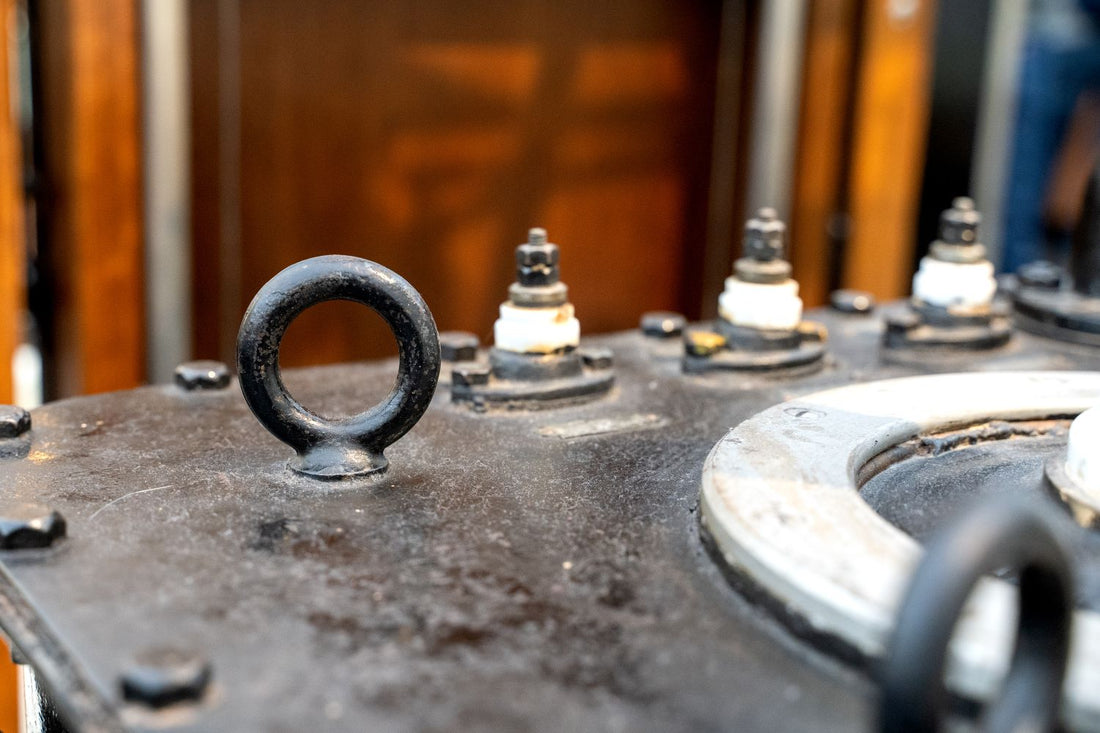

Eye bolts are rigging devices used as secure anchor points for various setups. The design consists of a circular head, known as the "eye" of the device, and a threaded rod at the other end, also known as the "shank." Some eye bolts are designed with shoulders to help reinforce the bolt and enhance its strength when under stress.
Eye bolts are a solid, economical choice for simple, vertical lifts. The problem comes when the load shifts, the angle changes, or the object rotates. That's where eye bolts have a critical limitation.
When an eye bolt is pulled at an angle, it bends. When a load rotates, the eye bolt can come unscrewed. Either scenario risks dropping the load.
- READ: How to Use an Eye Bolt
Types of Eye Bolts
Eye bolts come in a wide variety of makes. US Cargo Control provides a large selection of high-quality steel eye bolts across many designs and materials.
What Are Hoist Rings?
Hoist rings, also known as lifting points or swivel eye bolts, were developed specifically to solve the problems eye bolts couldn't handle. Like an eye bolt, a hoist ring threads into your load. But unlike an eye bolt, it can swivel 360° and pivot 180° in any direction to align with the direction of the pull.
This allows the hoist ring to maintain its full working load limit in any direction. A 4,000 lb rated hoist ring is rated for 4,000 lbs whether you're pulling straight up, at a 45° angle, or horizontally.
Key Components of a Hoist Ring
- Bail (U-bar): The U-shaped bar your hook or rigging attaches to. Must always point upwards in the direction of the pull.
- Shoulder pins: Hold the bail in place and allow it to pivot.
- Body: The main plate that sits flush against the lifting surface and swivels around the screw
- Washer: Stamped with the WLL, screw diameter, and recommended torque.
- Bushing: Sits between the body and the lifting surface; must be flush for proper function.
- Screw: The only component designed for regular wear and replacement. If anything else needs replacing, the ring was likely misused.
Types of Hoist Rings
There are three types of Crosby hoist rings available from US Cargo Control:
-
HR-125 Swivel Hoist Rings: These are standard hoist ring options with many different sizes and widths available. All HR-125 hoist rings contain the working load limit and recommended torque stamped on the top washer of these devices for easy identification.
-
HR-1000 Heavy Lift Swivel Hoist Rings: For heavy-duty lifts in harsh or rugged environments, HR-1000 swivel hoist rings stand up well against the elements. These devices feature larger openings than the previous option, allowing for easier attachment.
- Crosby® SL-150 Slide Loc® Hoist Rings: Lastly, Slide-Loc® hoist rings feature a locking mechanism that makes installing these devices easy to do and without the need for any tools. The red QUIC-CHECK® mark lets users know when the hoist ring is secured and ready for use.
Eye Bolts vs. Hoist Rings: Which One is Right for Me?
Both eye bolts and hoist rings work for similar applications. However, it's important that you choose the right one for your specific needs for maximum efficiency and reduced chances of device failure or work-related accidents. You should consider a few factors:
1. Angular Lifting and Directional Flexibility
This is where hoist rings clearly win. Eye bolts (even shouldered ones) lose rated capacity as the angle of pull increases. An eye bolt at 45° may only retain a small percentage of its vertical rating.
Hoist rings maintain 100% of their rated capacity in any pull direction. Their 360° swivel design allows them to move with the pull of the load without compromising their strength or failing under undue stress from angular pulls. While eye bolts work great as stationary anchor points, they aren't designed to handle rigorous load movement that compromises their strength.
Graphic from Lift-It®.
2. Load Rotation
Eye bolts unscrew when the load rotates. The bolt is threaded in, and rotation works against that thread engagement. Hoist rings are designed for exactly this scenario. The body swivels independently of the screw, so rotation of the load doesn't back the fastener out.
3. Rated Load Capacity
Hoist ring WLL typically range from 800 - 10,000 lbs. Eye bolts, particularly longer-shanked versions, can reach higher capacities (up to 24,000 lbs in some configurations). However, those higher eye bolt ratings apply only to perfectly vertical, in-line pulls. Any time you introduce an angle, that capacity decreases.
For most industrial lifting applications where direction isn't guaranteed, a properly sized hoist ring offers more reliable, predictable capacity than an eye bolt operating outside its ideal conditions.
4. Operating Environment
For standard steel applications in typical indoor environments, standard carbon steel hoist rings are the go-to. For marine, food-processing, offshore, or chemically corrosive environments, stainless steel hoist rings (316 SS) offer the corrosion resistance needed for long-term performance. Note that stainless steel hoist rings carry approximately half the WLL of comparable steel rings, so remember to size up if you're changing material.
5. Installation and Inspection
Eye bolts are simpler to install and inspect by design. Hoist rings have more components, which requires a bit more familiarity. The torque spec is stamped directly on the washer. The bushing needs to sit flush with the lifting surface. Beyond that, standard pre-use inspection applies: no visible damage, no deformation, free swivel and pivot movement.
Only the screw should show regular wear. If any other component is damaged or deformed, remove the hoist ring from service.
6. Price
Eye bolts are less expensive. If you're doing simple vertical lifts with no load rotation, they are a practical choice.
For anything involving angled pulls, uncertain load direction, or rotating loads, the cost difference between an eye bolt and a hoist ring is small compared to the risk of using the wrong tool.
Which One is Right for You?
Choose an eye bolt if...
- Your lift is perfectly vertical and in-line.
- The load will not rotate during the lift.
- You're working within the eye bolt's vertical WLL.
- Budget is the primary consideration and the application is simple.
Choose a hoist ring if...
- Your lift involves any angle or uncertainty in pull direction.
- The load may rotate during lifting or positioning.
- You need consistent rated capacity regardless of direction.
- You're working in a corrosive environment.
- You're doing repeated, high-cycle lifts.
Not sure which is right for your specific application? Our team is here to help. Give them a call at 888-444-9990 or email customerservice@uscargocontrol.com for application-related questions.
Shop Eye Bolts and Hoist Rings from US Cargo Control
No matter what you choose, you can rest assured that US Cargo Control's line of rigging hardware will provide you with the high-quality eye bolts and hoist rings you need. Whether you need these devices for construction, logging, excavating, marine, dredging, fall protection, or other professional and personal applications, our durable hardware items hold up against heavy loads and harsh environmental conditions.
Besides eye bolts and hoist rings, we carry a wide selection of hardware products for your lifting and rigging applications, including:
Reach out to our team of product experts for any help finding the right rigging hardware for your needs.
