Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000

  • Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000
  • Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000
  • Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000
  • Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000
  • Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000
  • Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000 Thumbnail image
  • Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000 Thumbnail image
  • Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000 Thumbnail image
  • Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000 Thumbnail image
  • Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000 Thumbnail image
SKU: TSCC-6T

$1,888.02
Free Shipping
Standard Lead Time 7-10 business days.
Features:

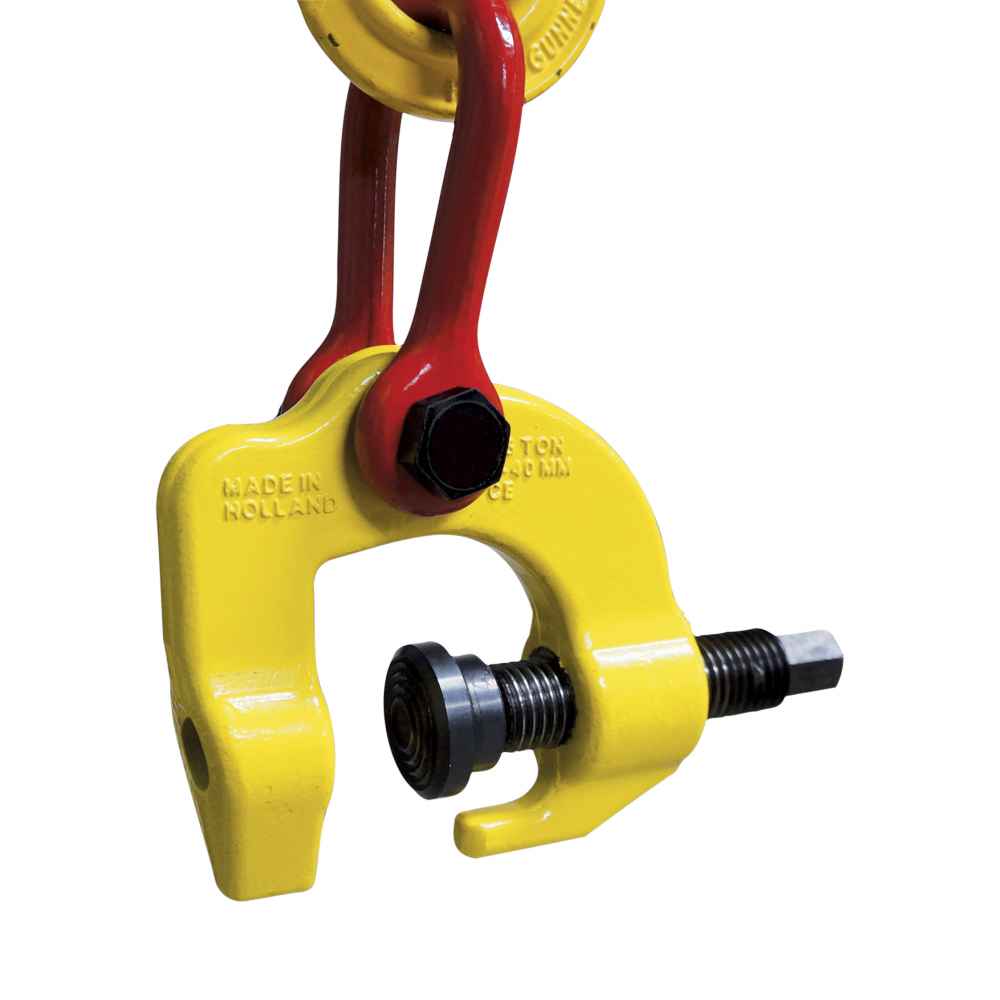

  • Universal lifting screw clamp designed for lifting a wide variety of steel structures.

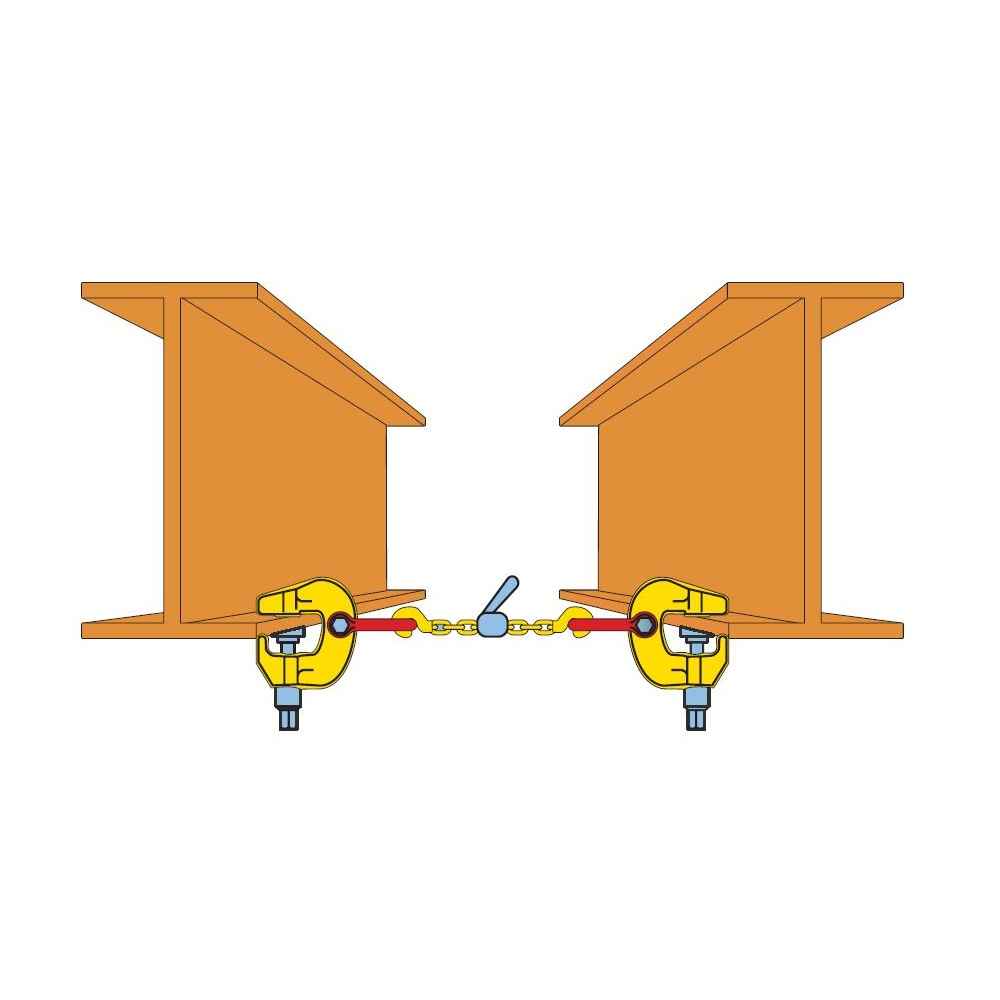

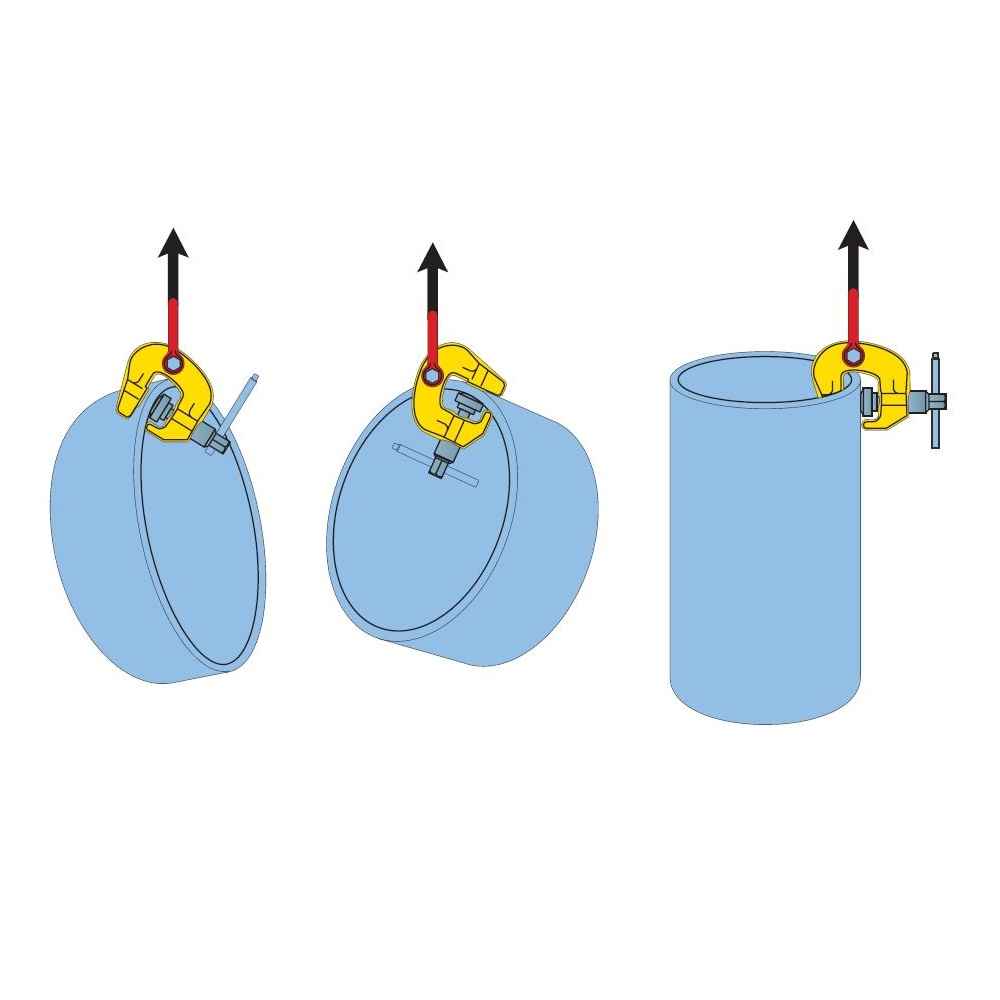

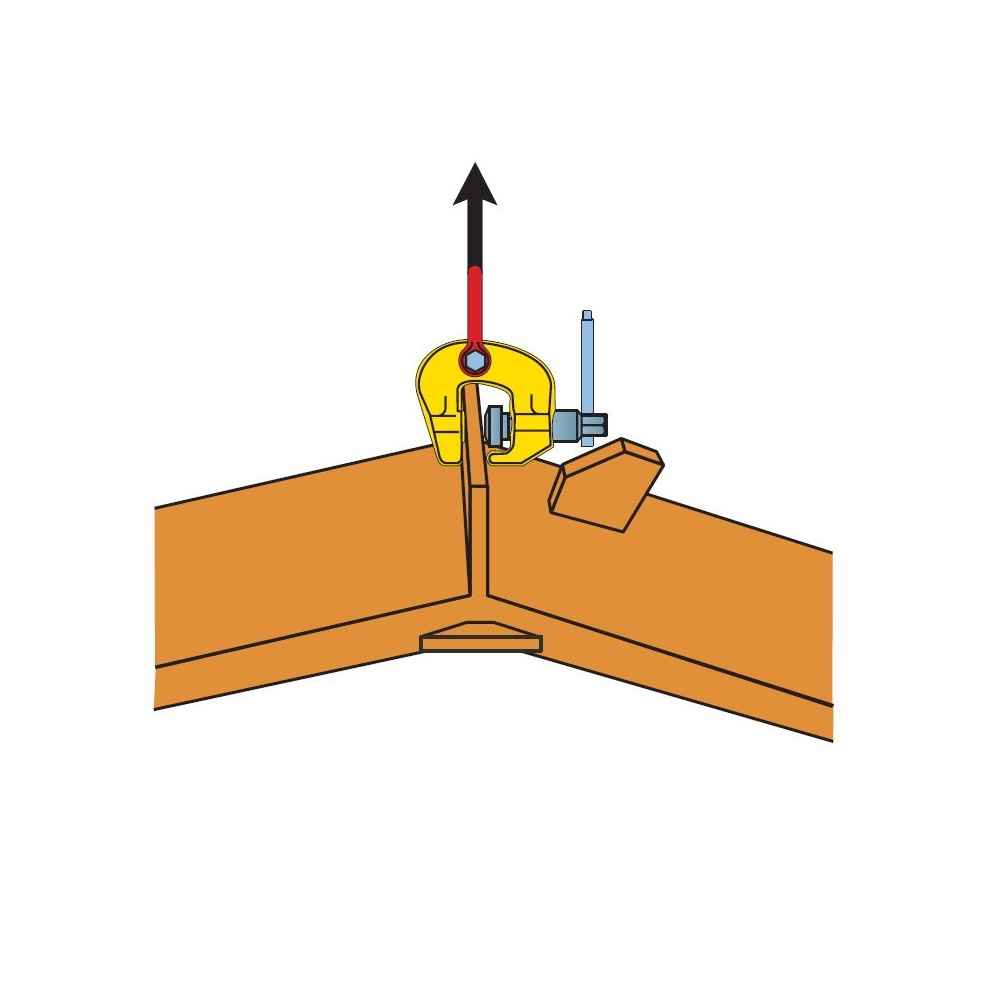

  • Can be used for both horizontal and vertical lifting of steel structures.

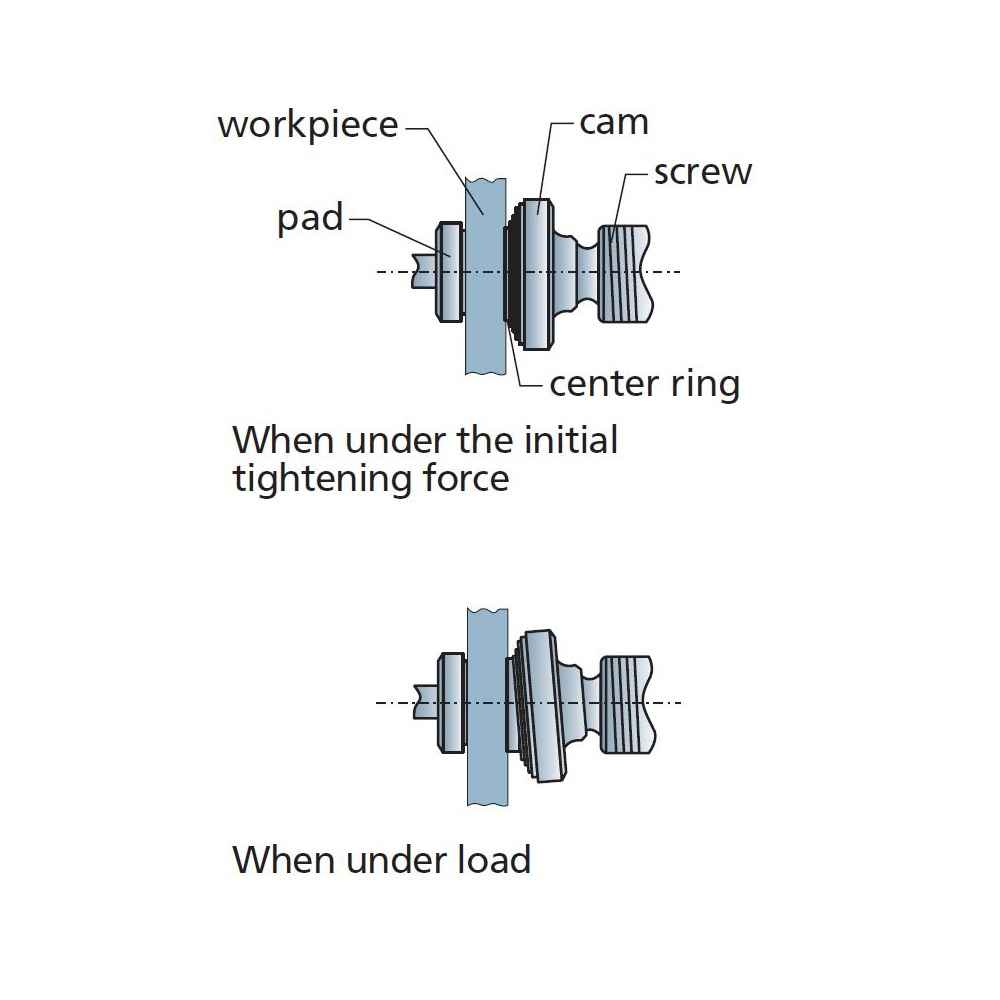

  • Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
  • Articulated lifting eye ensures an effective clamping force in every position.
  • The hardness of the cam and pivot is suitable for lifting materials with a max hardness of 37 HRC/420 Brinell.
  • No minimum working load limit
  • Tightening Forces (Depending on material, could vary):
  • TSCC 1/2 ton - at least 10Nm (3.687 pound-foot, 44.25 pound-inch)
  • TSCC 1 - 6 ton - at least 40Nm (25.815 pound-foot, 309.78 pound-inch)




California Residents: WARNING
Features:

  • Universal lifting screw clamp designed for lifting a wide variety of steel structures.
  • Can be used for both...

    Read More

Features:

  • Universal lifting screw clamp designed for lifting a wide variety of steel structures.
  • Can be used for both horizontal and vertical lifting of steel structures.
  • Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
  • Articulated lifting eye ensures an effective clamping force in every position.
  • The hardness of the cam and pivot is suitable for lifting materials with a max hardness of 37 HRC/420 Brinell.
  • No minimum working load limit
  • Tightening Forces (Depending on material, could vary):
  • TSCC 1/2 ton - at least 10Nm (3.687 pound-foot, 44.25 pound-inch)
  • TSCC 1 - 6 ton - at least 40Nm (25.815 pound-foot, 309.78 pound-inch)




California Residents: WARNING

Show Less

Working Load Limit:
6 ton

Product Weight (lbs.):
40

Manufacturer Name:
Terrier

Brand Part Number:
906000

Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.

Eye Diameter:
3.15"

Jaw Opening:
0"-2.95"

Product Guide:
