SKU: TSCC-1.5T

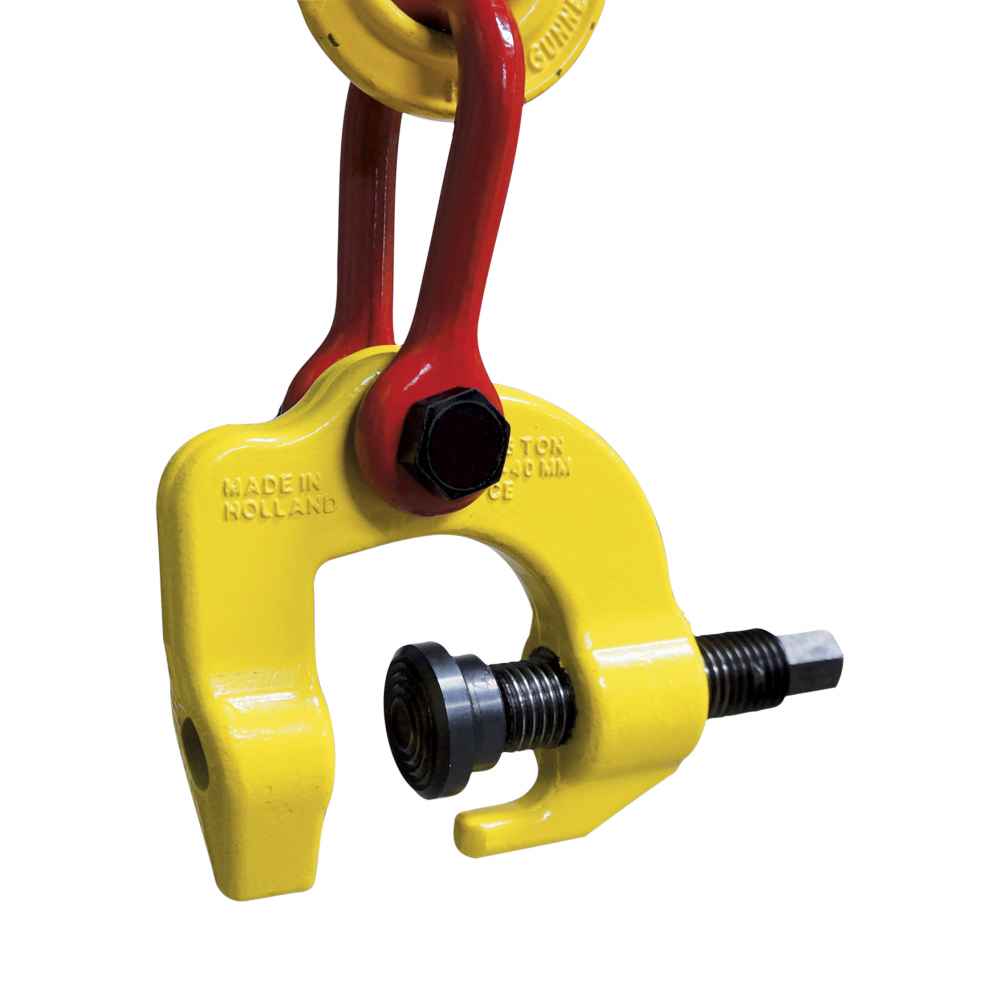

Terrier TSCC 1-1/2 Ton Universal Lifting Screw Clamp - 901500
Terrier TSCC 1-1/2 Ton Universal Lifting Screw Clamp - 901500!
Related Articles
$809.68
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 1-1/2 ton
Brand part number: 901500
Eye diameter: 1.5"
Jaw opening: 0"-1.18"
Manufacturer name: Terrier
Product weight: 9 lbs.
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: All Terrier lifting clamps are tested up to 2x the WLL and are designed with a break factors of 5x the WLL.
Description
Features:

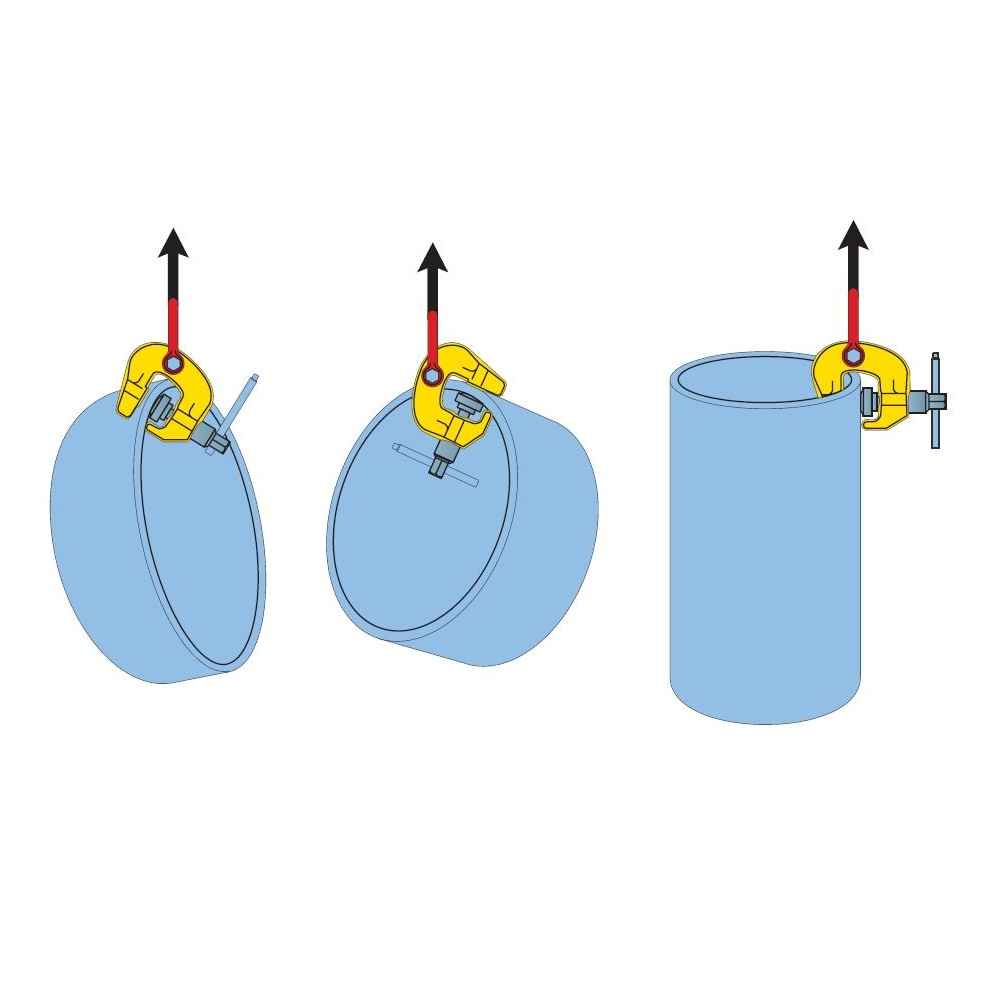

- Universal lifting screw clamp designed for lifting a wide variety of steel structures.

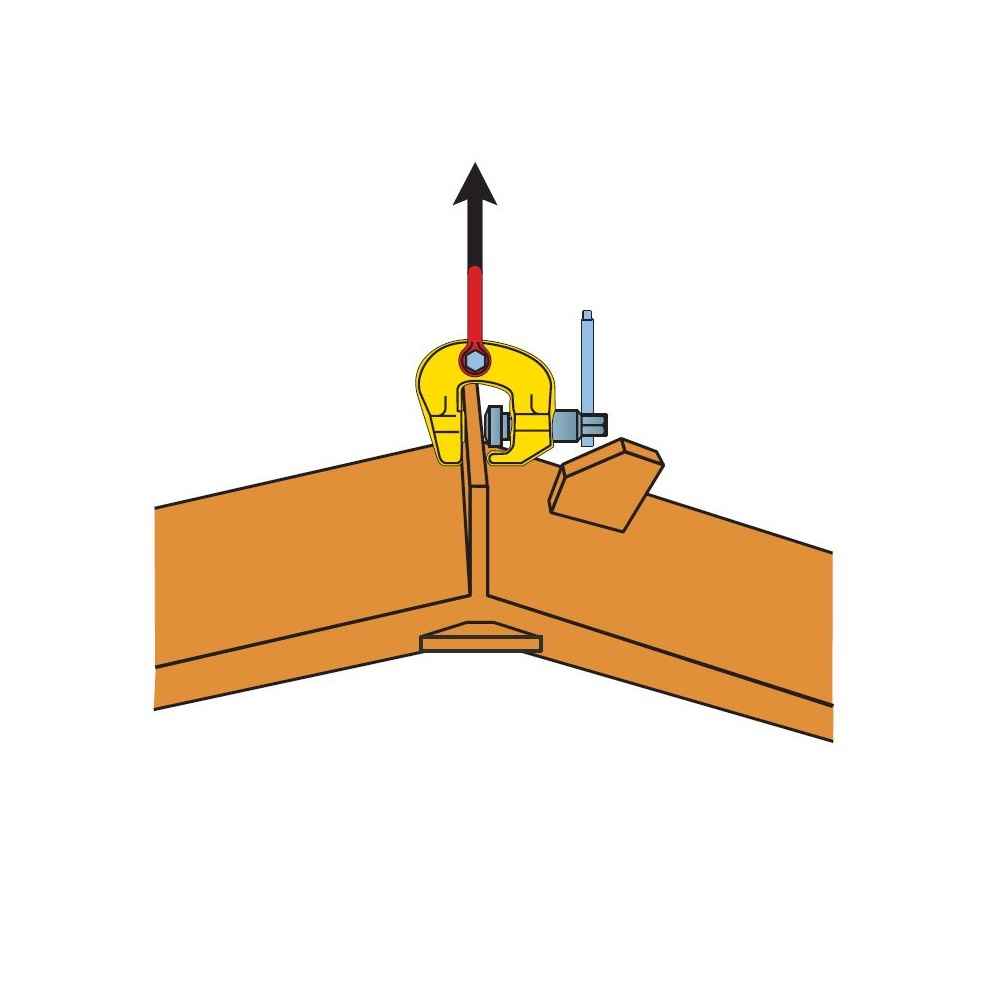

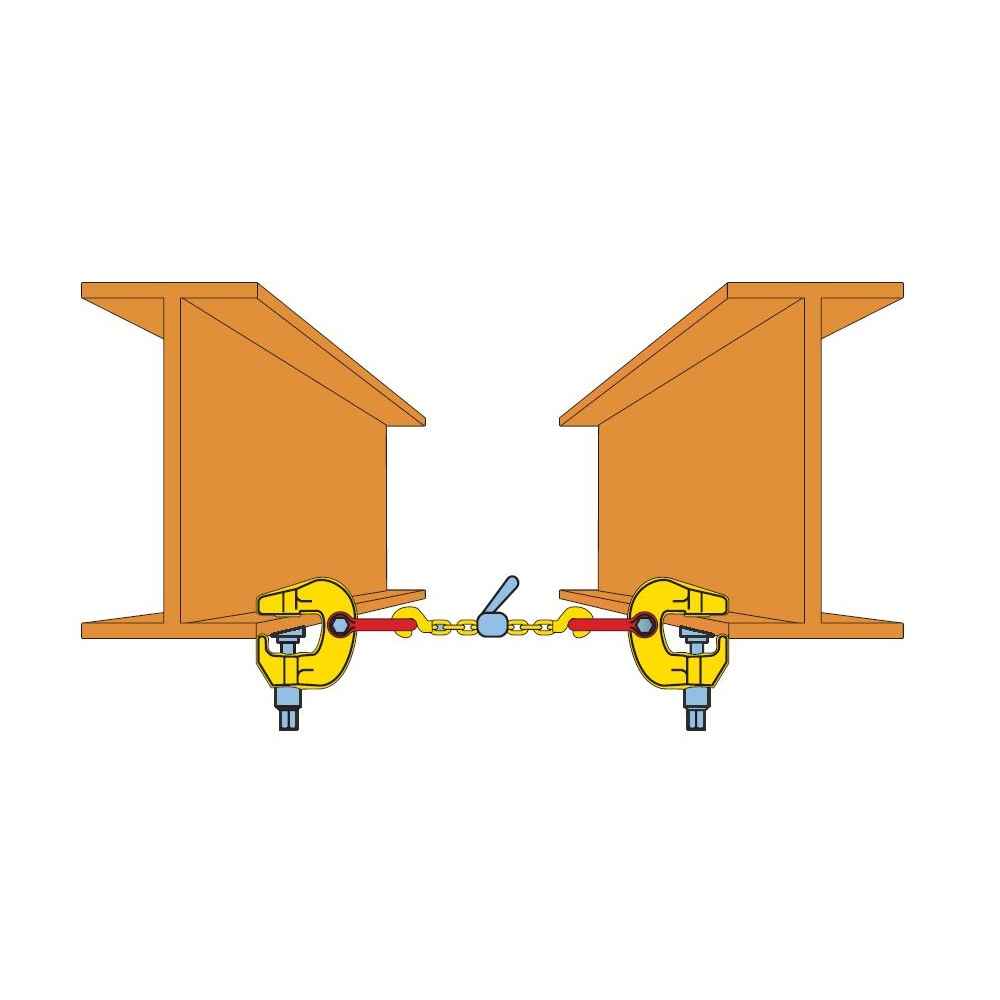

- Can be used for both horizontal and vertical lifting of steel structures.

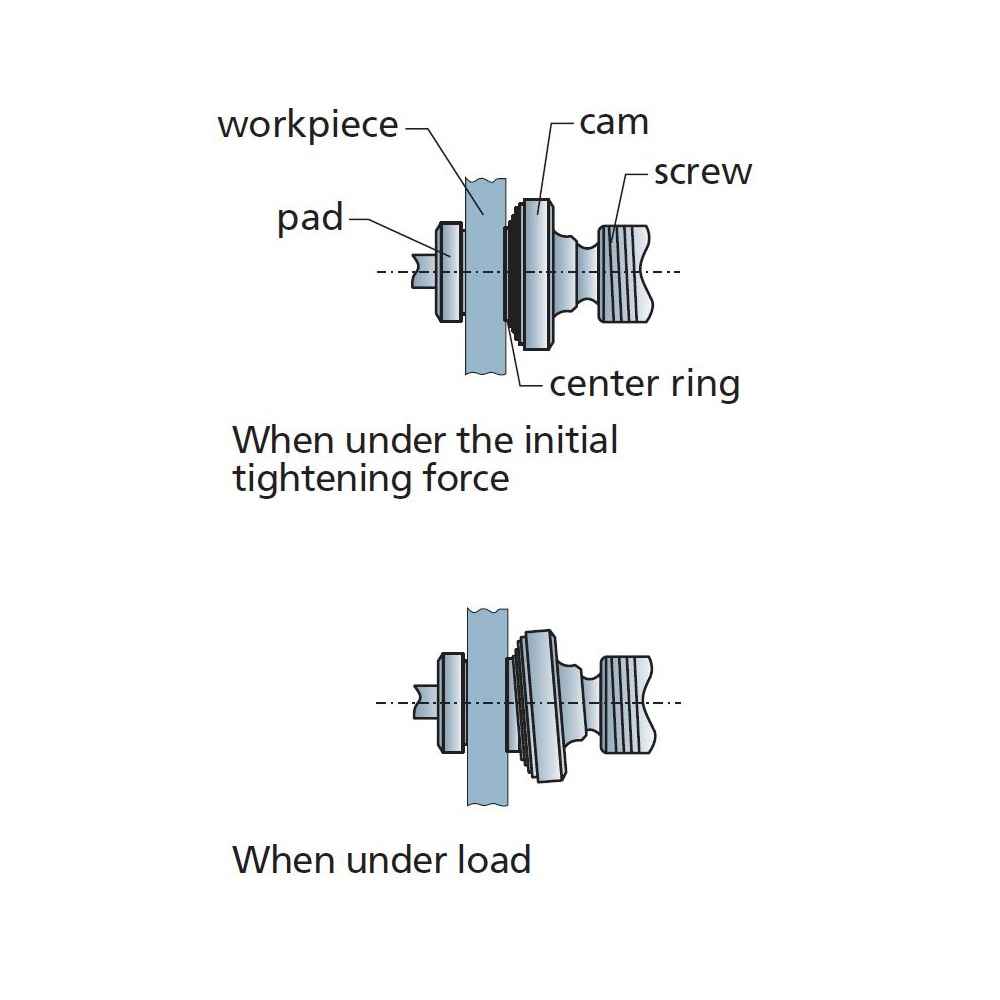

- Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
- Articulated lifting eye ensures an effective clamping force in every position.
- The hardness of the cam and pivot is suitable for lifting materials with a max hardness of 37 HRC/420 Brinell.
- No minimum working load limit
- Tightening Forces (Depending on material, could vary):
- TSCC 1/2 ton - at least 10Nm (3.687 pound-foot, 44.25 pound-inch)
- TSCC 1 - 6 ton - at least 40Nm (25.815 pound-foot, 309.78 pound-inch)
California Residents: WARNING
