SKU: TSCC-1T
Terrier TSCC 1 Ton Universal Lifting Screw Clamp - 901000
Terrier TSCC 1 Ton Universal Lifting Screw Clamp - 901000!
Related Articles
$652.64
Blazing Fast Shipments
Shipping & ReturnsBulk Pricing Discounts
Business SolutionsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 1 ton
More Info: All Terrier lifting clamps are tested up to 2x the WLL and are designed with a break factors of 5x the WLL.
Brand part number: 901000
Eye diameter: 1.81"
Jaw opening: 0"-1.57"
Manufacturer name: Terrier
Product weight: 7 lbs.
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Description
Features:

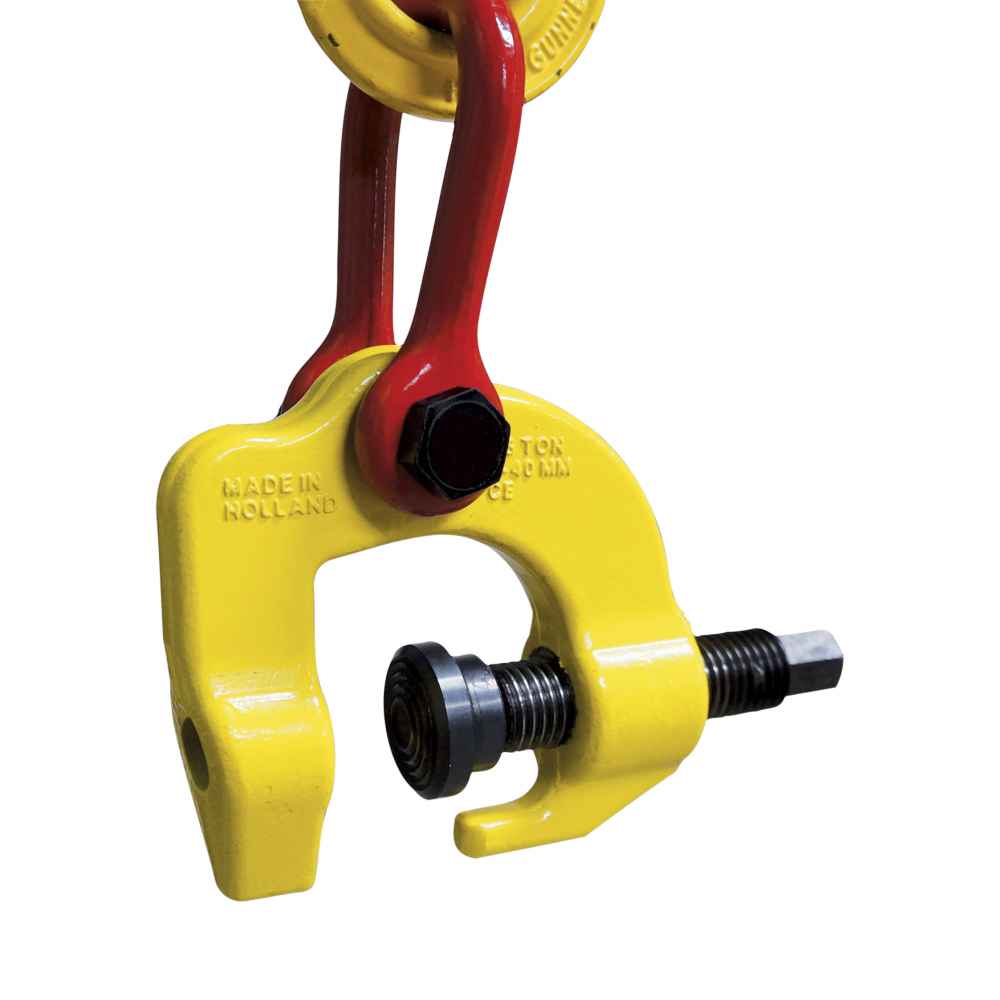

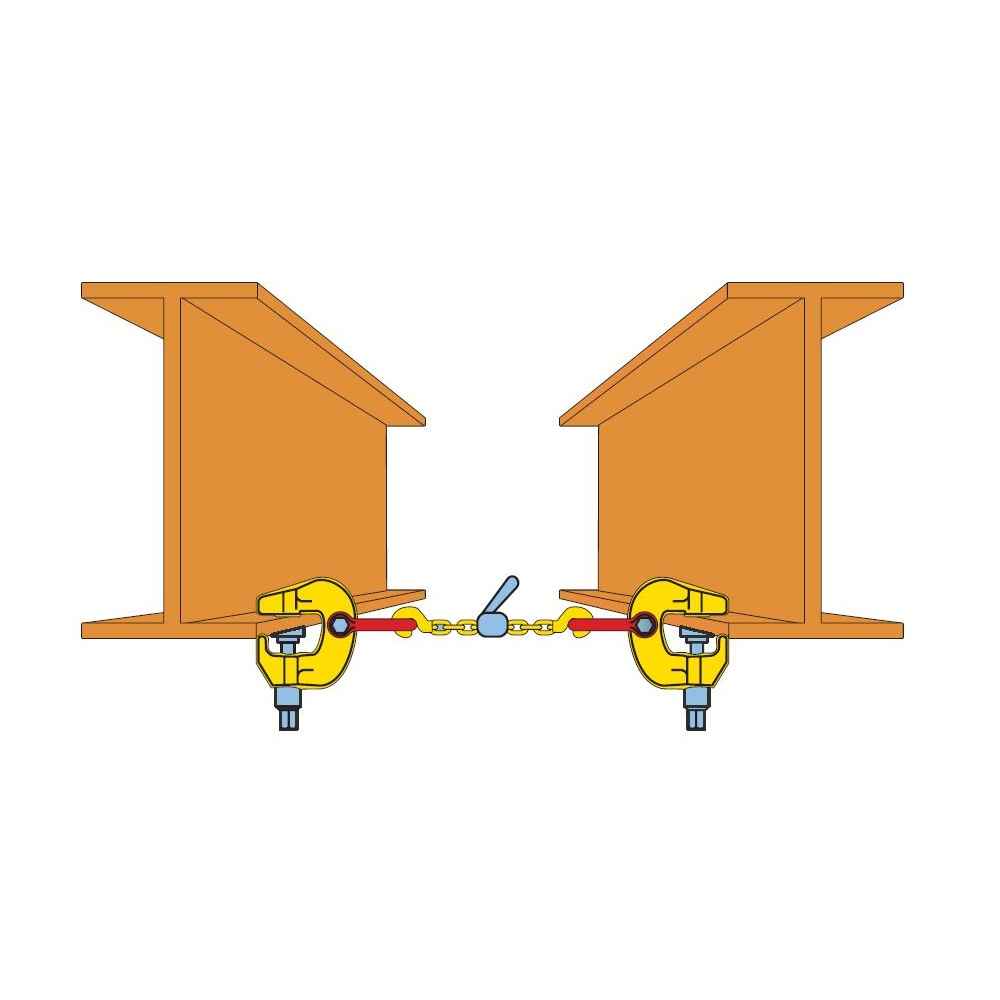

- Universal lifting screw clamp designed for lifting a wide variety of steel structures.

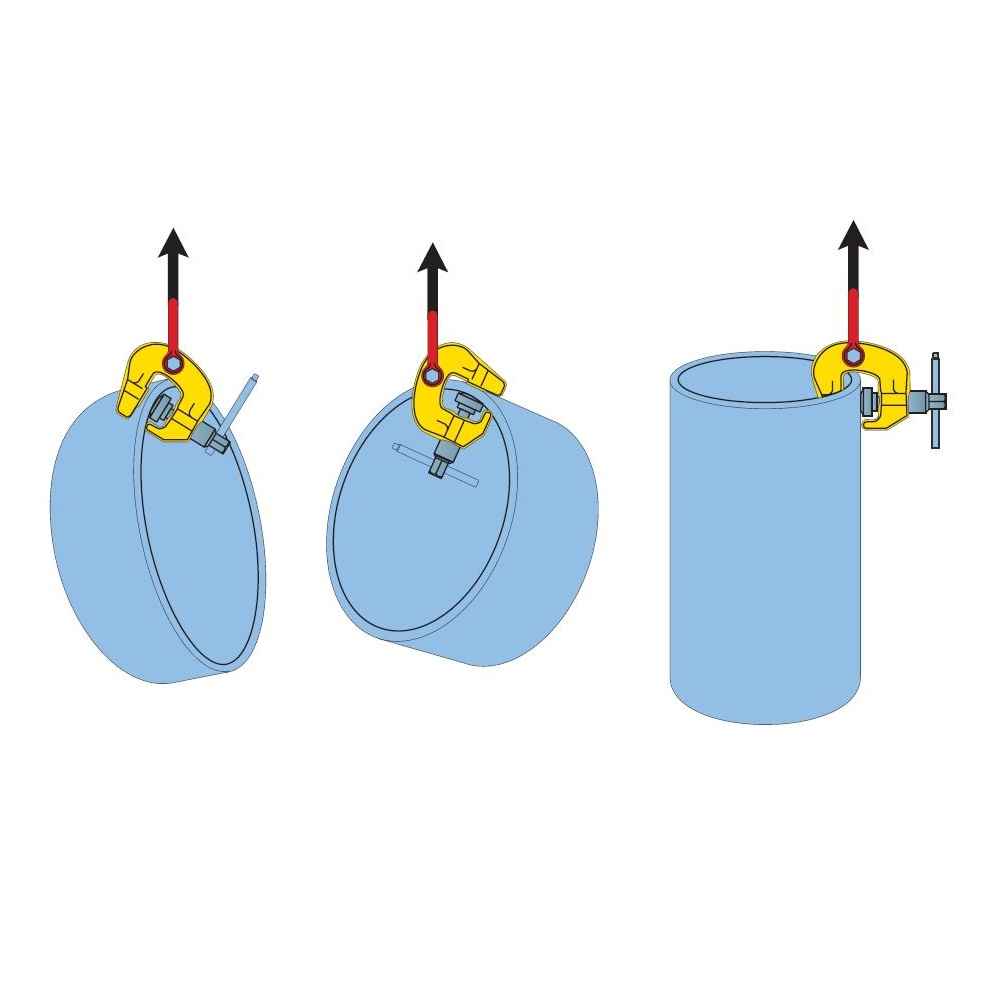

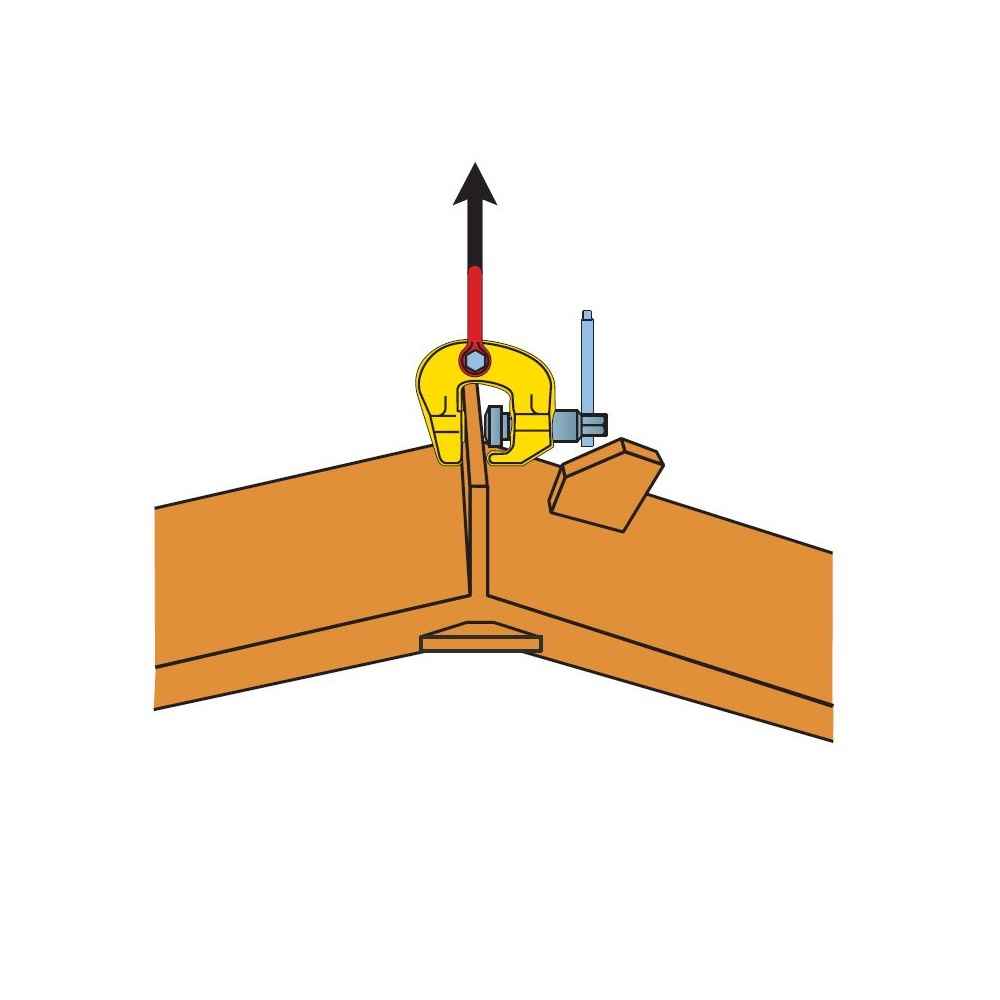

- Can be used for both horizontal and vertical lifting of steel structures.

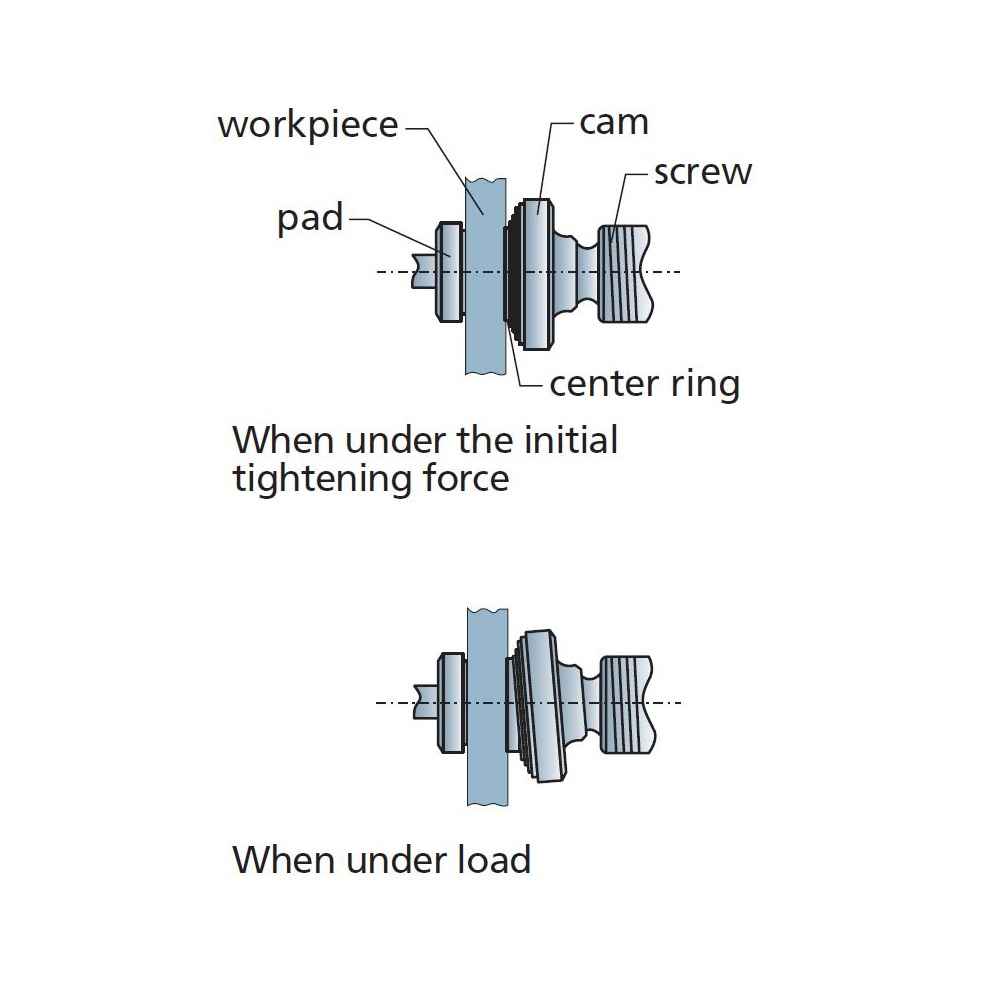

- Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
- Articulated lifting eye ensures an effective clamping force in every position.
- The hardness of the cam and pivot is suitable for lifting materials with a max hardness of 37 HRC/420 Brinell.
- No minimum working load limit
- Tightening Forces (Depending on material, could vary):
- TSCC 1/2 ton - at least 10Nm (3.687 pound-foot, 44.25 pound-inch)
- TSCC 1 - 6 ton - at least 40Nm (25.815 pound-foot, 309.78 pound-inch)
