SKU: SC12SI304637
1/2" 6x37 Stainless Steel Wire Rope - Type 304 IWRC | 2,500' Coil
1/2" 6x37 Stainless Steel Wire Rope - Type 304 IWRC | 2,500' Coil!
SKU: SC12SI304637
$9,591.00
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 11.4 tons / 22,800 lbs.
Grade: 304 Stainless Steel
Length: 2,500'
Core: IWRC
Product weight: 1,150 lbs.
Shipping and returns: This item ships LTL; learn more. This item cannot be returned due to safety risks associated with used materials.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Weight per foot: 0.46
Wire rope class: 6x37
Wire rope diameter: 1/2"
Additional Info: Right Hand Regular Lay
Description
1/2" 6x37 Wire Rope Cable | 304 Stainless
This type 304 stainless wire rope belongs to the 6x37 class, which is known for flexibility. Along with the 6x19 class, 6x37 wire rope is the perfect general-use steel cable and can be used for many applications, including as hoisting rope, suspension cables, winch lines, and more.
The 6x37 configuration offers higher flexibilty and better fatigue-resistance (it can bend repeatedly without breaking) than the 6x19; however, it is less abrasion-resistant.

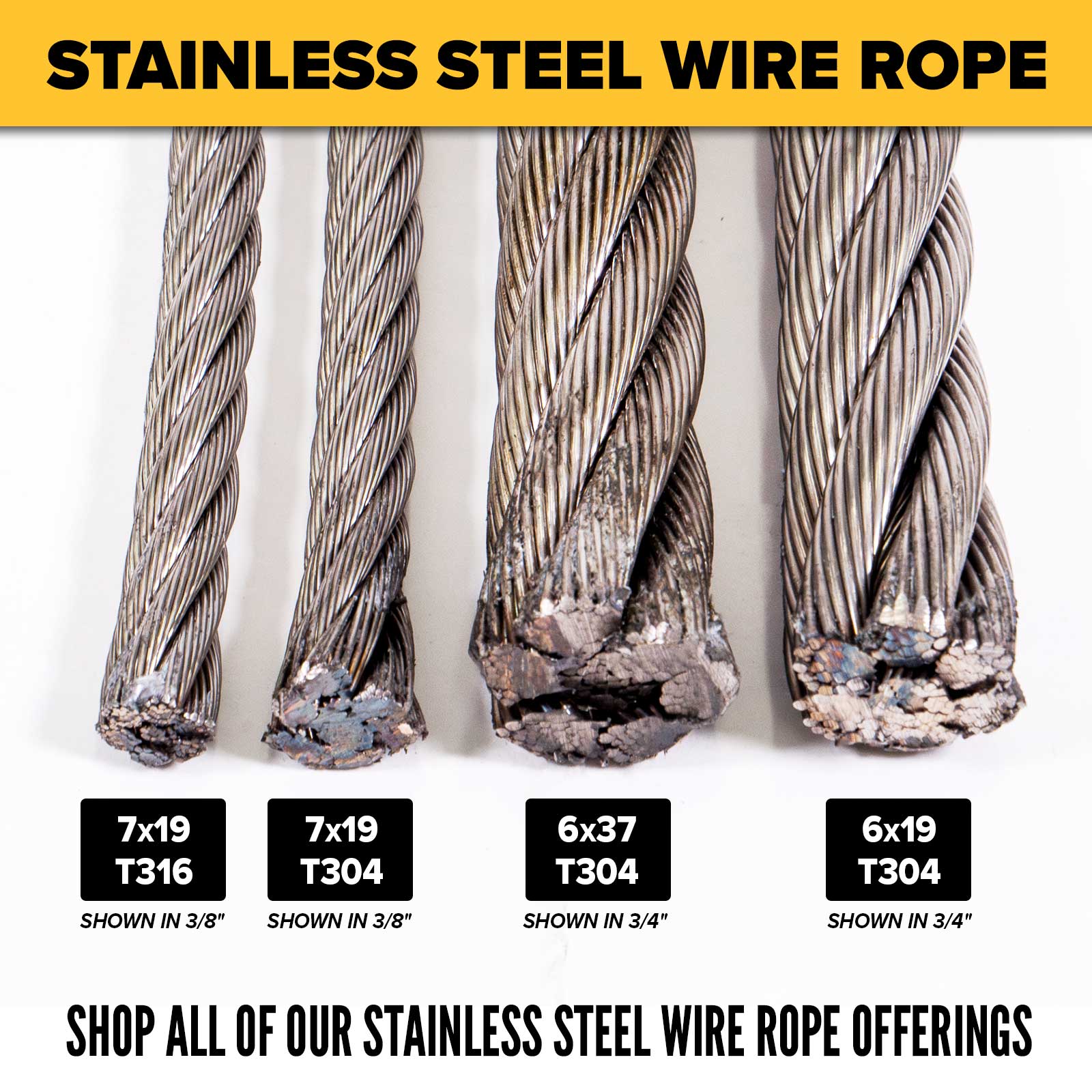

6x37 Wire Rope Configuration
Our wire rope is made using type 304 stainless steel. This offers more corrosion-resistance than galvanized wire rope but less than type 316 (316 is considered marine-grade). It's a great choice for most applications where rust-protection is needed because, while it isn't quite as resistant as type 316, it is a stronger wire and it's generally more cost-effective.
The class of this wire rope is 6x37. These numbers nominally refer to the construction of the wire rope - the number of outer strands around the core and an estimation of the number of wires within each of these outer strands. So for a 6x19 class, the number of outer strands is 6, and the number of wires making up each strand ranges from 27-49.

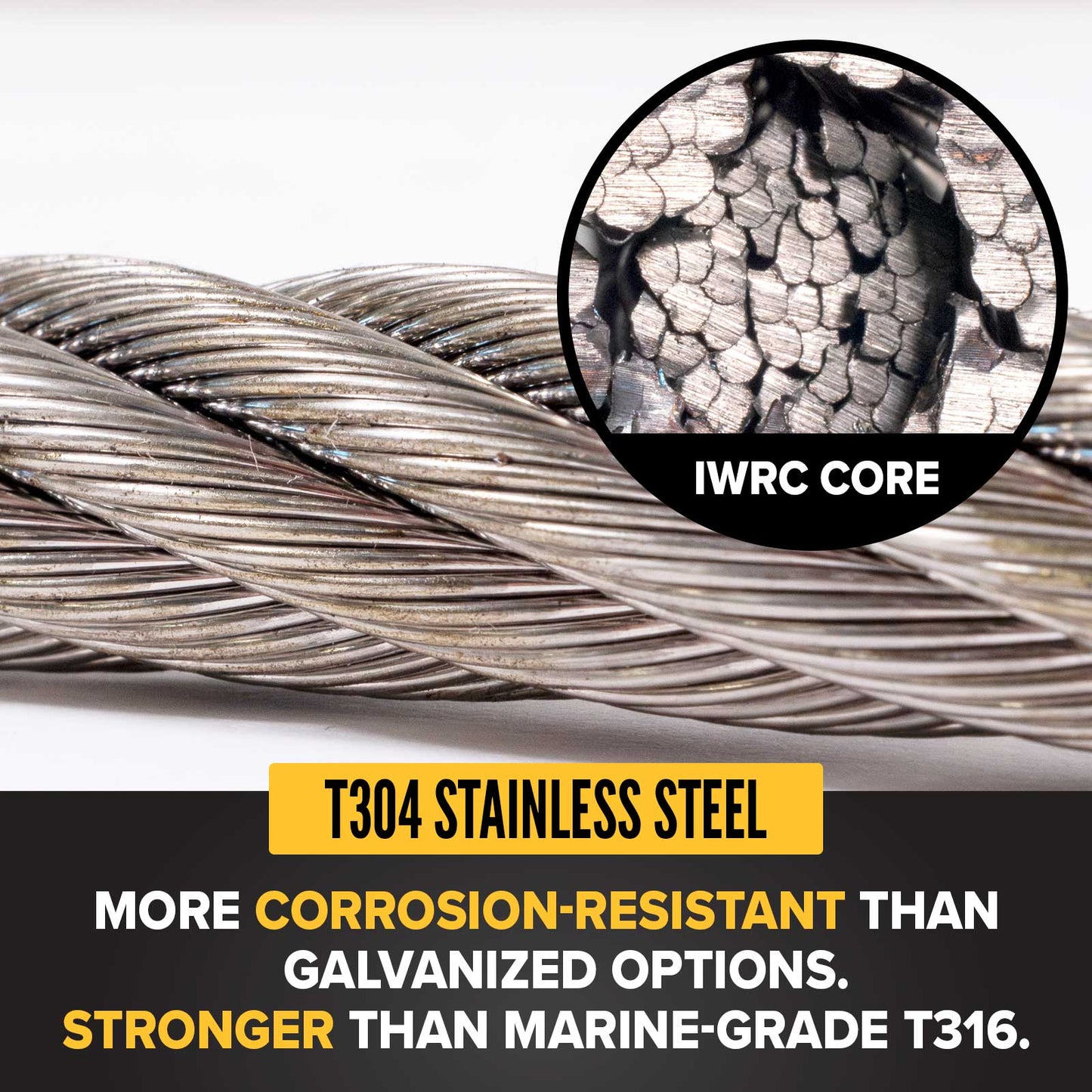

The independent wire rope core (IWRC) provides more support than a fiber core - it's more resistant to crushing and is better suited for high temperature applications. Their general temperature range is between -40°F / -40°C and 400°F / 204°C.
304 Stainless Wire Rope Features:
- Our wire rope meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023.
- This item is imported from a vetted vendor - if you are looking for wire rope from a specific country, please call in or fill out our custom wire rope form.
- A certificate of conformity is available for a nominal fee - please request when you place your order.
Accessories & More
Complete your wire rope assembly - we also carry wire rope fittings and rigging hardware, including wire rope clips and wire rope thimbles. Make sure to get type 304 accessories - choosing a dfferent finish / material could result in an adverse reaction between the components.
Custom wire rope configurations are also available - call or fill out our online form for a quote!
