SKU: LC12EIB825SR
1/2" 8x19 Spin-Resistant Bright Wire Rope - EIPS IWRC | 5,000' Coil
1/2" 8x19 Spin-Resistant Bright Wire Rope - EIPS IWRC | 5,000' Coil!
SKU: LC12EIB825SR
$10,165.00
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 13.3 tons / 26,600 lbs.
Grade: EIPS
Length: 5,000'
Core: IWRC
Finish: Bright
Product weight: 2,350 lbs.
Shipping and returns: This item ships LTL; learn more. This item cannot be returned due to safety risks associated with used materials.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Weight per foot: 0.47
Wire rope class: 8x19
Wire rope diameter: 1/2"
Additional Info: Category 3 Rotation-Resistant Rope
Right Hand Regular Lay
Right Hand Regular Lay
Description

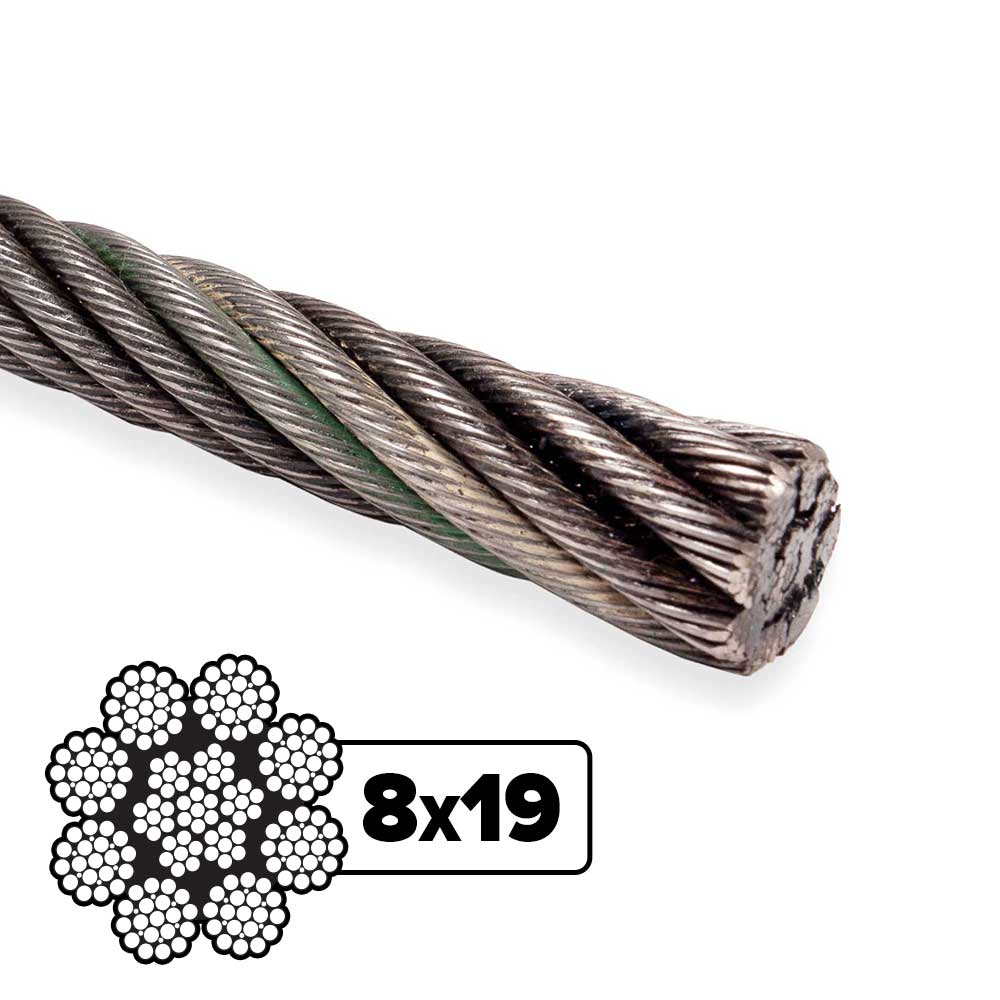

1/2" 8x19 Spin-Resistant Wire Rope Cable

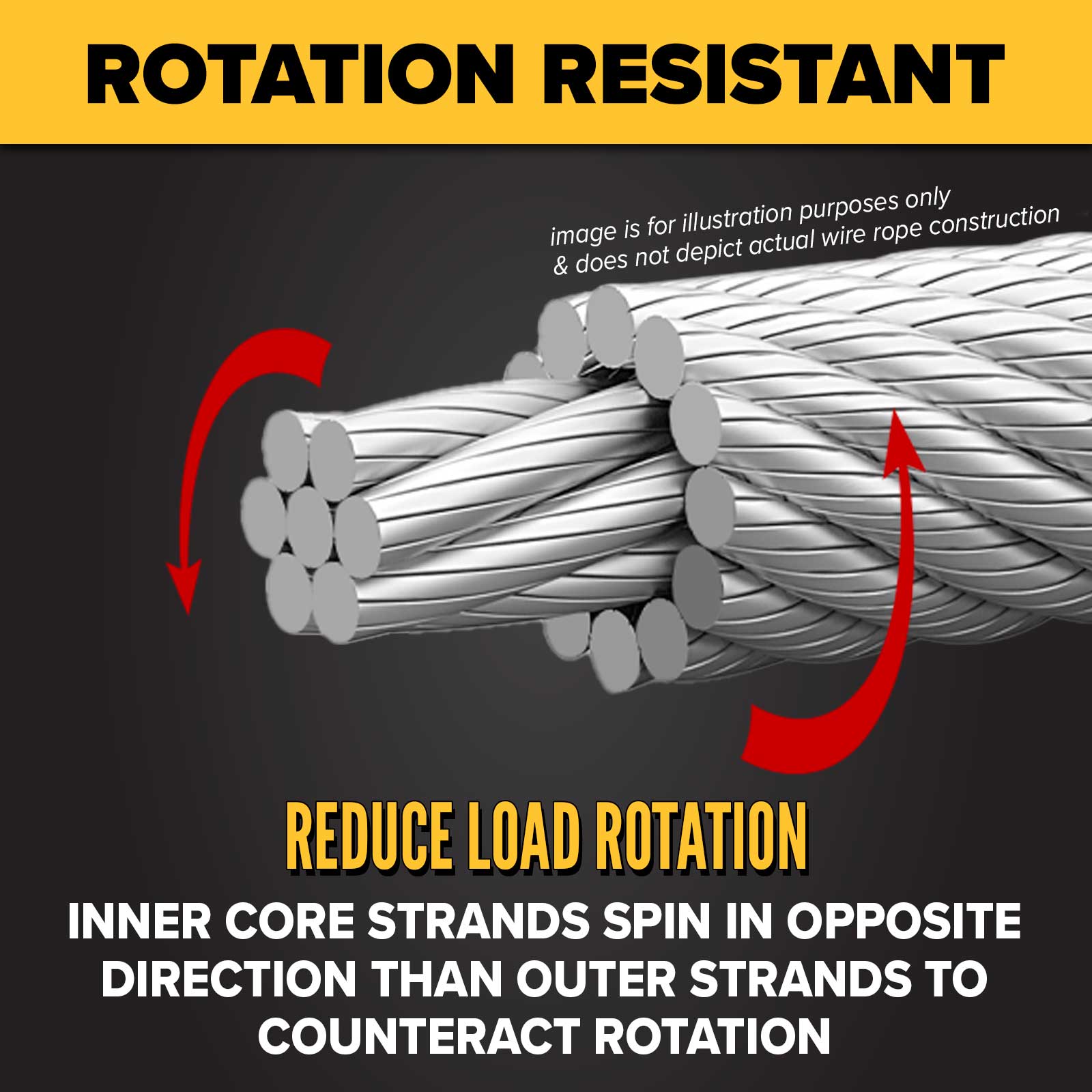

8x19 spin-resistant bright wire rope is designed to reduce rotation while under a load. To achieve this, the wire rope's inner strands are spun around the core in the opposite direction as the outer strands. This allows the inner strands to counteract the outer strand rotation. Because there are fewer than 10 outer strands, this rope is classified as a Category 3 Rotation-Resistant Rope, meaning it has limited resistance to rotation.

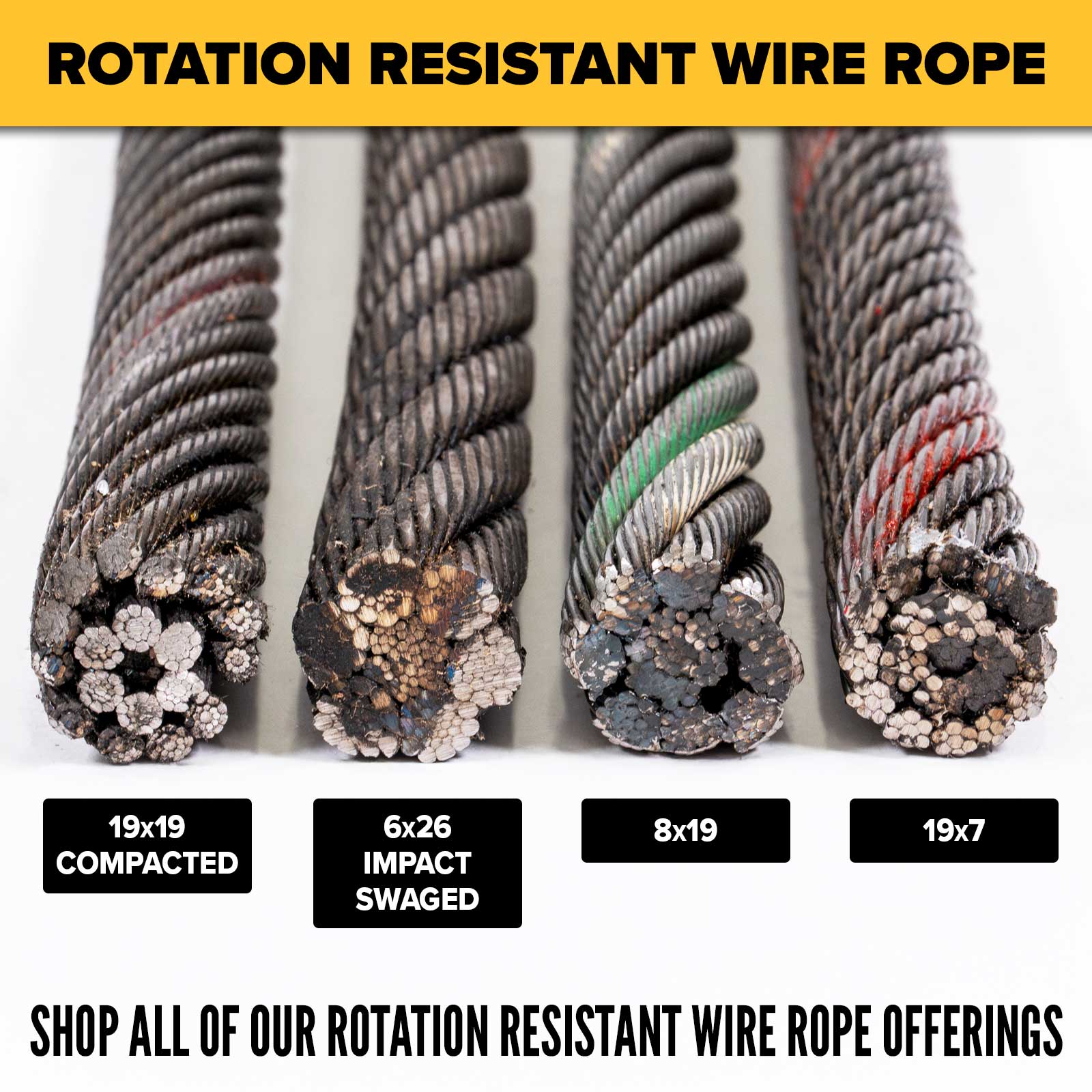

Recommended for hoisting unguided loads with a single-part or multi-part line, 8x19 wire rope is much more durable than the Category 2 19x7 and 19x19 compacted options, both of which offer superior abrasion-resistance.
8x19 Wire Rope Configuration
Our wire rope is made using EIPS-grade cable. EIPS (Extra Improved Plow Steel) refers to the strength of the wire rope - its tensile strength is around 10% greater than an IPS grade, improving the break strength.

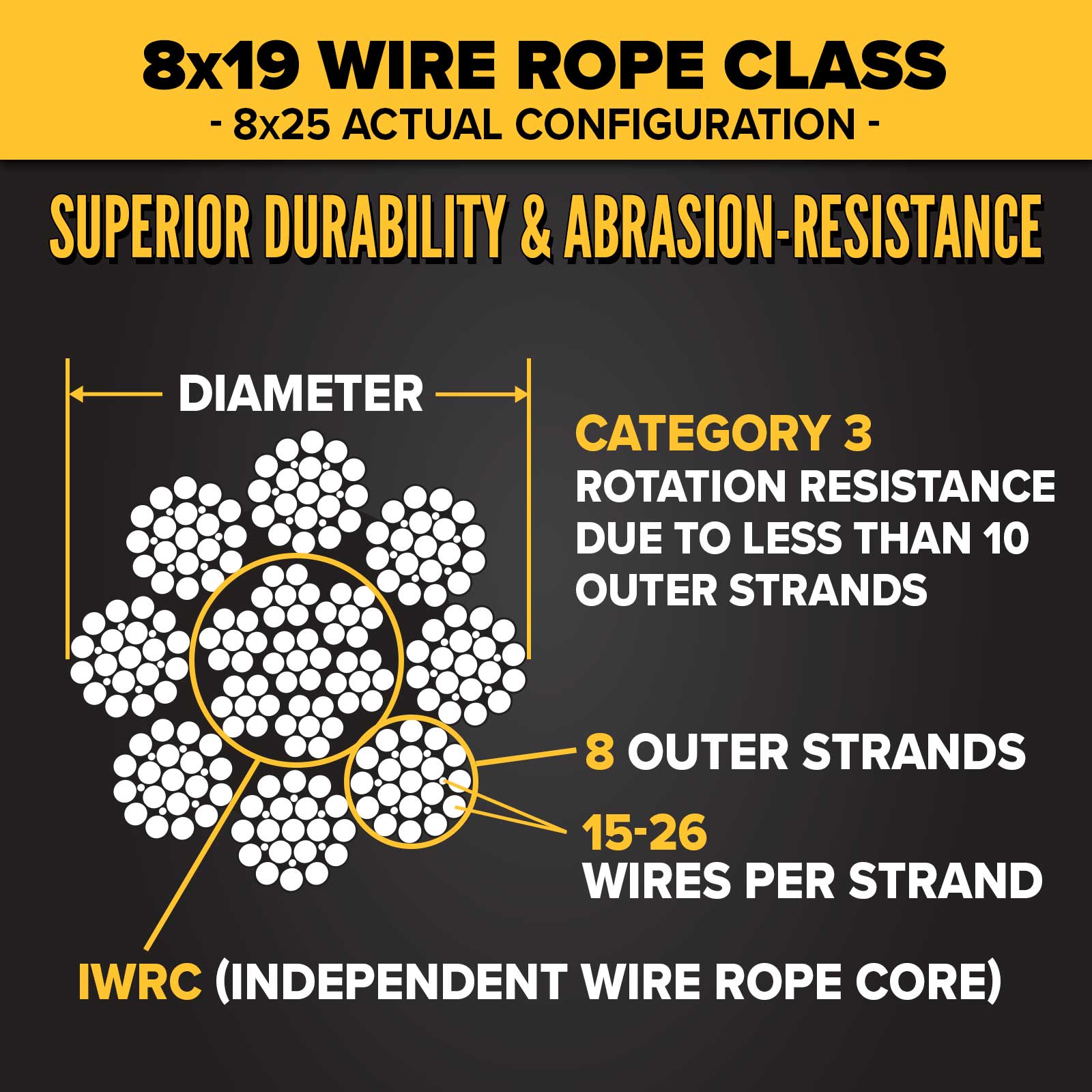

The class of this wire rope is 8x19. These numbers nominally refer to the construction of the wire rope - the number of outer strands around the core and an estimation of the number of wires within each of these outer strands. So for a 8x19 class, the number of outer strands is 8, and the number of wires making up each strand ranges from 15-26.
Finish & Core

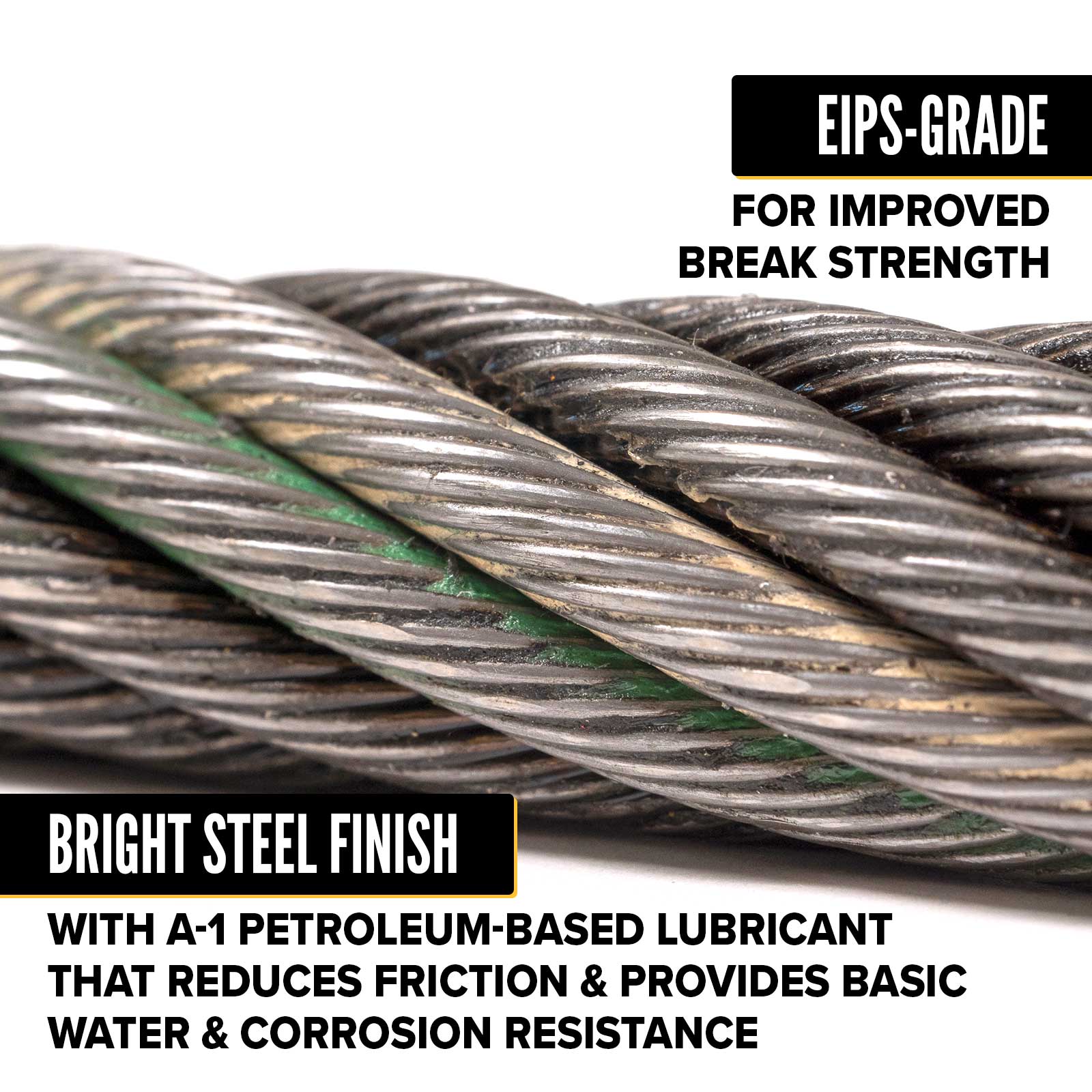

This product has a bright steel finish, which means it's uncoated except for an A-1 petroleum-based lubricant. This lubricant offers basic corrosion- and water-resistance and reduces friction to protect the rope. The lubricant is applied to both internal and external wires for more in-depth protection.

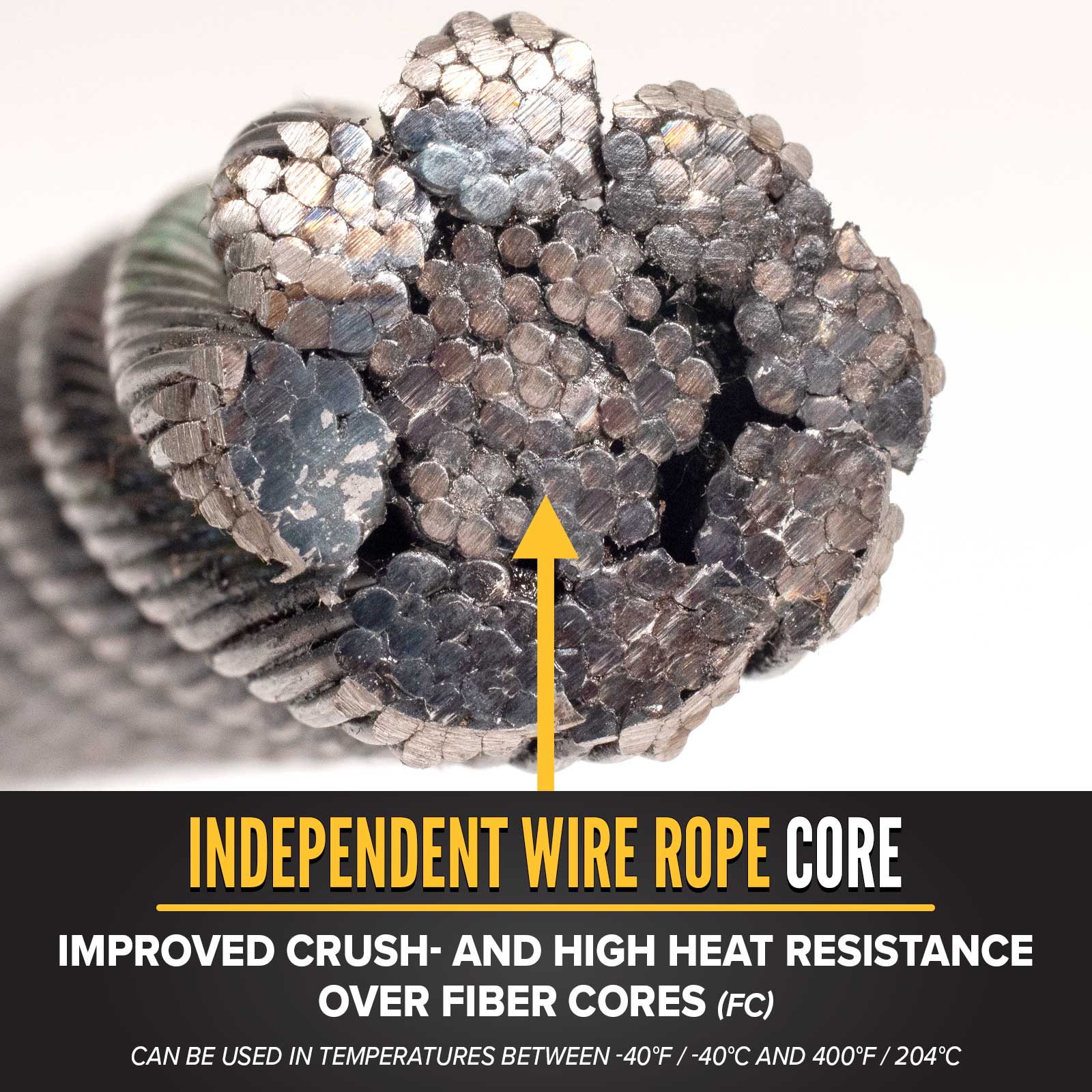

The independent wire rope core (IWRC) provides more support than a fiber core - it's more resistant to crushing and is better suited for high temperature applications. Their general temperature range is between -40°F / -40°C and 400°F / 204°C.
Bright Steel Wire Rope Features:
- Our wire rope meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023.
- Should not be used with a swivel.
- This item is imported from a vetted vendor - if you are looking for wire rope from a specific country, please call in or fill out our custom wire rope form.
- A certificate of conformity is available for a nominal fee - please request when you place your order.
- Actual configuration: 8x25
Accessories & More
Complete your wire rope assembly - we also carry wire rope fittings and rigging hardware, including wire rope clips, turnbuckles, and eye bolts.
Custom wire rope configurations are also available - call or fill out our online form for a quote!
