SKU: LF118EFB619

1-1/8" 6x19 Bright Wire Rope - EIPS FC | Linear Foot

1-1/8" 6x19 Bright Wire Rope - EIPS FC | Linear Foot!

Skip to product information
1 of 6
$8.96

Request Bulk Pricing
min. order qty: 25
Request Bulk Pricing
Ships in 1-2 business days.
Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Buy in Bulk

Request a Quote

Questions? Need it custom?

We Can Help!

Payment Options

Amazon
American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Assembly break strength: 57.9 tons / 115,800 lbs.
Grade: EIPS
Length: 1'
Core: Fiber
Finish: Bright
Product weight: 2.13 lbs.
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Weight per foot: 2.13
Wire rope class: 6x19
Wire rope diameter: 1-1/8"
Additional Info: Right Hand Regular Lay
Description

1-1/8" 6x19 Wire Rope Cable | Bright Steel

Made of strong Extra Improved Plowed grade steel (EIPS), this bright wire rope belongs to the 6x19 class, which is known for flexibility and abrasion-resistance. Along with the 6x37 class, 6x19 wire rope is the perfect general use steel cable and can be used for many applications, including as hoisting rope, suspension cables, winch lines, and more.

The 6x19 configuration offers better abrasion-resistance than the 6x37; however, it is less flexible and fatigue-resistant.

6x19 Wire Rope Configuration

Our wire rope is made using EIPS-grade cable. EIPS (Extra Improved Plow Steel) refers to the strength of the wire rope - its tensile strength is around 10% greater than an IPS grade, improving the break strength.

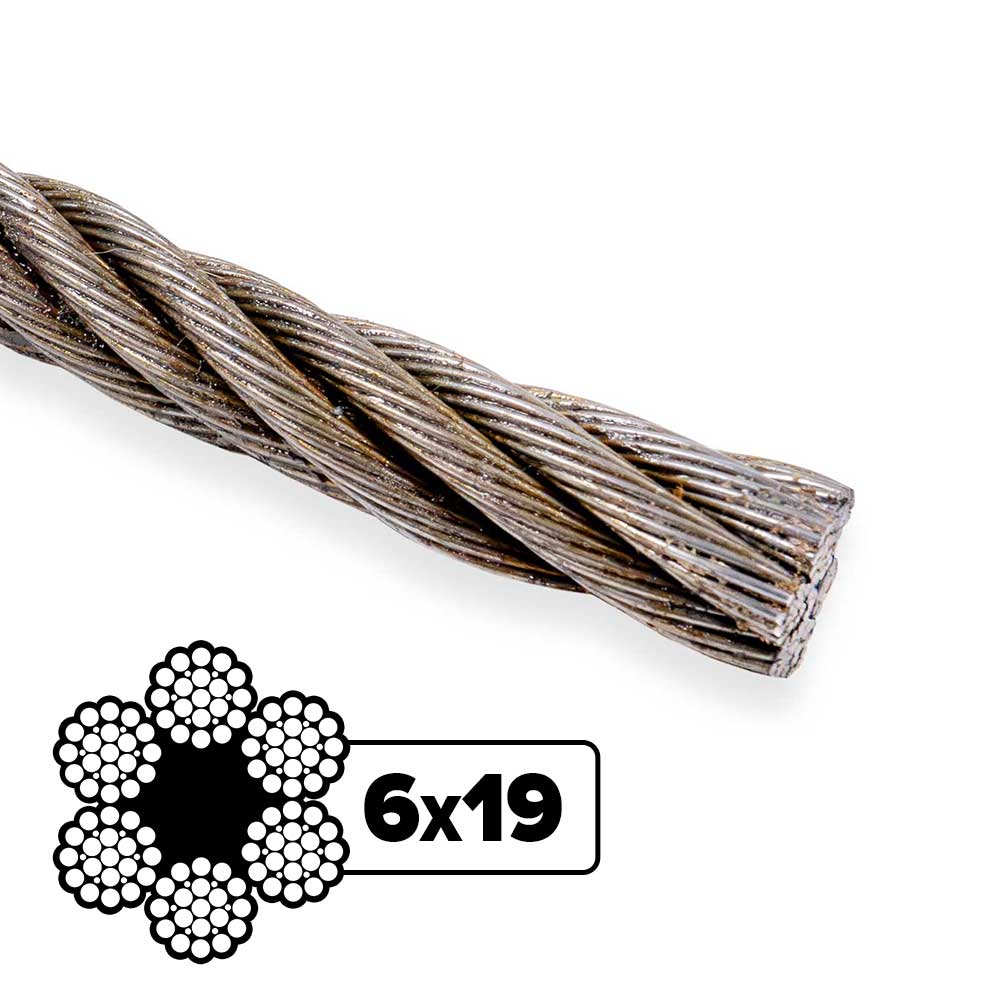

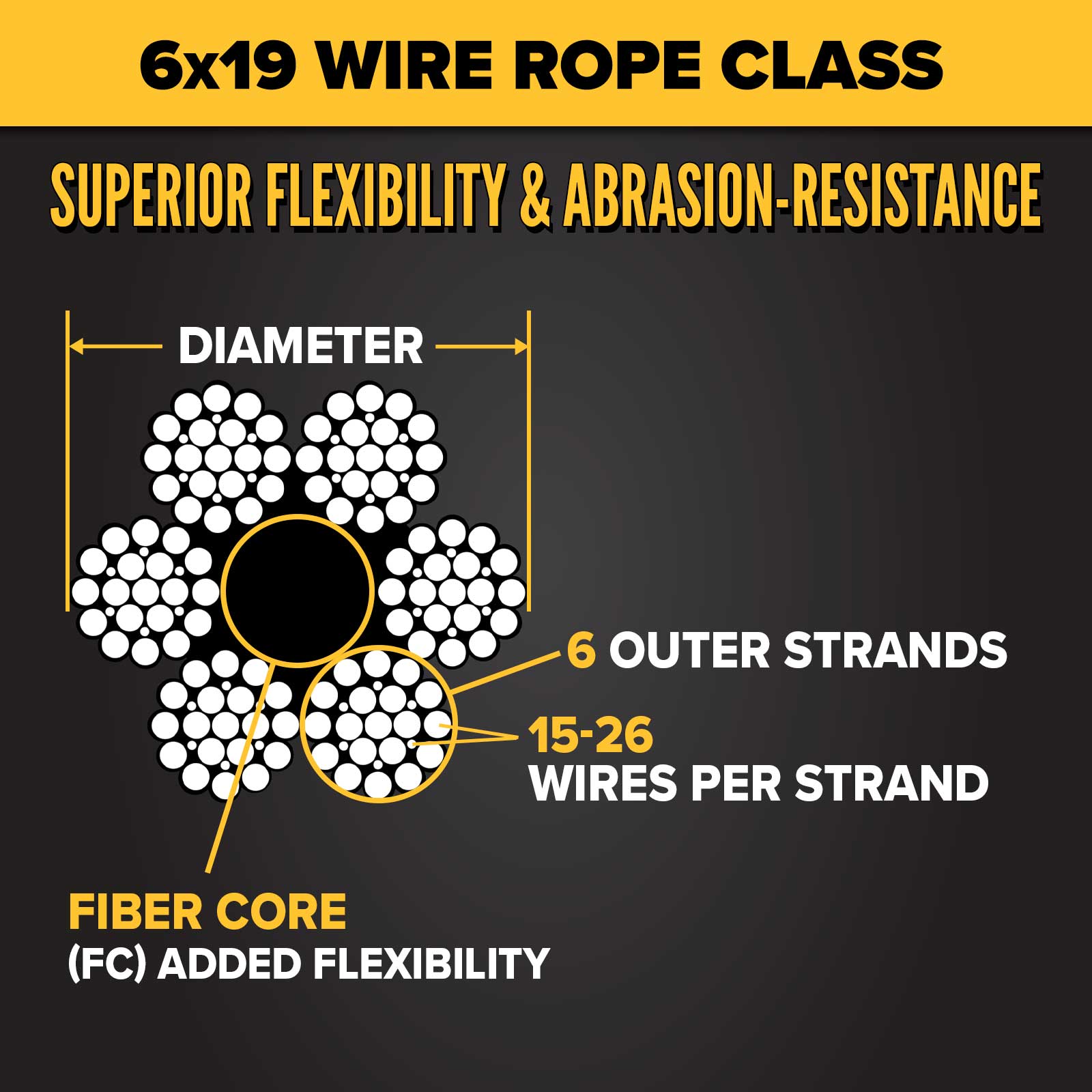

The class of this wire rope is 6x19. These numbers nominally refer to the construction of the wire rope - the number of outer strands around the core and an estimation of the number of wires within each of these outer strands. So for a 6x19 class, the number of outer strands is 6, and the number of wires making up each strand ranges from 15-26.

Finish & Core

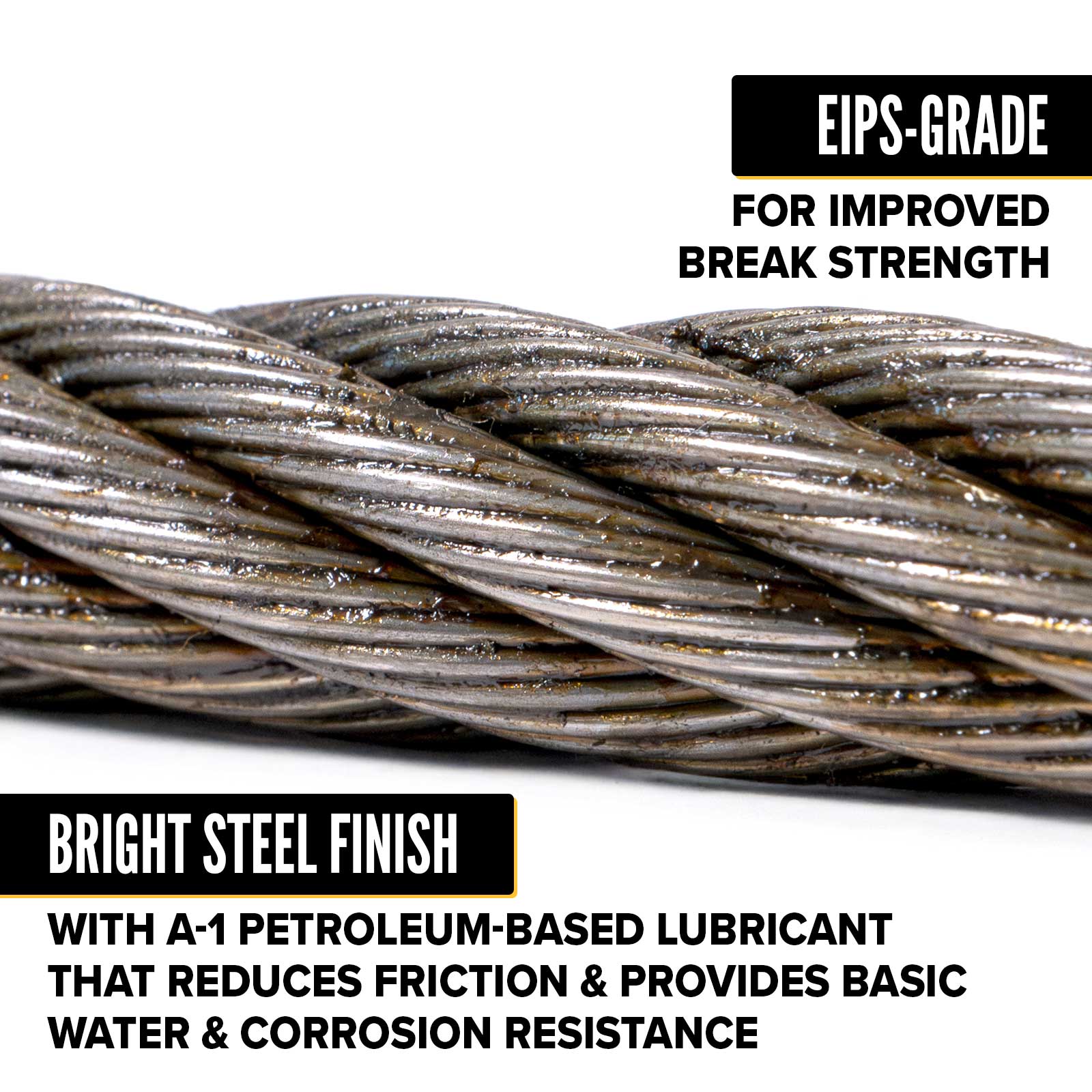

This product has a bright steel finish, which means it's uncoated except for an A-1 petroleum-based lubricant. This lubricant offers basic corrosion- and water-resistance and reduces friction to protect the rope. The lubricant is applied to both internal and external wires for more in-depth protection.

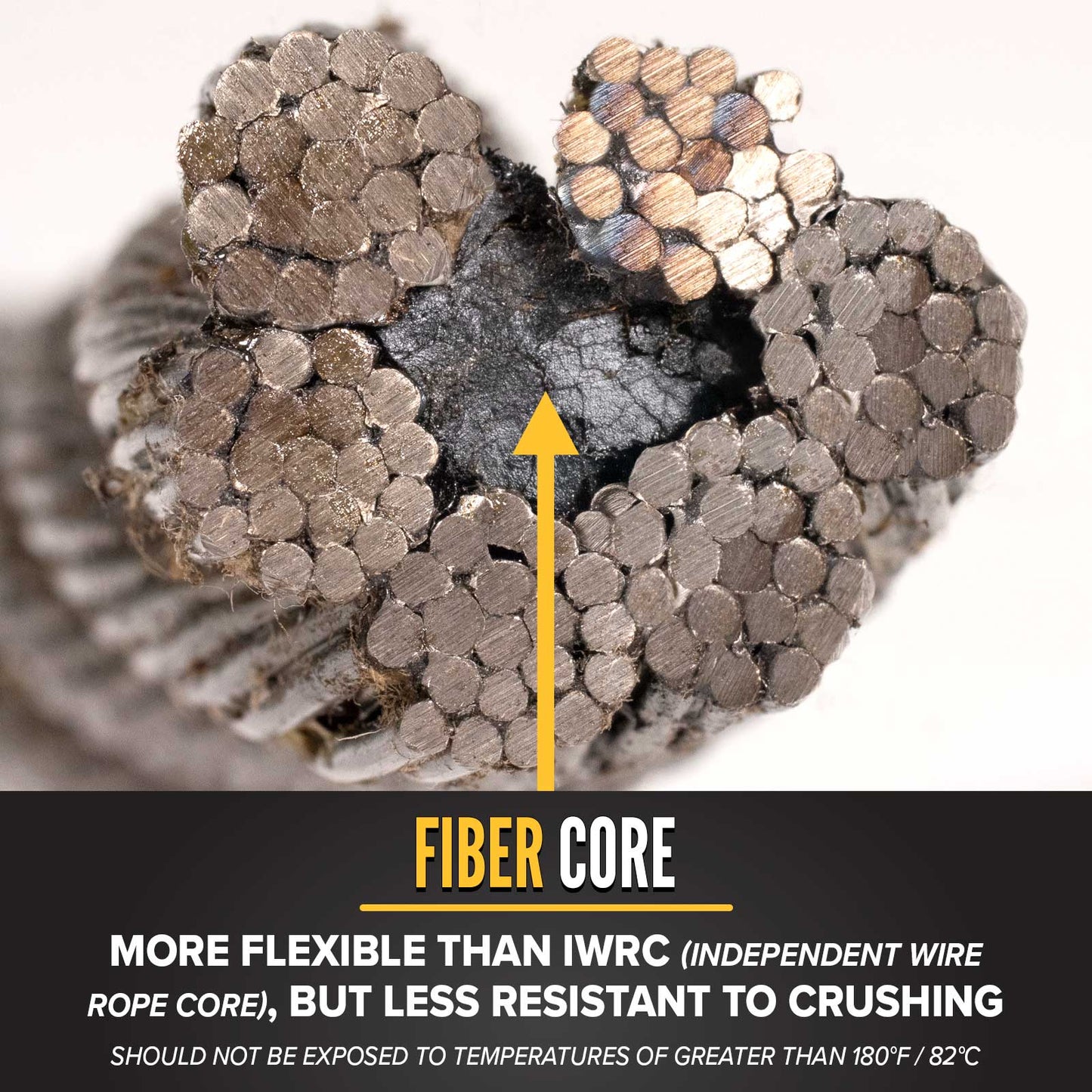

Fiber cores (FC) are more flexible than Independent Wire Rope Cores (IWRC), but are less resistant to crushing and should not be exposed to temperatures of greater than 180°F / 82°C per OSHA.

Bright Steel Wire Rope Features:

  • Our wire rope meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023.
  • This item is imported from a vetted vendor - if you are looking for wire rope from a specific country, please call in or fill out our custom wire rope form.
  • A certificate of conformity is available for a nominal fee - please request when you place your order.

Wire Rope by the Foot Ordering FAQ

Does this wire rope come as one length? Yes, the quantity you add to the cart will be provided as one unbroken length of rope. So if you add this to the cart with a quantity of 1000, you will receive one 1000-foot long rope.

Can I order multiple separate lengths? Yes. For example, if you need two 1500-foot lengths of rope, you would set the quantity to 1500 and then add that to the cart twice. For each separate instance you add this to the cart, you will get a separate length of rope.

Can I order lengths less than the minimum order quantity if when combined they will be greater than the minimum order quantity? Yes - please call to speak to one of our product experts to place this order.

Accessories & More

Complete your wire rope assembly - we also carry wire rope fittings and rigging hardware, including wire rope clips, turnbuckles, and eye bolts.

Custom wire rope configurations are also available - call or fill out our online form for a quote!
