SKU: BPAS78-DFSS

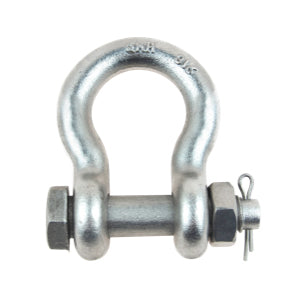

7/8" Stainless Steel Drop Forged Bolt Pin Anchor Shackle - 4 Ton
7/8" Stainless Steel Drop Forged Bolt Pin Anchor Shackle - 4 Ton!
Continue Browsing
Stainless Steel Shackles
Anchor, Bow, Chain, and D Shackles
Rigging Supplies & Rigging Hardware
Related Articles
SKU: BPAS78-DFSS
$150.49
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Grade: 316 Stainless Steel
Working load limit: 4 ton
Brand part number: 2711SF-BB-22
Inside height: 3.31"
Material: Stainless Steel
Mouth width: 1.5"
Pin size: 1"
Product weight: 3.65 lbs.
Rated for Overhead Lifting: No - overhead lifting rated stainless steel options are available by request.
Safety factor: 5:1
Shackle size: 7/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Description
Bolt Type Anchor Shackles while similar to screw pin shackles, are a better choice in permanent or long-term applications or any situation where the load may slide and cause the shackle pin to rotate. The bolt/nut/cotter pin design prevents accidental removal of the bolt from the anchor shackle while in use. This stainless steel shackle is drop forged in durable and corrosion-resistant Type 316 stainless steel.
Compared to galvanized anchor shackles, Type 316 Stainless steel shackles are much better suited for high humidity or marine applications. Stainless steel has a sufficient amount of chromium present so that chromium oxide film forms. This film prevents further corrosion and prevents it from spreading to the internal part of the anchor shackle.
Size: 7/8" Stainless Steel Drop Forged Bolt Pin Anchor Shackle (additional sizes are available).
Check out our large selection of Rigging Supplies, including even more shackles, wire rope, turnbuckles, chain, rigging slings, and much more.
Stainless steel shackles are not always rated for overhead lifting. If you need stainless shackles that are approved for overhead lifting, please contact our sales team.
Source: Import
