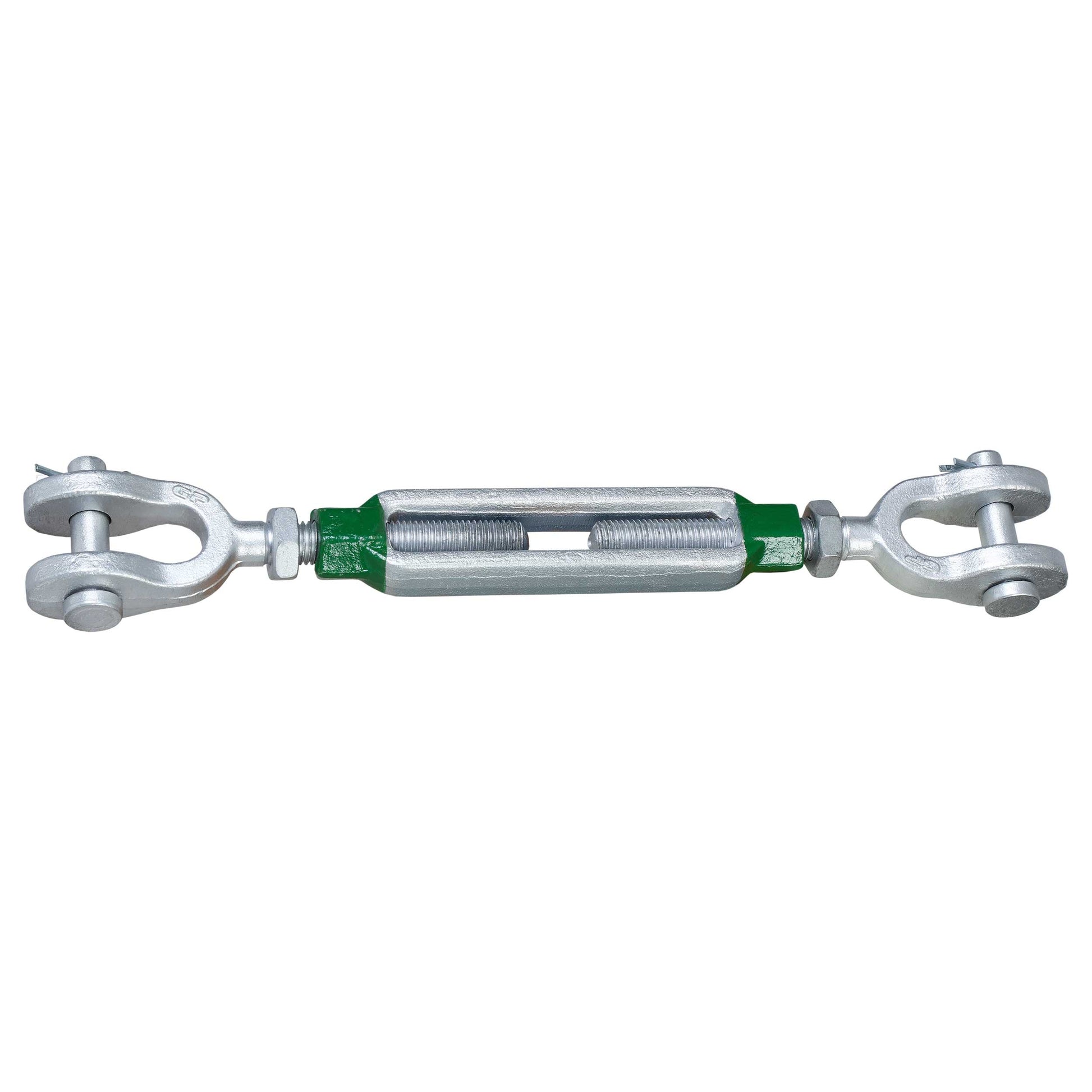

3/4" x 9" Van Beest® Jaw & Jaw Galvanized Turnbuckle - G-6313
3/4" x 9" Van Beest® Jaw & Jaw Galvanized Turnbuckle - G-6313!
3/4" x 9" Van Beest® Jaw & Jaw Galvanized Turnbuckle - G-6313
3/4" x 9" Van Beest® Jaw & Jaw Galvanized Turnbuckle - G-6313!
Specifications
Specifications
- Body length: 9"

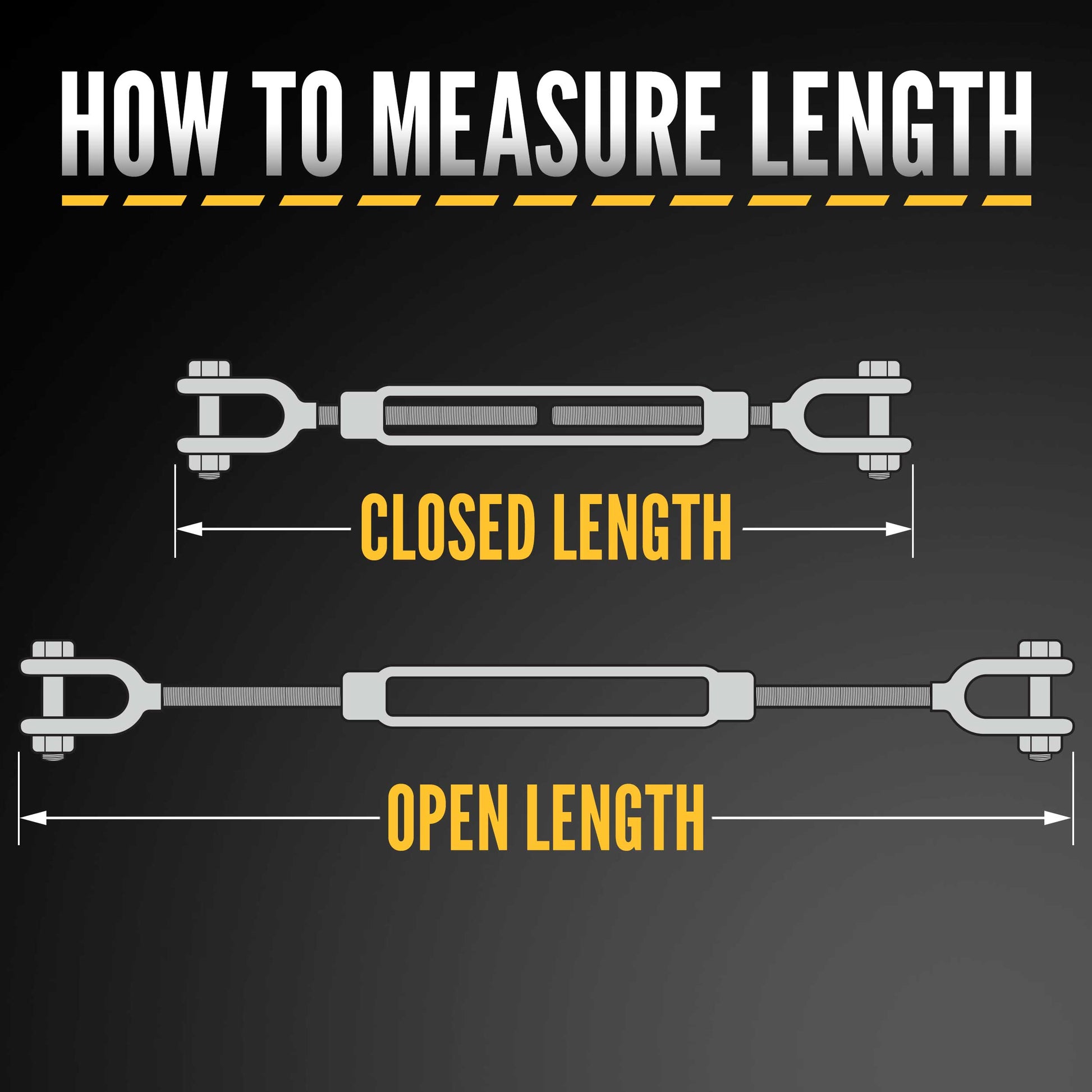

- Length open: 25-3/16"
- Length closed: 20-1/4"
- Working load limit: 5,200 lbs.
- Finish: Galvanized
- Safety factor: 5:1
- Manufacturer name: Van Beest
- Brand part number: SSGPGG1909
- Jaw opening: 15/16"
- Pin size: 5/8"
- Turnbuckle size: 3/4"
- Material: Drop-forged high tensile steel
- Product weight: 6.9 lbs.
- Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
- Additional info: Jaw end fitted with cotter pin
Description
Description
Van Beest Jaw and Jaw Turnbuckle | 3/4" x 9"

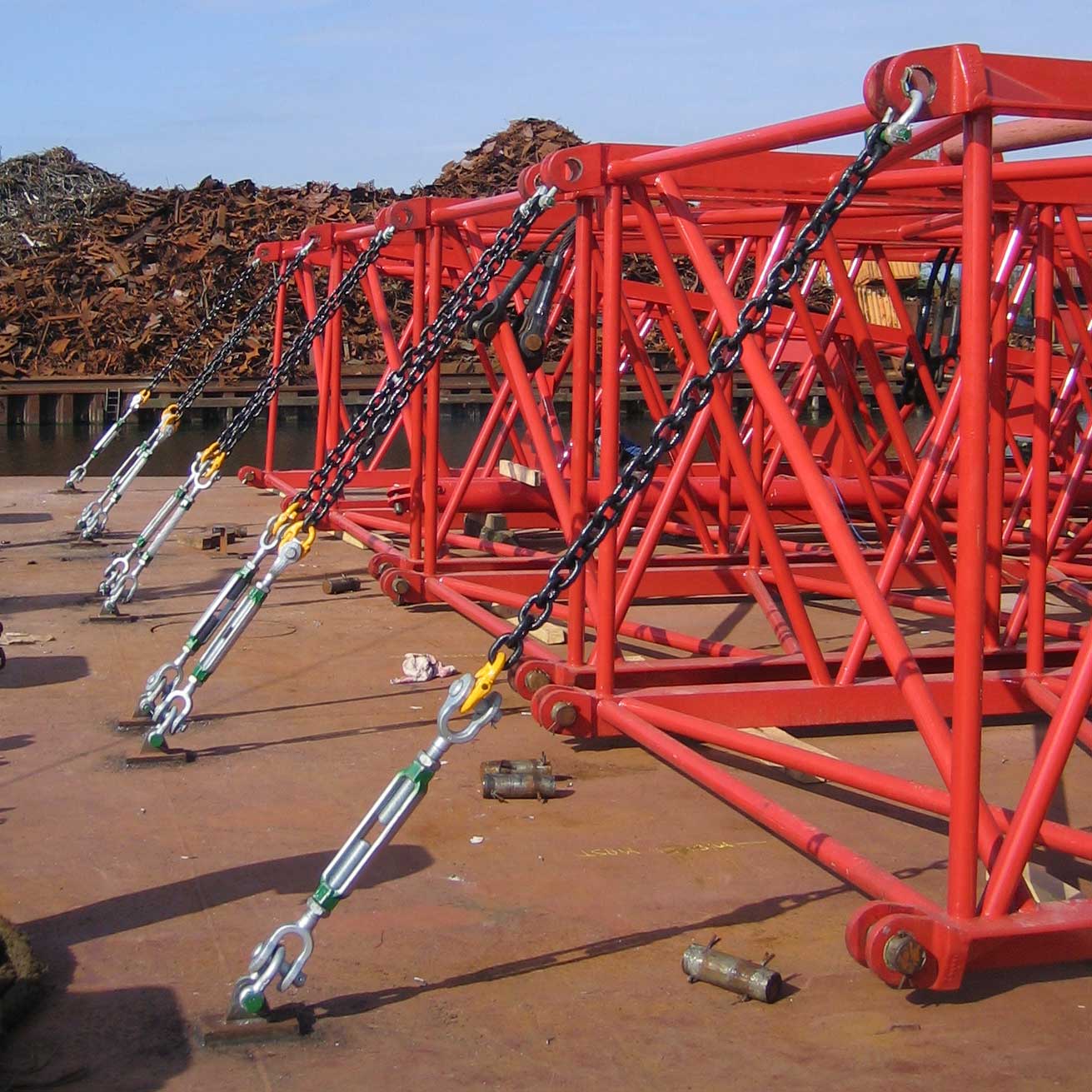

Used to adjust line tension in a variety of rigging and lifting applications, turnbuckles are an essential rigging component. They are commonly used in mining, construction, and suspension jobs where equipment failure could lead to a catastrophe. Make sure your turnbuckles are up to the task by choosing Van Beest. They've been a reliable manufacturer of turnbuckles for many years, prioritizing long-term durability and performance.

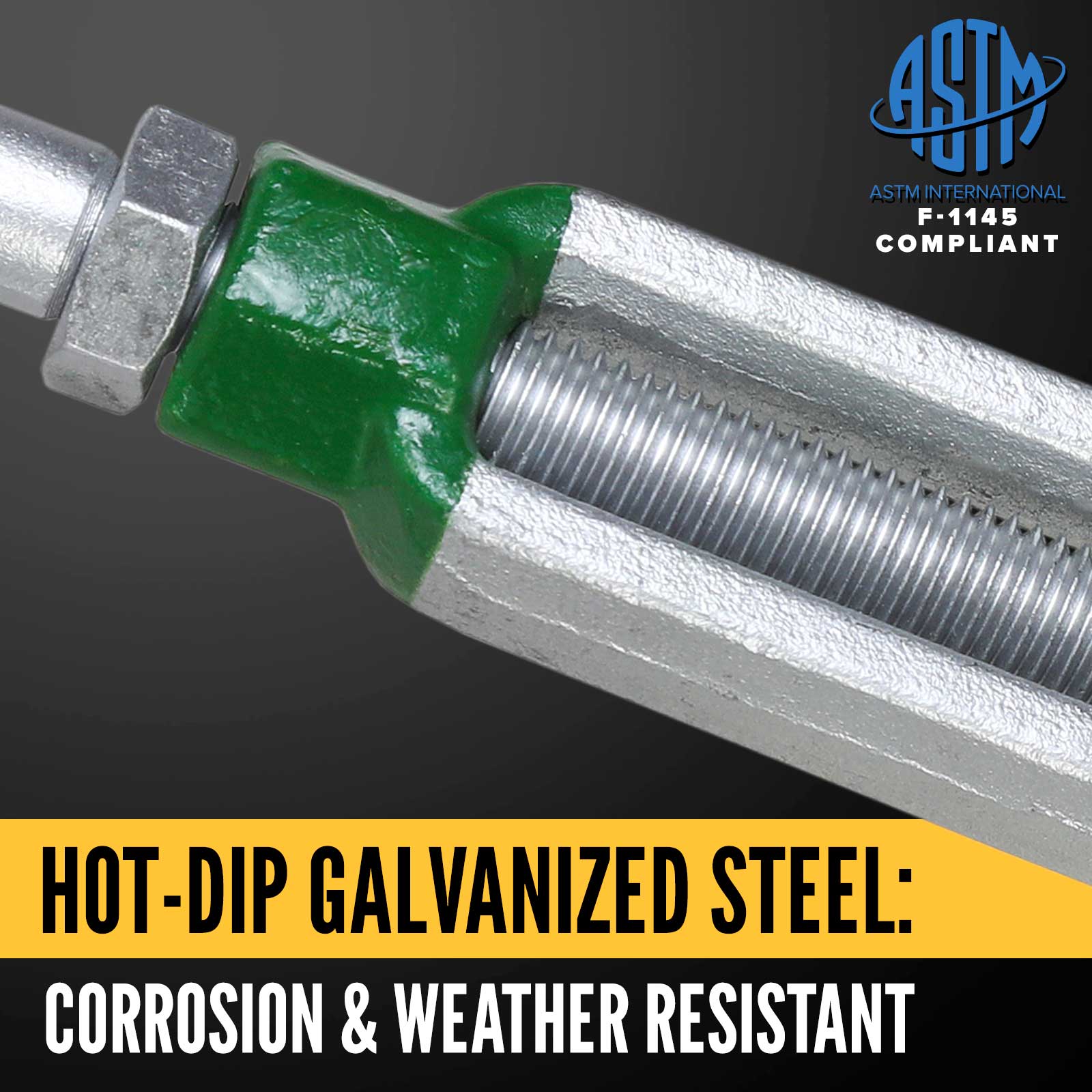

Constructed from drop-forged high tensile steel, they are hot-dipped galvanized for corrosion-resistance and can be used for lashing and lifting if used in accordance with Van Beest's official use instructions. The jaw end fitting is secured with a cotter pin.
Green Pin Turnbuckle Features:
- Compliant with ASTM F1145-92 (formerly US Federal Specification FF-T-791b).
- Works certificate and proof load certificate available upon request.
- Approved for use in temperatures from -4°F (-20°C) to 492°F (200°C).

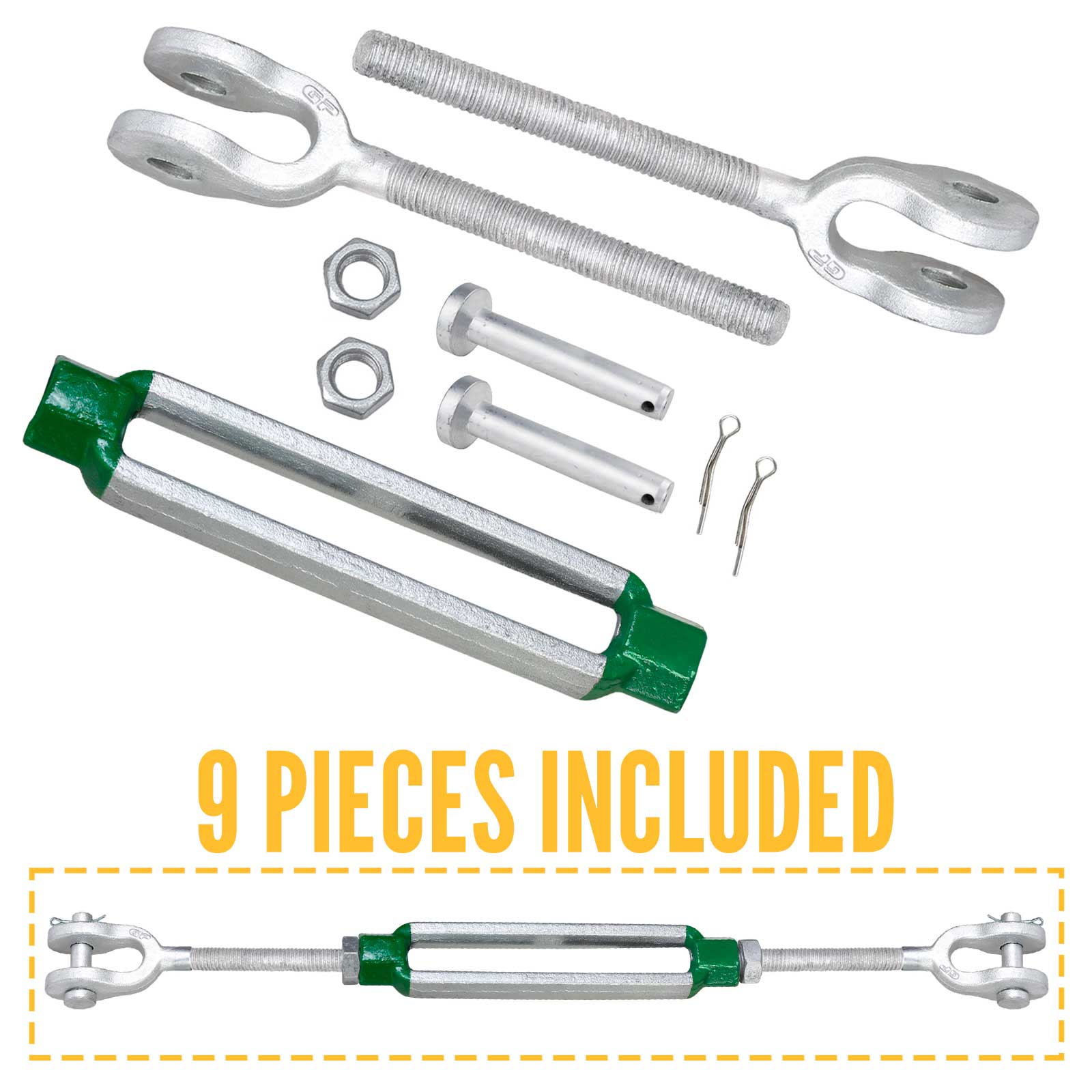

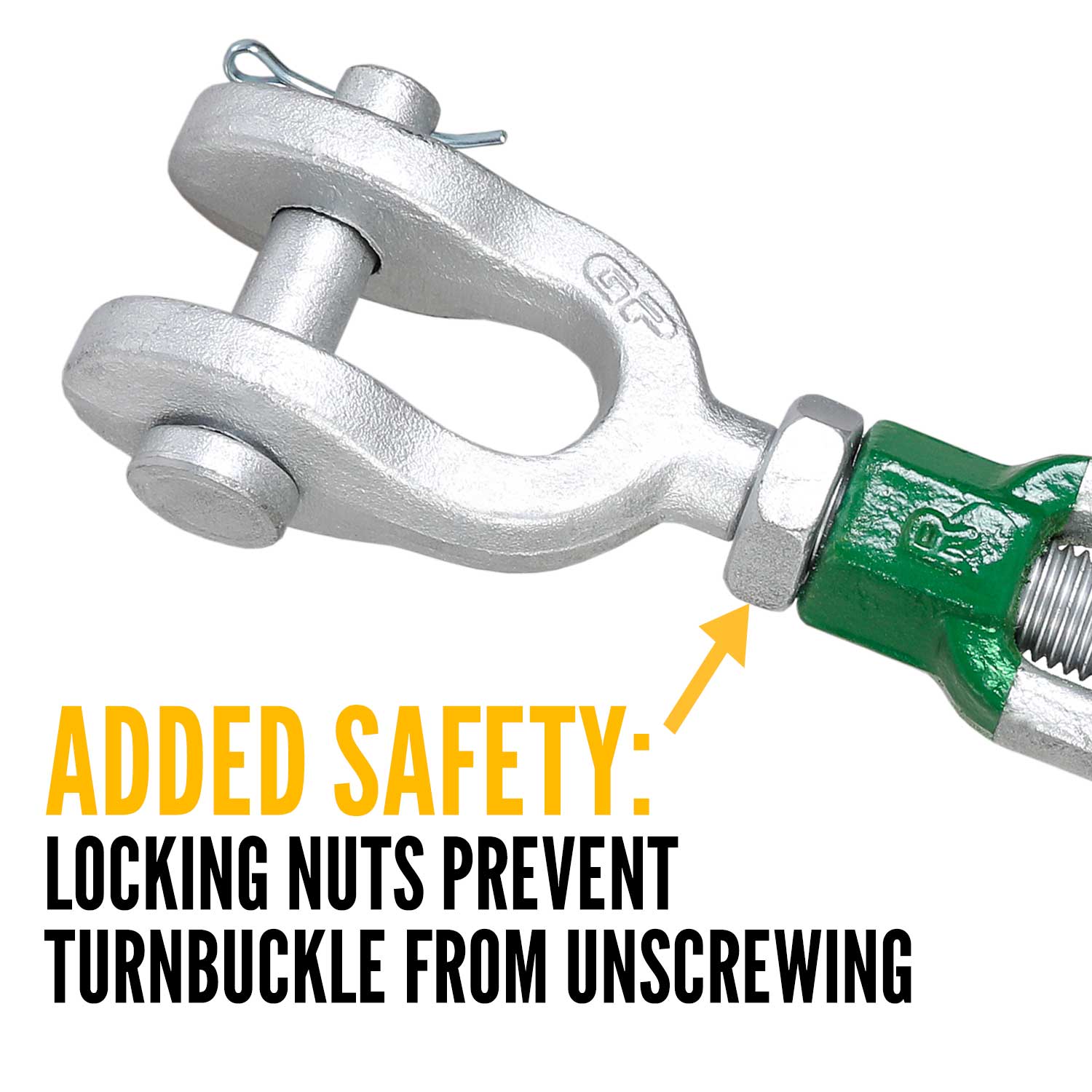

- Lock nuts included.
- Note: Turnbuckles are only recommended for straight or in-line pulls.
Looking for additional rigging supplies? Check out our full selection of Van Beest rigging products, as well as our wire rope and rigging hooks!
Source: Import
