SKU: ATF12AL

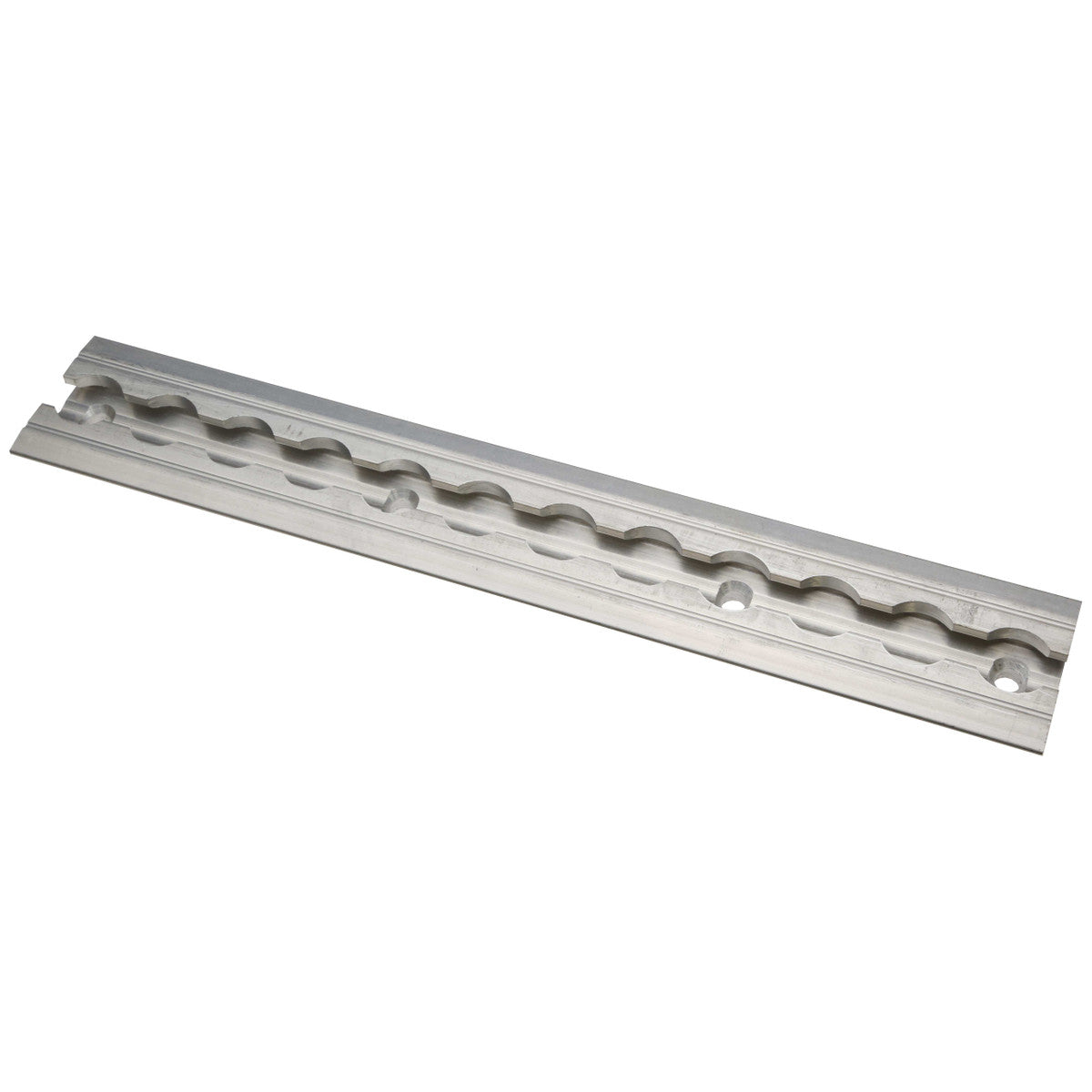

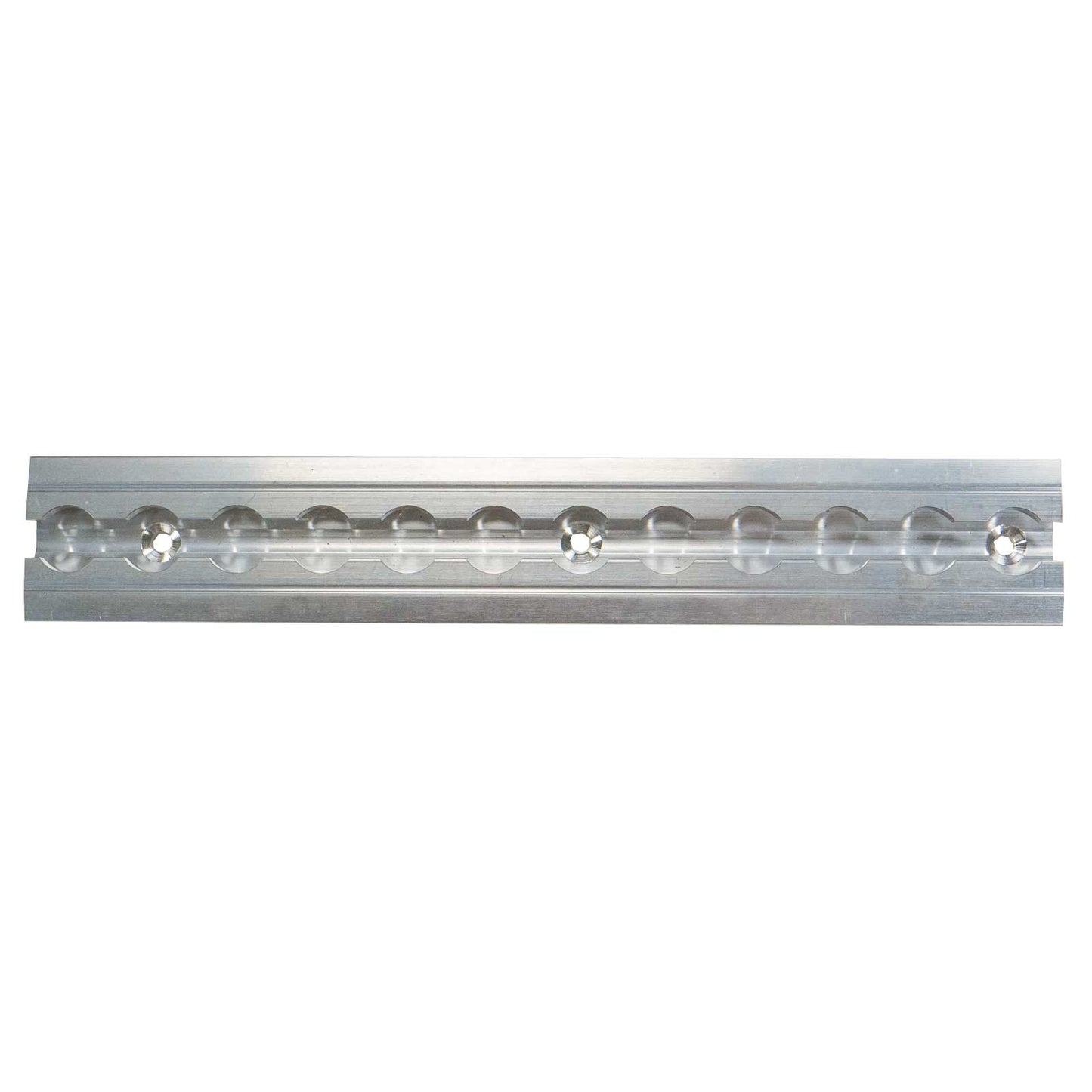

12" Flanged L-Track | Aluminum
12" Flanged L-Track | Aluminum!
SKU: ATF12AL
12" Flanged L-Track | Aluminum
$14.59
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options

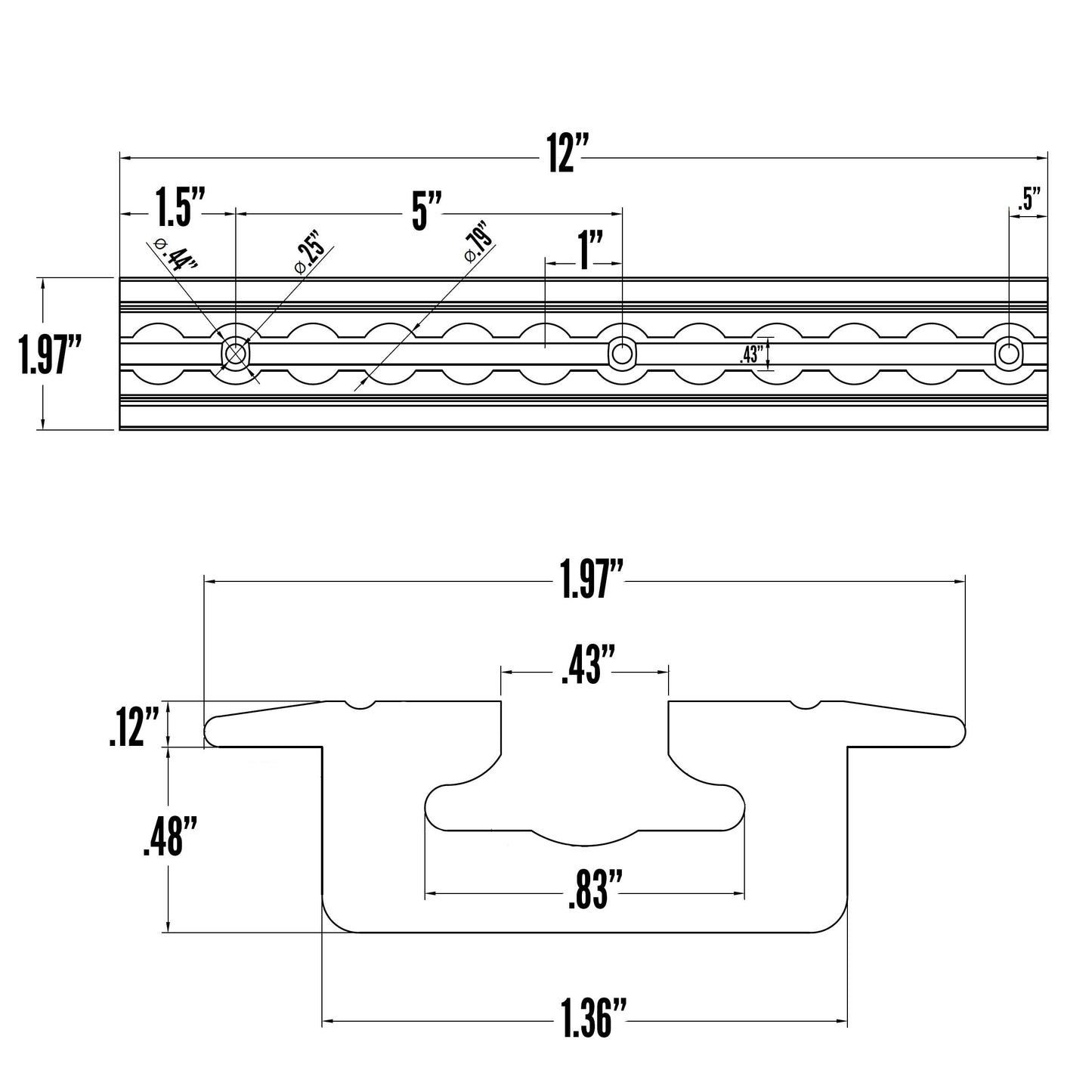

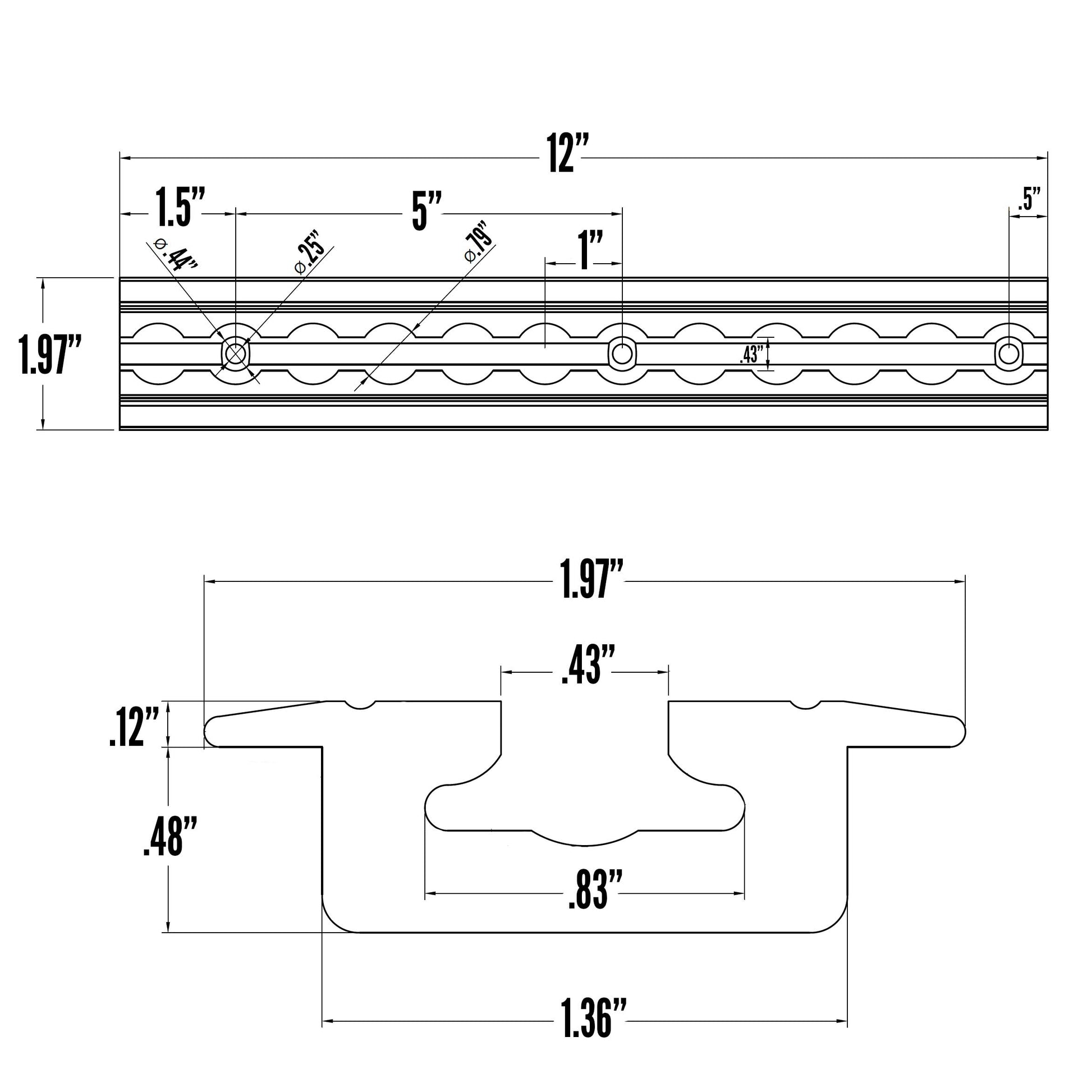

Specifications
Color: Unpainted
Grade: 6061T-T6
Length: 12"
Height: 0.6"
Material: Aluminum
Product weight: .7 lbs.
Type: Flanged L-Track
Width: 2"
Additional Info: Mount Type: Flush Mount
Drilled Hole Diameter: 1/4"
Compatible Fasteners: 1/4", 6mm, or #12 fasteners
Drilled Holes: 4
Connection Points: 12
Drilled Hole Diameter: 1/4"
Compatible Fasteners: 1/4", 6mm, or #12 fasteners
Drilled Holes: 4
Connection Points: 12
Description

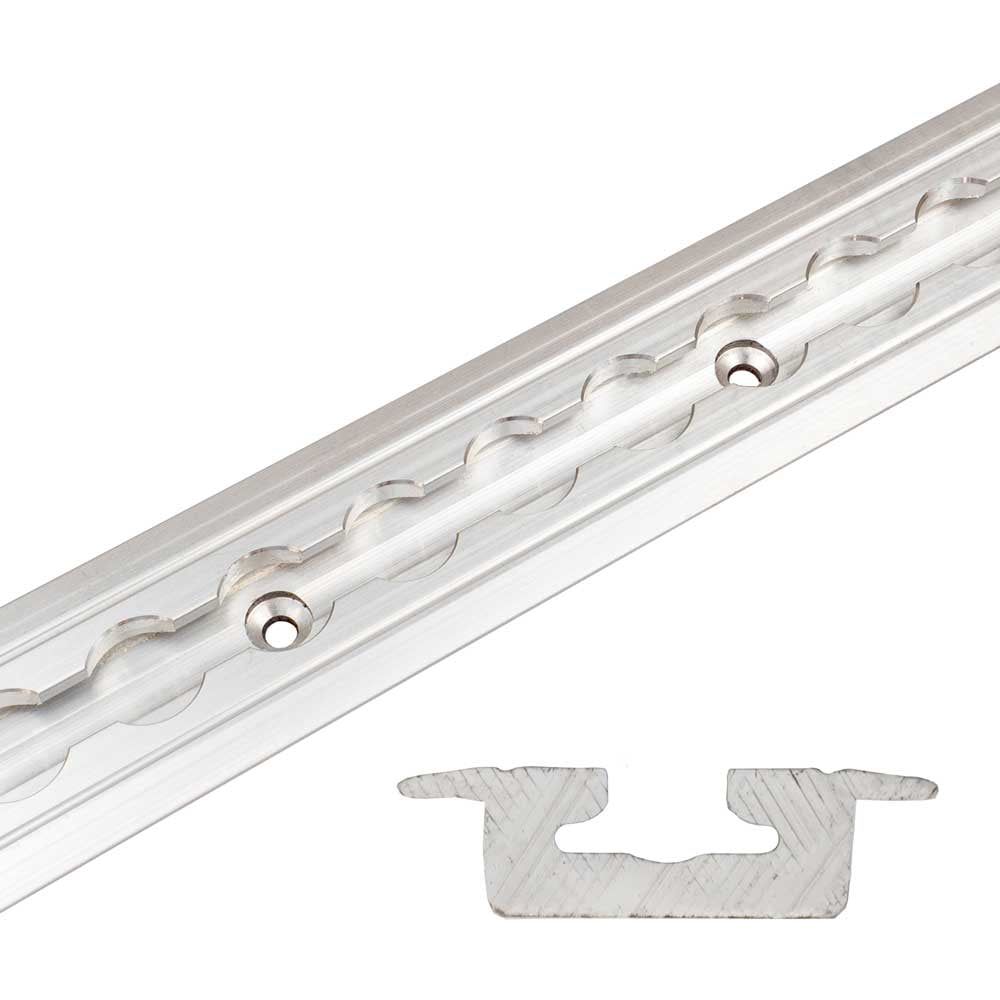

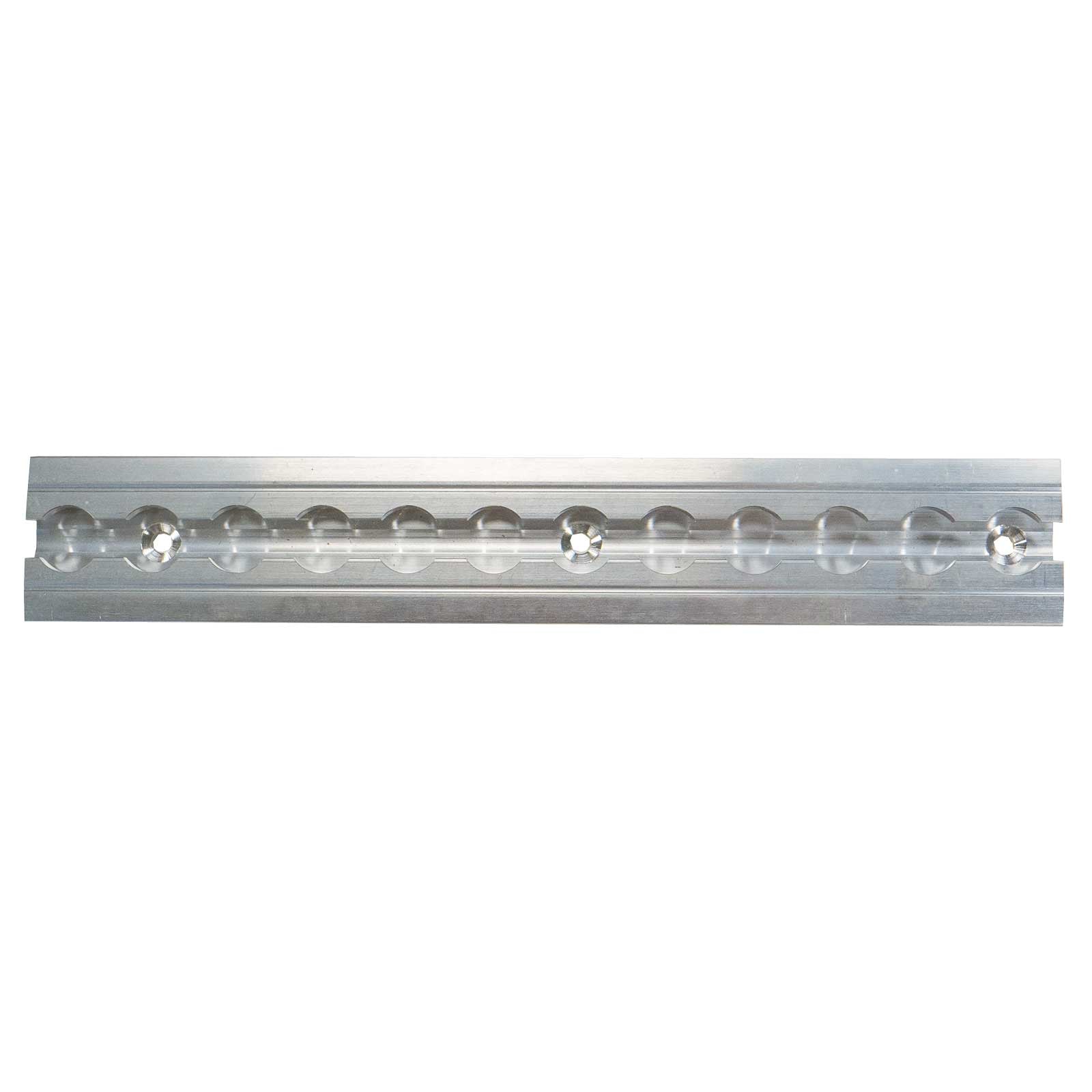

12" Recessed L-Track

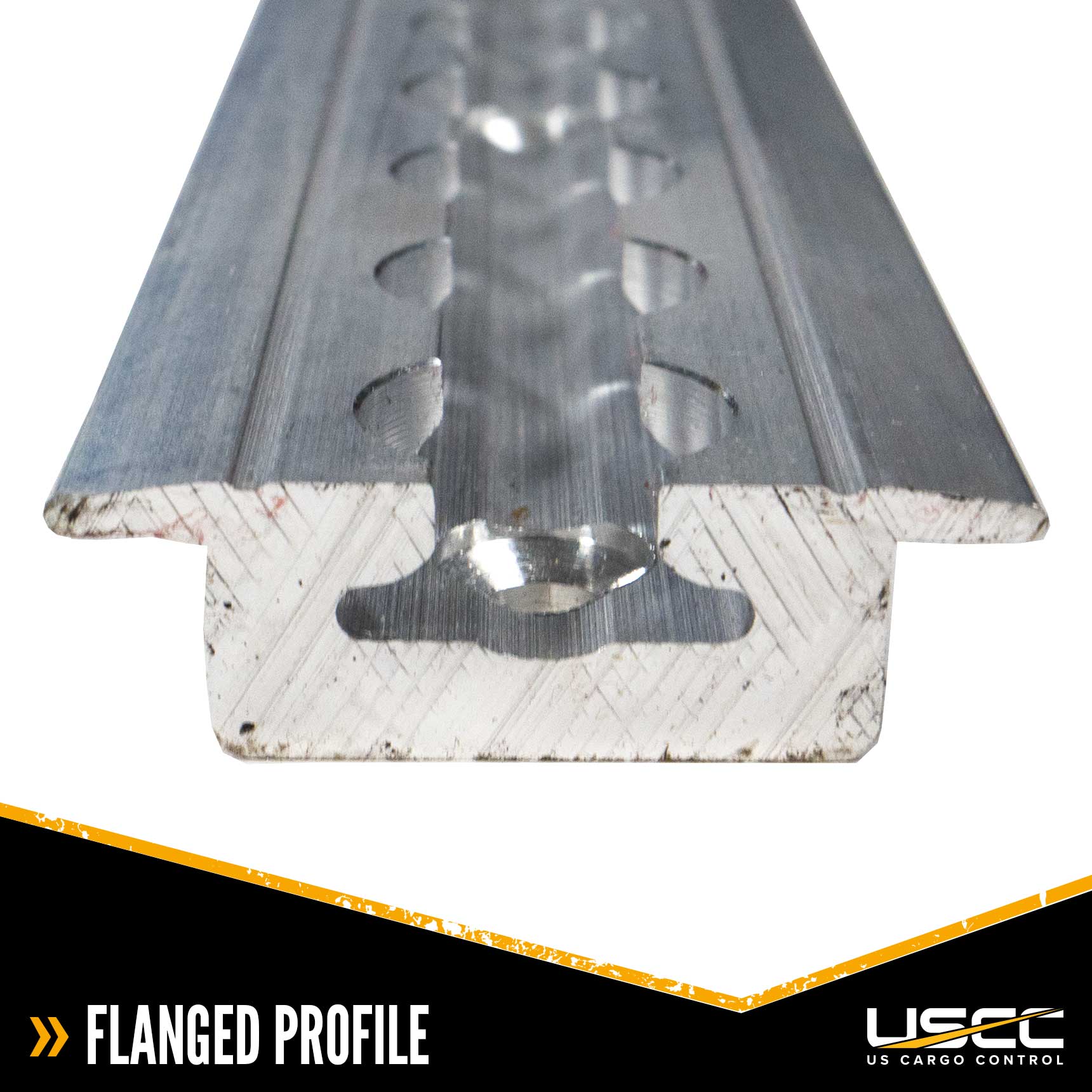

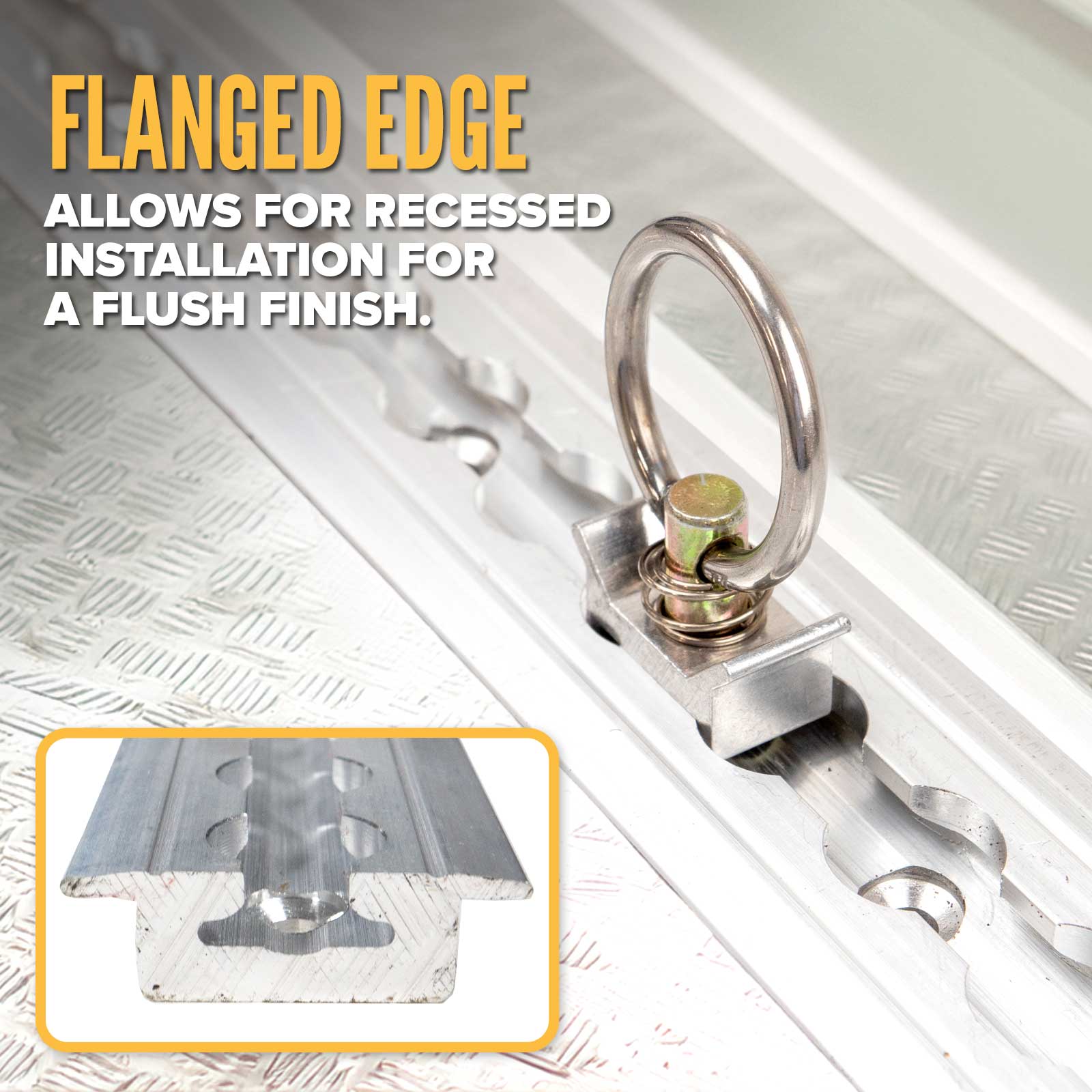

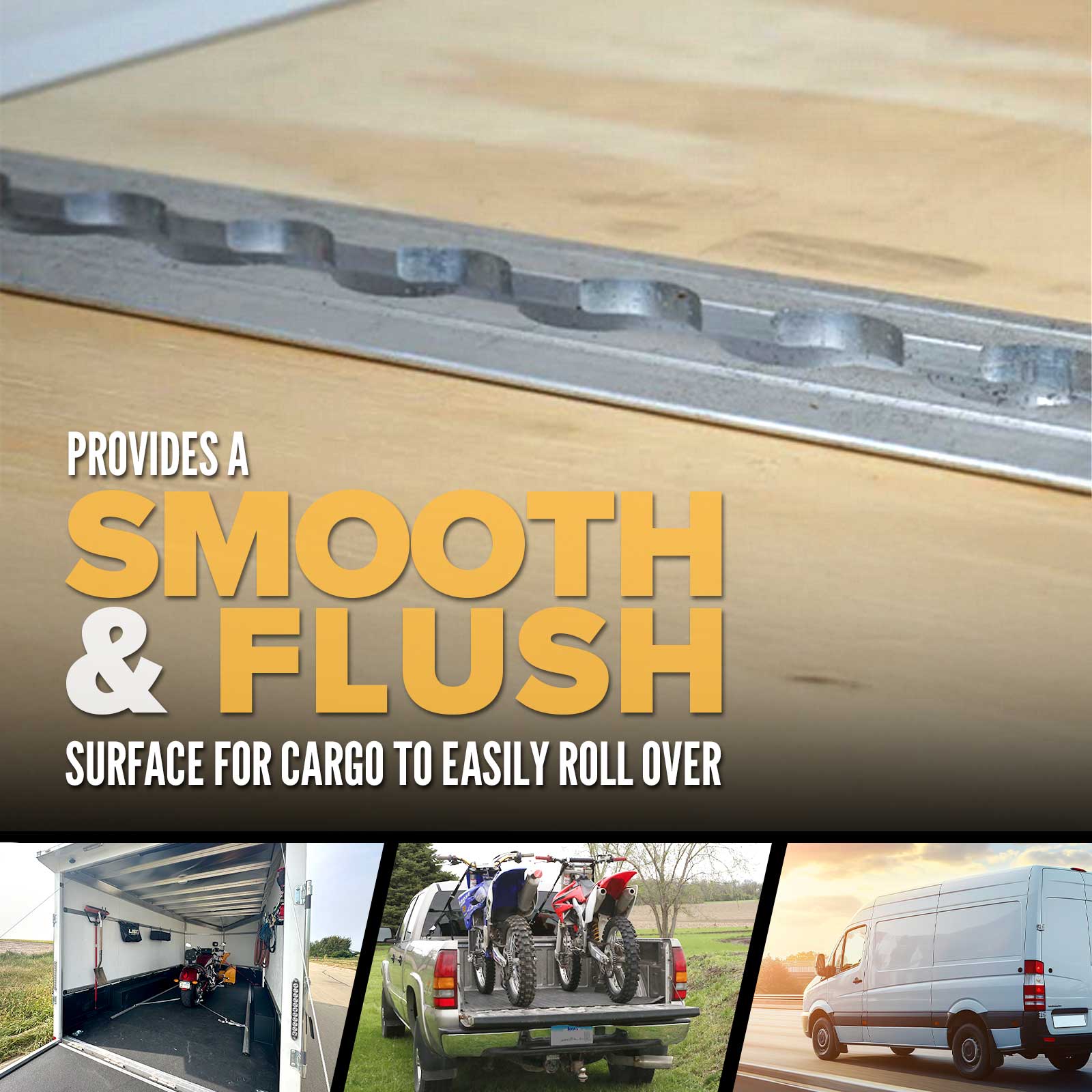

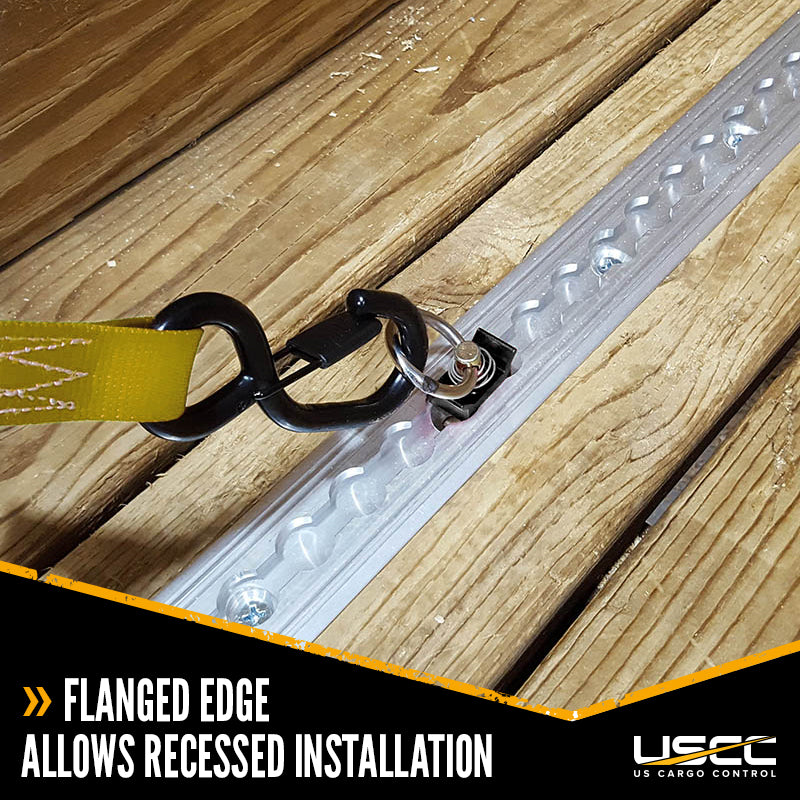

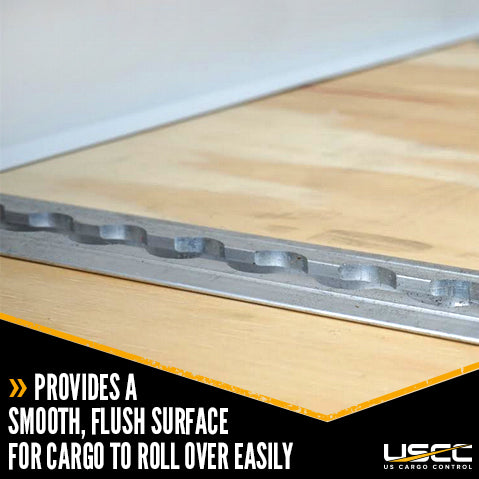

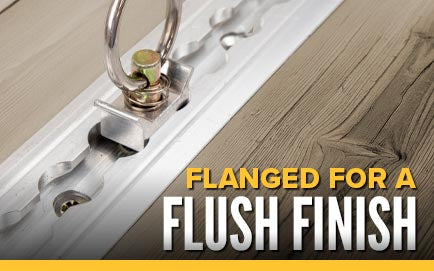

Flanged L-track features a flanged-edge design that allows for recessed installation, eliminating abrupt edges on the surface. This flush-surface benefit makes it ideal for securing motorcycles, ATVs, garden tractors, utility carts, and other wheeled items in pickup truck beds, toy haulers, and enclosed trailers.

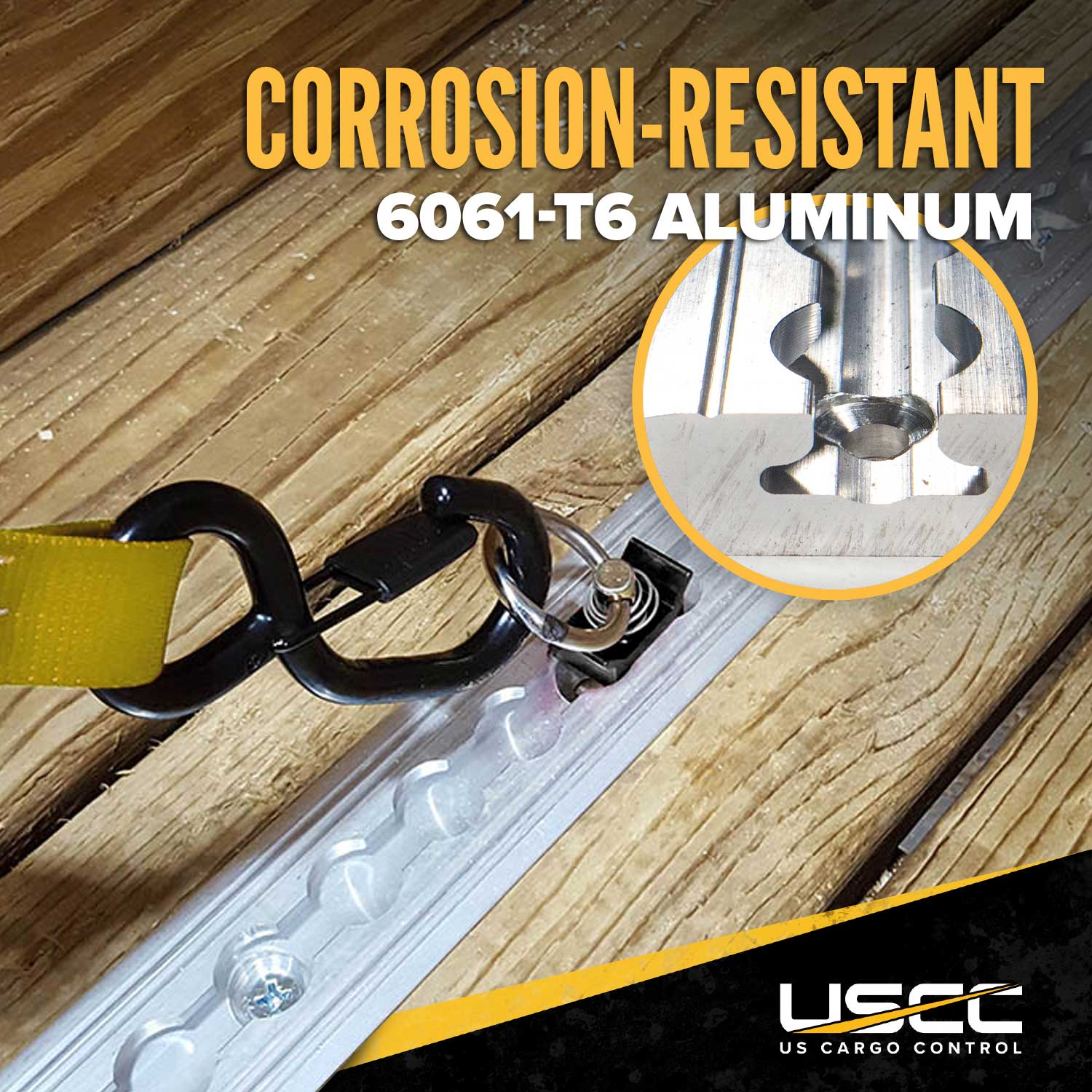

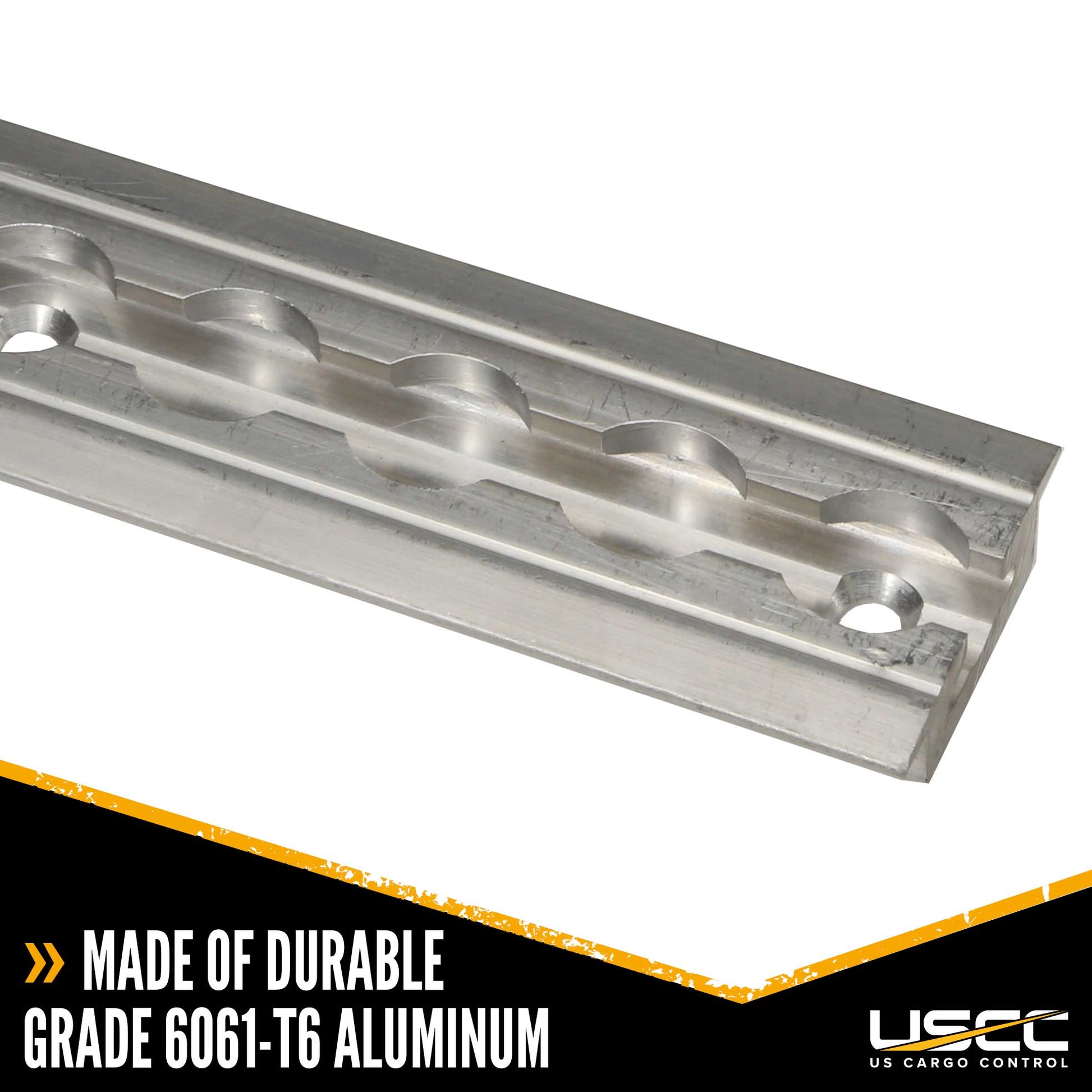

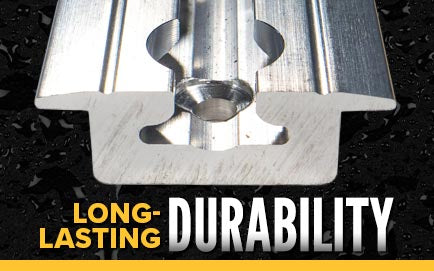

This tie down track is made from lightweight grade 6061-T6 aluminum for superior corrosion-resistance, and it has connection points along the full length of the track. This gives you the flexibility to customize your anchor point location depending on your cargo.
What's the Load Rating on This L-Track?
Due to the many variables involved in installing L-track - the fasteners used, the mounting surface, etc. - we cannot provide a blanket working load limit. The track is designed to be at least as strong as any of the compatible straps and fittings we sell to use with it, but it is up to the installer to determine that the track is properly installed to provide sufficient strength.
If you need assistance with this, consult your trailer manufacturer for installation suggestions. For more information, please refer to WSTDA T-5 section 3.4.
How Do I Install Recessed L-Track?

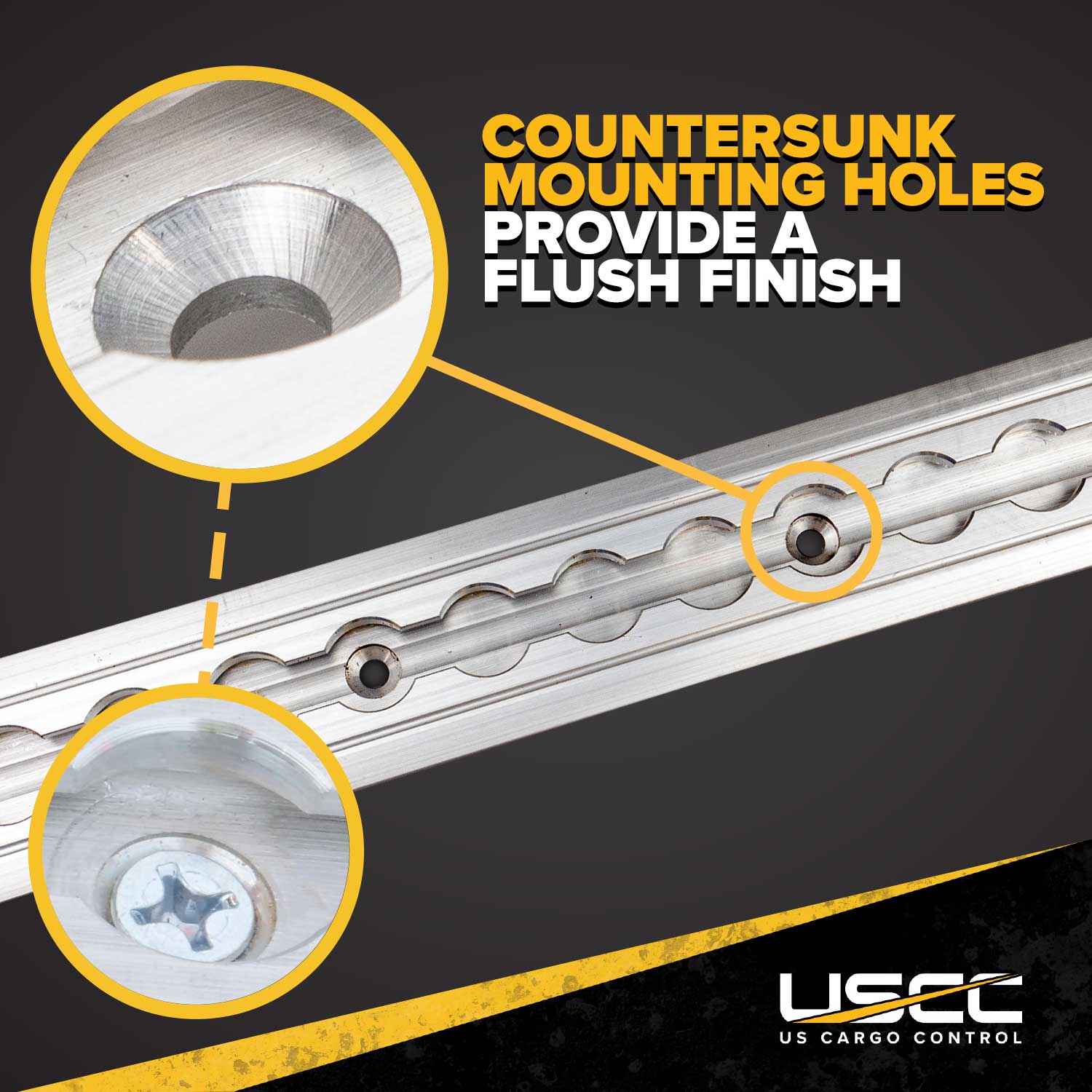

Our flanged track has pre-drilled holes that are compatible with our fastener pack, as well as many other common screws for convenient installation - 1/4", 6mm, or #12 fasteners.
For the strongest installation, we recommend bolting the fastener with a nut and washer (along with some Loctite). Wood screws and self-drilling screws can also be used, but won't be as strong.
1' Flanged L-Track Features:

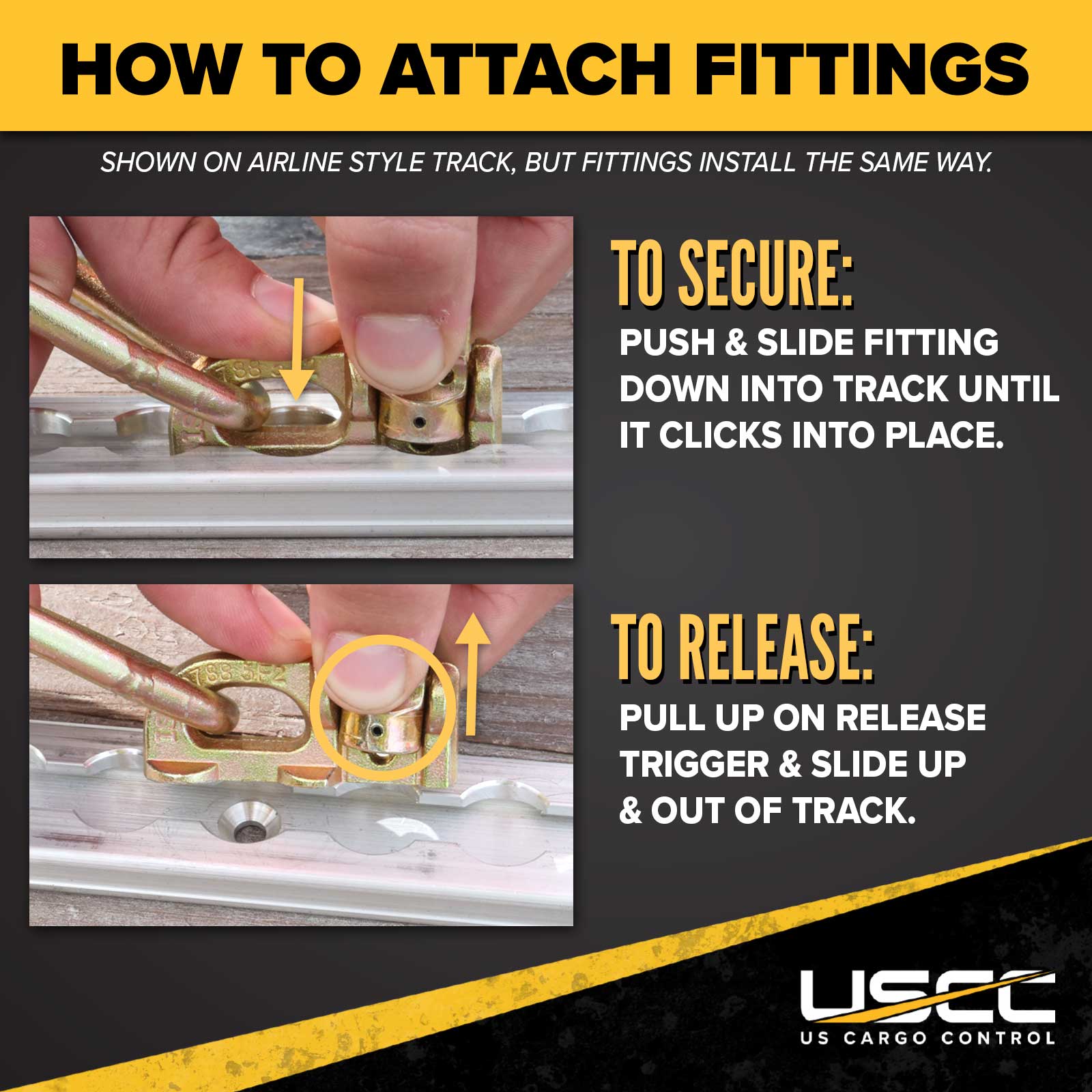

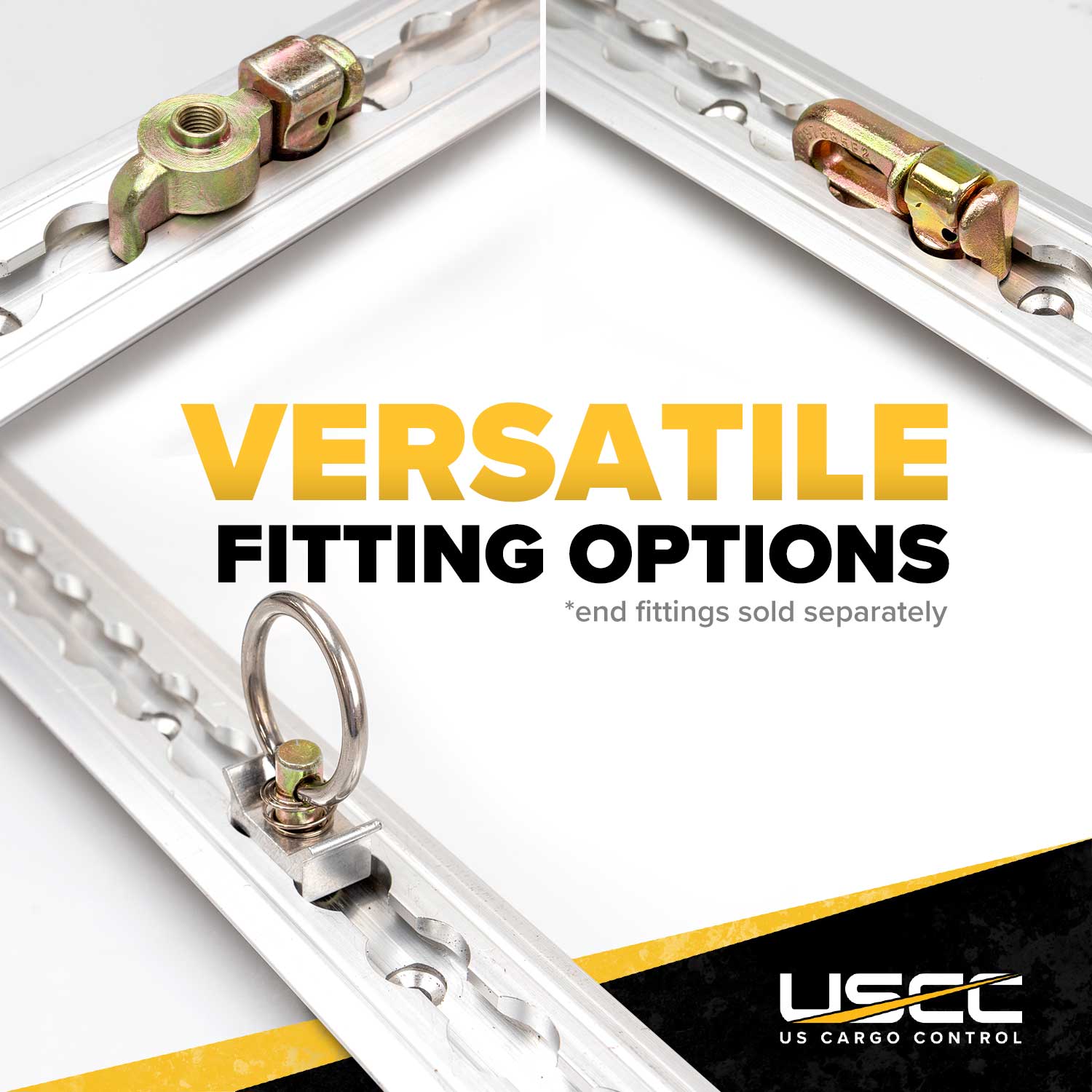

- Versatile Accessories: We carry a wide range of L-track-compatible fittings (both single and double stud) and straps so it's easy to create the tie-down system you need. The straps connect directly to the track, while the fittings will work with any standard S-hook straps you have lying around. You can even request a custom cargo net with L-track fittings.
-
Made in USA: Quality you can count on.

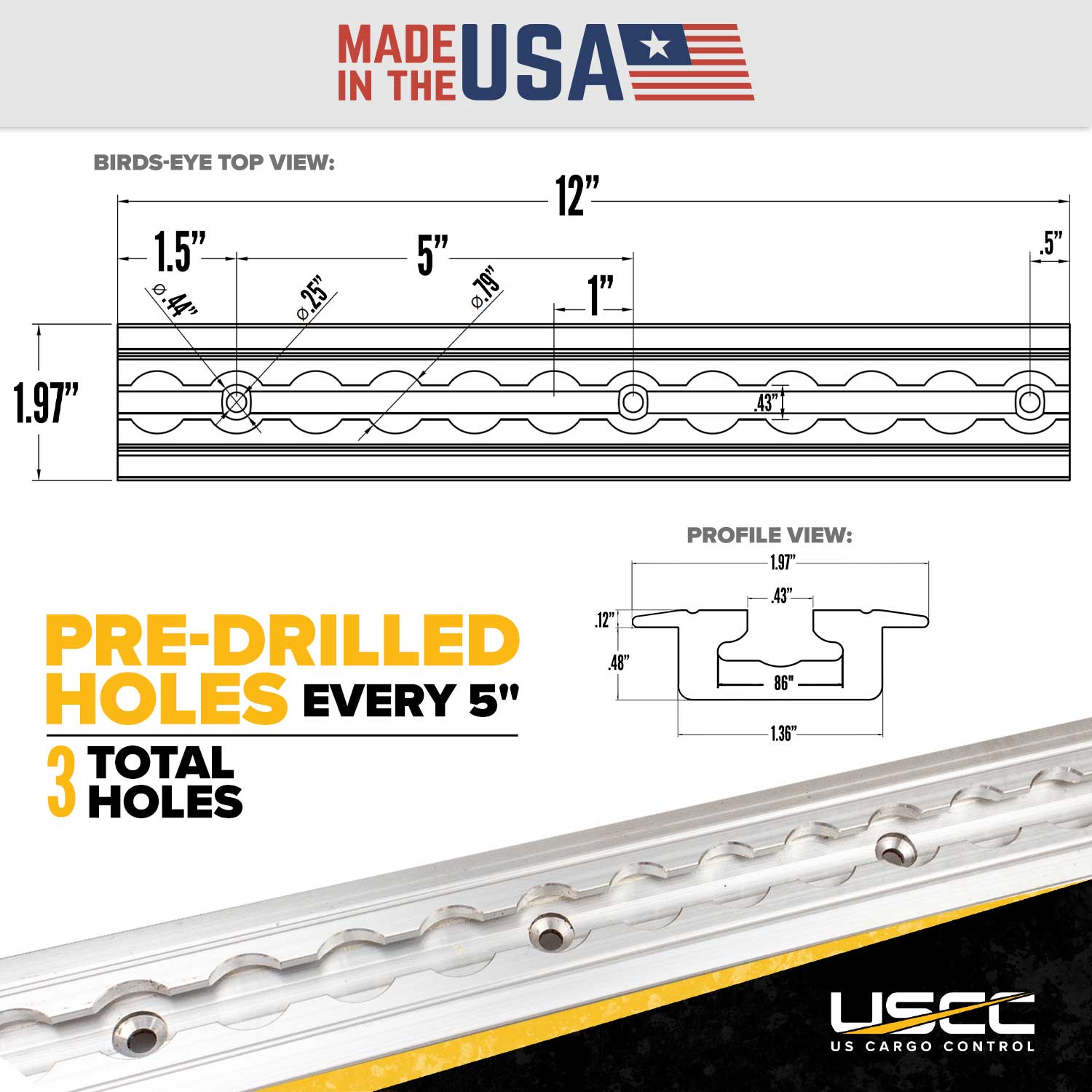

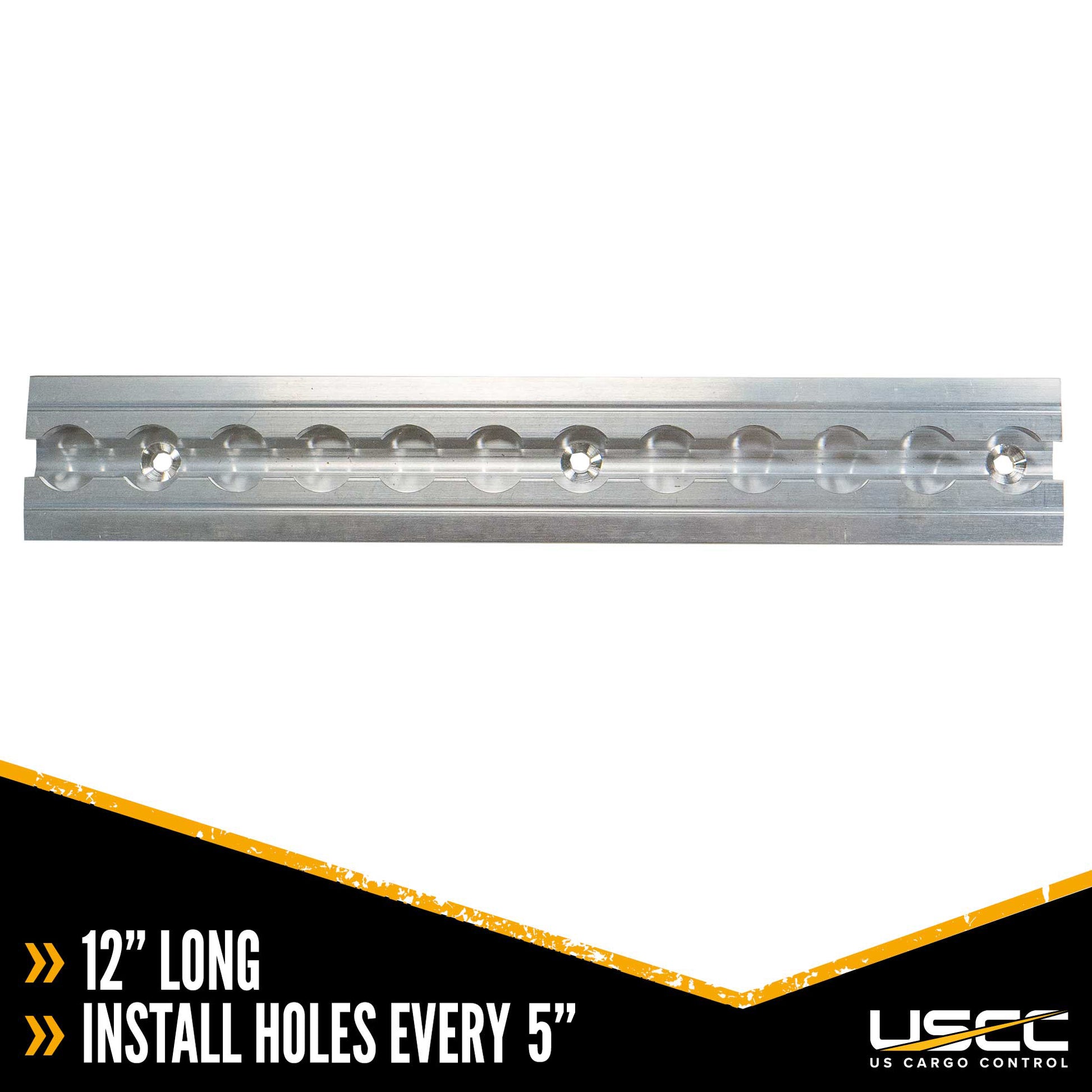

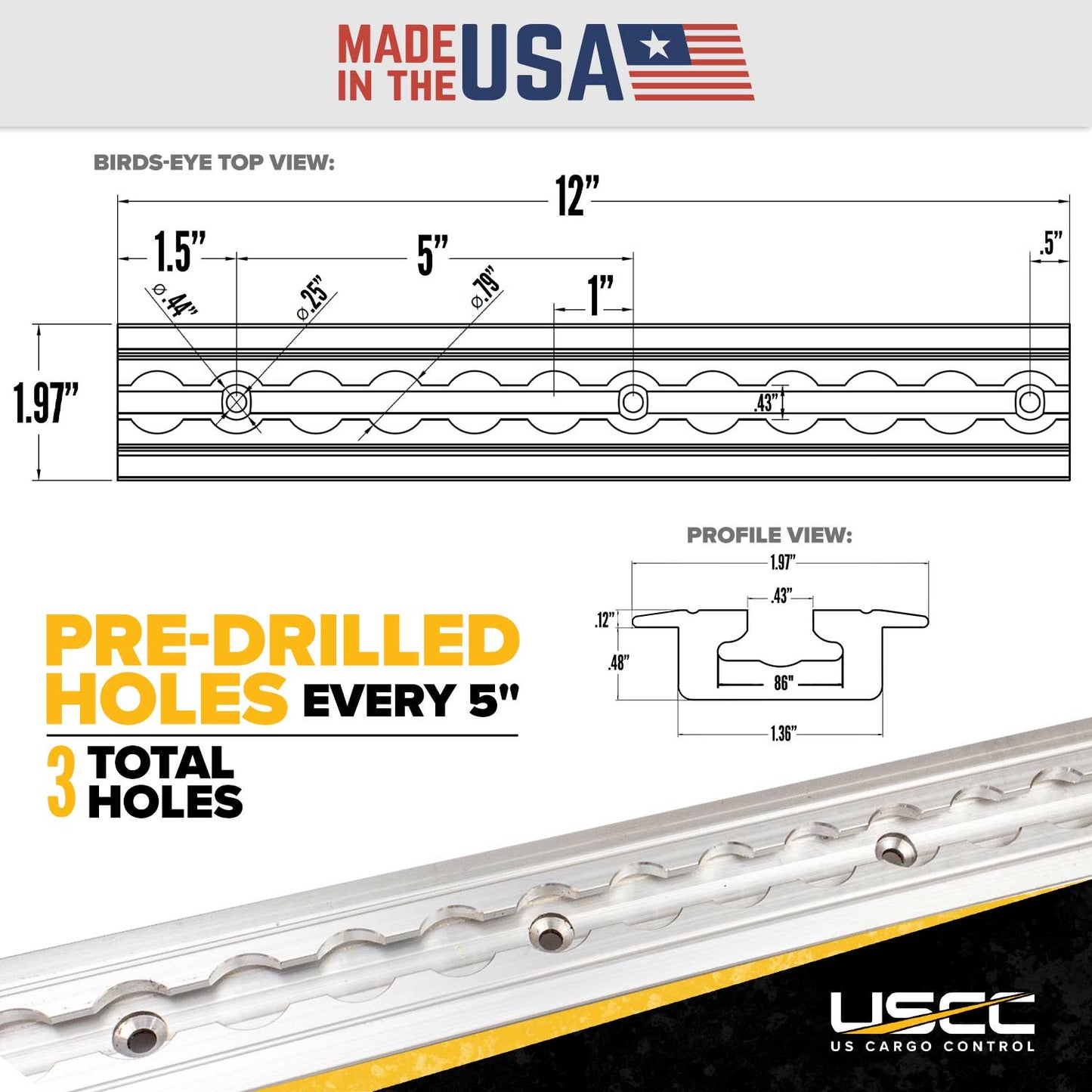

- Install Holes Every 5": 3 holes in track.
- Unpainted: The unpainted aluminum finish looks sharp, but is also perfect for custom paint jobs - take it to an autobody shop so it will match your truck!
-

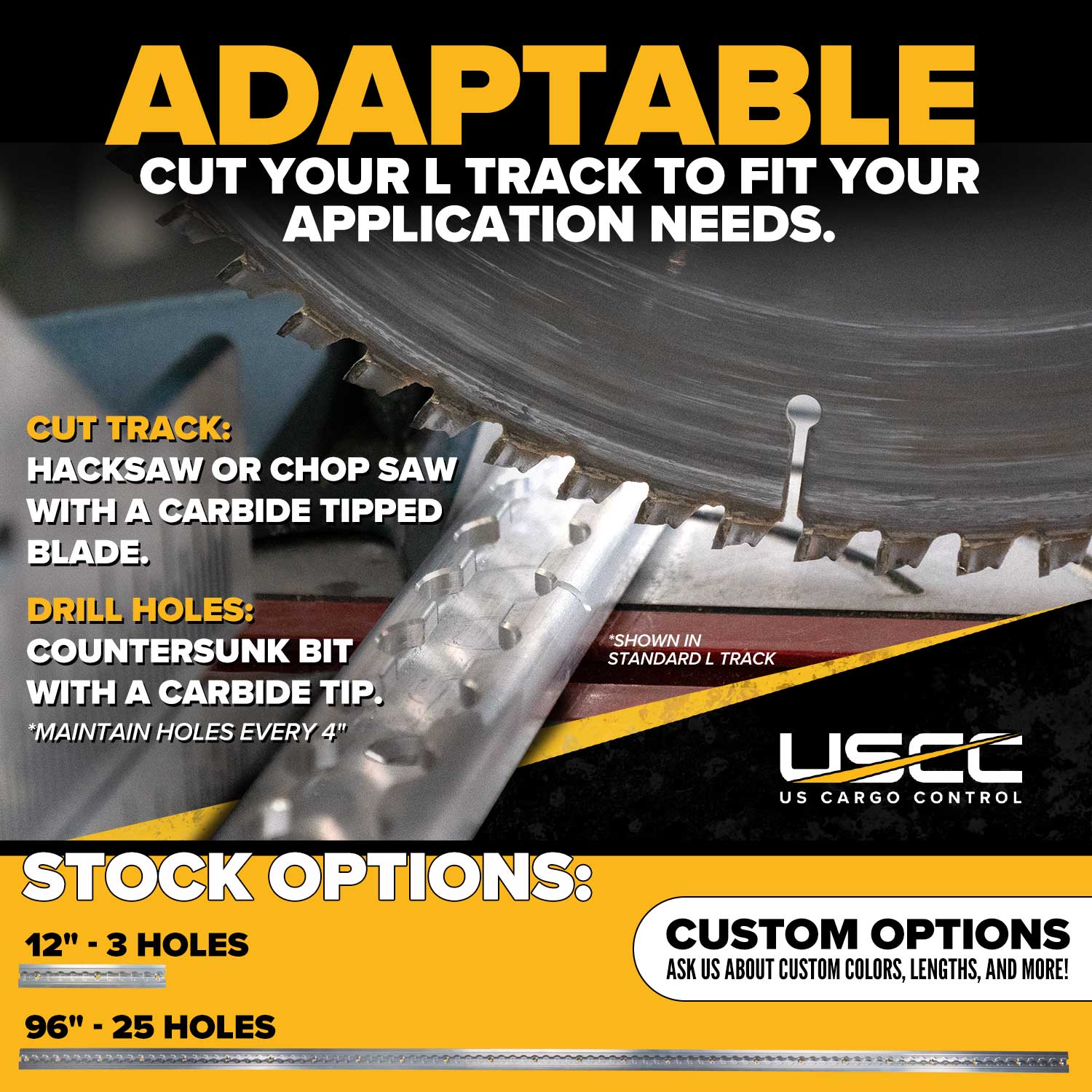

Adaptable: If the length or hole placements don't work for you, this flanged L-track can be cut or drilled. For cutting, use a hacksaw or chop saw with a carbide tip blade. For drilling, use a countersink bit.
- Easy to Install and Use: If you need help getting started, check out our How to Use and Install L-Track and L-Track Systems - video demonstrations included!
- Custom Options Available: If you are looking for a size, hole setup, or color option you don't see on our website, give us a call! We can help you find what you are looking for.
- Please Note: Our recessed L-track is designed for recreational and cargo control use; it is not certified for official wheelchair restraint use in buses, vans, and other transport vehicles.
For even more L-track system components, browse our L-track fittings and accessories and L-track straps to find everything you need to build your own custom L-track system. If you have any questions, call to speak to one of our product experts.
California Residents: WARNING
US Cargo Control - L-Track
Related Articles
Customer Reviews
Based on 4 reviews
25%
(1)
0%
(0)
50%
(2)
0%
(0)
25%
(1)
C

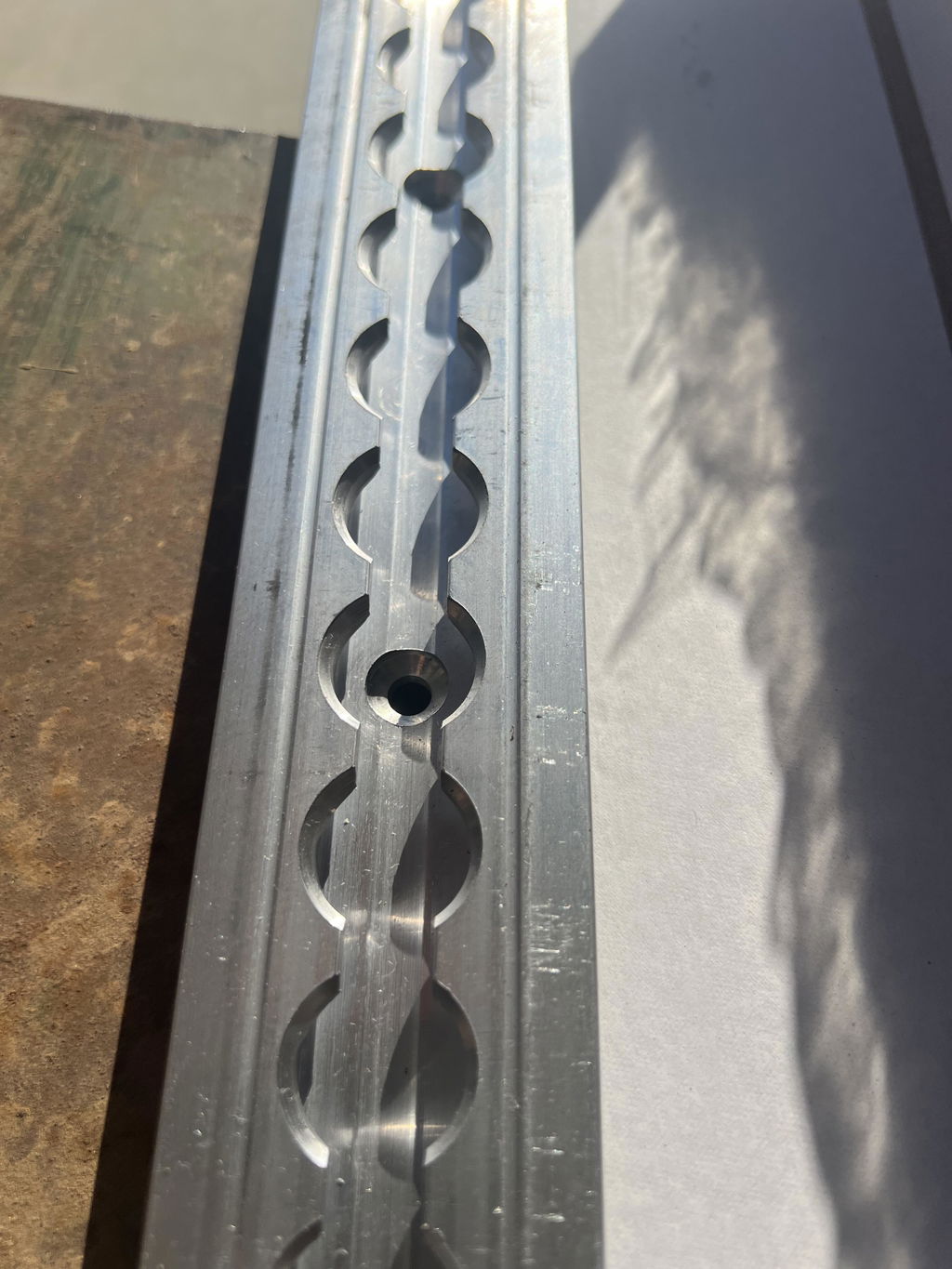

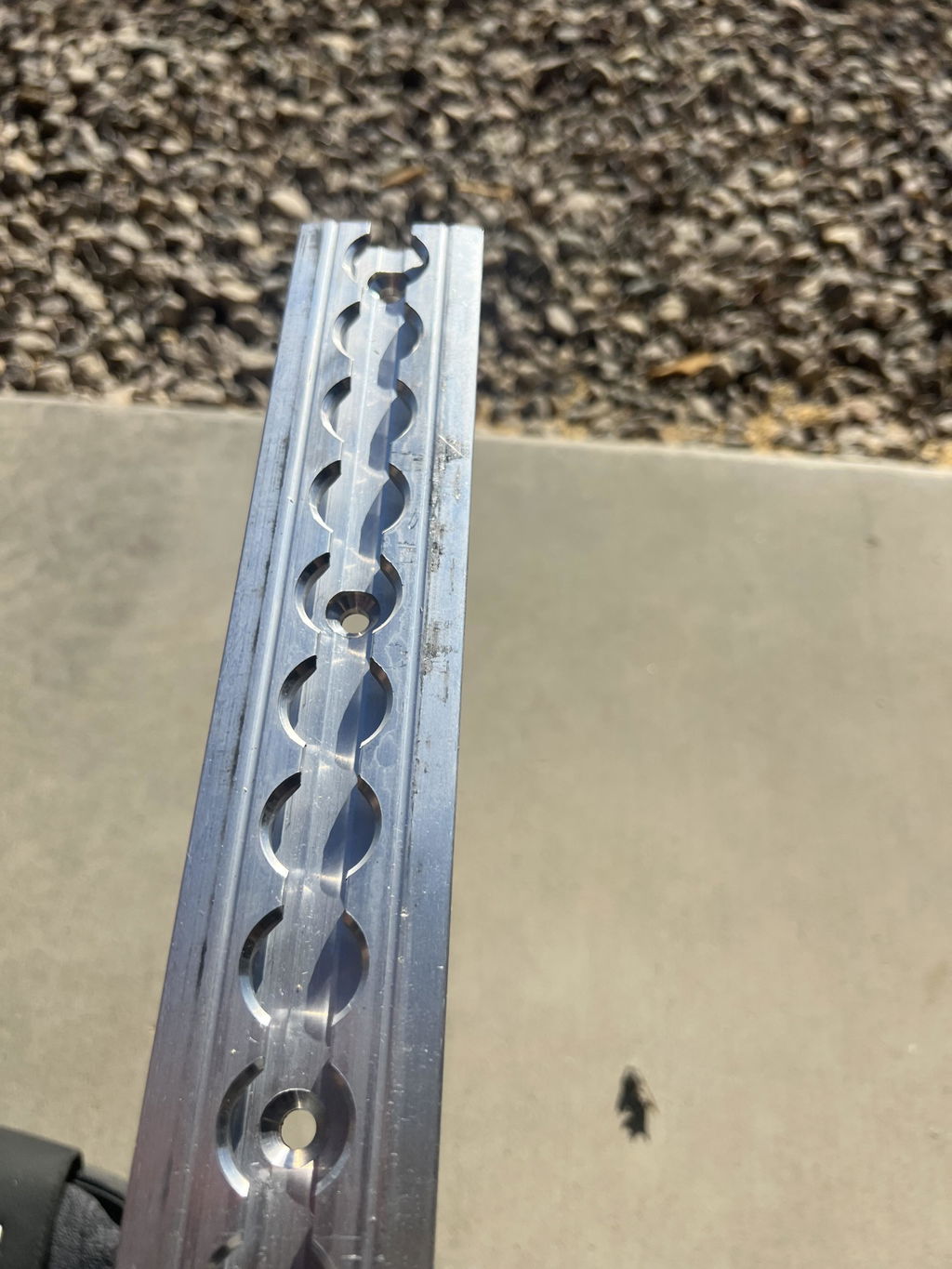

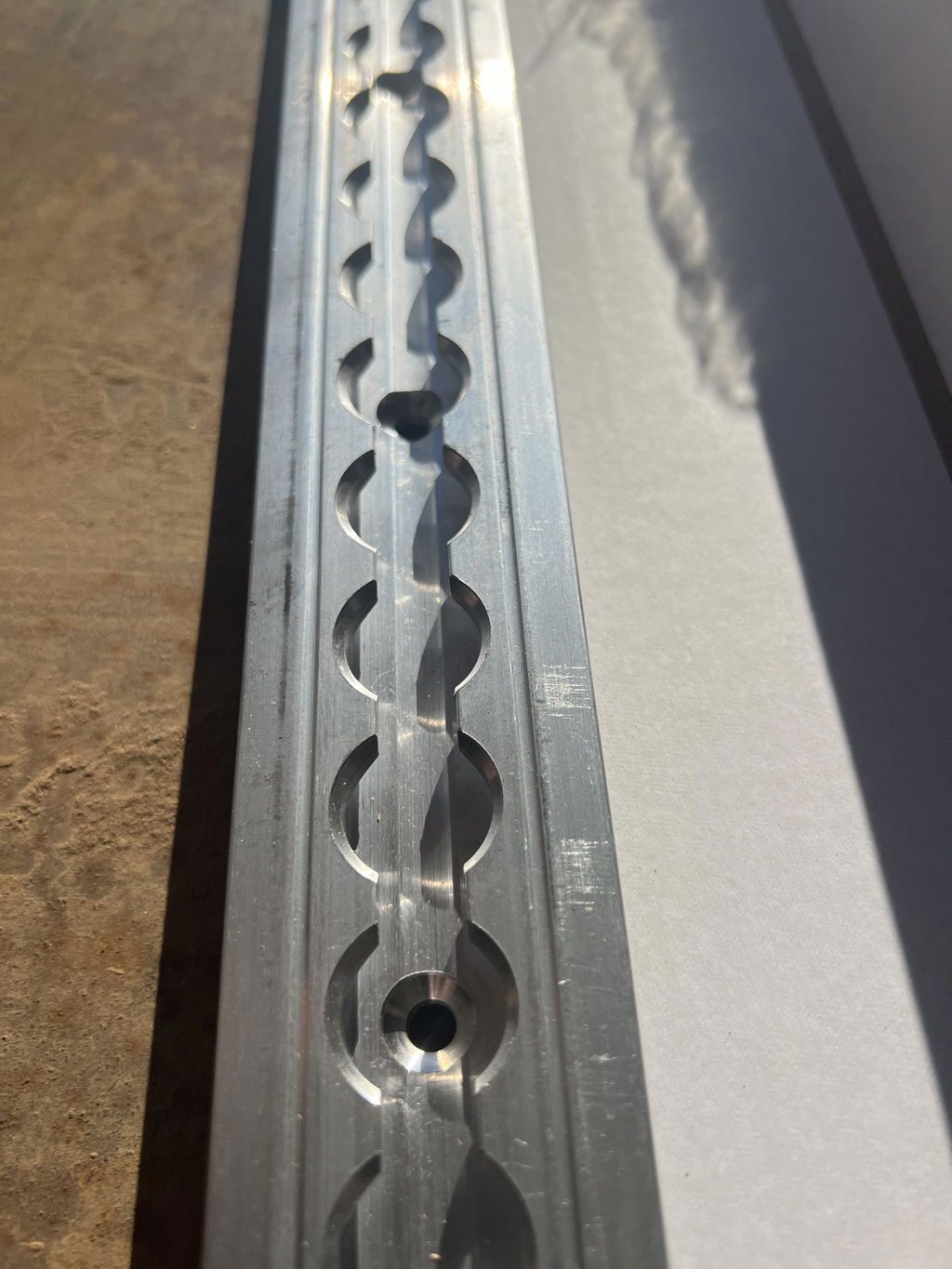

I purchased 5 tracks for us in my van build. They came in a strong package but the individual tracks were not individually sperated. They became heavily scratched. I contacted customer service and sent pictures. I was told that some scratches always occur. If they replace them there will be scratches. I was not willing to have them replaced with even lightly scratched tracks as this is to be used in a van in high visibilty area. us Cargo gave me a 50% which I found acceptable as I can still use the tracks, just not in the living area. I guess for cargo trailers and trucks minor scratches are ok. I feel not so for an up fitted Van.
Thanks for acknowledging the blame and providing the refund
Camilo
Camilo,
Thank you for taking the time to write a review on our Flanged Airline Tracks! We are so sorry to hear that these came heavily scratched. This issue has been reported to our quality team so they can begin an investigation into this issue and the current packaging method for these tracks. We appreciate you reporting this and allowing our team to work with you on a resolution! If you wish to discuss this further or have any questions, please give our team a call at 866-444-9990 option 2 or email us at customerservice@uscargocontrol.com.
J
Not the first customer to state this, all these L tracks are not brand new condition. You can get black L track from VanEssential for around the same price that are just as strong and powder coated. I am disappointed in my numerous attempts to return 1 96" L track without success. For those who buy this make sure you take everything out of the package and report anything before 30 days because they are not accommodating.
Thank you for your feedback on our Flanged Airline Tracks! We are sorry to hear about your dissatisfaction with ordering from us. We do ask that all customers contact us about defective or damaged products right away so our customer service team can work on a resolution. For more on our policies regarding returns and defective items, please see the following link: https://www.uscargocontrol.com/pages/shipping-returns. Our team will also be reaching out to you directly so we can further investigate this issue and work with you on a solution. We appreciate you bringing this issue to our attention!
C

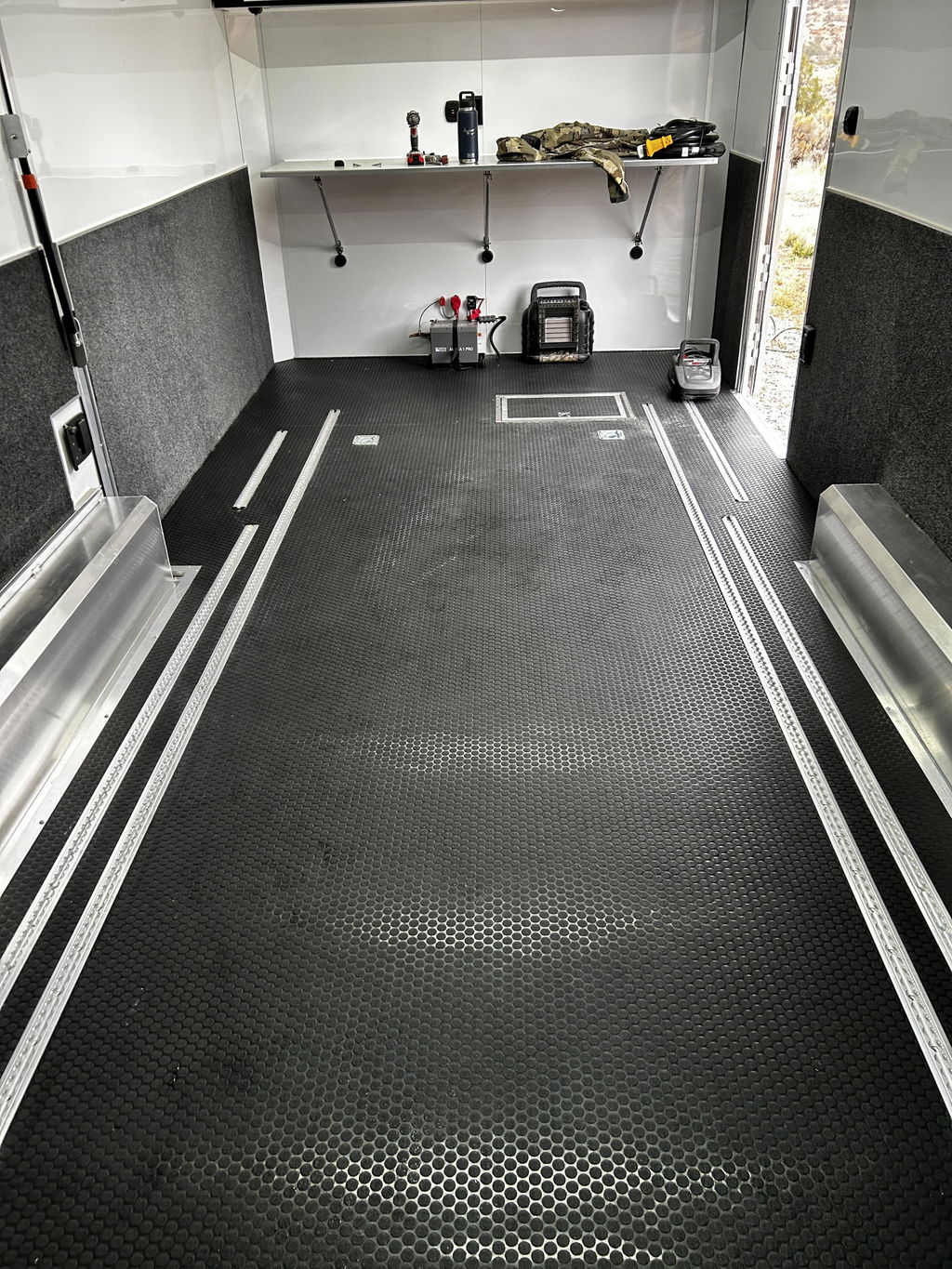

Needed a inside mount that fit flush in the walls on a Alumna Trailer I used 1/4x20x 1in stainless countersunk screws with stainless nylon locking nuts works great
-
