1" X 10' Eye & Eye Sentry Lift HMPE Web Sling | Vertical: 3,000 lbs. - 1 Ply
1" X 10' Eye & Eye Sentry Lift HMPE Web Sling | Vertical: 3,000 lbs. - 1 Ply!
1" X 10' Eye & Eye Sentry Lift HMPE Web Sling | Vertical: 3,000 lbs. - 1 Ply
Lengths:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Sentry Lift Slings
Build Your SlingPayment Options
Specifications
Basket Hitch (45°): 4,242 lbs.

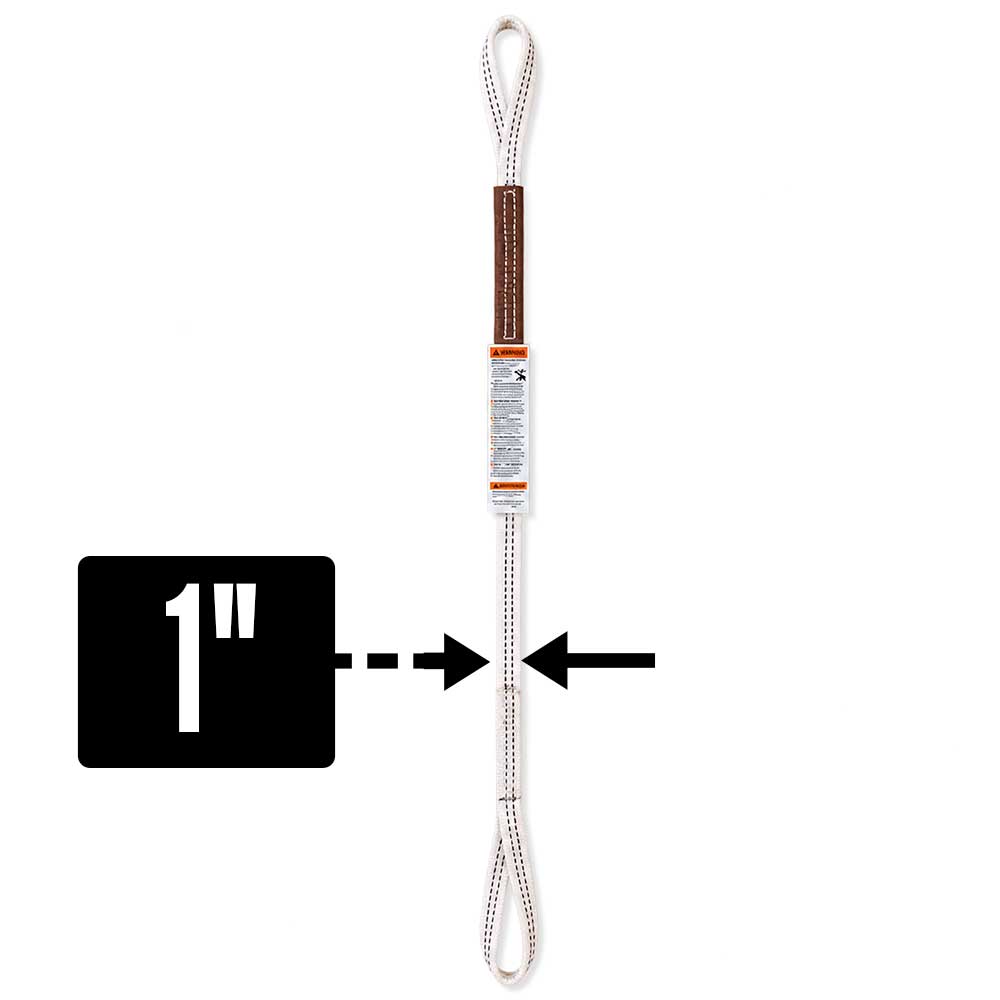

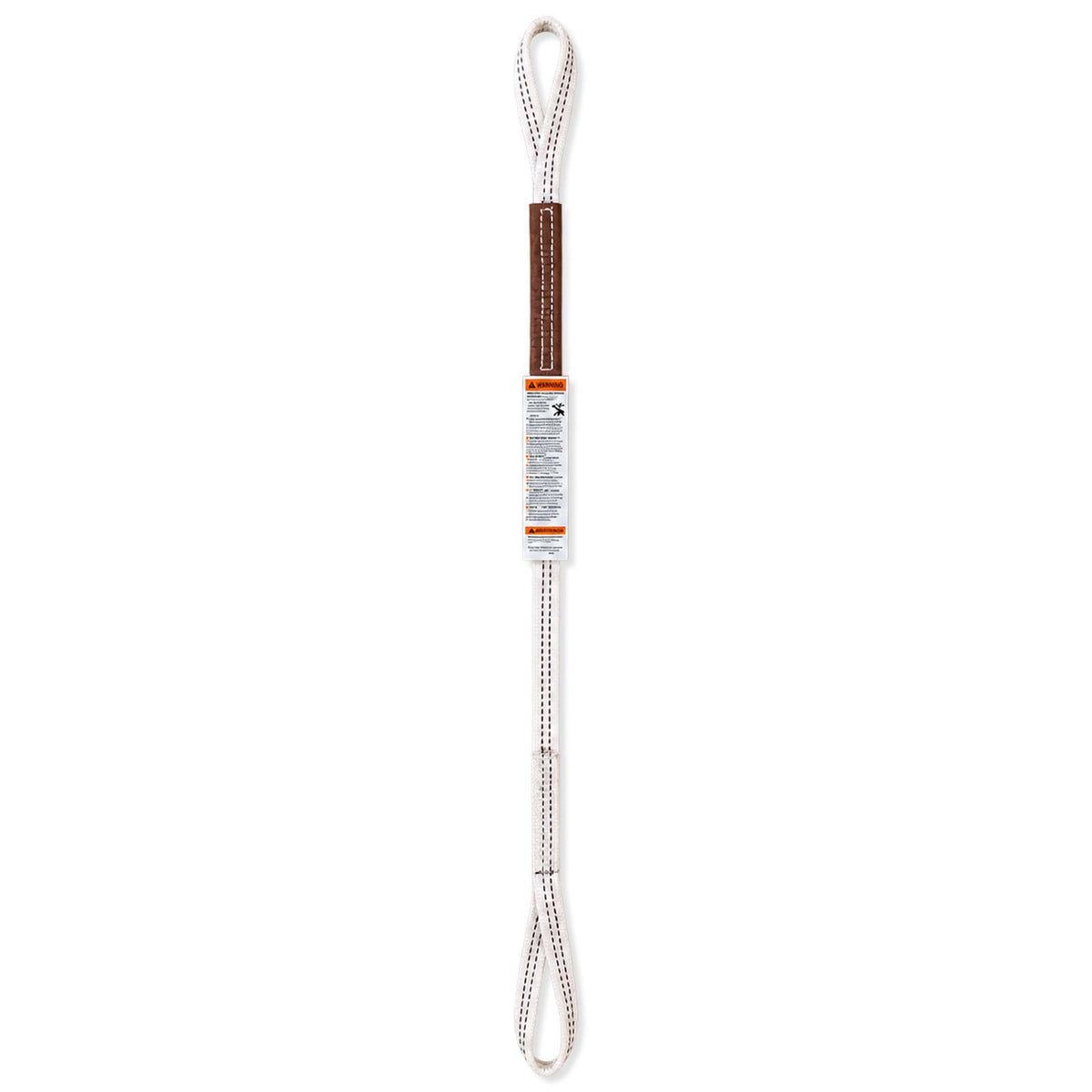

1" X 10' Eye & Eye Sentry Lift® HMPE Web Slings
This 1" x 10' Sentry Lift® Eye & Eye sling is built from HMPE (High Modulus Polyethylene) webbing for rigging applications that demand more resistance to cutting and abrasion than standard nylon or polyester webbing can offer. It's furnished with Half Twist No Taper (HT) eyes for easy, repeatable hook and shackle connections, and is rated for choker, vertical, and basket hitch use — see the spec chart above for exact working load limits by size.

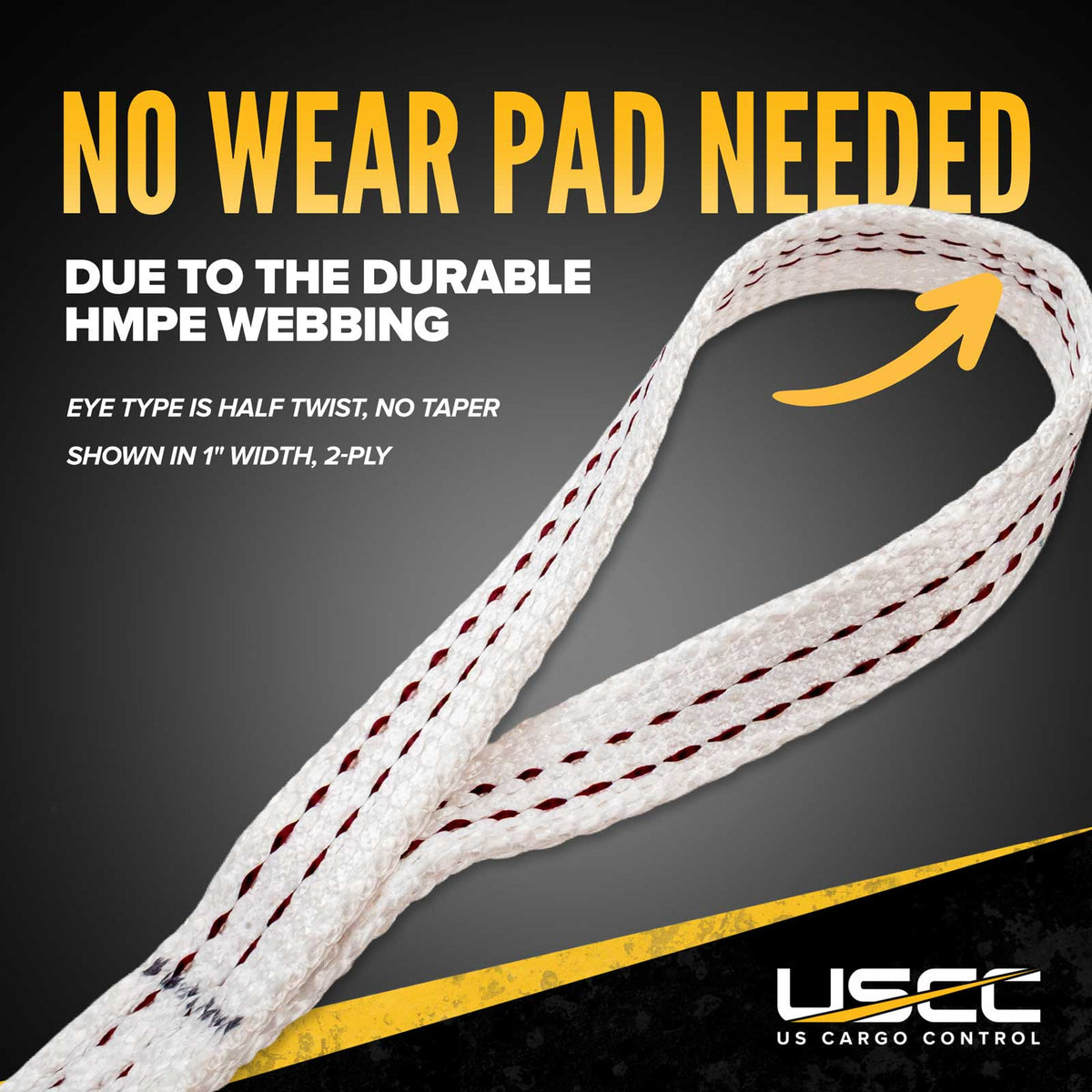

Because Sentry Lift® HMPE webbing resists cut and abrasion at the connection points, no additional eye protection is needed for this sling in normal use, unlike most nylon or polyester eye & eye slings, which tend to show their earliest wear right at the eyes.
Sentry Lift® HMPE Construction
The molecular structure of Sentry Lift® HMPE webbing is designed to work similarly to chainmail, distributing force across overlapping fibers so the sling dissipates stress instead of concentrating it at a single point of contact.
Sentry Lift® HMPE Advantages Over Nylon & Polyester Webbing
- Up to 24x greater abrasion resistance than conventional nylon or polyester webbing
- Up to 7x higher cut resistance
- Up to 80% lower elongation under load
- Tensile strength exceeding 15,000 lbs. per inch of webbing width
- No additional eye protection needed at the eyes, unlike most nylon or polyester eye & eye slings

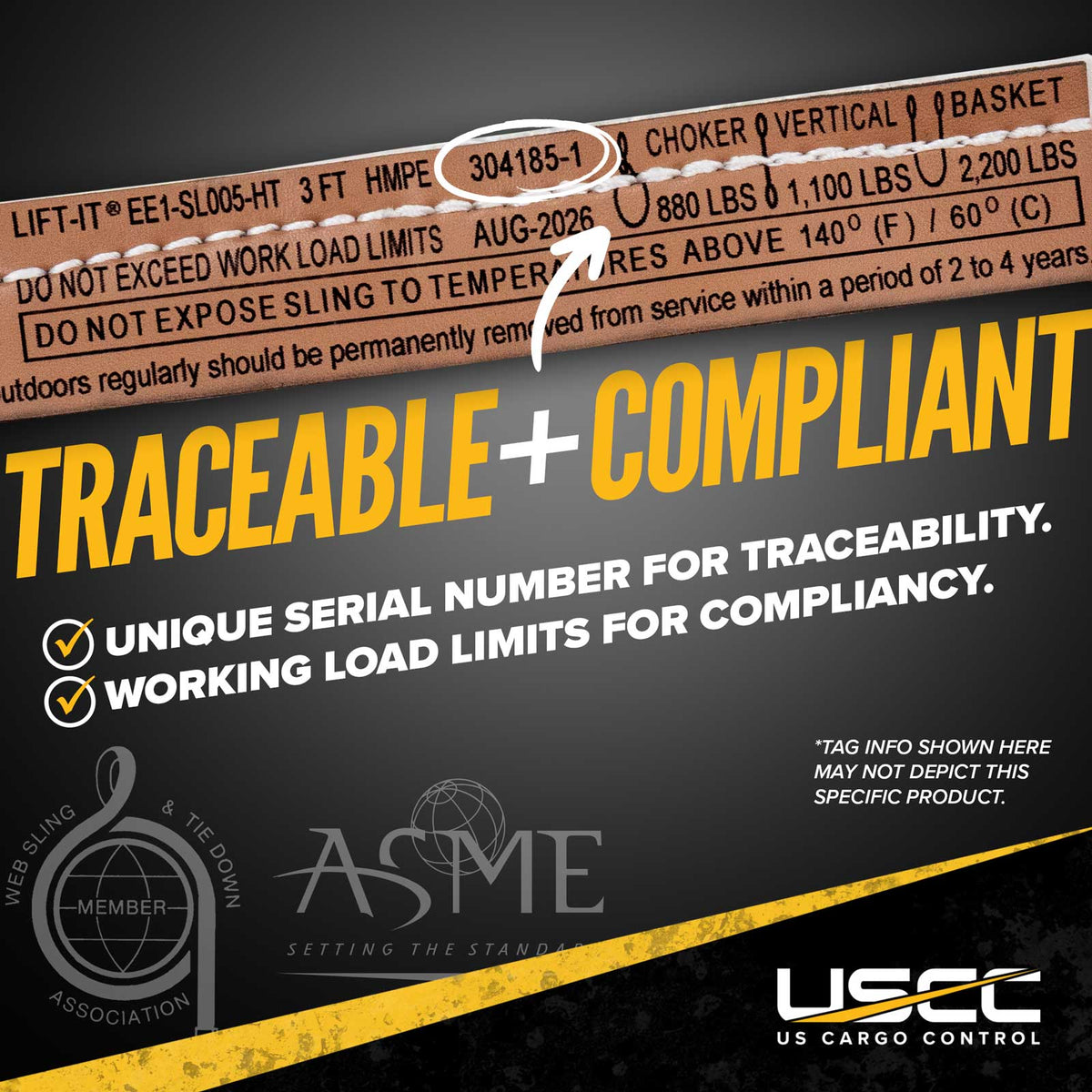

Because Sentry Lift® HMPE webbing carries a higher tensile strength than conventional nylon or polyester webbing, the same sling dimensions can be rated for greater capacity, or a smaller, lighter sling can match a comparable working load limit — either way, that can mean real cost savings on a dollars-per-WLL basis plus a longer service life. Each Sentry Lift® sling also carries a permanent, sewn-in tag identifying its working load limits for quick reference during inspection.
Eye & Eye Connection Points
Tapered eyes are automatically furnished on Sentry Lift® Eye & Eye slings 2" wide and over; slings under 2" wide are furnished with Half Twist eyes and no taper unless otherwise specified. This sling supports choker, vertical, and basket hitches.
Browse our sling protection accessories, including cut-resistant sleeves and wear pads, for high-contact points like sharp load edges and corners, or complete your rigging setup with a hoist hook.
Need a size or configuration outside our standard catalog? Request a custom Sentry Lift® sling quote.
Eye & Eye Sentry Lift® Sling Specifications:
- Width: 1"
- Length: 10'
- Plies: 1
- Meets ASME B30.9 standards
- Design factor: 5:1
- Maximum temperature: 140°F (60°C)
Add the Essentials
Complete your order with these essentials, compatible with:
1" X 10' Eye & Eye Sentry Lift HMPE Web Sling | Vertical: 3,000 lbs. - 1 Ply
My Cart:
-
Strength Beyond Standard Webbing
Built with high-performance HMPE webbing for demanding rigging applications, Sentry Lift® slings offer significantly greater cut and abrasion resistance than conventional nylon or polyester webbing. With up to 24x greater abrasion resistance, 7x greater cut resistance, and 80% lower elongation under load, it delivers exceptional strength and durability without unnecessary bulk.
-
Your Specs. Your Sling.
Sentry Lift® slings can be customized to match the specific demands of your lift. Choose size, capacity, configuration, and other features your application requires. Submit your specs through our custom request form, and our lifting experts can help determine the right configuration for the job.
-
Built to Meet Industry Standards
Lift with confidence knowing Sentry Lift lifting slings meet rigorous industry requirements, including meeting or exceeding all ASME B30.9 requirements. These slings are built for safe, reliable lifting.
-
