Specifications
Basket Hitch (45°): 2,262 lbs.

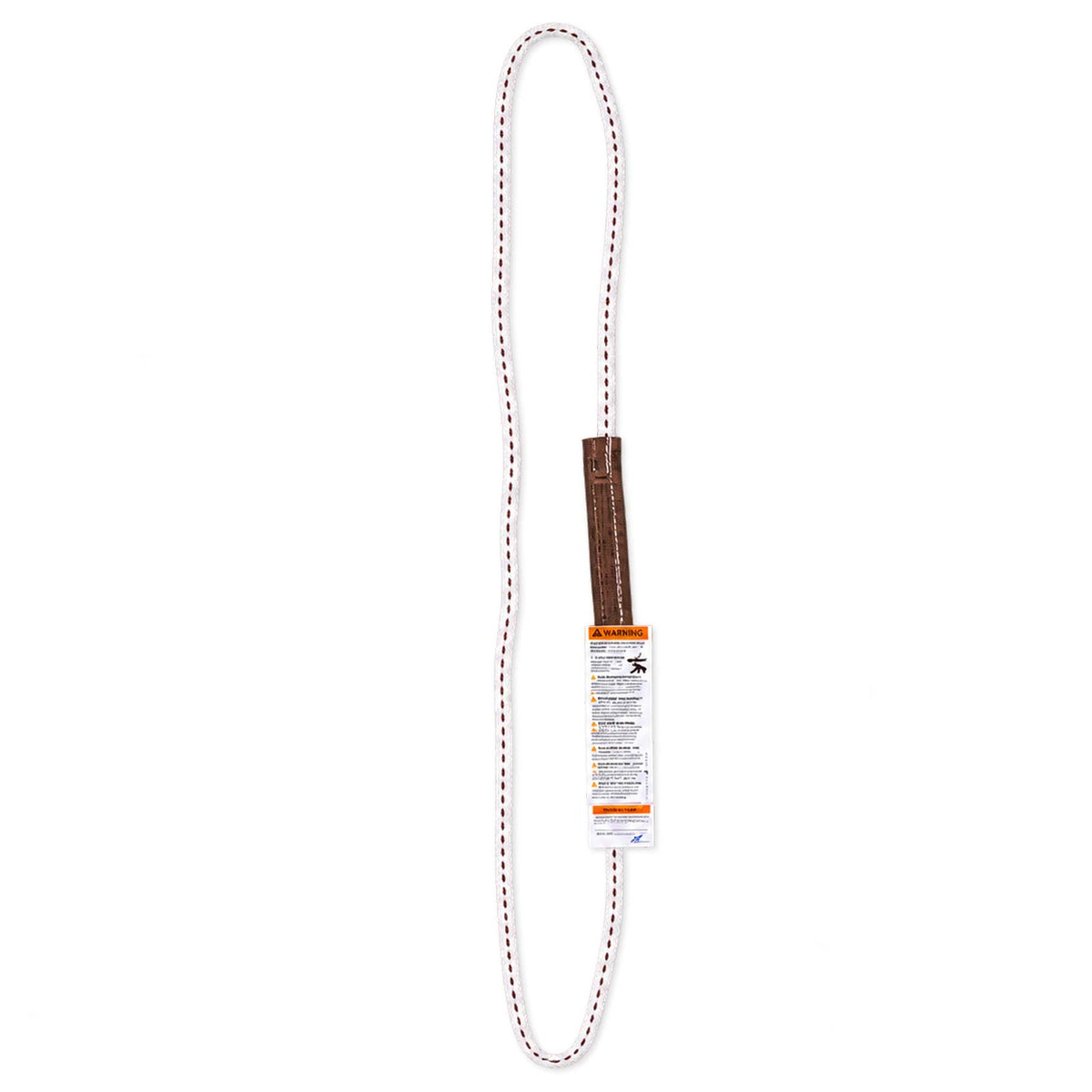

1/2" X 1' Endless Sentry Lift® HMPE Web Slings
This 1/2" x 1' Sentry Lift® Endless sling is built from HMPE (High Modulus Polyethylene) webbing for rigging applications that demand more resistance to cutting and abrasion than standard nylon or polyester webbing can offer. It's rated for choker, vertical, and basket hitch use — see the spec chart above for exact working load limits by size.
Because the sling forms a continuous loop, connection and load contact points can be rotated between uses, helping distribute wear more evenly across the sling body instead of concentrating it in one spot. The sling body can also be spread apart during use to span the applied contact force over a wider area of the load, reducing contact pressure.
Sentry Lift® HMPE Construction
The molecular structure of Sentry Lift® HMPE webbing is designed to work similarly to chainmail, distributing force across overlapping fibers so the sling dissipates stress instead of concentrating it at a single point of contact.
Sentry Lift® HMPE Advantages Over Nylon & Polyester Webbing
- Up to 24x greater abrasion resistance than conventional nylon or polyester webbing
- Up to 7x higher cut resistance
- Up to 80% lower elongation under load
- Tensile strength exceeding 15,000 lbs. per inch of webbing width
Because Sentry Lift® HMPE webbing carries a higher tensile strength than conventional nylon or polyester webbing, the same sling dimensions can be rated for greater capacity, or a smaller, lighter sling can match a comparable working load limit — either way, that can mean real cost savings on a dollars-per-WLL basis plus a longer service life. Each Sentry Lift® sling also carries a permanent, sewn-in tag identifying its working load limits for quick reference during inspection.
Built for Versatile Rigging
This sling supports choker, vertical, and basket hitches.
Browse our sling protection accessories, including cut-resistant sleeves and wear pads, for high-contact points like sharp load edges and corners, or complete your rigging setup with a hoist hook.
Need a size or configuration outside our standard catalog? Request a custom Sentry Lift® sling quote.
Endless Sentry Lift® Sling Specifications:
- Width: 1/2"
- Length: 1'
- Plies: 1
- Meets ASME B30.9 standards
- Design factor: 5:1
- Maximum temperature: 140°F (60°C)
Add the Essentials
Complete your order with these essentials, compatible with:
1/2" X 1' Endless Sentry Lift HMPE Web Sling | Vertical: 1,600 lbs. - 1 Ply
My Cart:
-
Strength Beyond Standard Webbing
Built with high-performance HMPE webbing for demanding rigging applications, Sentry Lift® slings offer significantly greater cut and abrasion resistance than conventional nylon or polyester webbing. With up to 24x greater abrasion resistance, 7x greater cut resistance, and 80% lower elongation under load, it delivers exceptional strength and durability without unnecessary bulk.
-
Your Specs. Your Sling.
Sentry Lift® slings can be customized to match the specific demands of your lift. Choose size, capacity, configuration, and other features your application requires. Submit your specs through our custom request form, and our lifting experts can help determine the right configuration for the job.
-
Built to Meet Industry Standards
Lift with confidence knowing Sentry Lift lifting slings meet rigorous industry requirements, including meeting or exceeding all ASME B30.9 requirements. These slings are built for safe, reliable lifting.
-
