E-Track Load Bars vs. Shoring Beams: What's the Difference?

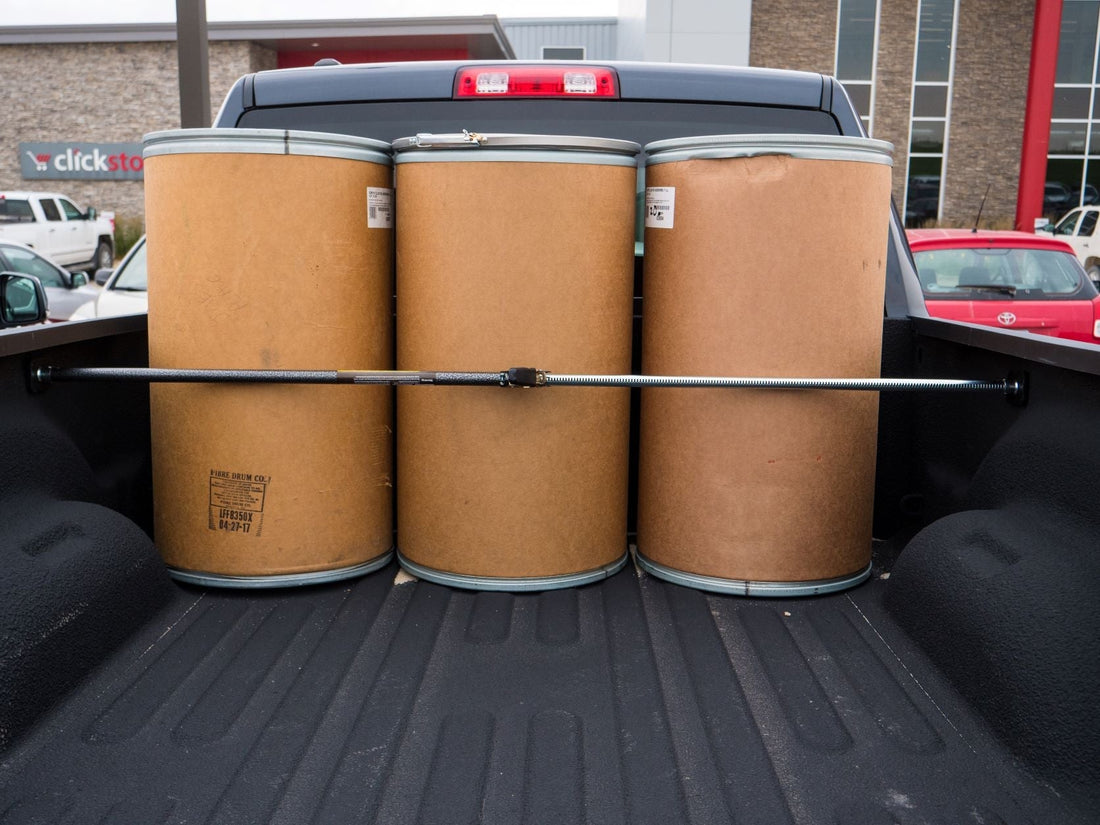

What Are Load Bars?

Our cargo bar products are made from heavy-duty steel and have a ratcheting body that makes for easy adjustments to the length and tension of the lock bar using the designed handle. They also have non-skid cargo bar foot pads that grip onto the side walls and prevent slipping while under tension.

Types of Load Bars

U.S. Cargo Control carries two models of load bars that cater to your specific needs:

• Light-Duty Ratcheting Cargo Bar
• Commercial-Grade Adjustable Cargo Bar


What Are Shoring Beams?

Shoring beams, also known as decking beams or E-track load bars, are strong and adjustable lock bars that, similar to cargo bars, work to safely secure items inside an enclosed trailer and prevent shifting during transportation. These lock bars are also popularly used to create “decking” - shelves created by securing plywood to two or more shoring beams to utilize vertical space.

Both ends of each shoring beam have E-track fittings that slide out of the metal frame and attach to an E-track rail within an enclosed trailer. These ends adjust the length of the shoring beam from 92” to 103”. Using the release mechanism, these shoring beams can be connected and disconnected from the E-track rail with ease.

Types of Shoring Beams

U.S. Cargo Control offers both steel decking beams and aluminum decking beams for a total of 6 different kinds of shoring beams, listed below:

• 85” Aluminum Shoring Beam with Patented Locking Ends (Extends to 96”)
• 86” Adjustable Aluminum Shoring Beam (Extends to 97”)
• 92” Adjustable Aluminum Shoring Beam (Extends to 103”)
• 92” Adjustable Steel Shoring Beam (Extends to 103”)
• 93” Aluminum Shoring Beam with Flat Latch Release (Extends to 103”)
• 93” Ancra Aluminum Shoring Beam with Patented Locking Ends (Extends to 103”)

How Are Load Lock Bars and Shoring Beams Different?

Both lock bars shore up cargo and prevent damage within the trailer or vehicle. But there are a couple of differences that make these products applicable for different cargo transport situations.

• Space Usage
  Shoring beams are designed to handle heavier cargo loads and create additional storage space through decking. Cargo bars cannot create decks for storing cargo and, therefore, are not the best choice if you’re looking to optimize vertical space within the trailer or vehicle.


• Attachment
  Both lock bars adjust to the appropriate length of the enclosed trailer. However, shoring beams require attachment to E-track or another track that matches the end fitting of the beam. Cargo bars do not require such a connection and only rely on the tension within the confines of the trailer walls.


• Working Load Limits
  Because cargo bars rely on tension fit, they do not have a working load limit. If you have heavier or more sensitive cargo that may benefit from or require a working load rating, then shoring beams are more appropriate for the job.

Which Load Bar is Right for Me?

Before deciding on which load bar – cargo bar or shoring beam – you need, ask yourself what you will be hauling and how tall and heavy these items are altogether. Also consider whether the trailer has an E-track railing or not, since shoring beams require a track connection to install.

Cargo Bars work best when:

• You need to secure cargo anywhere within the trailer or vehicle.
• You want a lock bar with more adjustability in length.
• Tall items need to stay in place within an enclosed trailer.

Shoring Beams work best when:

• You are hauling heavier or more sensitive cargo that requires heavy-duty beams for security.
• The enclosed trailer has E-tracks for cargo securement.
• You’re looking to create a deck for optimal cargo storage.

Safety Measures for Load Bars and Shoring Beams

We care about the safety of our customers at U.S. Cargo Control. Regardless of which load bar you prefer to use, we recommend taking the following precautions when securing cargo in an enclosed trailer or pickup truck:

• Use a cargo bar holder to ensure they stay in place when the trailer is moving.
• Always wear gloves when handling heavy cargo or attaching/detaching shoring beams to protect your fingers.
• Abide by the working load limits of shoring beams – do not exceed these limits.
• Don't exert too much pressure on the load bars; you could cause damage or injury to yourself or the trailer.
• After arriving at your destination, be cautious when opening trailer doors or gates. Open one door at a time to ensure that heavy cargo won’t fall out on top of you.

REMINDER: The Department of Transportation (DOT) requires that all cargo loads be properly secured during transportation. It is illegal to transport improperly secured cargo.

Other Solutions & Accessories

U.S. Cargo Control offers alternative solutions to securing cargo within enclosed trailers, vehicles, or other modes of transportation.

Wood Beam Socket for E-Track
Also known as a wood end socket, this product lets you create an inexpensive shoring beam using a simple 2x4. Cut the wood to the desired length, fit it into the socket, and clip the ends to the E-track bracket within the trailer.

E-Track Straps

You can also use E-track tie-down straps for trailers, cargo vans, moving vans, or other vehicles that constrain a wide variety of cargo and equipment in any direction necessary. Our E-track strap options work for any cargo securement that involves using E-track brackets. Learn more about the differences between ratchet straps and cam buckle straps to see which one is right for you.
