SKU: LSSSEB34X18

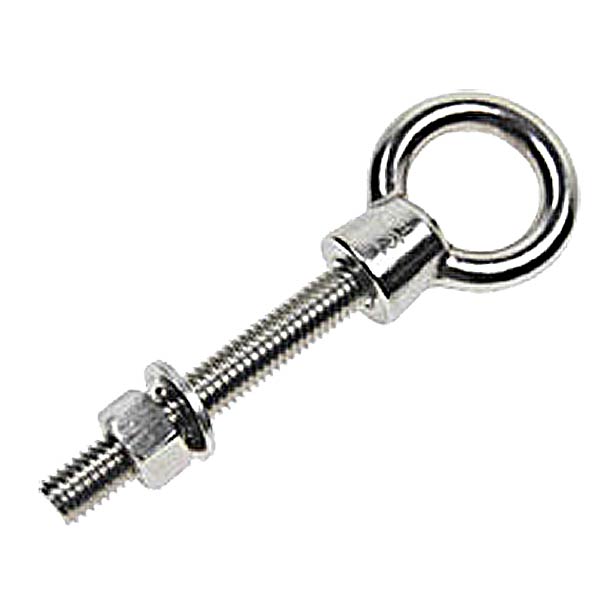

Shoulder Eye Bolts - Stainless Steel Type 316 - Long - 3/4" x 18"
Shoulder Eye Bolts - Stainless Steel Type 316 - Long - 3/4" x 18"!
SKU: LSSSEB34X18
$132.00
Get 10+
$128.04/ea
Get 25+
$124.08/ea
Get 50+
$118.80/ea
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 18,800 lbs.
Diameter: 3/4"
Grade: 316 Stainless Steel
Working load limit: 4,700 lbs.
Brand part number: 307S-A-20450
Product weight: 2.7 lbs.
Safety factor: 4:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Description
These eyebolts with shoulders are made of type 316 precision cast stainless steel, which is often used in marine applications for its increased resistance to chloride corrosion. However, their strength and corrosion protection also makes them desirable for a wide range of environments. Shoulder eye bolts can be used for either straight line or angular pulls. Don't forget to check out our selection of rigging and wire rope hardware, including shackles and turnbuckles.
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
Includes eye bolt, nut and washer.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
