description
Our Grade 120 chain from pewag is 50% stronger than traditional grade 80 chain, but lighter in weight.

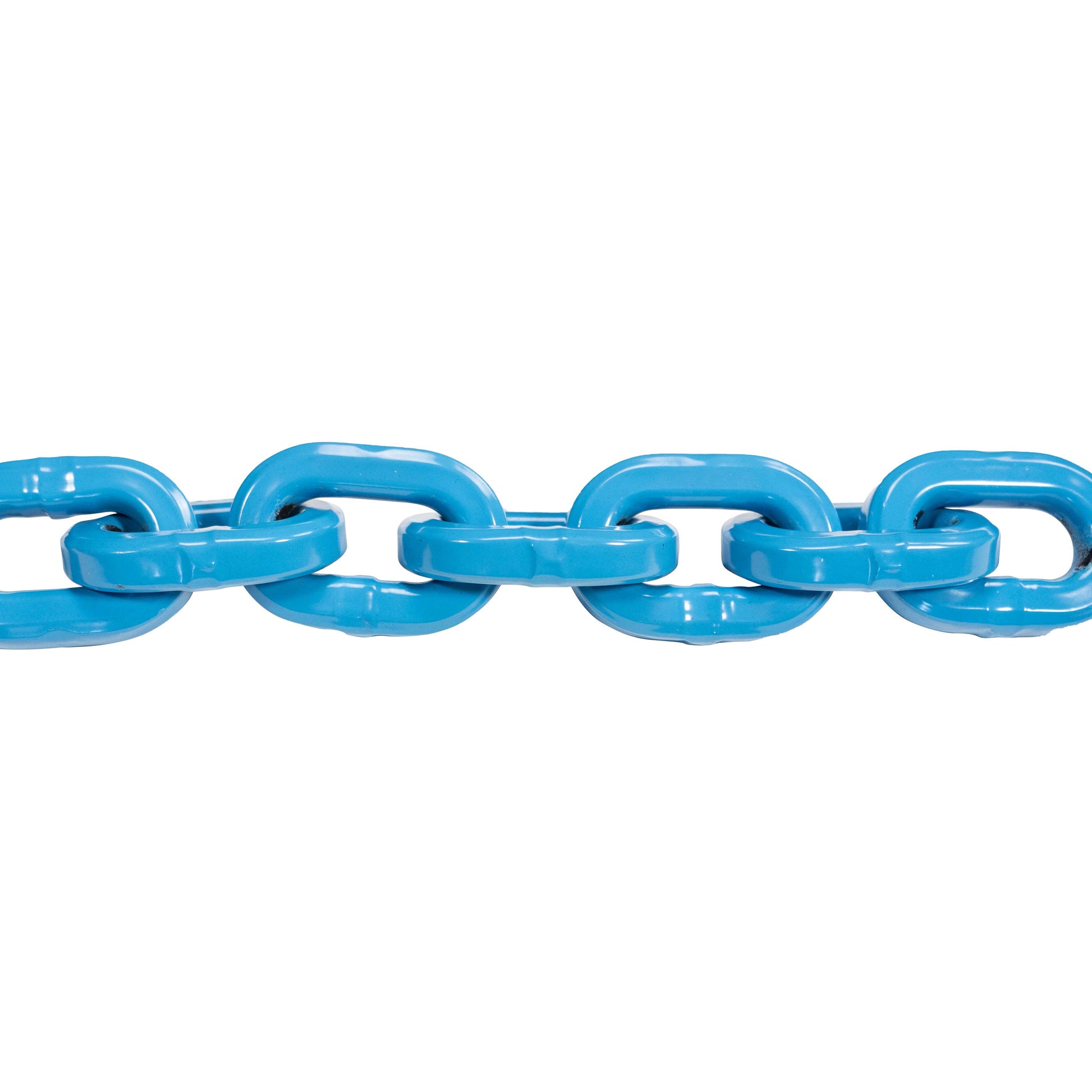

The unique square link design results in a larger contact between the bearing surfaces in the link, reducing surface pressure and wear. The updated profile also has up to 38% higher moment of resistance when compared to traditional round link chain. This means the chain can withstand bending forces better, an excellent feature for heavy duty applications. Offers a design factor of 6:1, compared to a 4:1 factor in lower grades of chain.

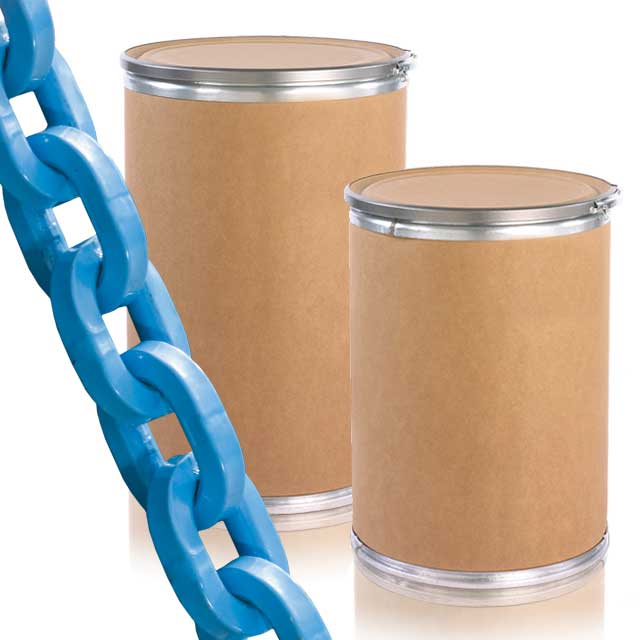

Finished in a blue powder coat for easy identification and corrosion protection. Embossed with 120 or 12 markings to indicate a Grade 120 alloy. Meets or exceeds the G100 NACM/ASTM-test requirements for lifting chains.
California Residents: WARNING
The unique square link design results in a larger contact between the bearing surfaces in the link, reducing surface pressure and wear. The updated profile also has up to 38% higher moment of resistance when compared to traditional round link chain. This means the chain can withstand bending forces better, an excellent feature for heavy duty applications. Offers a design factor of 6:1, compared to a 4:1 factor in lower grades of chain.
Finished in a blue powder coat for easy identification and corrosion protection. Embossed with 120 or 12 markings to indicate a Grade 120 alloy. Meets or exceeds the G100 NACM/ASTM-test requirements for lifting chains.
California Residents: WARNING
Our Grade 120 chain from pewag is 50% stronger than traditional grade 80 chain, but lighter in weight.
The unique square link design results ...
The unique square link design results ...
Our Grade 120 chain from pewag is 50% stronger than traditional grade 80 chain, but lighter in weight.
The unique square link design results in a larger contact between the bearing surfaces in the link, reducing surface pressure and wear. The updated profile also has up to 38% higher moment of resistance when compared to traditional round link chain. This means the chain can withstand bending forces better, an excellent feature for heavy duty applications. Offers a design factor of 6:1, compared to a 4:1 factor in lower grades of chain.
Finished in a blue powder coat for easy identification and corrosion protection. Embossed with 120 or 12 markings to indicate a Grade 120 alloy. Meets or exceeds the G100 NACM/ASTM-test requirements for lifting chains.
California Residents: WARNING
The unique square link design results in a larger contact between the bearing surfaces in the link, reducing surface pressure and wear. The updated profile also has up to 38% higher moment of resistance when compared to traditional round link chain. This means the chain can withstand bending forces better, an excellent feature for heavy duty applications. Offers a design factor of 6:1, compared to a 4:1 factor in lower grades of chain.
Finished in a blue powder coat for easy identification and corrosion protection. Embossed with 120 or 12 markings to indicate a Grade 120 alloy. Meets or exceeds the G100 NACM/ASTM-test requirements for lifting chains.
California Residents: WARNING
specifications
Length:
800'
Overall Width:
1.02"
Working Load Limit:
5,200 lbs.
Product Weight (lbs.):
731
Manufacturer Name:
Pewag
Shipping And Returns:
This item cannot be returned due to safety risks associated with used materials.
Chain Size:
9/32"
Inside Length:
0.87"
Inside Width:
0.39"
Grade:
120
