SKU: WBSS125T-CR
Crosby® Easy-Loc Bolt Type Wide Body Shackle | G-2160E - 125 Ton
Crosby® Easy-Loc Bolt Type Wide Body Shackle | G-2160E - 125 Ton!
Authorized Distributor
SKU: WBSS125T-CR

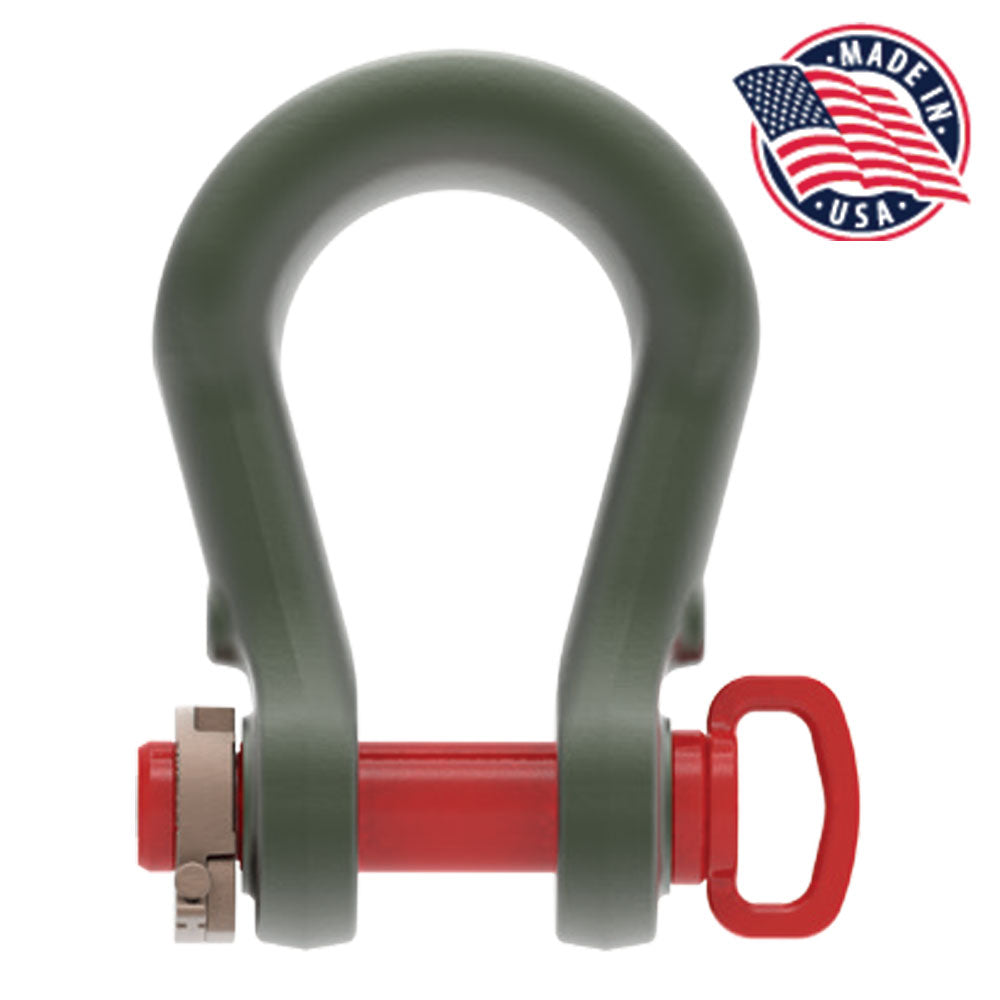

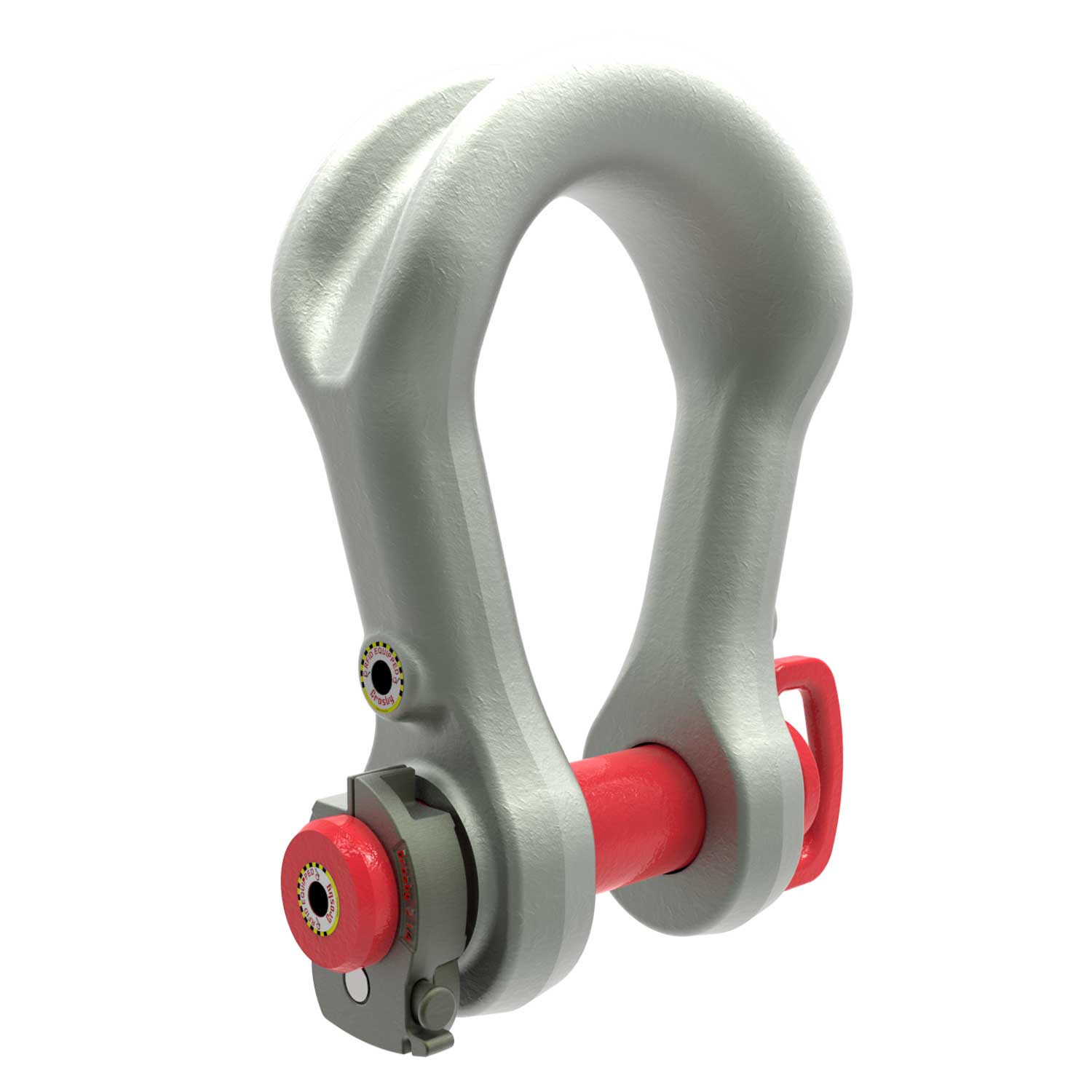

Crosby® Easy-Loc Bolt Type Wide Body Shackle | G-2160E - 125 Ton
Authorized Distributor
$5,903.00
Load Limit:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 125 tons
Brand part number: 1021509
Finish: Dimetcoted
Inside height: 14.36"
Manufacturer name: Crosby®
Material: Forged Alloy Steel
Mouth width: 5.12"
Pin size: 3-5/32"
Product weight: 178 lbs.
Safety factor: 4.5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASTM A148M.
Type: Bolt Type Wide Body
Additional Info: WLL (lbs.): 275,577
Outside width: 15.47"
Outside width: 15.47"
Description
125 Ton Crosby Wide Body Shackles

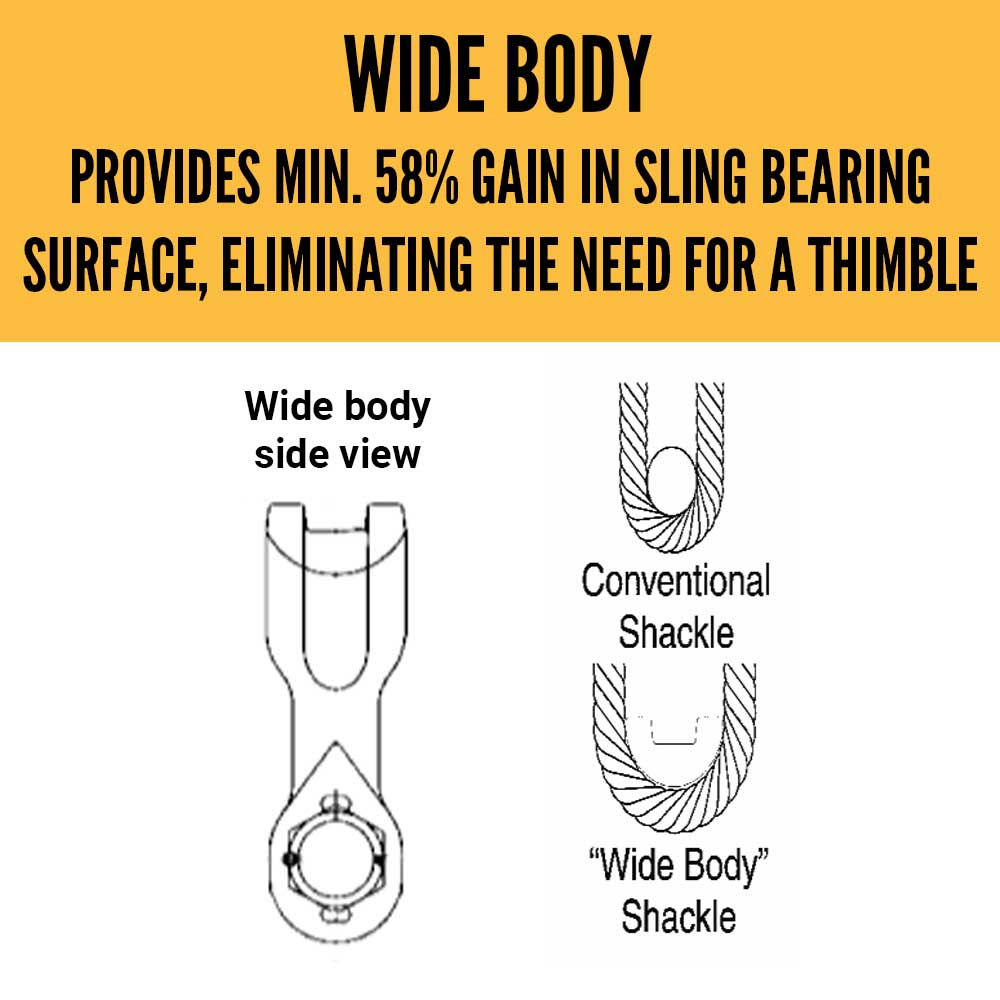

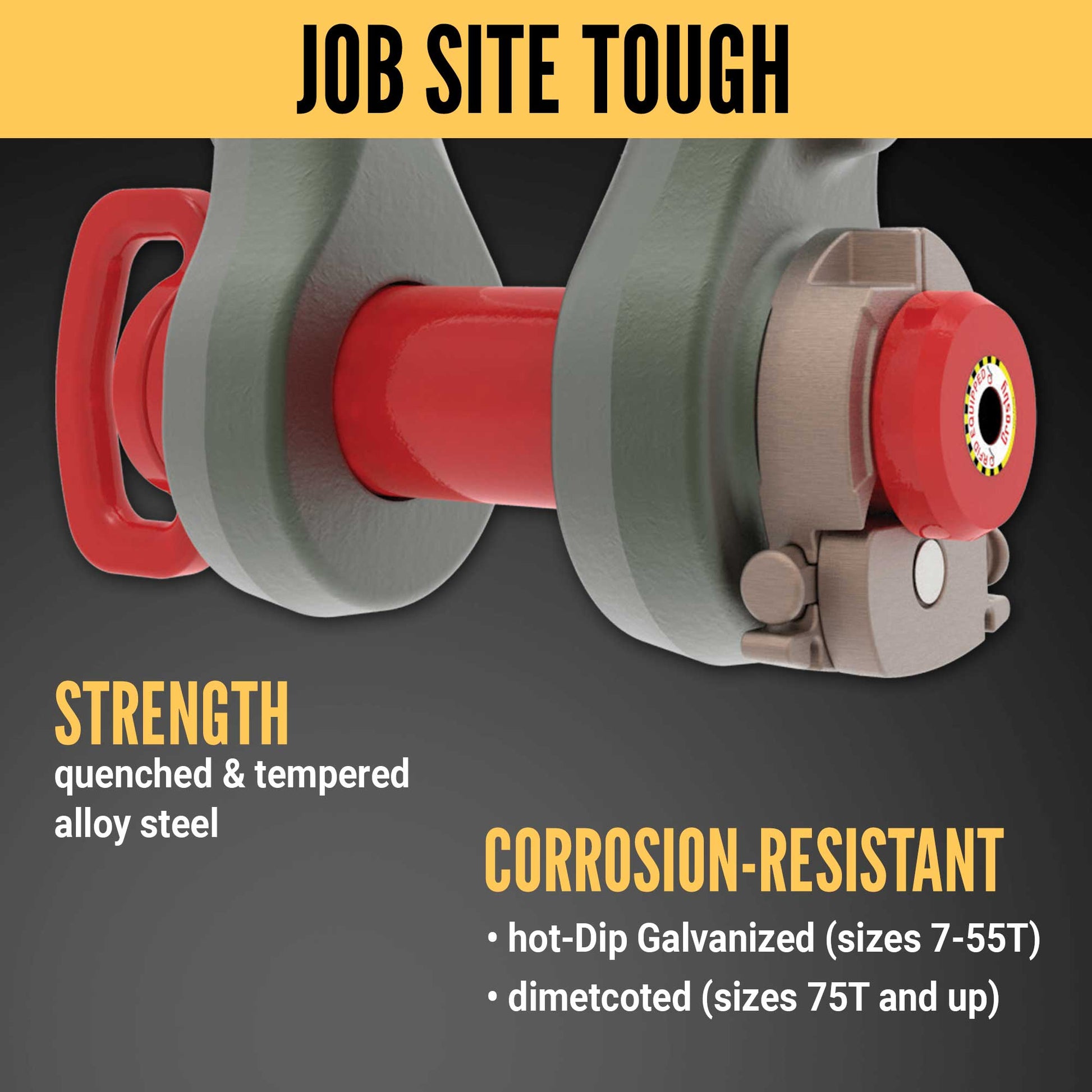

The primary benefit of choosing a G-2160 wide body shackle is the increased bow radius. With at least a 58% increase in sling-bearing surface, the usable sling strength improves by a minimum of 15%! This design also eliminates the need for a thimble. Forged alloy steel components are quenched and tempered for superior strength and the Dimetcoted body and pin finish offer corrosion protection.
These bolt type shackles are best-suited for more permanent installations - for short-term projects, check out our screw pin wide body shackles.
G-2160 Bolt Type Shackle Testing & Certification
These wide body shackles undergo rigorous testing to ensure they can perform. The bolt and bow are certified to meet Charpy impact testing of 42 Joules (31 ft-lb) min. avg. at -4°F (-20°C), and each shackle is individually proof-tested and magnetic-particle inspected. If you need certification for these, please request this when you place your order.
Additionally, Crosby sling shackles have DNV Type Approval to Rules for Certification of Lifting Appliances and are produced in accordance with DNV MSA requirements.
Easy-Loc® Collar and Grip Handle
The innovative Easy-Loc shackle bolt securement system can reduce install and release times by up to 90%! It has an ergonomic design with a wide grip handle for easy access and use. No cotter pins or tools required.
Crosby Shackle Features
- Pin is non-rotating.
- Compatible with synthetic slings and wire rope slings.
- Temperature use range: -40°F / -40°C to 400°F / 204°C.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
California Residents: WARNING
Add the Essentials
Complete your order with these essentials, compatible with:
Crosby® Easy-Loc Bolt Type Wide Body Shackle | G-2160E - 125 Ton
My Cart:
$199
-

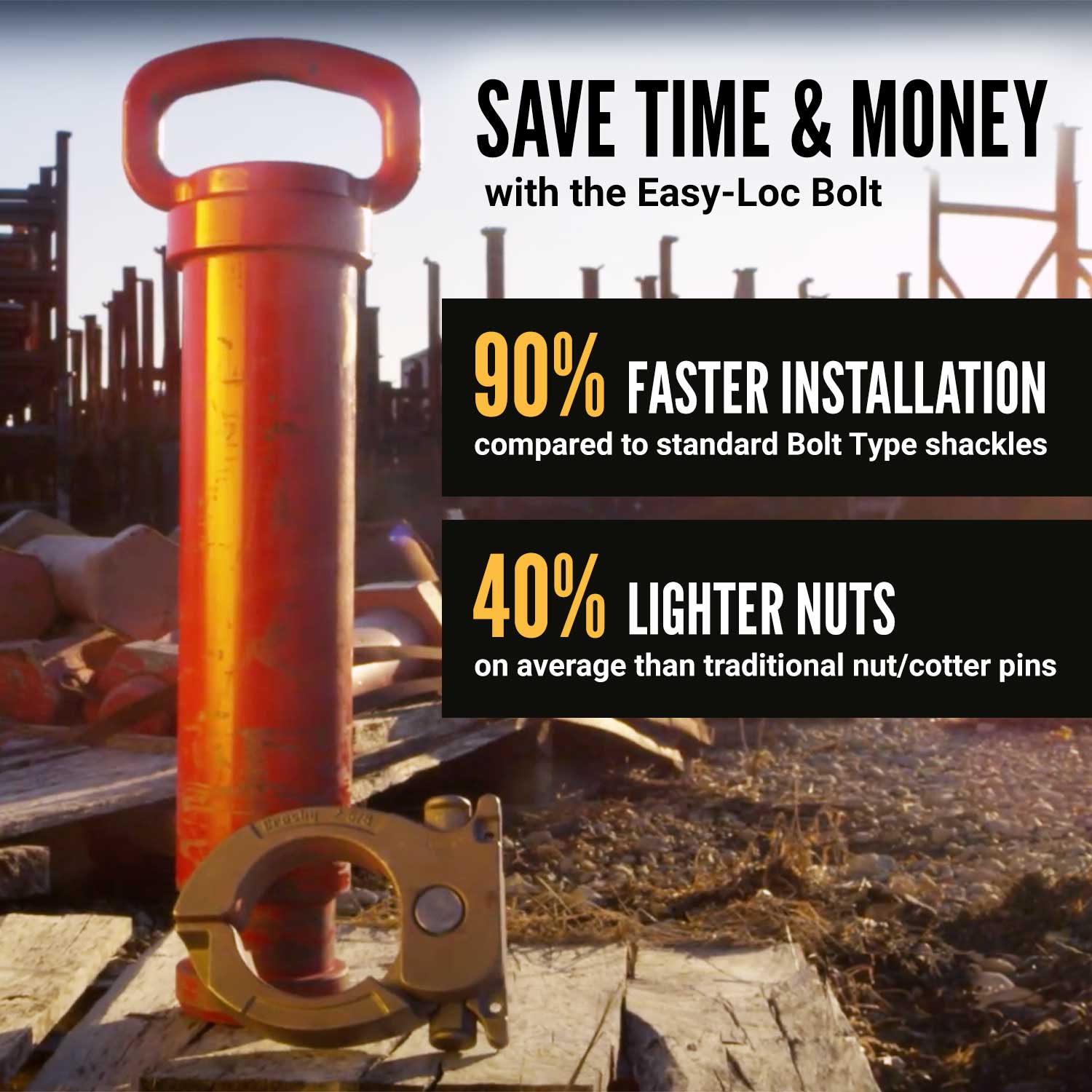

Save Time & Money
Crosby Easy-Loc shackles can be installed 90% faster than standard bolt shackles, saving you both time and money. The nuts are also 40% lighter than traditional nuts with cotter pins.
-

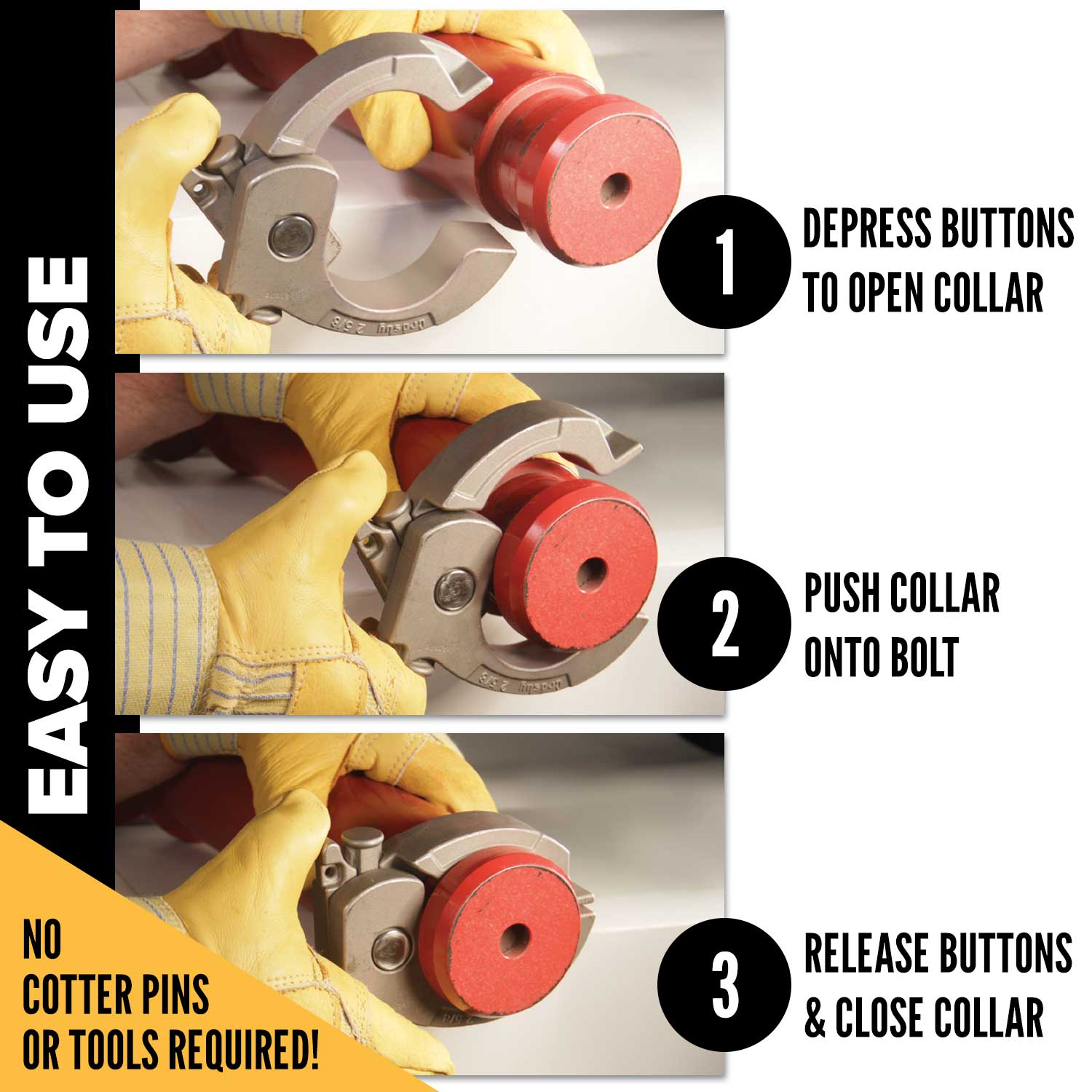

Easy to Use
The innovative bolt securement system can be installed in just 3 easy steps. Simply remove the bolt collar, slide pin in, and engage collar back into place. No tools or cotter pins required.
-

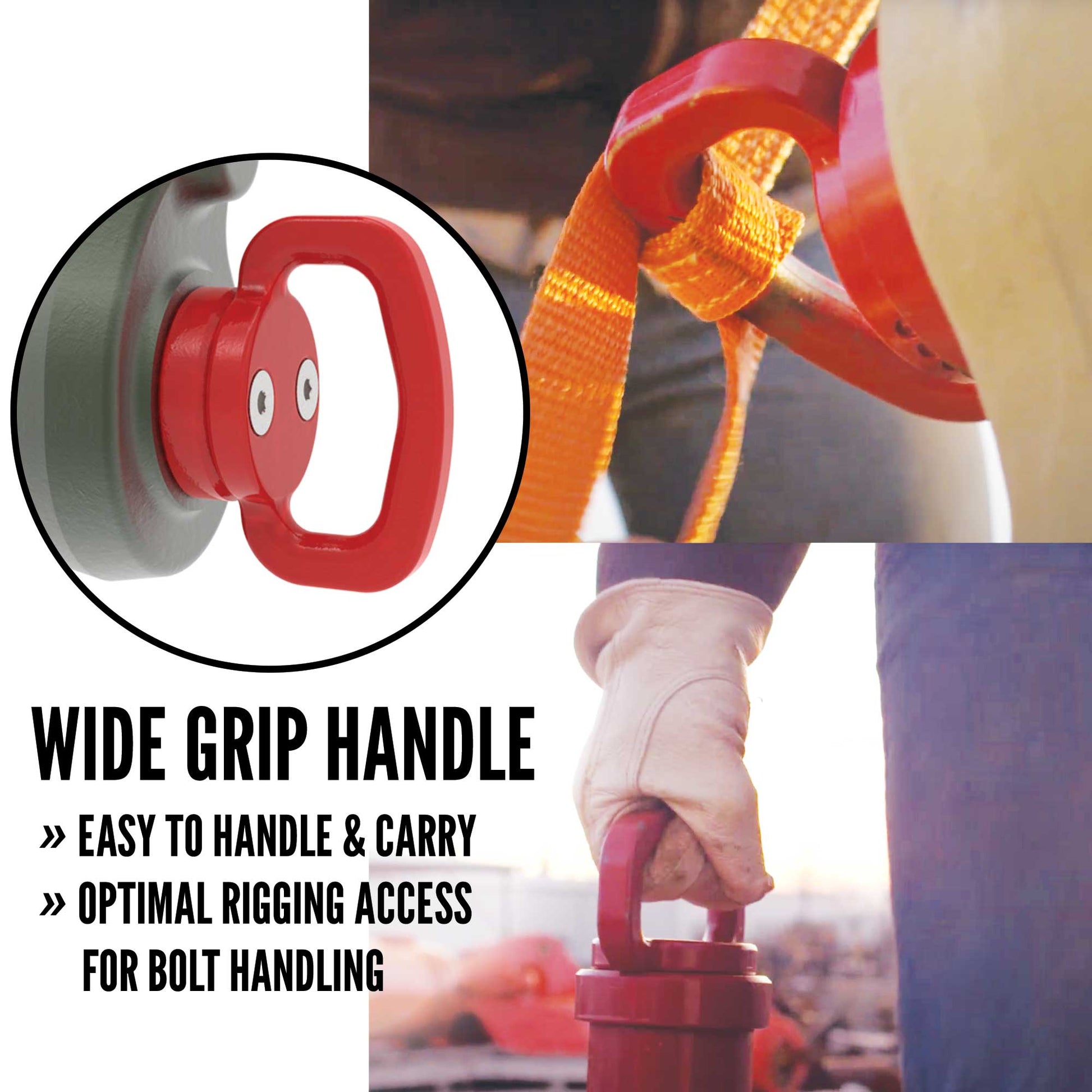

Easy-Carry Handle
The wide-grip, ergonomic handle makes the pin easy to handle and install into the shackle. The oversize design also provides optimal rigging access for bolt handling.
-
