SKU: SPCS34-CR
3/4" Crosby® Screw Pin Chain Shackle | G-210 - 4.75 Ton
3/4" Crosby® Screw Pin Chain Shackle | G-210 - 4.75 Ton!
Authorized Distributor
$59.10
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 4.75 tons (Metric) / 10,471 lbs.
Brand part number: 1019276
Finish: Galvanized
Inside height: 2.4"
Inside width: 1.25"
Manufacturer name: Crosby®
Material: Carbon Steel Shackle
Alloy Pin
Alloy Pin
Mouth width: 1.25"
Pin size: 7/8"
Product weight: 2.6 lbs.
Safety factor: 6:1
Shackle size: 3/4"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Screw Pin Chain
Description
Crosby® 4.75 Ton Screw Pin Chain Shackles
The straight design of a chain shackle makes it the best choice for applications involving two-directional pulls. Multiple-load direction pulls can stress the sides and increase the risk of failure (use a bow or anchor shackle in these situations).The screw pin also allows for quick connect and disconnecting, making it great for temporary use or an attachment that requires repeated changes.
The USA-made Crosby forged steel shackle is quenched and tempered for superior strength and comes with an alloy pin.
This screw pin chain shackle is designed to perform. They can meet DNV impact requirements of 42 Joules (31 ft-lb) at 4°F / -20°C upon request, and can be furnished with proof-testing certificates to designated standards, such as DNV, ABS, Lloyds, etc. If you want this certification, please call to order and request the applicable testing.
G-210 Shackle Features

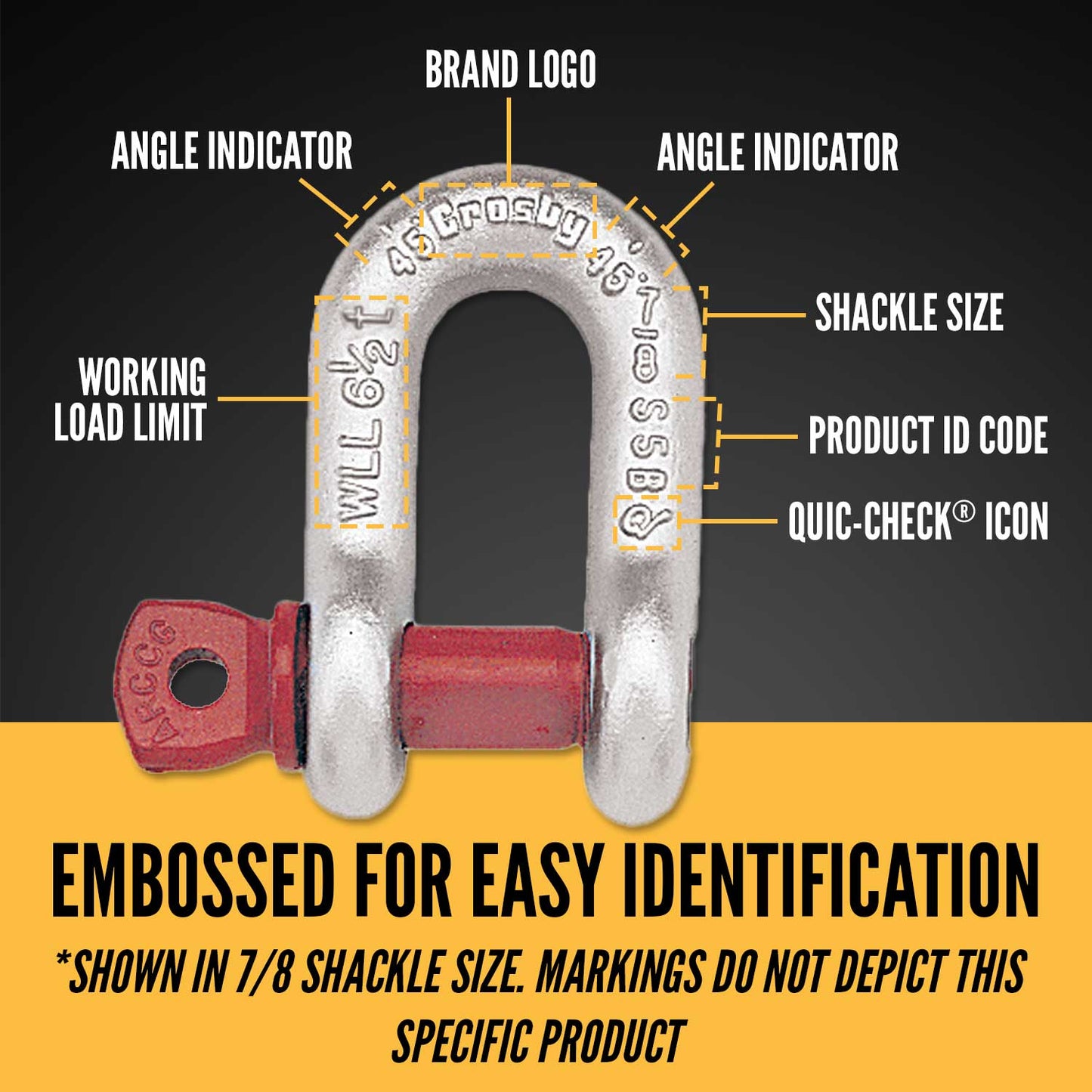

- Working load limit, Grade 6, PIC, and Crosby name on every shackle.
- Fatigue rated to 20,000 cycles at 1-1/2 times the WLL.
- Meets performance requirements of Grade 6 shackles.
- Approved for use at temperatures between -40°F / -40°C and 400°F / 204°C.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
